Vertical Injection Molding Machine Plastic Thermosetting Bakelite 45 Ton Injection Molding Machine Price Thermosetting Bakelite
- Category: >>>
- Supplier: Guangdong Min-Hui Intelligent Equipment Co. Ltd.
Share on (1600433301615):
Product Overview
Description
Product Details

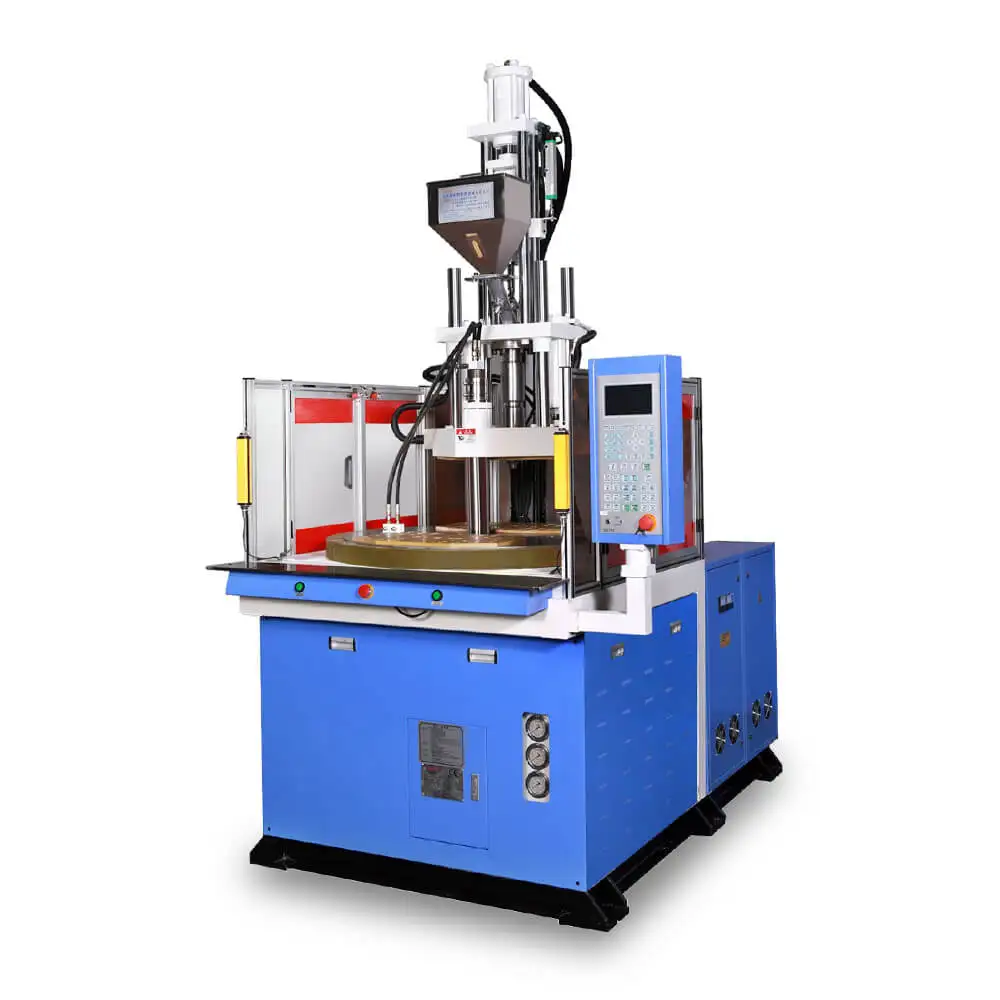

Thermosetting ( Bakelite ) Injection Molding Machine 45T
Research and development for many years manufacturing experience, stable, high efficient performance stand on the market.
Details Images
Product Paramenters
MODEL | UNIT | MHDM-45T | ||||
INJECTION UNIT | Screw Diameter | mm | 26 | 28 | ||
Theoreticallnjection Volume | cm3 | 68.9 | 80 | |||
lnjection Weight | g/oz | 82.4(2.9) | 95.6(3.3) | |||
Max.Injection Pressure | Mpa(kgf/cm2) | 207(2111) | 178(1815) | |||
lnjection Rate | cm 3/s | 66 | 77 | |||
Injection Speed | mm/s | 126 | ||||
Screw Rotation Speed | rpm | 0-240 | ||||
Nozzle Out From Platens | mm | ≥45 | ||||
CLAMPING UNIT | Clamping Force | KN(tf) | 441(45) | |||
Clamping Stroke | mm | 200 | ||||
Min.Mold Thickness | mm | 150(200) | ||||
Max.Opening | mm | 350(400) | ||||
Distance Between Tie Bars（H*V) | mm | 410*250 | ||||
Max.Mould Size（L*W) | mm | 400*350 | ||||
Ejector Distance | mm | 40 | ||||
Ejector Force | KN(tf) | 26.5(2.7) | ||||
OTHERS | System Pressure | Mpa(kgflcm2) | 13.7(140) | |||
Oil Tank Capacity | L | 200 | ||||
Motor Power | KW(HP) | 7.5(10) | ||||
Machine Dimensions | LxW×H(m) | 1.7*1.4*2.8 | ||||
Machine Weight | tf | 2.1 | ||||
Our Factory
Industry Applications
Exhibition
PACKAGING LOGISTICS
FAQ
Are you a manufacturer or Trade Company?
We are a professional vertical injection machinery manufacturer
We are a professional vertical injection machinery manufacturer
Under normal circumstances, the following information must be collected before purchasing a vertical injection molding machine,
and the more detailed, the better.
1. Mold size (length, width, and height), weight, exceptional design, etc., mold guide post-stroke, with or without hot runner and
thimble device.
2. The characteristics of using plastics.
3. The size and weight of the injection product.
4. Molding requirements, including the production cycle of a few (a few holes in a mold), product quality requirements, product
appearance, size requirements, etc.
What is the clamping force of Min-Hui vertical injection molding machines?
The clamping force of the product ranges from 15 tons to 500 tons.
What industries can use Min-Hui vertical injection molding machines?

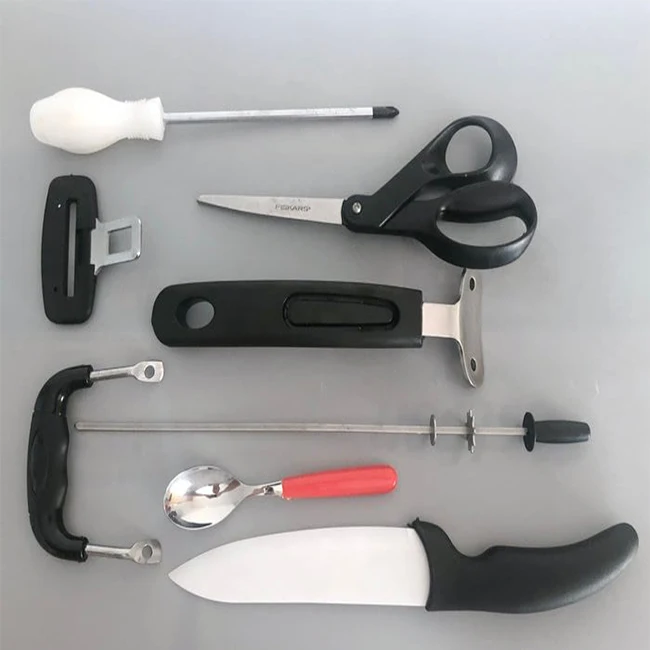

Automobile manufacturing, medical equipment industry, cosmetics industry, knives, sanitary ware, furniture, toys, daily

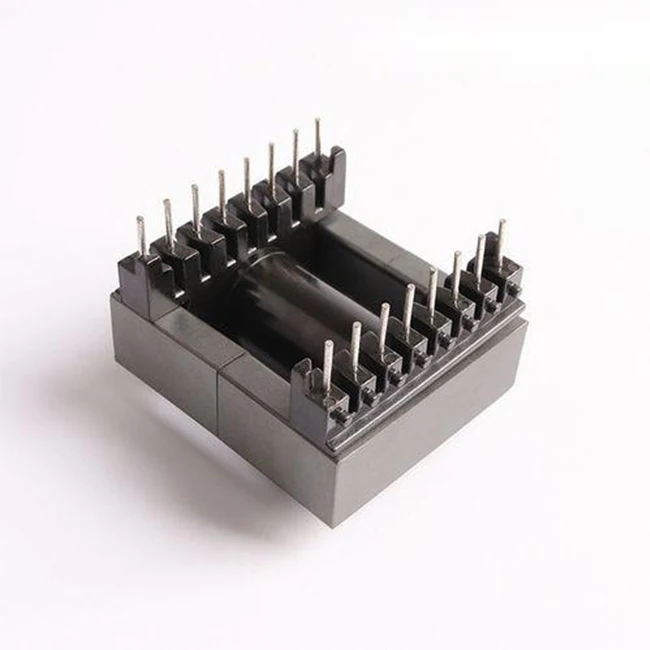

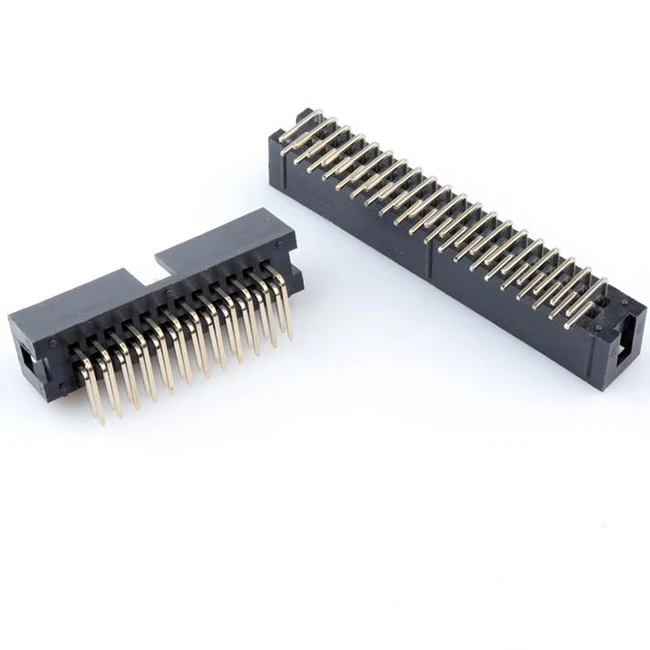

necessities, baby products, electronic connectors, optical lenses, backlight boards, watch movement gears, shoe soles, color
plates, hoses, rigid tubes, etc. Production of plastic products in various industries.
necessities, baby products, electronic connectors, optical lenses, backlight boards, watch movement gears, shoe soles, color
plates, hoses, rigid tubes, etc. Production of plastic products in various industries.
