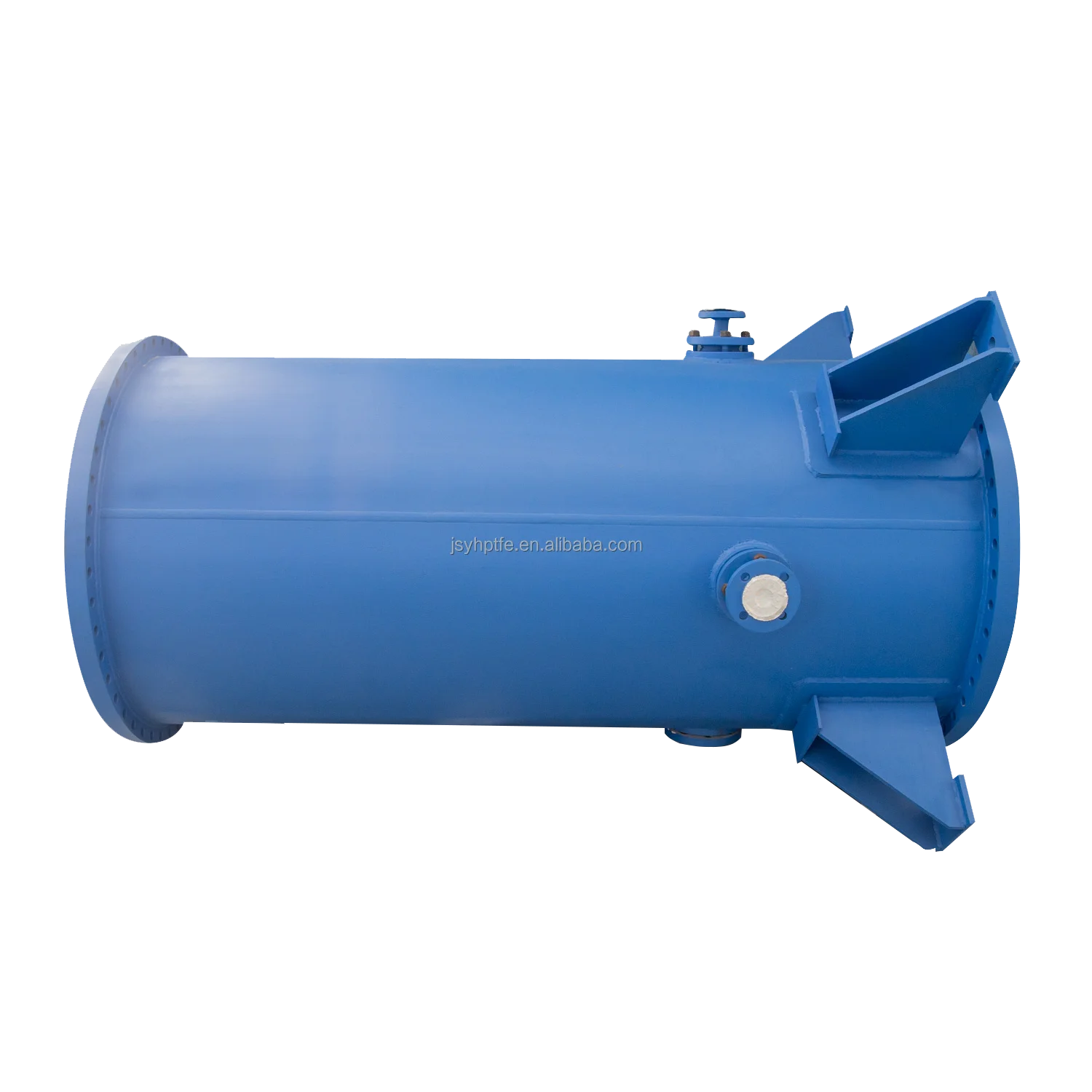

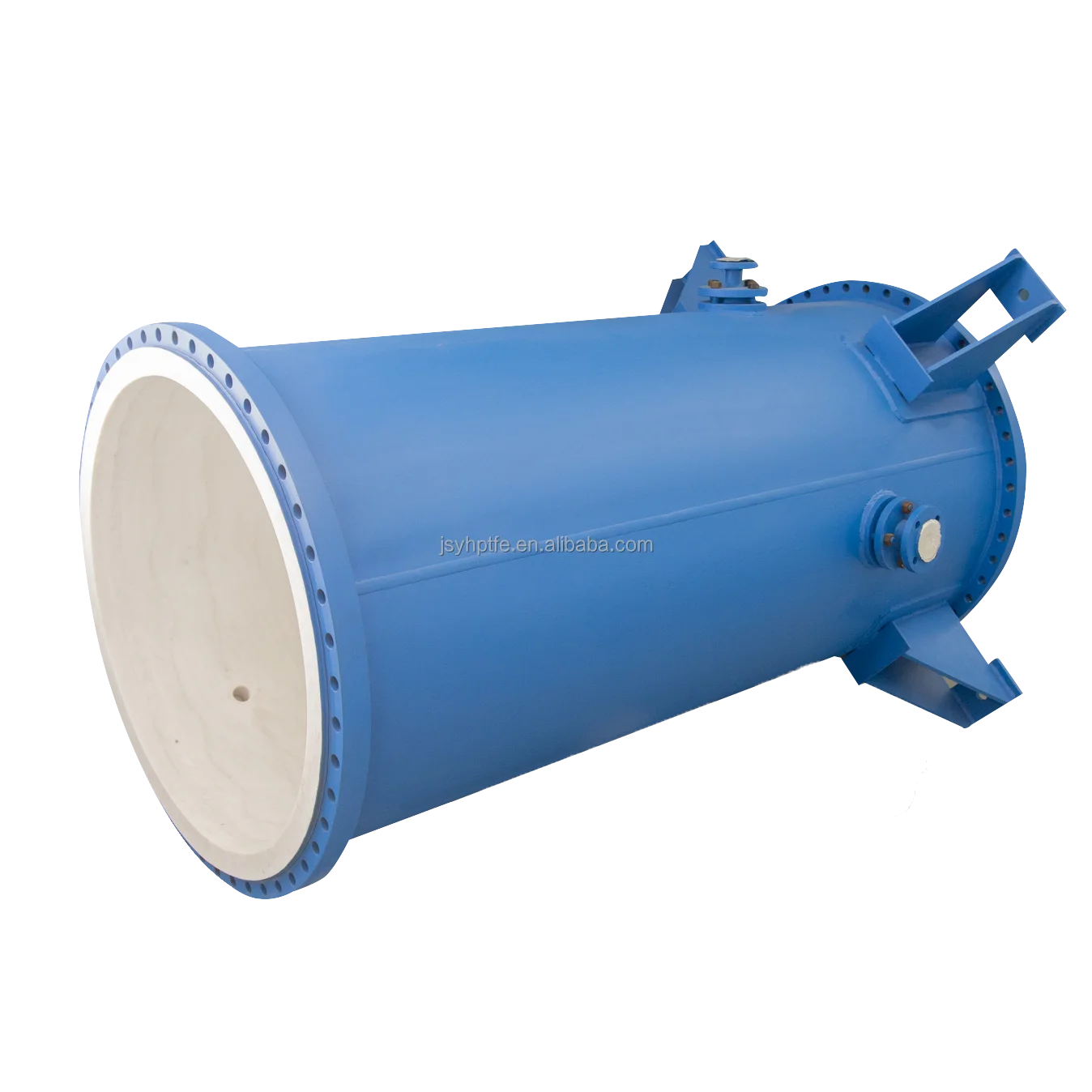

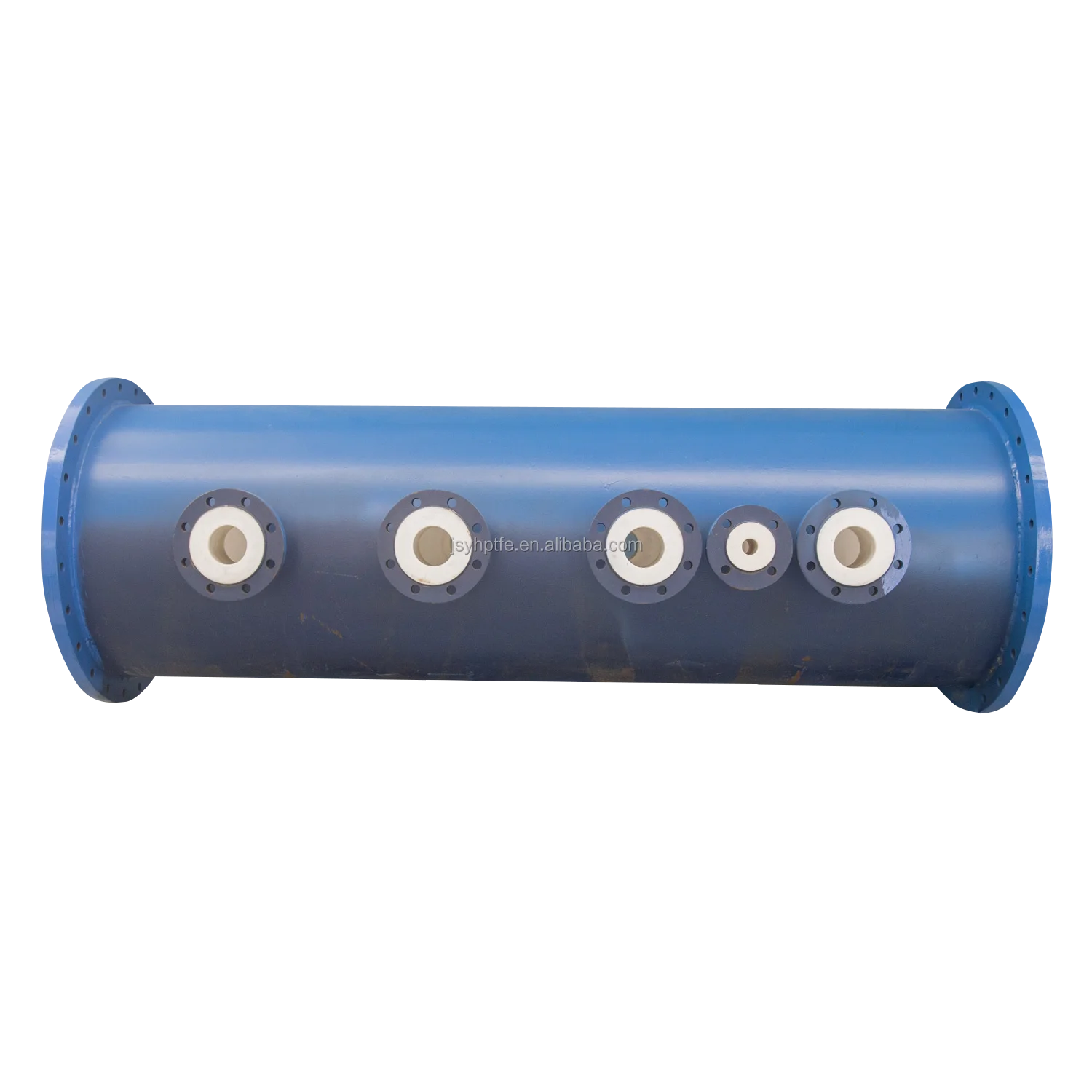

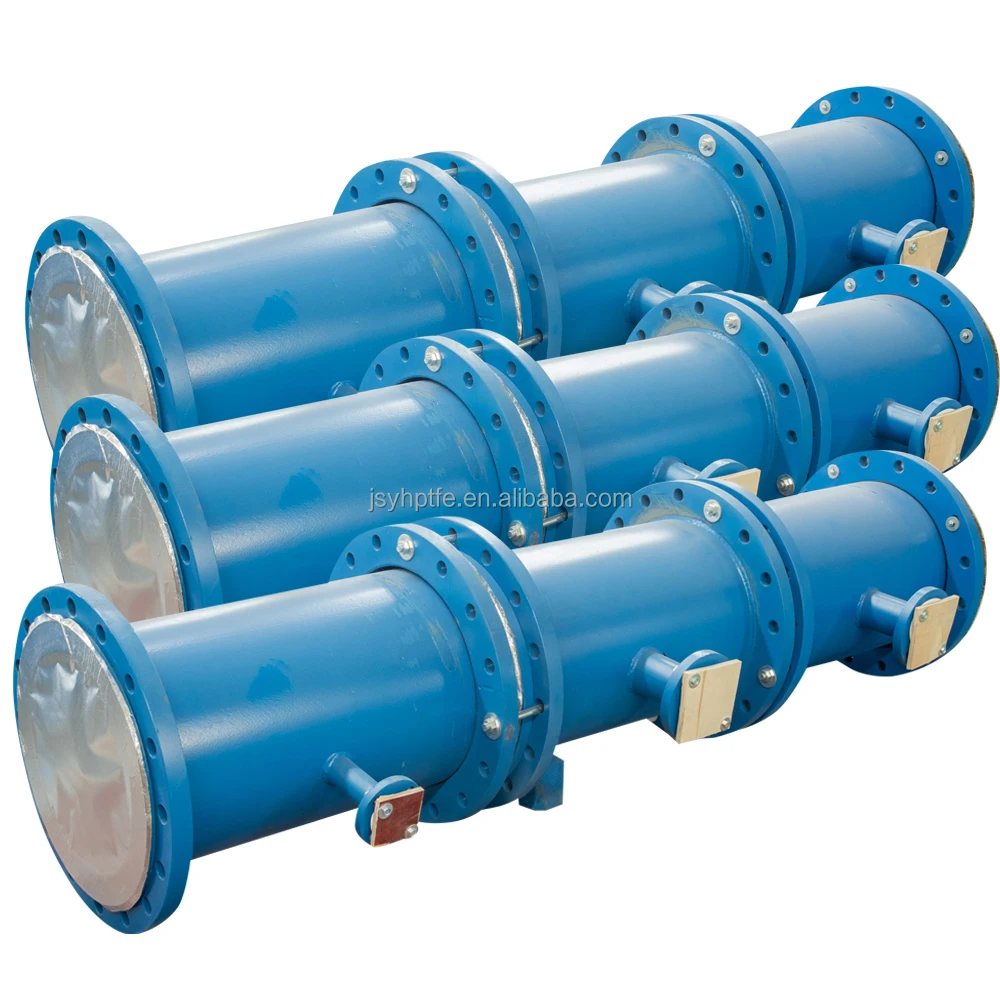

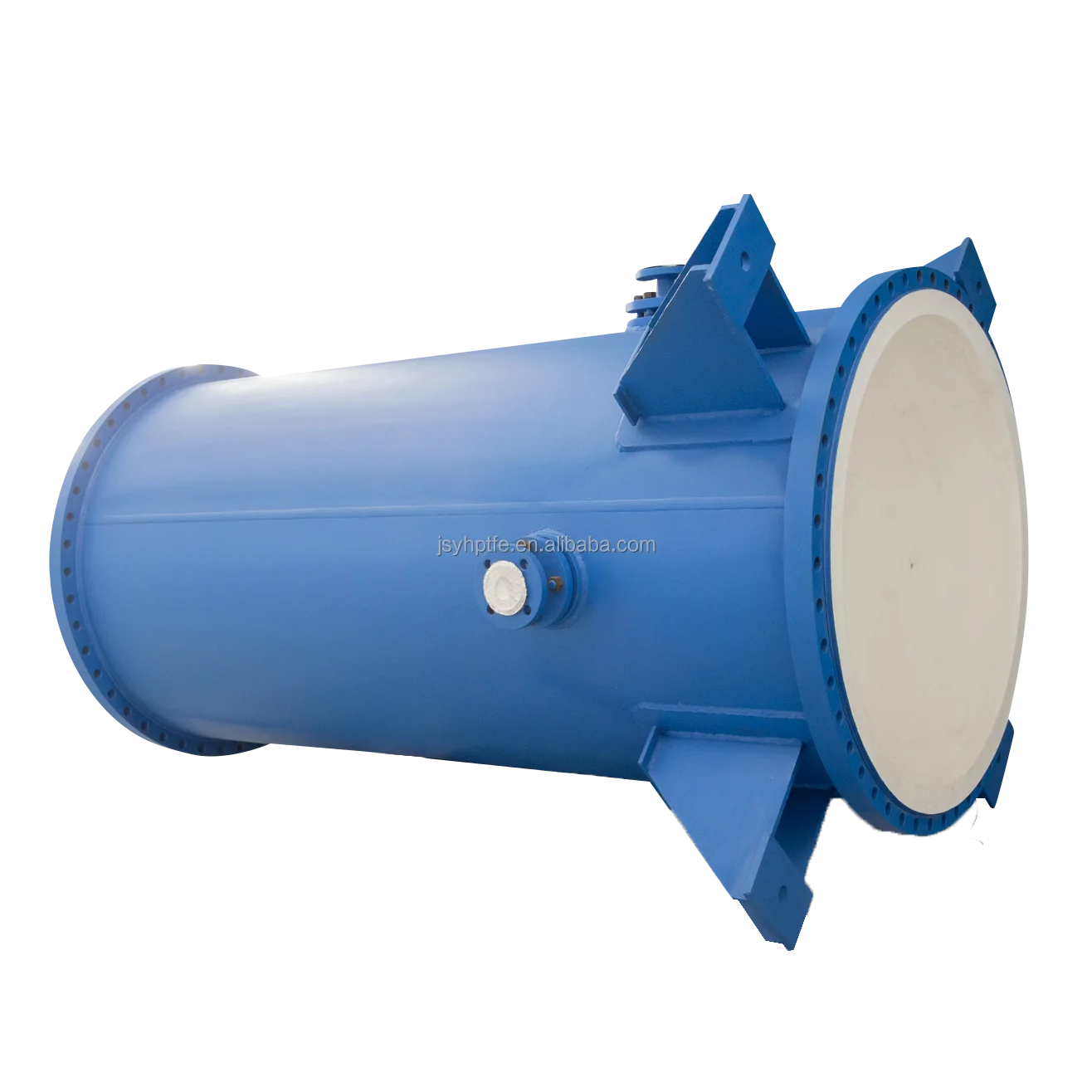

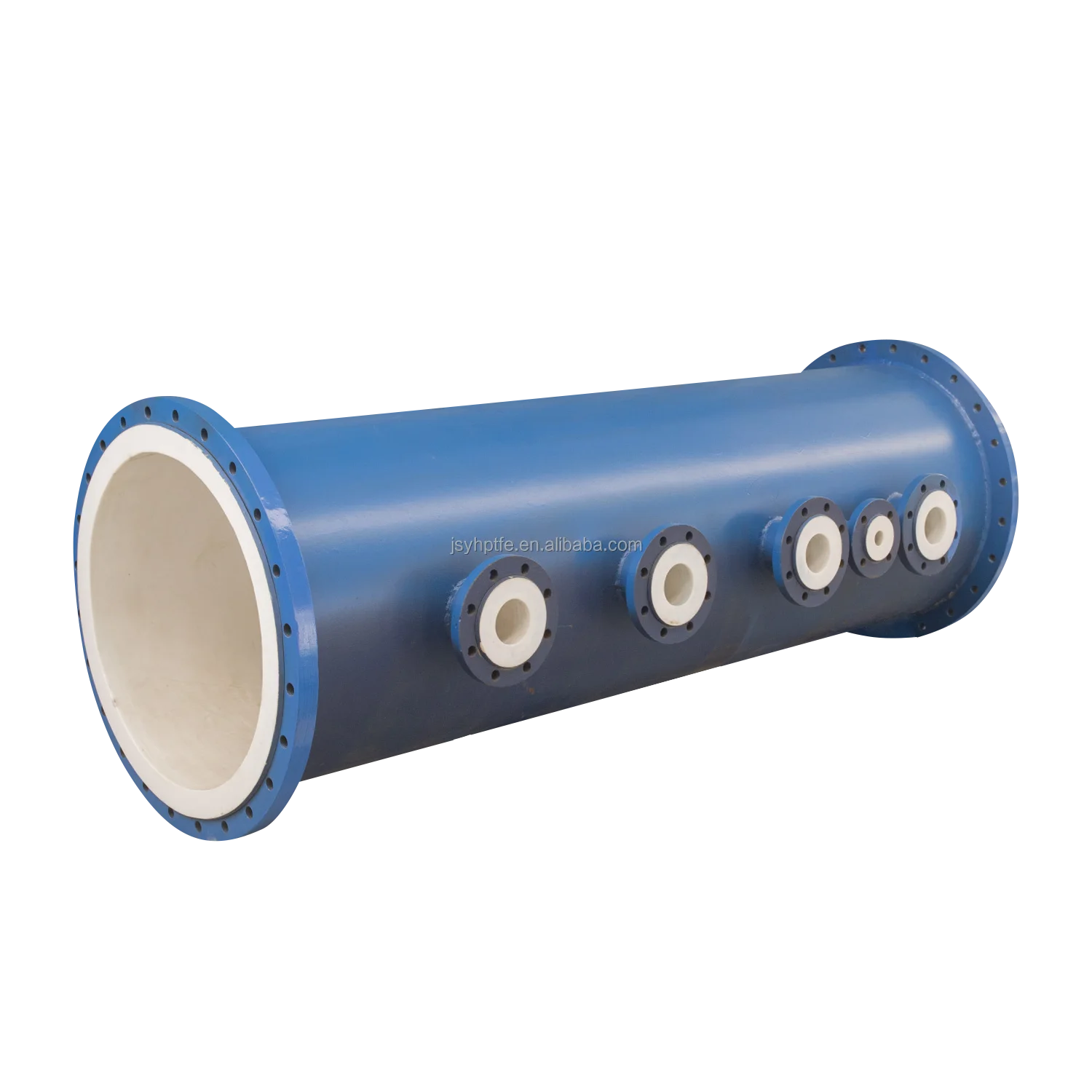

Customized shape PTFE lined with different materials PTFE PFA Fittings for moving or storing highly corrosive fluids
- Category: >>>
- Supplier: Jiangsu Yihao Fluorine Plastic Manufacturing Co. Ltd.
Share on (1600433336287):
Product Overview
Description
Product Description
PTFE Lining – Pipes & Tanks
PTFE is the most commonly used fluropolymer lining material, although other materials such as FEP, PFA, ECTFE, PVDF are also available.
PTFE lined pipes and tanks provide a long-term cost-effective solution in applications that operate under severe conditions that involve moving or storing highly corrosive fluids. PTFE lining is chemically inert and resists many corrosive fluids operating under high pressure or high temperatures up to 230°C. The lining materials achieve this whilst utilising the structural strength of the pipe material.
The benefits of using PTFE is to give pipes a long life-span whilst managing the risk of catastrophic failure. Any failure could result in damage to the pipe and surroundings, resulting in high pipe replacement costs, processing downtime and most importantly OH&S issues by exposing people to corrosive fluids such as acids.
Metal pipes such as carbon steel or stainless steel will corrode over time when conveying aggressive liquids such as acids. To protect metal pipes from corrosion, a PTFE lining is manufactured to fit tightly inside the pipe.
PTFE Lining Process
Fluoro Pacific provides PTFE lined pipes to customer specifications. The process to manufacture involves a PTFE cylinder being heated, extruded (stretched) and inserted into a pipe. Most often the PTFE tube is of a greater diameter than the pipe and being a thermoset plastic will revert to size or as much as the metal pipe will allow when tension is released, thereby giving a tight immovable fit. The additional PTFE rod length allowed at either end undergoes flaring with the PTFE heated and compressed against the face of the pipe flange. Metallic bolts then compress two flared edges to create a tight seal to increase pipe length or to other metal surfaces
PTFE Lined Pipe Products
PTFE lined pipe, PTFE elbows, PTFE tee, PTFE reducers, bellows, spacers, flanges, PTFE solid pipes and bespoke designs.
PTFE Applications
Our range of PTFE lined pipes are used in various industries such as Chemicals, Refineries, Pesticides, Petrochemicals, Steel, Food-Processing, Beverages, Alcohols and Acids, Pharmaceuticals, Circuit Breakers, Fertilisers, Desalination.
PTFE lined pipes and tanks provide a long-term cost-effective solution in applications that operate under severe conditions that involve moving or storing highly corrosive fluids. PTFE lining is chemically inert and resists many corrosive fluids operating under high pressure or high temperatures up to 230°C. The lining materials achieve this whilst utilising the structural strength of the pipe material.
The benefits of using PTFE is to give pipes a long life-span whilst managing the risk of catastrophic failure. Any failure could result in damage to the pipe and surroundings, resulting in high pipe replacement costs, processing downtime and most importantly OH&S issues by exposing people to corrosive fluids such as acids.
Metal pipes such as carbon steel or stainless steel will corrode over time when conveying aggressive liquids such as acids. To protect metal pipes from corrosion, a PTFE lining is manufactured to fit tightly inside the pipe.
PTFE Lining Process
Fluoro Pacific provides PTFE lined pipes to customer specifications. The process to manufacture involves a PTFE cylinder being heated, extruded (stretched) and inserted into a pipe. Most often the PTFE tube is of a greater diameter than the pipe and being a thermoset plastic will revert to size or as much as the metal pipe will allow when tension is released, thereby giving a tight immovable fit. The additional PTFE rod length allowed at either end undergoes flaring with the PTFE heated and compressed against the face of the pipe flange. Metallic bolts then compress two flared edges to create a tight seal to increase pipe length or to other metal surfaces
PTFE Lined Pipe Products
PTFE lined pipe, PTFE elbows, PTFE tee, PTFE reducers, bellows, spacers, flanges, PTFE solid pipes and bespoke designs.
PTFE Applications
Our range of PTFE lined pipes are used in various industries such as Chemicals, Refineries, Pesticides, Petrochemicals, Steel, Food-Processing, Beverages, Alcohols and Acids, Pharmaceuticals, Circuit Breakers, Fertilisers, Desalination.
item | PTFE lined Tees |
Standard | JIS, ASTM, GB, DIN |
Place of Origin | Jiangsu China |
Brand Name | Yihao |
Model Number | P-Y8816 |
Type | Seamless |
Steel Grade | 300 Series |
Application | Construction fluid transportation |
Certification | ISO9001 |
Welding Line Type | ERW |
Tolerance | ±2% |
Processing Service | Welding, Moulding |
Grade | SS304 Carbon steel |

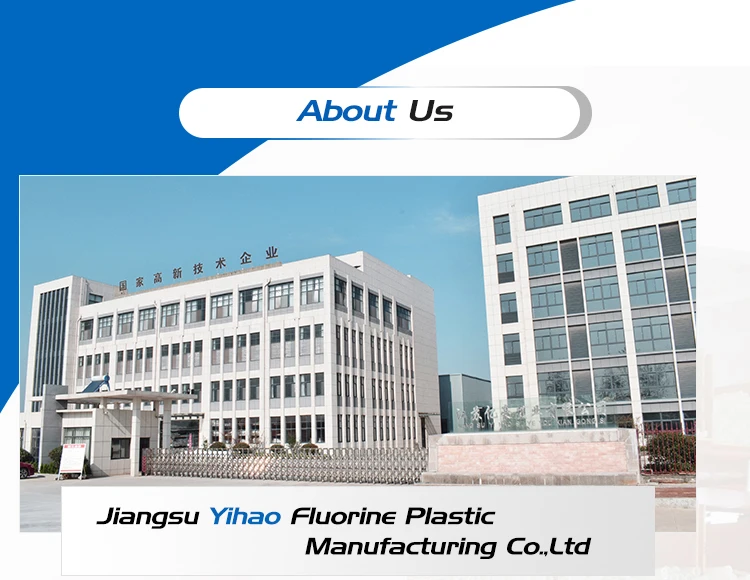

Company Profile
Jiangsu Yihao Fluorine Plastic Manufacturing Co.,Ltd
For nearly 20 years, Jiangsu Yihao Fluorine Plastic Manufacturing Co.,Ltd. has been the China's leading supplier of PTFE piping systems. We offer ptfe pipes, sheets, rods, gasket sheets, pall rings, ladder rings, rasching rings, eye rings . As we look forward we have expanded our range to include PTFE lined Stainless Steel, Carbon Steel pipes and fittings, elbows, tees, Cross, Valves, ptfe hose together with a comprehensive selection of installation tools and fixings. We provide levels of service which are un-matched in our industry, backed by a quality system accredited to ISO 9001 - 2015. With strong technical force, there are more than 20 middle and senior technicians in postgraduate and undergraduate. The design adopts the most advanced Japanese technology, and PTFE pipe achieves the largest domestic production capacity and the most complete specifications. The pipes produced by Yihao are mainly used in the fields of machinery, chemical industry, aviation, electrical and electronics, national defense industry, cutting-edge technology, medical and electrical insulation and electrical insulation. The existing PTFE tube, PTFE board and PTFE shell , PTFE gaskets, PTFE rods and other products, and has the ability to develop and produce various PTFE
products. Excellent products are praised by customers at home and abroad.
products. Excellent products are praised by customers at home and abroad.
Most of the pipes designed and developed by Jiangsu Yihao Fluorine Plastic Manufacturing Co.,Ltd. are mostly supplied by OEMs to the UK, France, the United States, Germany and many other companies. The factory is located in Yancheng, the beautiful coast of the Yellow Sea. Founded in 2007, it has 150 sets of special equipment and 100 special pipelines. The factory continues to operate in ISO9001:2015 quality system.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2013,sell to Domestic Market(00.00%),Africa(00.00%),Eastern Asia(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fluoroplastic Pipe,PTFE Pall Ring,PTFE Rasching Ring,PTFE Ladder Ring,Steel Lining PTFE Pipes
4. why should you buy from us not from other suppliers?
We mainly produces all kinds of PTFE lined pipes and fittings, PTFE lined tank, tower vessels and ptfe lined globe valve .All kinds of Teflon pipes, gaskets, rasching ring and other fillers; all kinds of PTFE lined tube,elbow,tees, stainless steel lined
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,DDP；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
We are based in Jiangsu, China, start from 2013,sell to Domestic Market(00.00%),Africa(00.00%),Eastern Asia(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fluoroplastic Pipe,PTFE Pall Ring,PTFE Rasching Ring,PTFE Ladder Ring,Steel Lining PTFE Pipes
4. why should you buy from us not from other suppliers?
We mainly produces all kinds of PTFE lined pipes and fittings, PTFE lined tank, tower vessels and ptfe lined globe valve .All kinds of Teflon pipes, gaskets, rasching ring and other fillers; all kinds of PTFE lined tube,elbow,tees, stainless steel lined
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,DDP；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
