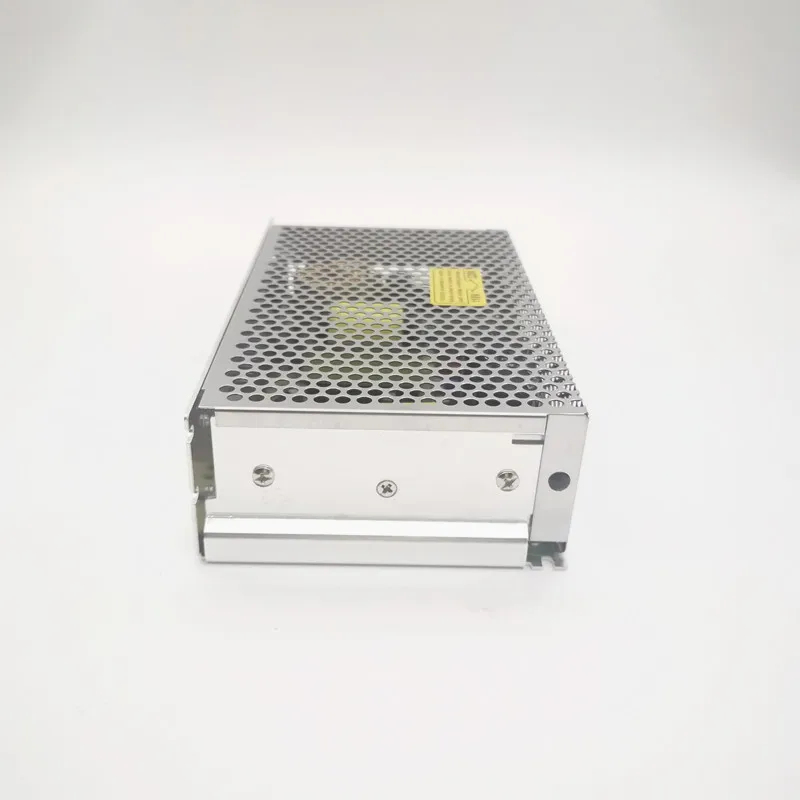

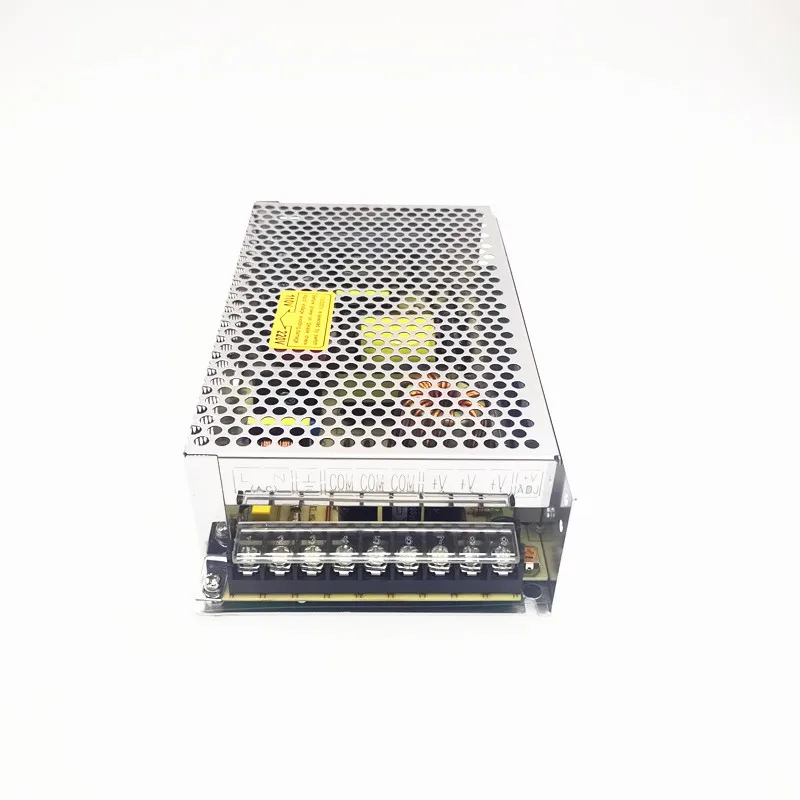

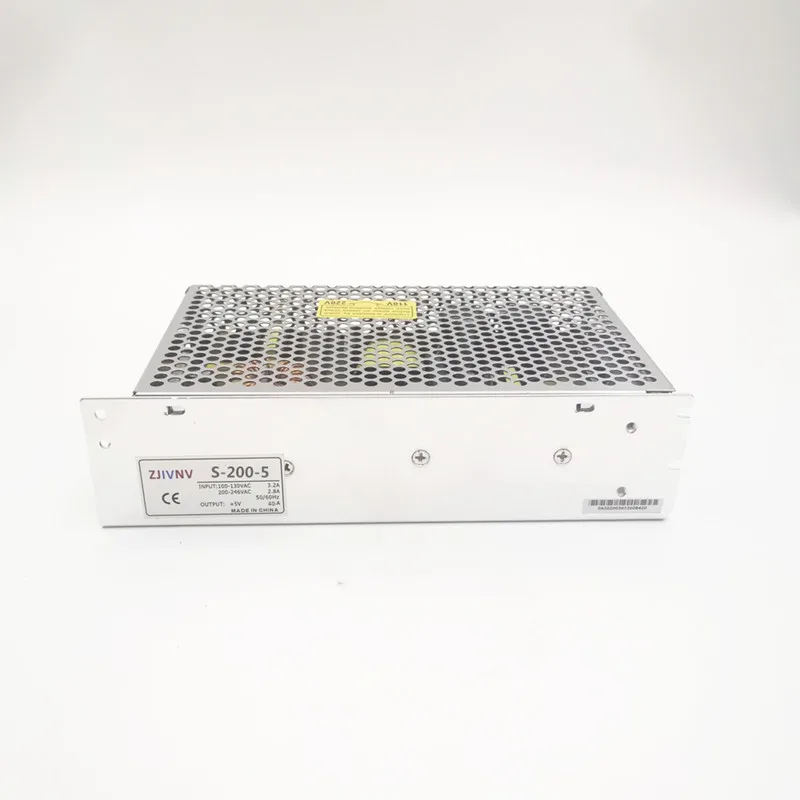

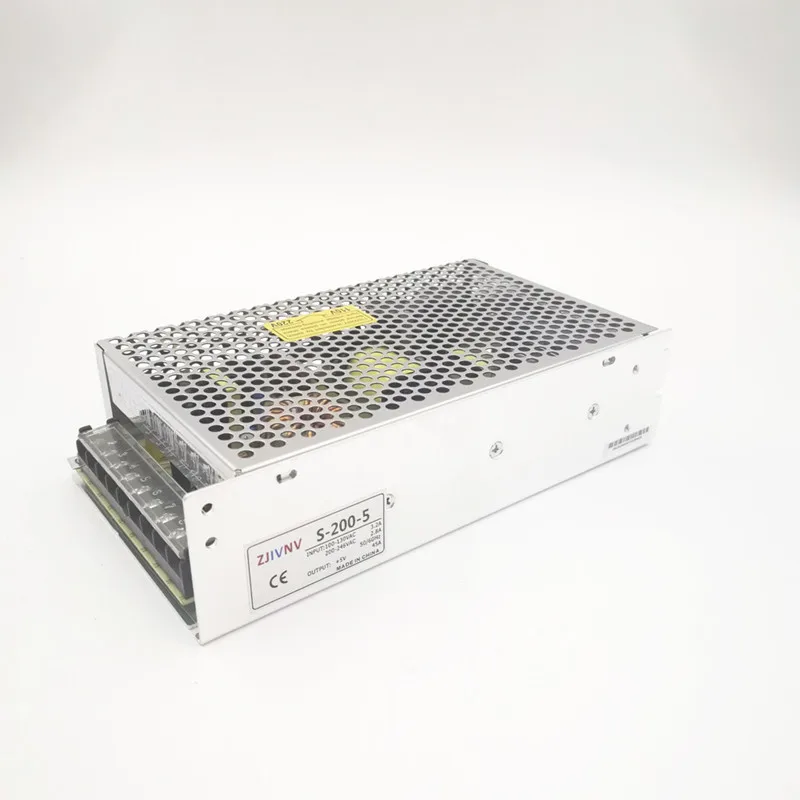

Whole sales 5V 40A 200W SMPS led single output switching power supply 5v CE RosH approved 110/220vac input S 200 5
- Category: >>>
- Supplier: Yueqing Zhijiu Electric Co. Ltd.
Share on (1600433365044):
Product Overview
Description
Products Description
Advantage:
Low price and high reliability
Universal AC input
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effectively
With short-circuit and overload protection
Compact size,light weight
100% full-load burn-in test
Install with EMI filter,minimum wave
Can replace Mean well power supply
Universal AC input
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effectively
With short-circuit and overload protection
Compact size,light weight
100% full-load burn-in test
Install with EMI filter,minimum wave
Can replace Mean well power supply
Model | S-200-5 | S-200-12 | S-200-24 | S-200-27 | S-200-48 | |||||
DC output voltage | 5V | 12V | 24V | 27V | 48V | |||||
DC output current | 40A | 16.5A | 8.3A | 7.4A | 4.2A | |||||
Wave and noise | 120mVp-p | 150mVp-p | 180mVp-p | 180mVp-p | 200mVp-p | |||||
Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |||||
Load stablity | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |||||
Efficiency | 78% | 80% | 82% | 82% | 83% | |||||
Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% | ±10% | |||||
AC input voltage range | 90~132VAC 180~264VAC 47~63Hz 255~373VDC | |||||||||
AC Impact current | Cold-start current 30A/230V | |||||||||
Overload proctection | 115%-150% constant current，auto-recovery | |||||||||
Setup rise hold up time | 200ms, 50ms, 20ms/230VAC at full load | |||||||||
Withstand voltage | Input and output internal:1.5KVAC,Input and enclosure:1.5KVAC,Output and enclosure:0.5KVAC | |||||||||
Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | |||||||||
Working temperature and humidity | -10°C~+60°C(Refer to output derating curve),20%~90%RH | |||||||||
Overall dimension | 199*110*50mm | |||||||||
Weight | 0.89Kg | |||||||||
Note: | ||||||||||
1.The testing condition for the paramenter above is :230VAC input,rated load,25°C70% RH.Humidity. | ||||||||||
2.Error.include the setting error,line stability and load stability.(Note:5). | ||||||||||
3.Wave test:adopting "A12"double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting. | ||||||||||
4.Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage. | ||||||||||
5.Load stability test:the load is from 0% to 100%. | ||||||||||
6.C2,3,6must be knocked down. | ||||||||||
Applications
Company Information
Recommend Products
Payment&Delivery
FAQ
1. How we control the quality?
Aging test for 8 hours, after then we put them into the market.
2. Can we accept samples customized?
No problem for samples order, and welcome your testing before your big order.
3. What about the production capacity?
4 days for samples order under 100pcs, 7-15 days for general order under 10000pcs.
4. OEM and ODM are available?
Yes, we accept customized products
5. Will the delivery time be long for a big order?
No, we have two special parts in production line, one for samples orders, another for big orders, so we can control the delivery time as we promise in the contract.
6. What is our warranty service?
For all products we sell have 2 year warranty.
Aging test for 8 hours, after then we put them into the market.
2. Can we accept samples customized?
No problem for samples order, and welcome your testing before your big order.
3. What about the production capacity?
4 days for samples order under 100pcs, 7-15 days for general order under 10000pcs.
4. OEM and ODM are available?
Yes, we accept customized products
5. Will the delivery time be long for a big order?
No, we have two special parts in production line, one for samples orders, another for big orders, so we can control the delivery time as we promise in the contract.
6. What is our warranty service?
For all products we sell have 2 year warranty.
