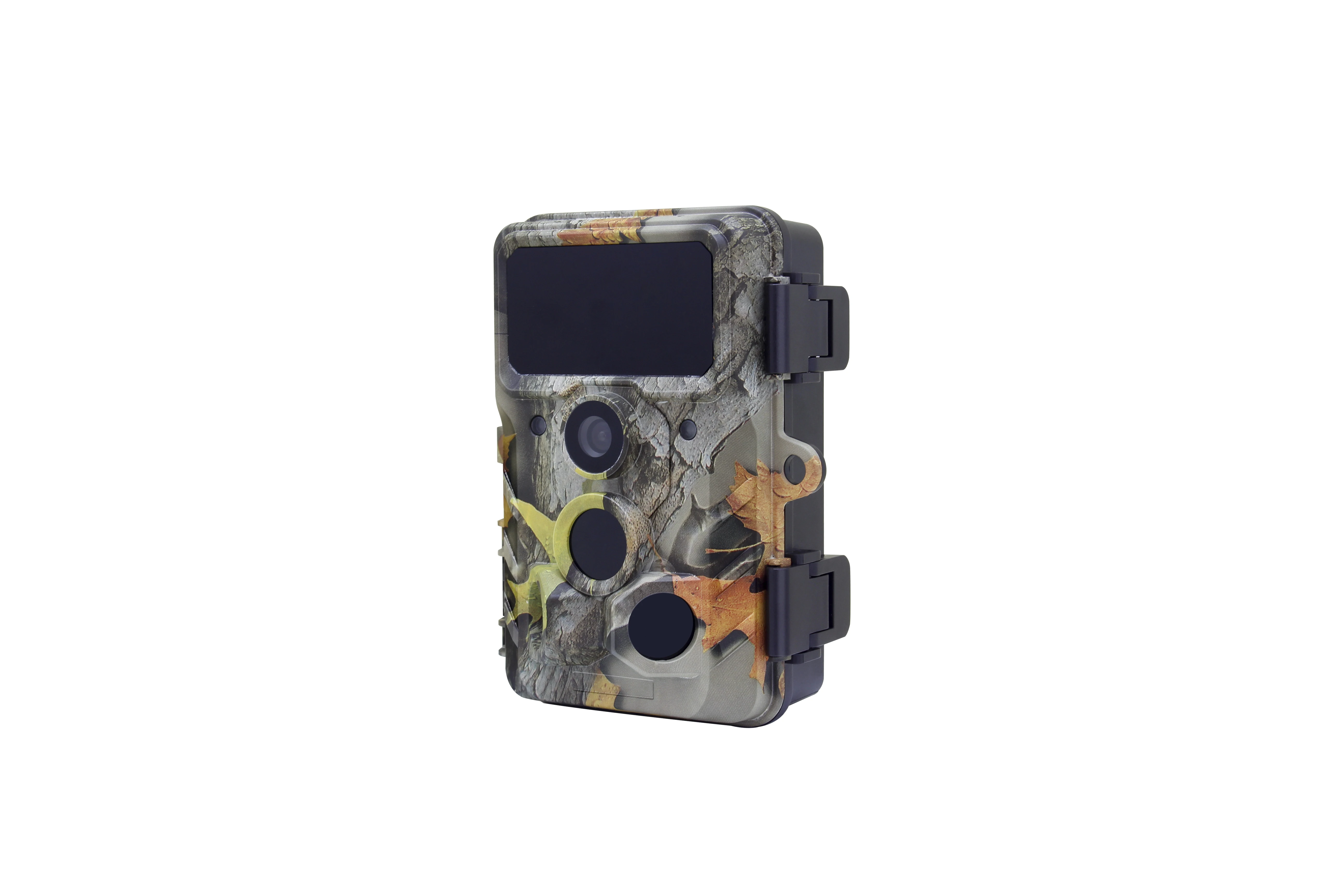

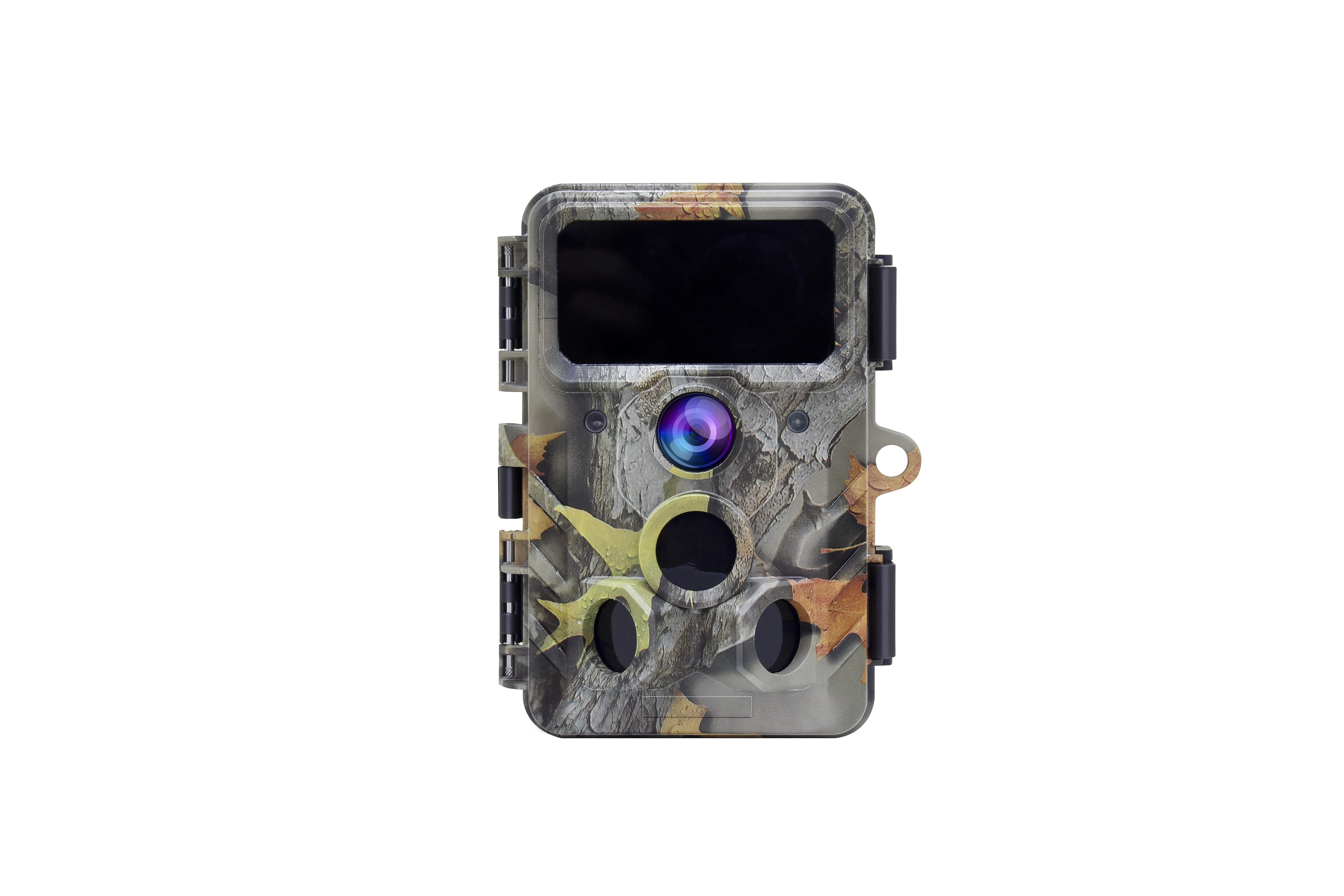

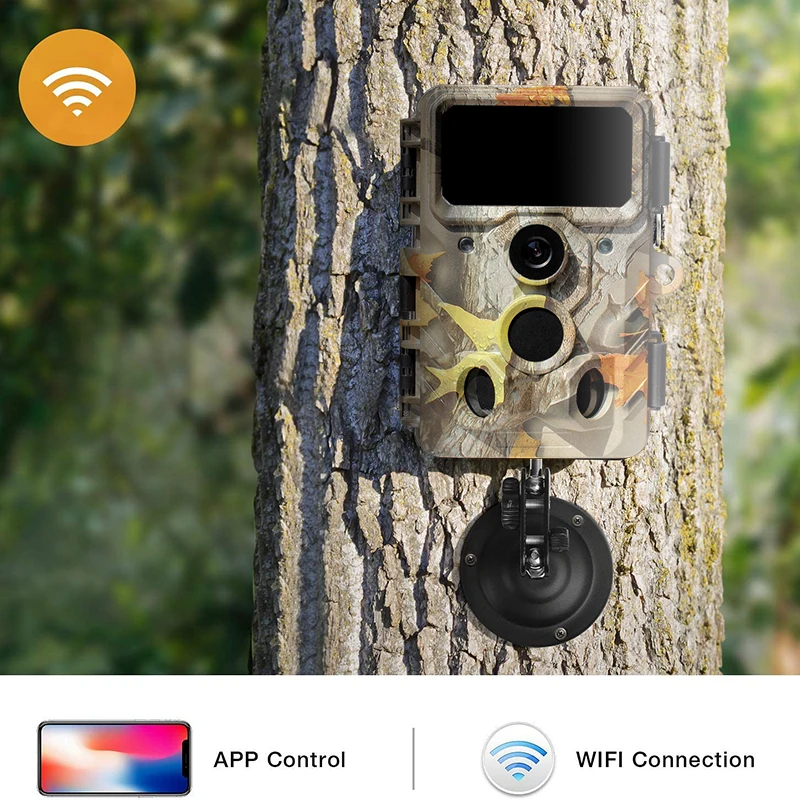

30MP WiFi Night Vision Infrared Motion Detection 4K FHD Time Lapse Digital Trail Camera

Product Overview

Description

30MP WiFi Night Vision Infrared Motion Detection 4K FHD  Time Lapse Digital Trail Camera

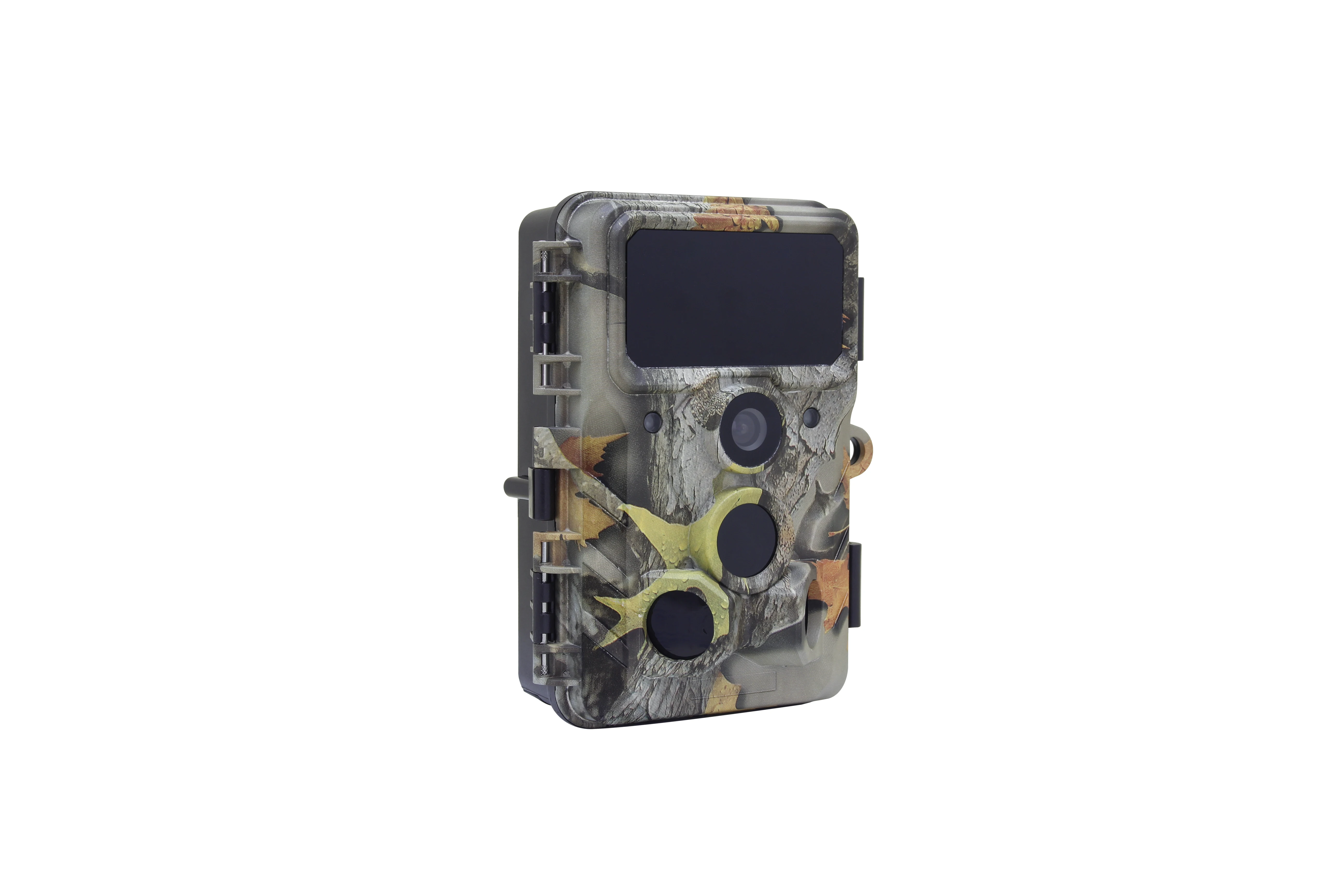

BK-V20 is a Wildlife Camera with excellent technical features and respective accessory that is particularly easy to operate.

This camera is intended for taking digital photos and video clips. It has been designed for private use and is not suitable for commercial purposes.

Main features:

product Name	BK-V20
Photo resolution	30M;(7392x4160);24M(6544x3680);20M(5888x3312)
Video resolution	4K(3840X2160@30fps); 2K(2560 X 1440 30fps); 1296P(2304 x 1296 30fps)

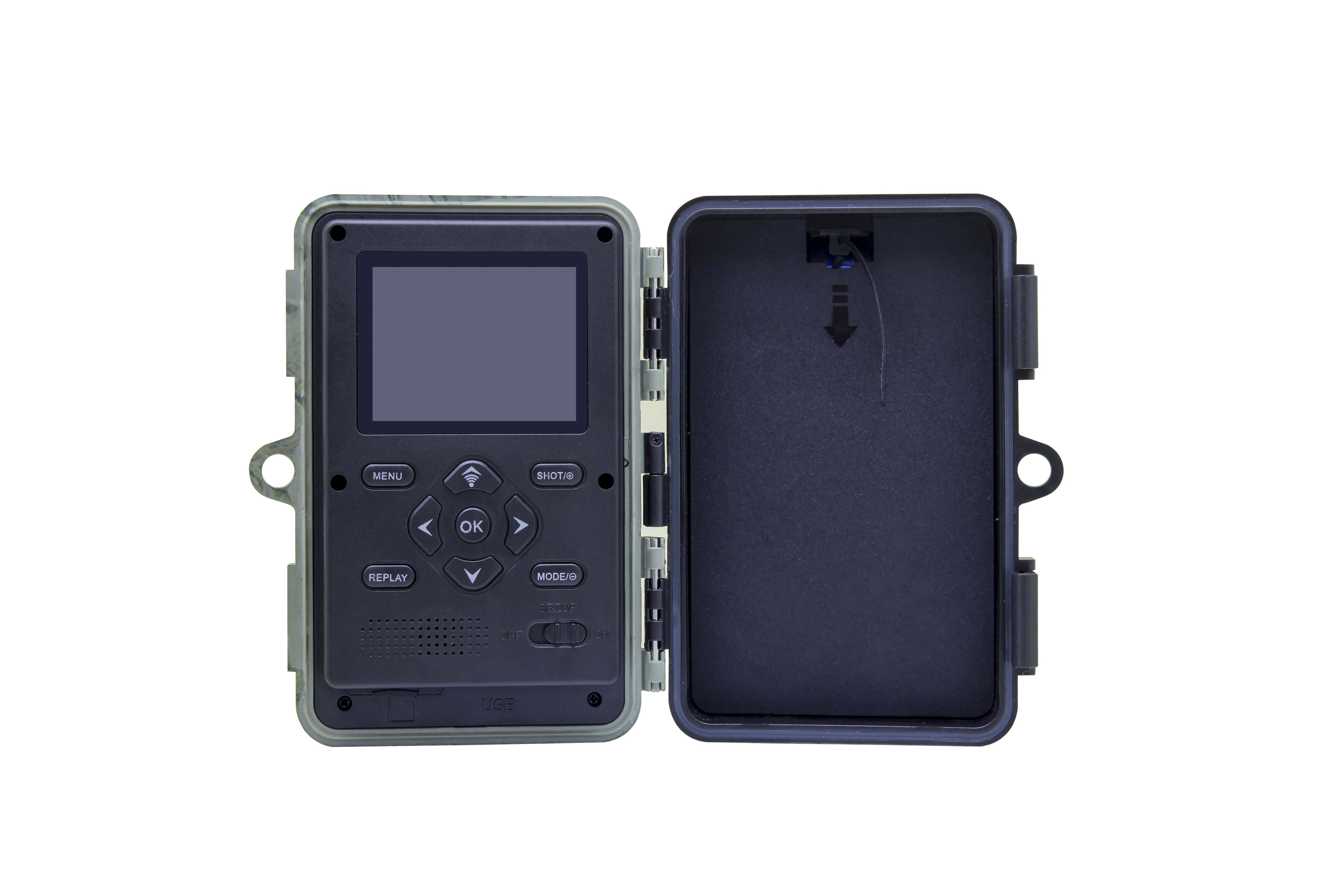

Screen	2.4 'IPS 320x240 TFT-LCD display
Lens	f=4.3;F/NO=2.0:Fov=80 °.Auto IR filter
Triggering time	approx 0.3 second
Speaker	1w, 85dB
Effectiveness	Daytime: 1m - infinitive; Night time: 3m - 20m
Detection angle of sensors	Central sensor zone: 60°; Side sensor zone: each 30°; Total sensor angle zone: 120°
Triggering distance	20 meters
Standby time	6 months
waterproof	IP66

What is wifi used for?

To take , preview, download, delete the taken photo and video files, change MENU settings, check battery and memory capacity on APP.



Package Type: Giftbox
Product size: 13.6*10.3*7.6 cm

Package size: 20*12*9 cm
N.W.: 270g

G.W.: 583g



Carton:
Carton size: 38.5*31.5*37CM 20PCS/CTN
N.W.: 11.6KG

G.W.: 12.5KG

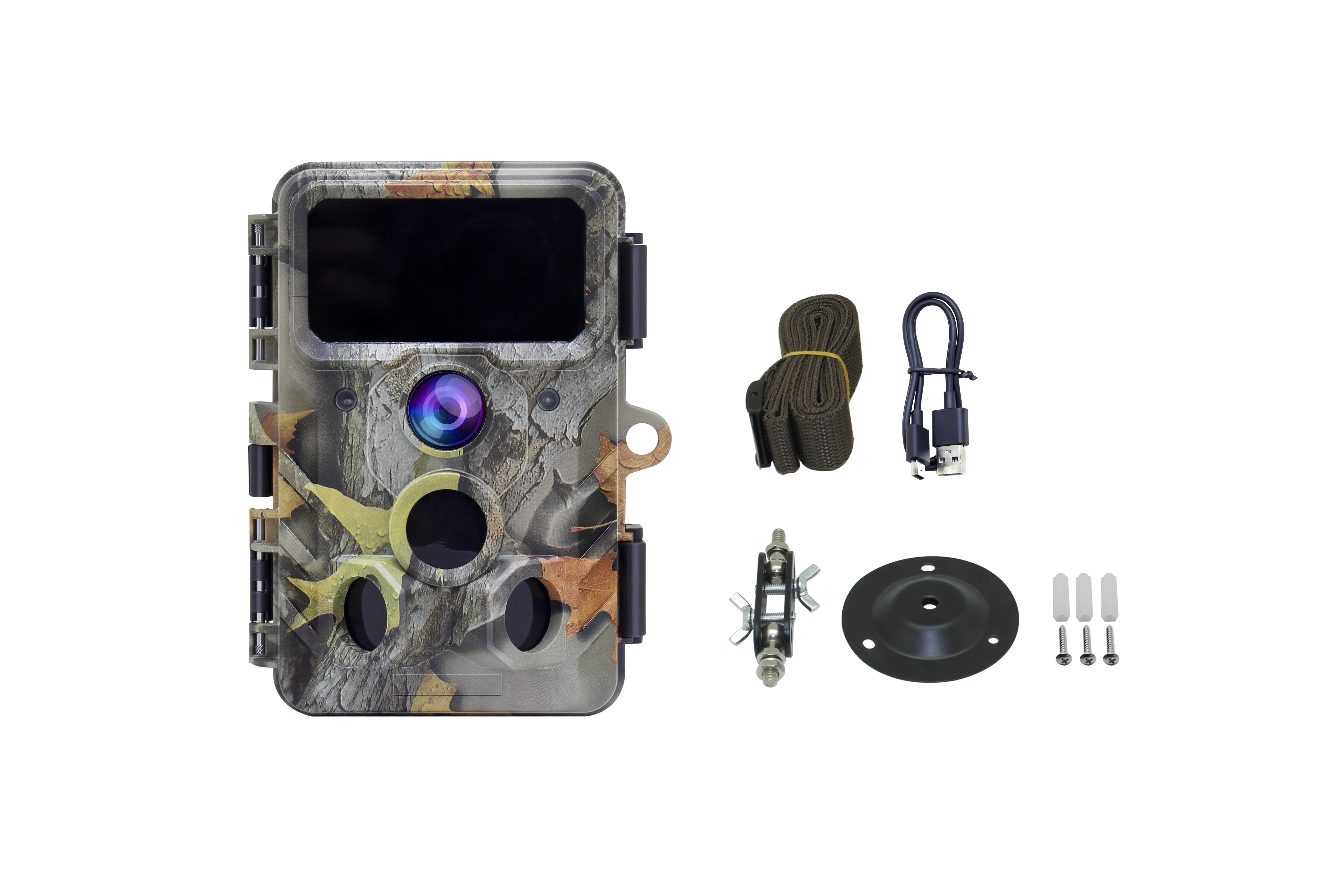

Package included:
1* Hunting Camera
1*Simple guide
1* User Manual
1* USB cable
1*Wall mount



Application:

• Animal or incident observation.
• Motion triggered security camera for domestic, office or public use.
• Any internal and external surveillance, where evidence of an infringement has to be provided.

Simple Trouble Shooting

1. The camera will not turn on

a. Please check the batteries if they are installed in proper way.

b. Check if the battery capacity is low or exhausted. If so, please replace them with new batteries.

The camera turns off automatically

2. The camera turns off automatically

Please check whether the battery capacity is less than 1%. If so, try to change new batteries for outdoor using or connect AC adaptor for indoor using.

3. It shows “TF card Error”

a. Please ensure that TF card is with class 10 standard or higher level.

b. Please use the camera to format TF card at the first time.

4. Videos are choppy or jumpy when played on a computer

a. Ensure that the computer system requirements are met.

b. Ensure MP4 format Video clip can be played on your computer.

5. The image is not clear

a. Please ensure that you removed the protective films on IR LEDs and lens before using.

b. Please ensure that the lens is not dirty.

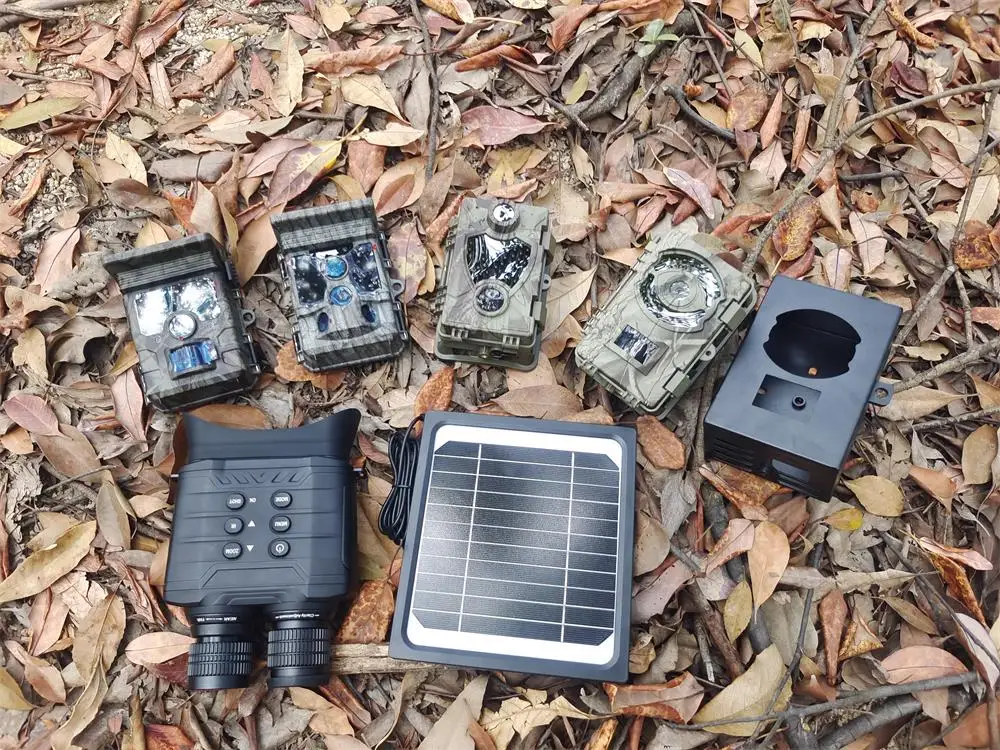

Welltar has been manufaturing hunting camera for since 2013. We devote to R&D and quality control and always insist on
originality, from software design to appearance. With mature production experience, strict operation standards, good quality control ability, we had won great comments from our customers. And we warmly welcome customers from all around the world to establish long term and win-win business relationship with our Welltar. All of you will receive our great service, high quality hunting cameras with one year warranty.

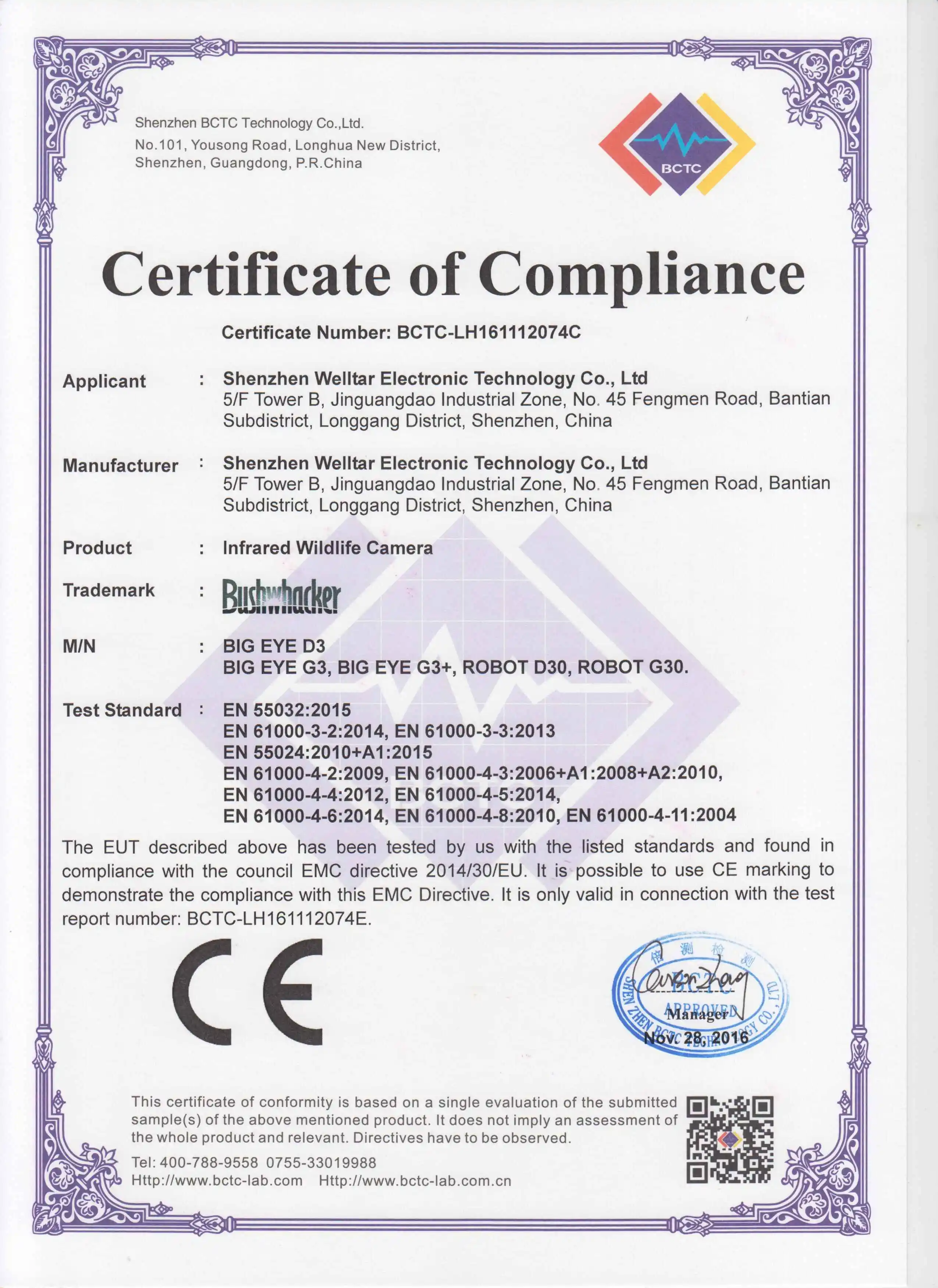

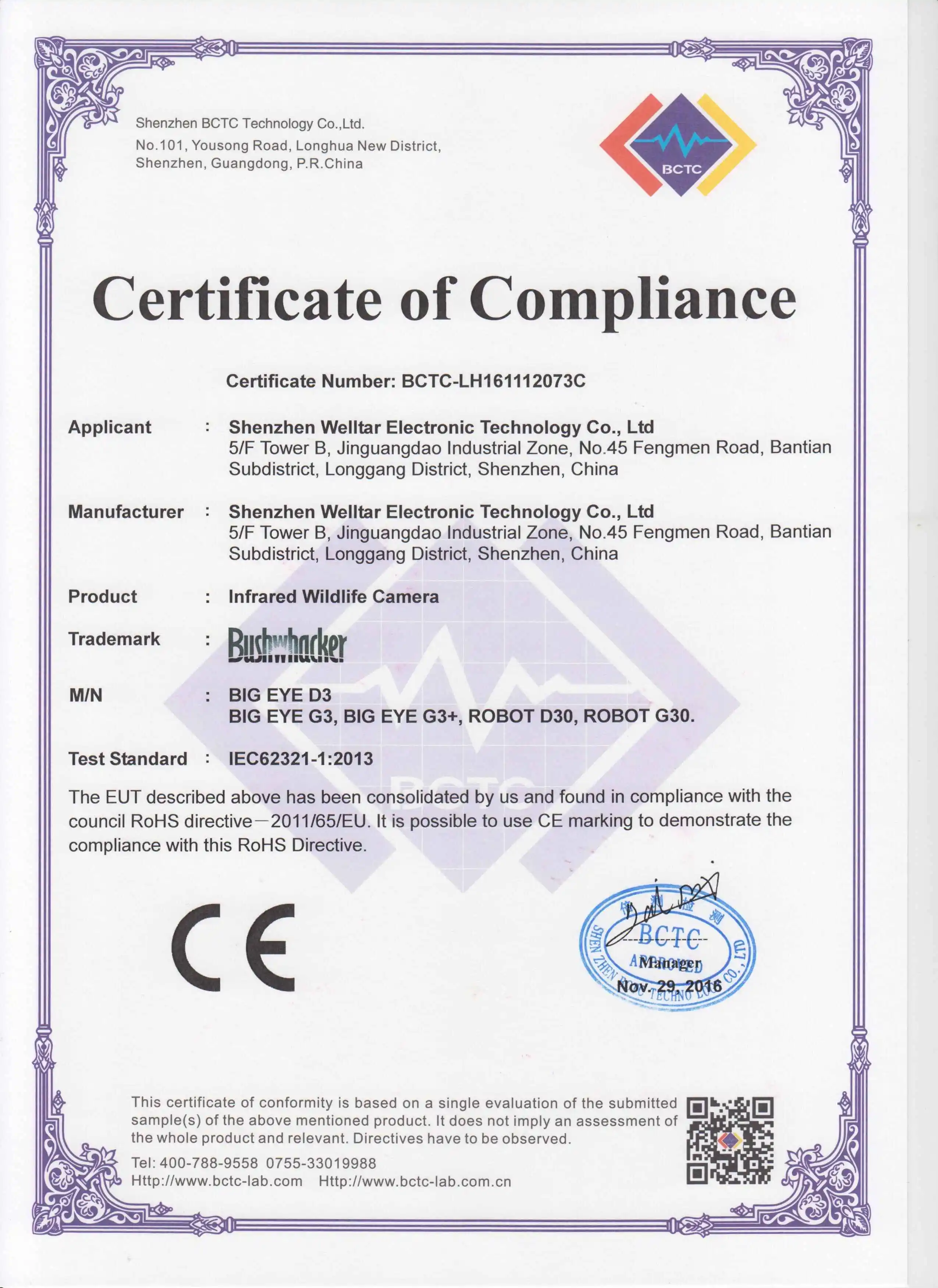

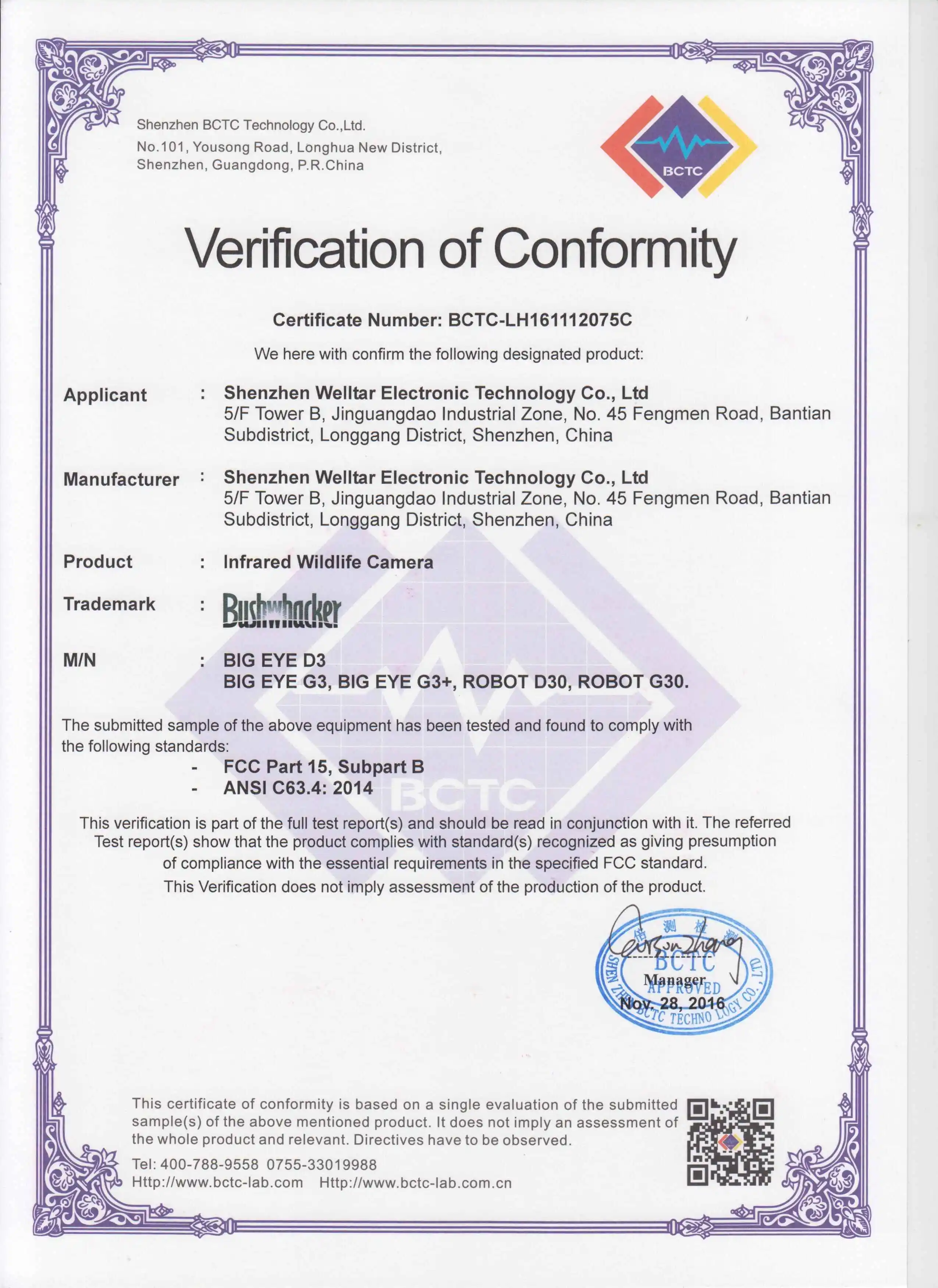

Certification:
