EGMICRO direct selling Pure sine wave inverter driver board driver module EGS005 EG8025

Product Overview

Description

EGMICRO belongs to WANSHENG company, it's special in developing integrated circuits and driver board. Welcome to our company.

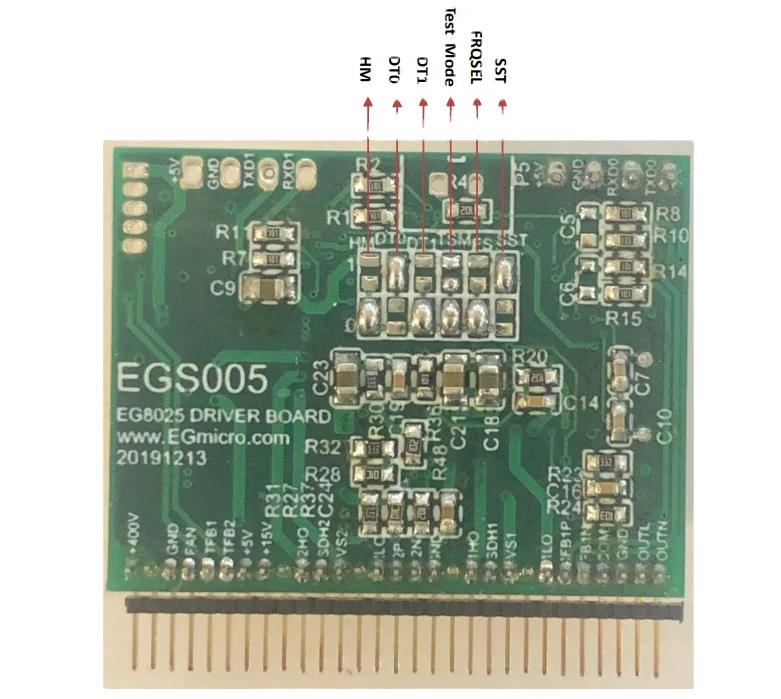

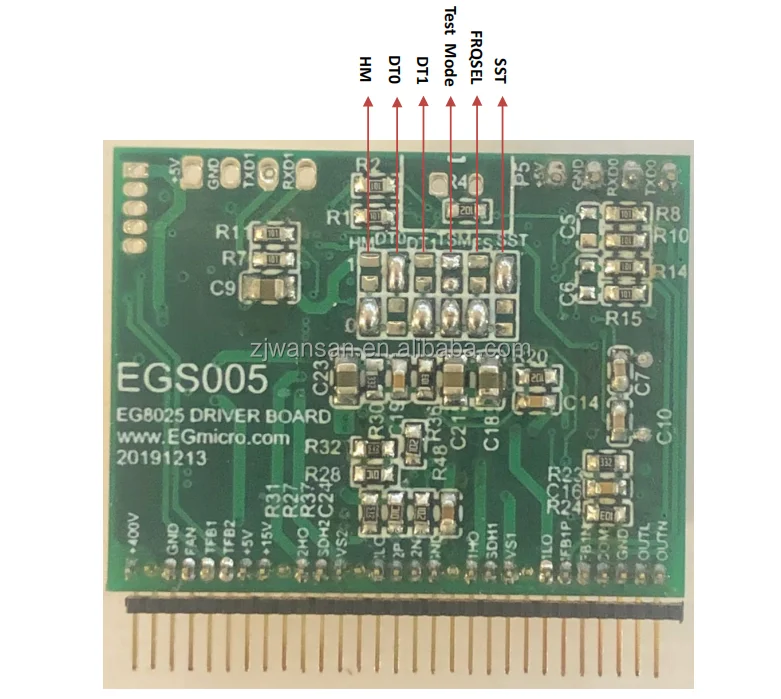

EGMICRO Pure sine wave inverter driver board driver module EGS005 EG8025

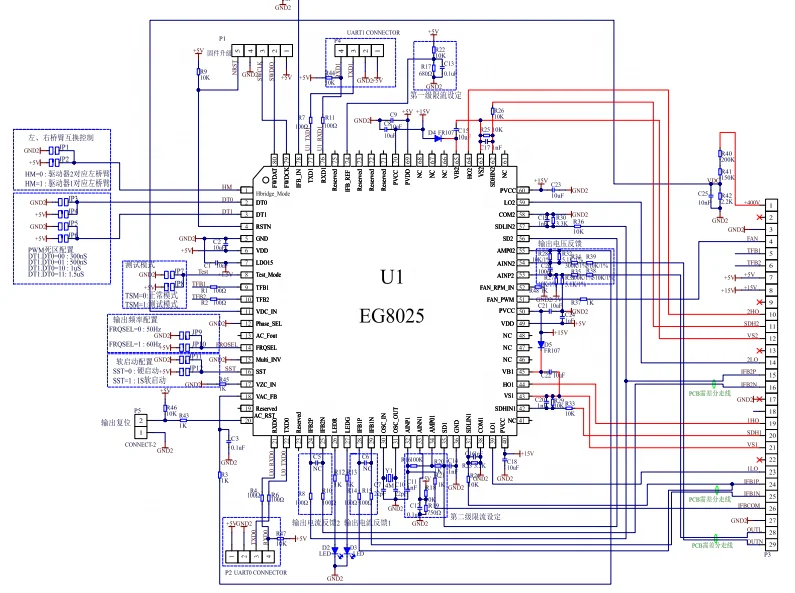

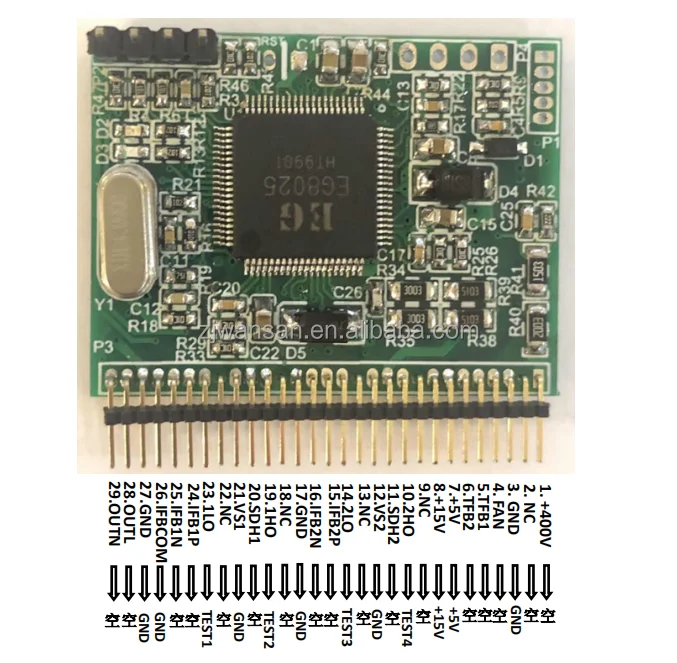

EGS005 is an SPWM drive board based on EG8025 chip scheme. EG8025 is a digital analog integrated chip integrating current mode, center aligned PWM modulation mode and built-in two 600V half bridge high-voltage MOS drivers, which is specially used for high-performance inverter products.

EGS005 drive board can realize the characteristics of no-load waveform distortion rate less than 1.5%, full load waveform distortion rate less than 3% and high-precision output voltage, and can meet the waveform requirements of inverter industry.

EGS005 drive board provides complete protection functions, including DC bus overvoltage and undervoltage protection, AC output undervoltage protection, overload alarm prompt, overload protection indication, overcurrent protection indication, overtemperature protection indication and short circuit protection indication

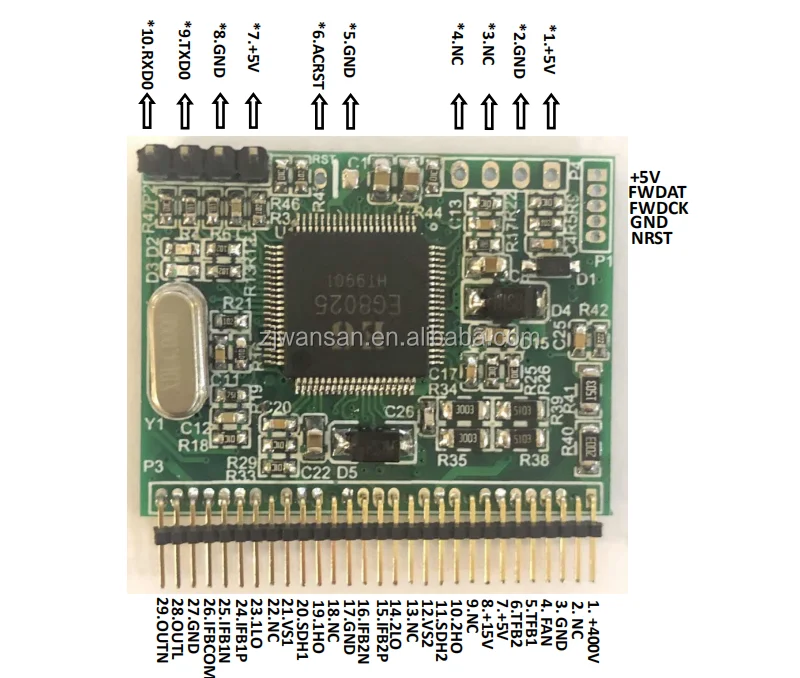

The EGS005 driver board provides UART serial port communication function. The user can set configuration parameters and reset functions through the serial port, and can also read out the operation status and relevant data of the inverter through the serial port.





FAQ:

1. Are you a manufacturer?

100% yes, EGMICRO belongs to WANSHENG company, it's special in developing integrated circuits and driver board. if you have a chance, you can visit our factory anytime.

2. Do you have any MOQ limit?

One piece is possible, you can buy one sample for testing first.

3. What about the lead-time?

Normally 3-5 working days after receive the payment.

4. How to pay for the sample fee?

Please send the payment to our PayPal account or from alibaba directly.

5. How do you ship the goods?

We often ship by DHL, UPS, FedEx or TNT, it usually takes 3-5 days to arrive.

6. Do you offer guarantee for the products?

Yes, 2-years warranty.

7. I cannot find the suitable model, can I ask for a special model I need?

Sure. We are professional designer and manufacturer in China, please advising the detail specification you need, we will make it according to your request.
