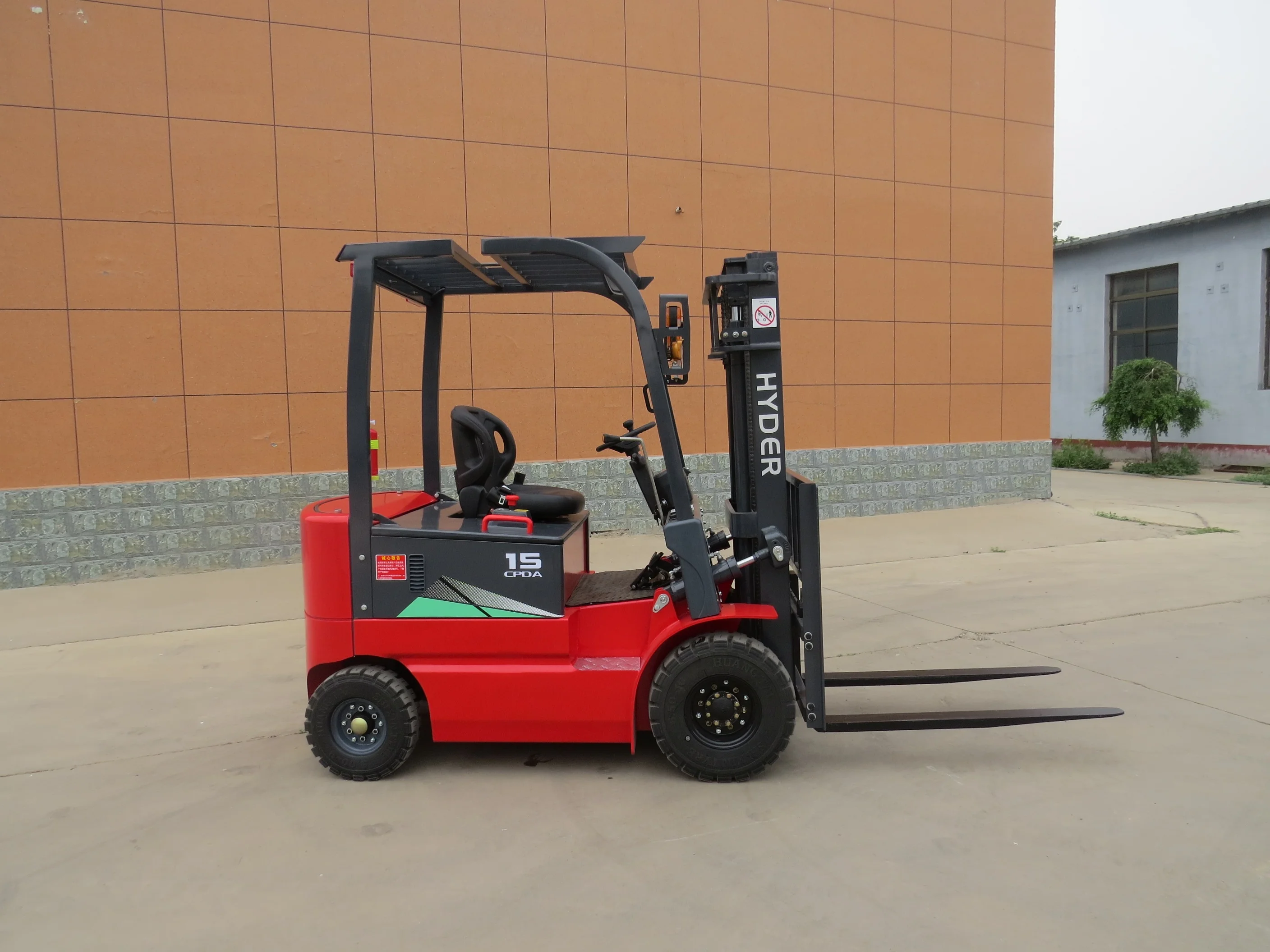

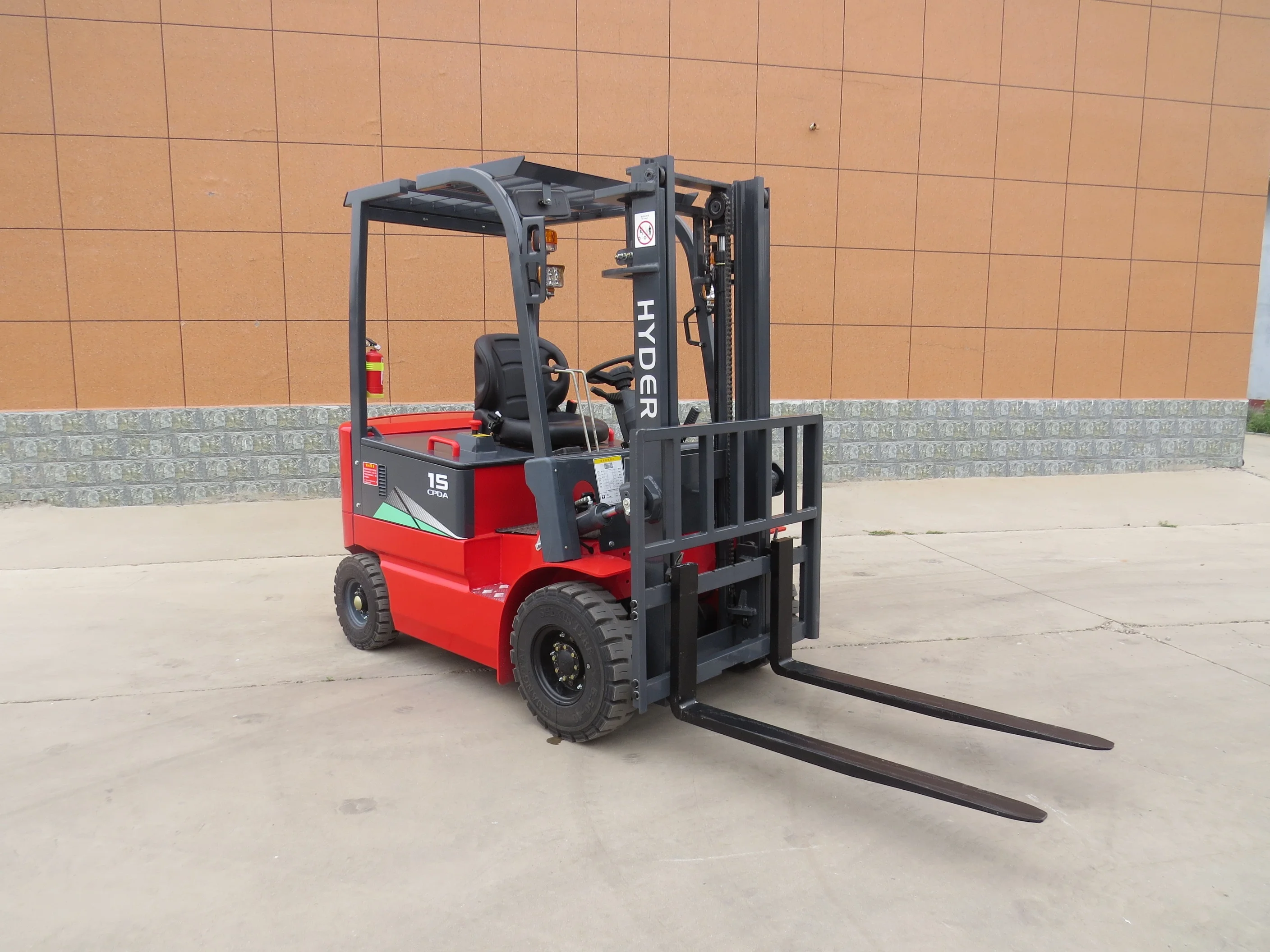

Hyder Counterbalance Fork Lift Truck 0.75t 1t 1.5t 2t 2.5t 3t Hydraulic Stacker Electric Forklifts Warehouse Use Empilhadeir
- Category: >>>
- Supplier: Shanghai Hyder Industry Co. Ltd.
Share on (1600433434591):
Product Overview
Description
Product Overview
China manufacturer Electric forklift with competitive price
1. With advanced technology and design;
2. High quality steel for frame and mast, not easy to deform
3. LED lights for all working lights, easy to see in night
4. Thickened height guard
5. Wear-resisting solid tire
6. Double AC motor , less noise
2. High quality steel for frame and mast, not easy to deform
3. LED lights for all working lights, easy to see in night
4. Thickened height guard
5. Wear-resisting solid tire
6. Double AC motor , less noise
7. powerful branded battery,optional for lead acid battery, lithium battery and traction battery
8. High voltage ,low current design , prolong the lifespan of electric components
9. Powerful in climbing to climp slop, with gradeability over 20%.

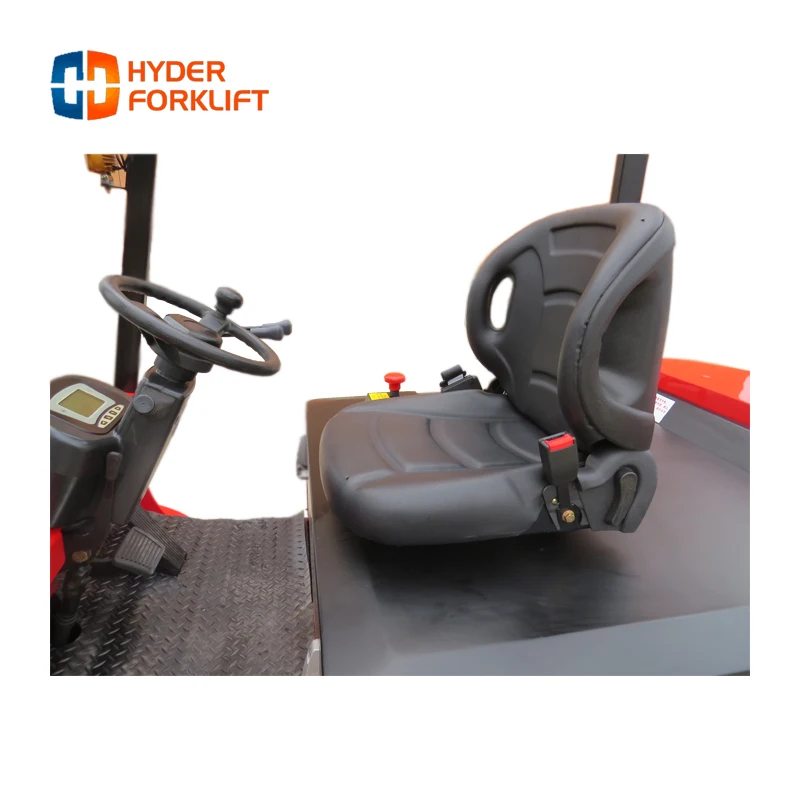

10. Comfortable seat with safety belts,with large operation space.
8. High voltage ,low current design , prolong the lifespan of electric components
9. Powerful in climbing to climp slop, with gradeability over 20%.
10. Comfortable seat with safety belts,with large operation space.
FEATURES AT A GLANCE
Why choose electric forklift?
1. environmental friendly , zero emission ;
2. AC motor , less noise
3. Powerful battery, working for 6-6.5hours
4. Gradeability over 20%
Left elevation
Right elevation
Front elevation

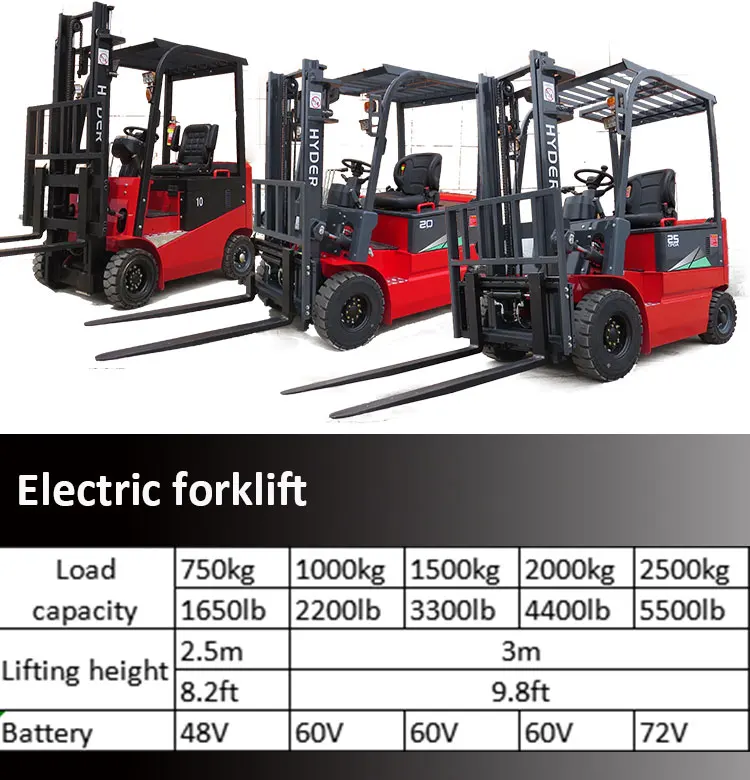

PRODUCT SPECIFICATIONS
Manufacturer | -- | -- | HYDER | ||||||||||

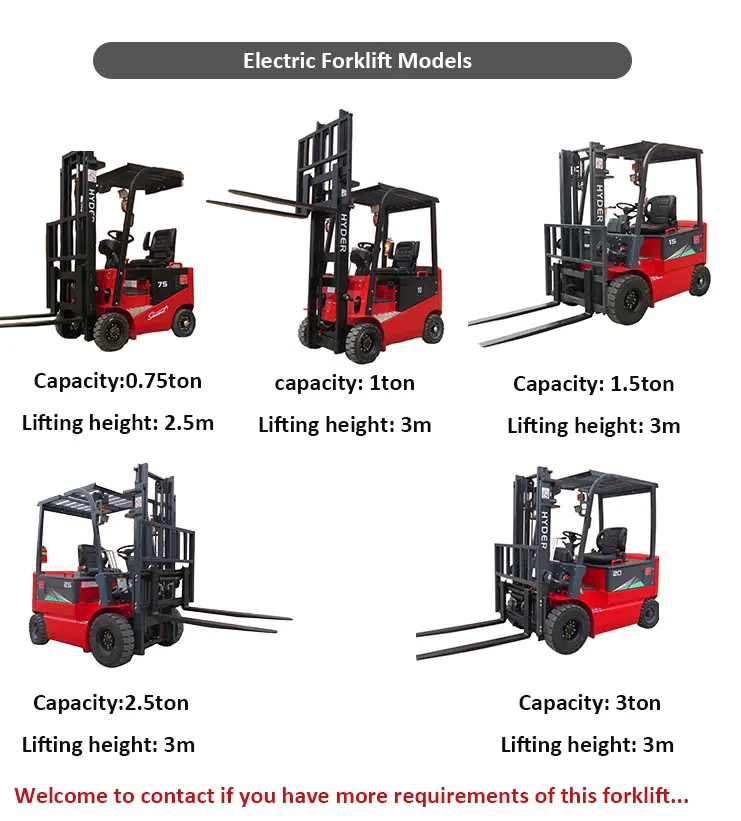

Model | -- | -- | FB7.5 | FB10 | FB15 | FB20 | FB25 | FB30 | |||||
Load capacity | -- | kg | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | |||||
Load center | -- | mm | 500 | 500 | 500 | 500 | 500 | 500 | |||||
Power unit | Battery / Diesel / Gasoline | -- | Battery | Battery | Battery | Battery | Battery | Battery | |||||
Operator type | -- | -- | Driver / seat | Driver / seat | Driver / seat | Driver / seat | Driver / seat | Driver / seat | |||||
Tire type | Front / Rear | -- | Solid | Solid | Solid | Solid | Solid | Solid | |||||
Wheel (X=driven) | Number Front / Rear | -- | 2 X 2 | 2 X 2 | 2 X 2 | 2 X 2 | 2 X 2 | 2 X 2 | |||||
Tire model | front | 15 X4.5-8 | 16 X6-8 | 650-10 | 650-10 | 650-10 | 23*10-12 | ||||||
Rear | 3.20-8 | 15 X4.5-8 | 500-8 | 500-8 | 18*7-8 | 200/50-10 | |||||||
Max. lifting height | -- | mm | 2500 | 3000 | 3000 | 3000 | 3000 | 3000 | |||||
Free lift | -- | mm | 110 | 120 | 160 | 160 | 160 | 150 | |||||
Fork size | L*W*T | mm | 920*100*30 | 1070*100*30 | 1220*100*35 | 1220*100*40 | 1220*125*45 | 1220*125*45 | |||||
Overall length(without fork) | -- | mm | 1530 | 1800 | 2200 | 2250 | 2320 | 2570 | |||||
Total width | -- | mm | 880 | 1040 | 1150 | 1160 | 1160 | 1280 | |||||
Mast height (fork lowering) | -- | mm | 1900 | 1970 | 2040 | 2040 | 2040 | 2080 | |||||
Overall height fork raised | With backrest | mm | 3650 | 4010 | 4010 | 4010 | 4010 | 4140 | |||||
Height to head guard | -- | mm | 1870 | 2000 | 2050 | 2050 | 2100 | 2120 | |||||
Turning raduis(outside) | -- | mm | 1550 | 1850 | 2180 | 2230 | 2230 | 2380 | |||||
Lifting Full / No load | mm/s | 120/220 | 120/220 | 180/220 | 180/220 | 180/220 | 200/320 | ||||||
Lowering Full / No load | mm/s | 350 / 320 | 350 / 320 | 350 / 320 | 350 / 320 | 350 / 320 | 420 /380 | ||||||

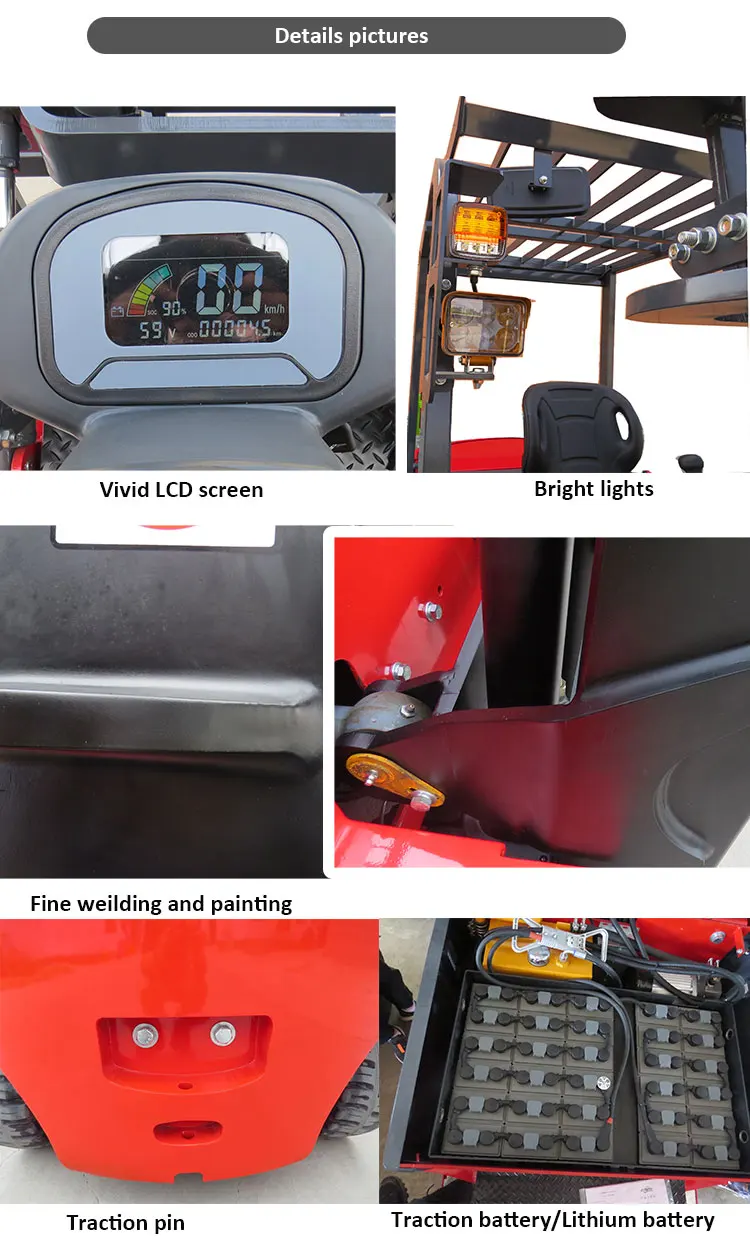

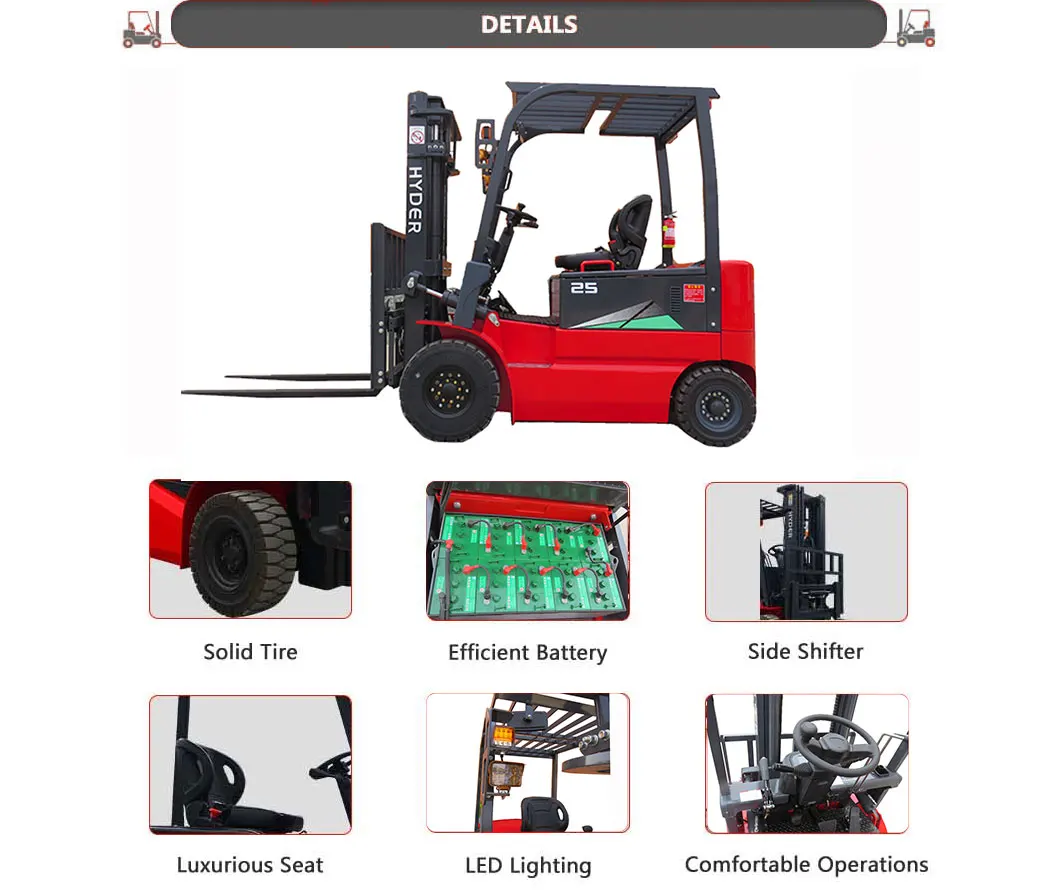

PRODUCT CONFIGURATION
Compact wire
LED lights
Battery cabinet

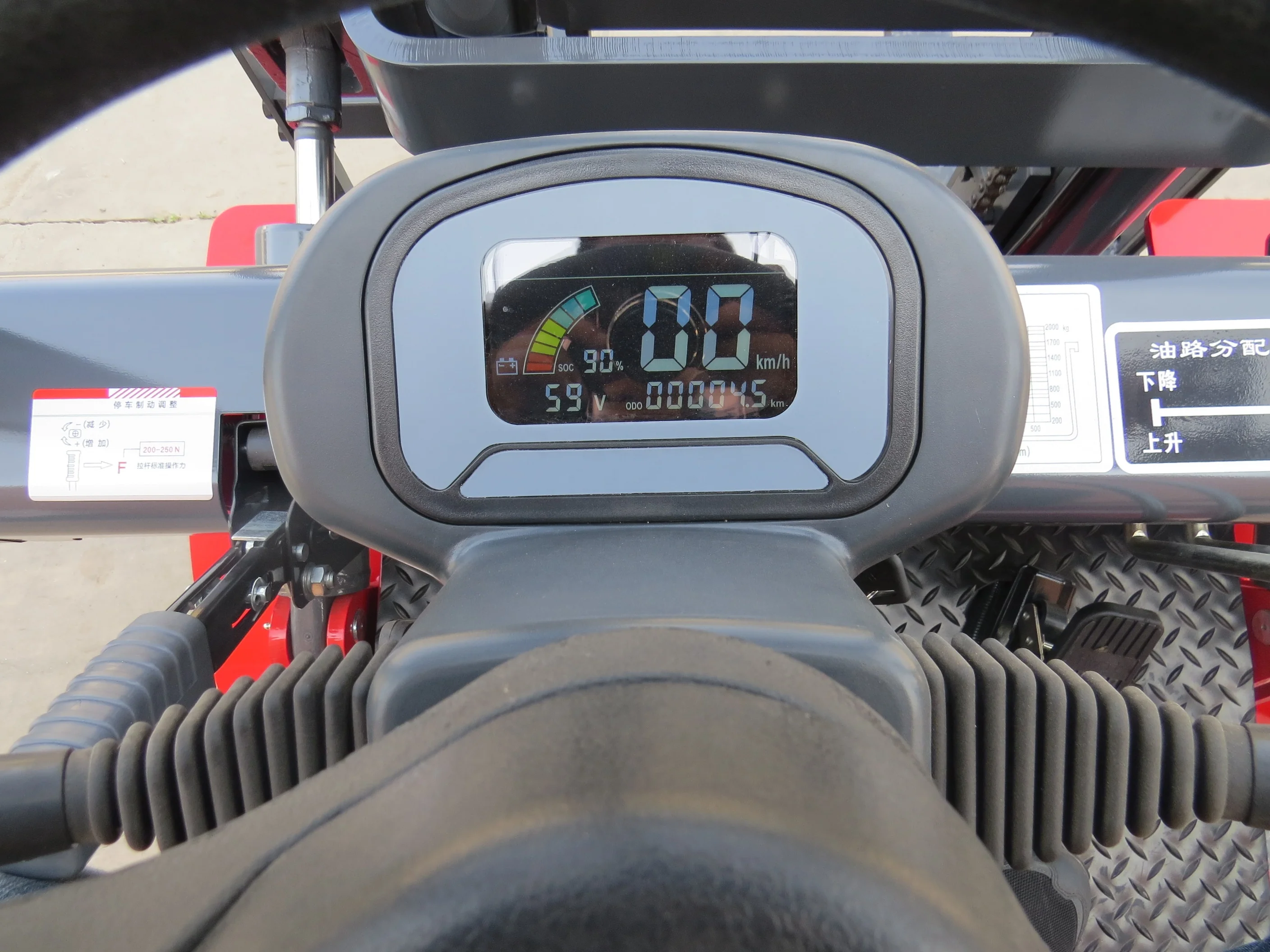

Vivid Dash Board
AC motor
Large Operation space

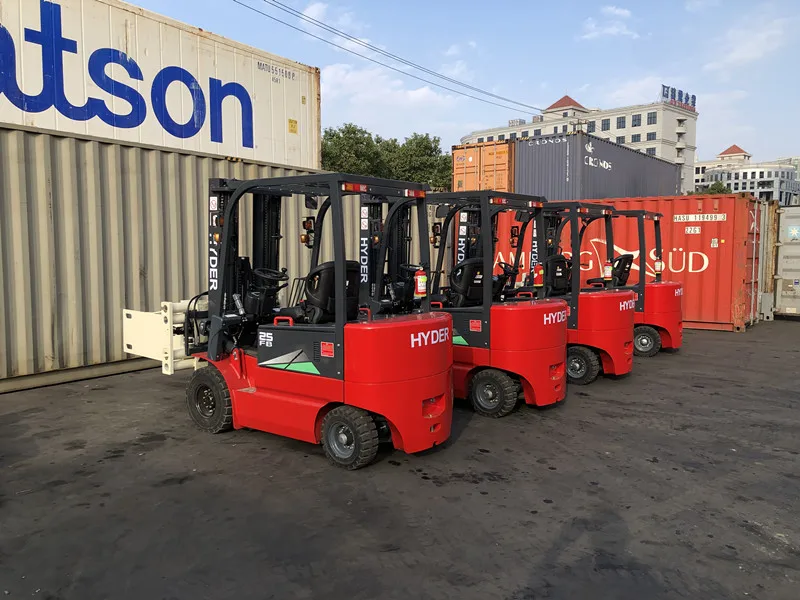

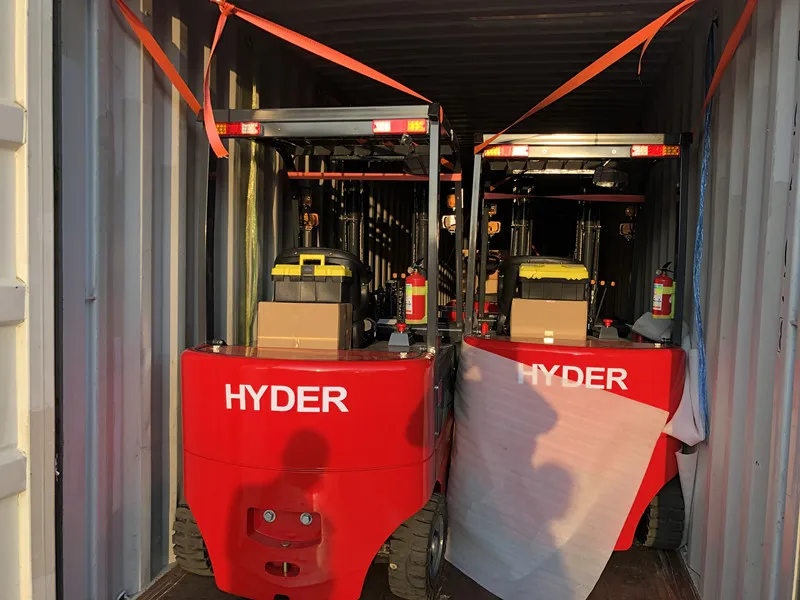

Product packaging
