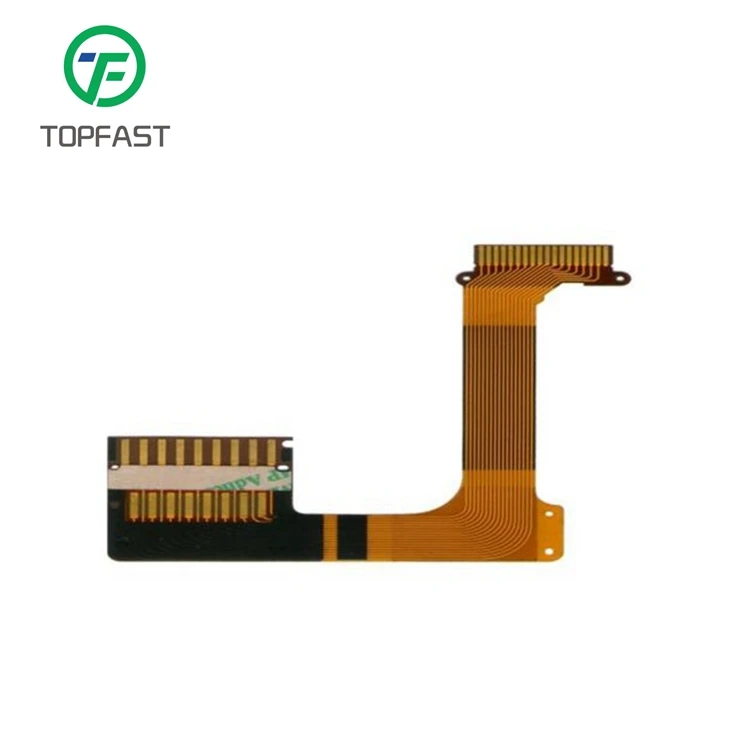

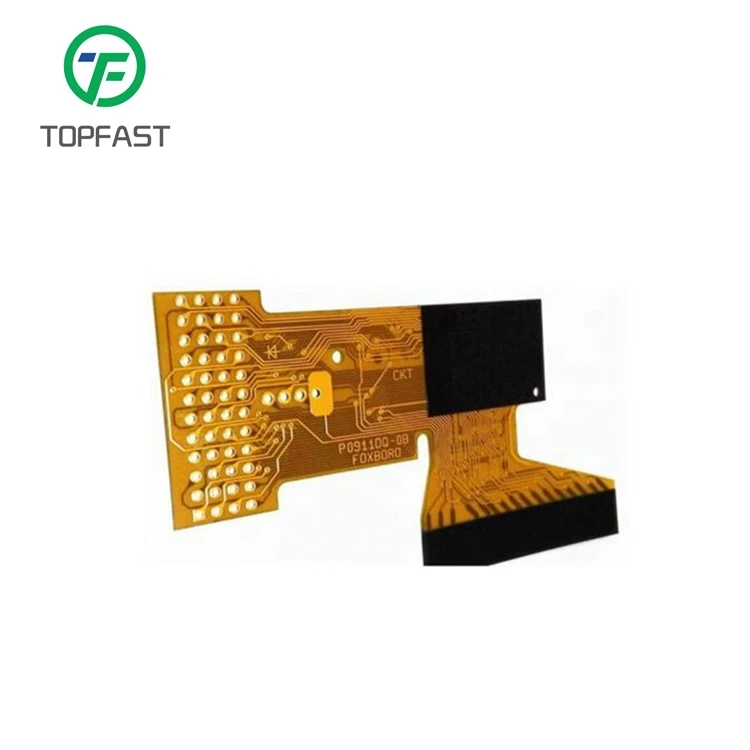

High precision custom multilayer PCB Printed Circuit blind and buried placa flexible flex pcb boards
- Category: FPC >>>
- Supplier: Topfast(Guangdong)Technology,Co.,Ltd.
Share on:
Product Overview
Description
Technical Capacity | ||||||
ltem | Rigid PCB | Flexible PCB | Rigid-Flex PCB | |||
Max Layer | 60L | 8L | 36L | |||
Inner Layer Min Trace/Space | 3/3mil | 3/3mil | 3/3mil | |||
Out Layer Min Trace/Space | 3/3mil | 3.5/4mil | 3.5/4mill | |||
Inner Layer Max Copper | 6oz | 2oz | 6oz | |||
Out Layer Max Copper | 6oz | 2oz | 3oz | |||
Min Mechanical Driling | 0.15mm | 0.1mm | 0.15mm | |||
Min Laser Drilling | 0.1mm | 0.1mm | 0.1mm | |||
Max Aspect Ratio(Mechanical Driling) | 20:01 | 10:01 | 12:01 | |||
Max Aspect Ratio(Laser Drilling) | 1:01 | / | 1:01 | |||
Press Fit Hole Ttolerance | ±0.05mm | ±0.05mm | ±0.05mm | |||
PTH Tolerance | ±0.075mm | ±0.075mm | ±0.075mm | |||
NPTH Tolerance | ±0.05mm | ±0.05mm | ±0.05mm | |||
Countersink Tolerance | ±0.015mm | ±0.15mm | ±0.15mm | |||
Board Thickness | 0.4-8mm | 0.1-0.5mm | 0.4-3mm | |||
Board Thickness Tolerance(<1.0mm) | ±0.1mm | ±0.05mm | ±0.1mm | |||
Board Thickness Tolerance(≥1.0mm) | ±10% | / | ±10% | |||
Min Board Size | 10*10mm | 5*10mm | 10*10mm | |||
Max Board Size | 22.5*30inch | 9*14inch | 22.5*30inch | |||
Contour Tolerance | ±0.1mm | ±0.05mm | ±0.1mm | |||
Min BGA | 7mil | 7mil | 7mil | |||
Min SMT | 7*10mil | 7*10mil | 7*10mil | |||
Min Solder Mask Clearance | 1.5mil | 3mil | 1.5mil | |||
Min Solder Mask Dam | 3mil | 8mil | 3mil | |||
Min Legend Width/Height | 4/23mil | 4/23mil | 4/23mil | |||
Strain Fillet Width | / | 1.5±0.5mm | 1.5±0.5mm | |||
Bow &Twist | 0.003 | / | 0.0005 | |||
