NICON Rs485 differential pressure sensor 2088 absolute 350bar hydraulic pressure transmitter
Products Description
NICON Rs485 differential pressure sensor 2088 absolute 350bar hydraulic pressure transmitter
1. The Rs485 differential pressure sensor 2088 absolute 350bar hydraulic pressure transmitter adopts diffused silicon core as the sensitive element, and selects intelligent digital circuit, the overall performance is stable and reliable, and it can carry out long-distance output. Easy to install, suitable for gas, liquid and steam pressure measurement and control.
2. Rs485 differential pressure sensor 2088 absolute 350bar hydraulic pressure transmitter is used in liquid and gas measurement, and the humidity limit is 0-100% relative humidity. Performance specifications (zero reference calibration range, reference conditions, silicone oil filled liquid, 316L stainless steel isolation diaphragm).
3. The design of the Rs485 differential pressure sensor 2088 absolute 350bar hydraulic pressure transmitter ensures that the transmitter can still work safely even if the sensor diaphragm is damaged or malfunctions. The electronic circuit side (chamber) has two levels of sealing and process isolation, and the third level of sealing realizes isolation from the field wiring terminals and the conduit entry. The design and location of the process seal make the transmitter housing pressure resistant and prevent process impurities from entering through the conduit from the terminal side.
2. Rs485 differential pressure sensor 2088 absolute 350bar hydraulic pressure transmitter is used in liquid and gas measurement, and the humidity limit is 0-100% relative humidity. Performance specifications (zero reference calibration range, reference conditions, silicone oil filled liquid, 316L stainless steel isolation diaphragm).
3. The design of the Rs485 differential pressure sensor 2088 absolute 350bar hydraulic pressure transmitter ensures that the transmitter can still work safely even if the sensor diaphragm is damaged or malfunctions. The electronic circuit side (chamber) has two levels of sealing and process isolation, and the third level of sealing realizes isolation from the field wiring terminals and the conduit entry. The design and location of the process seal make the transmitter housing pressure resistant and prevent process impurities from entering through the conduit from the terminal side.
Product Paramenters
Model | NIC-2188-DP |
Range | 0-3.5MPa |
Thread Type | M20*1.5, G1/2 (can be customized) |
Output | 4-20mA、0-10VDC、 0-5VDC、0.5-4.5VDC、RS485、4-20mA+Hart |
Power | 12~ 36VDC |
Ambient temperature | -30~ 80°C |
Relative humidity | 0~ 90% |
Medium temperature | -30~ 80°C |
Overload | 150% |
Pressure form | gauge pressure, absolute pressure, negative pressure |
Accuracy level | 0.1%, 0.25%, 0.5% |
Long-term stability | +0.2%/year |

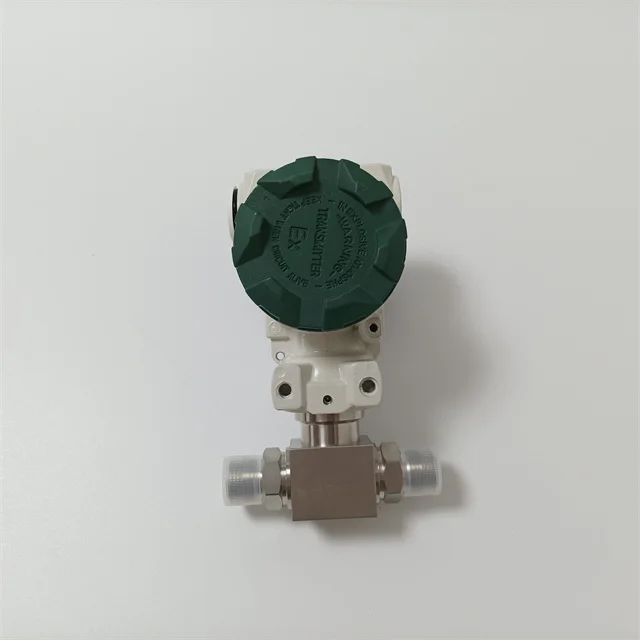

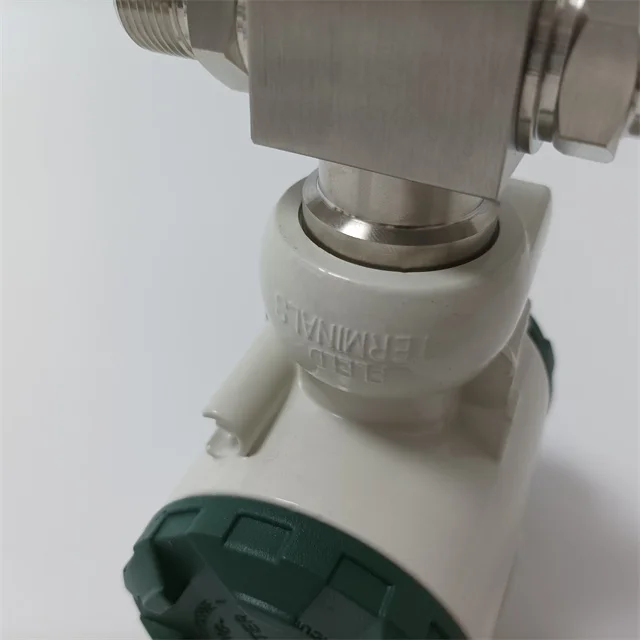

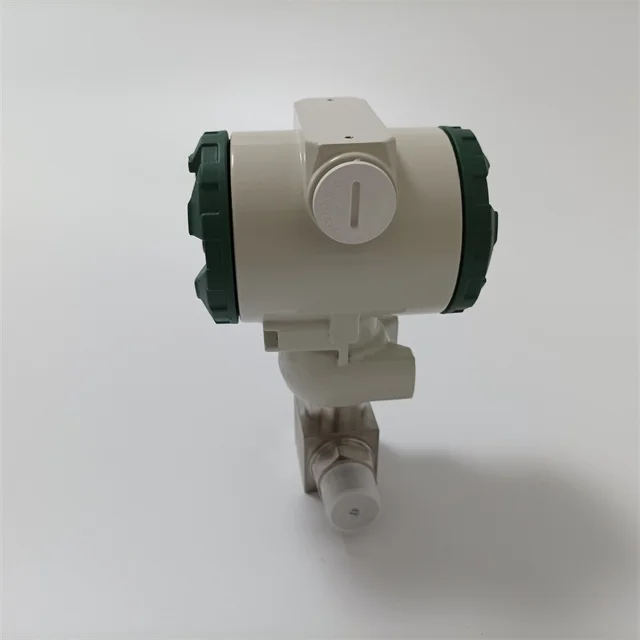

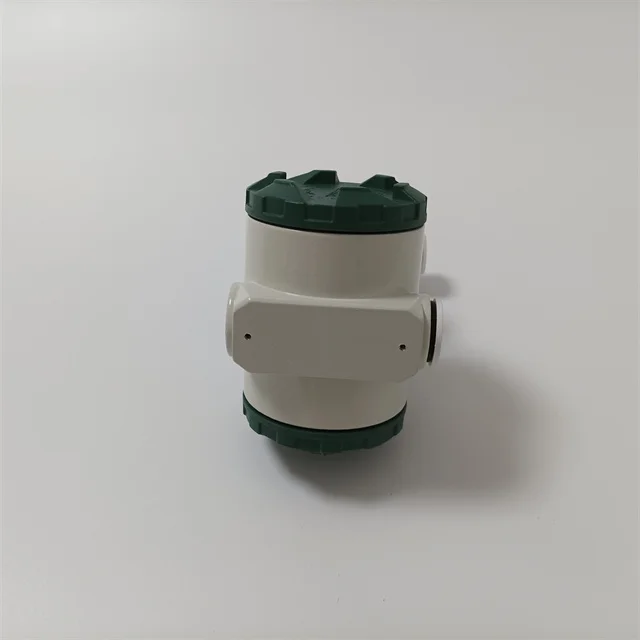

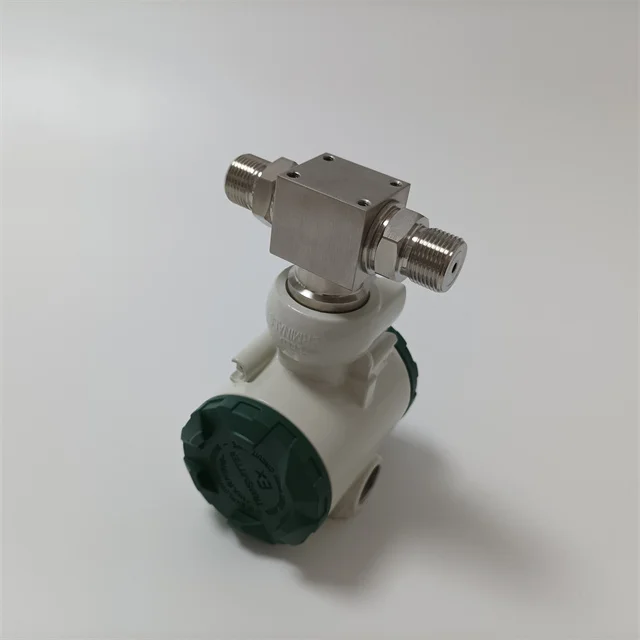

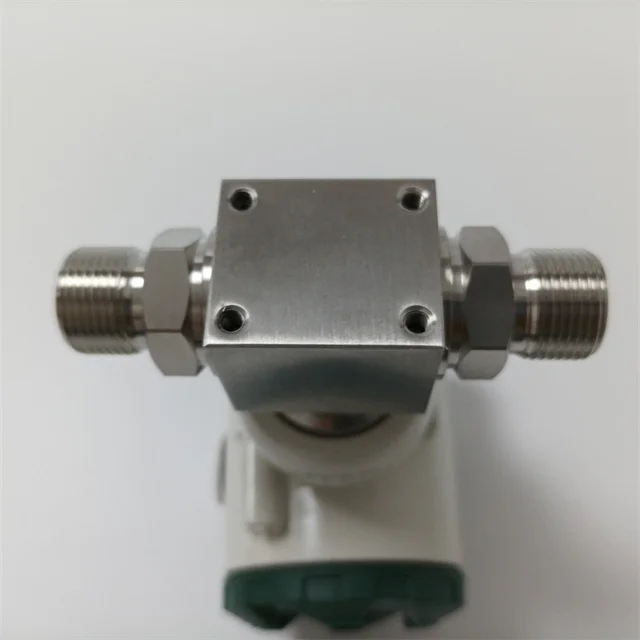

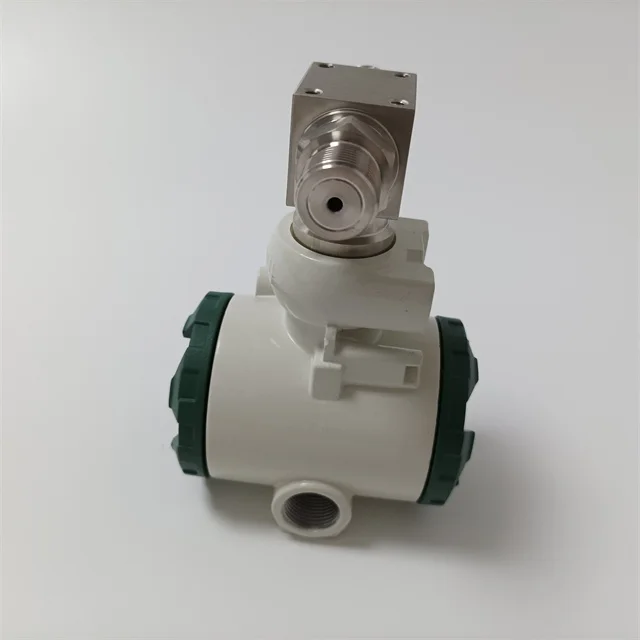

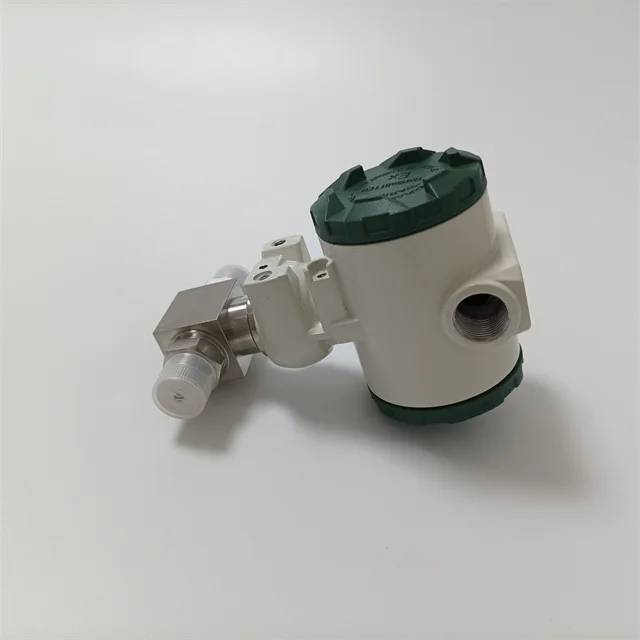

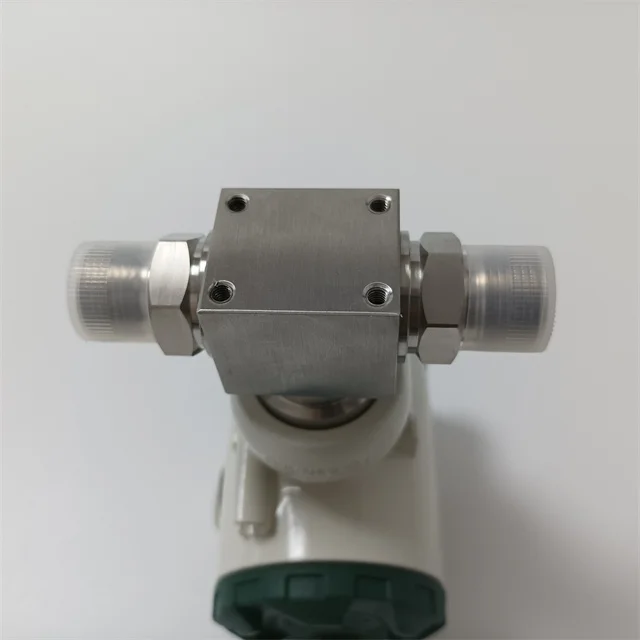

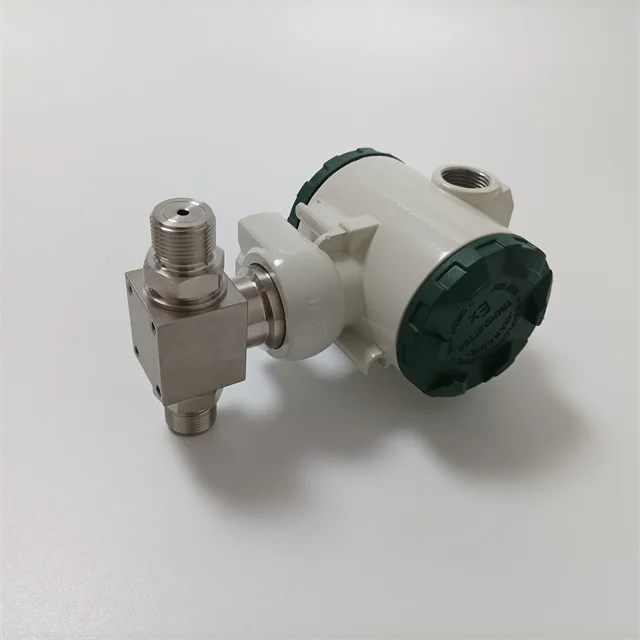

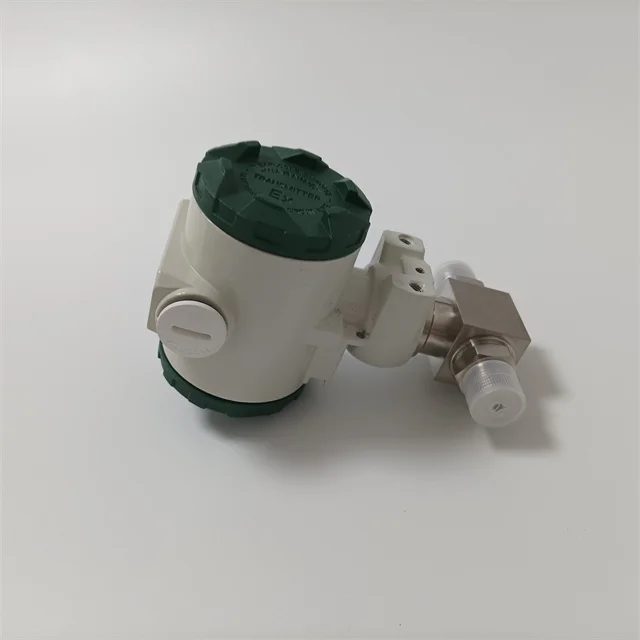

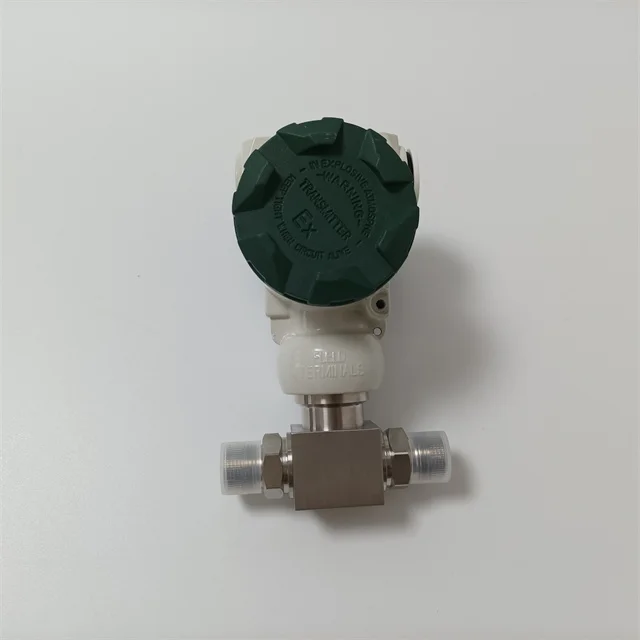

Details Images
Features of Rs485 differential pressure sensor 2088 absolute 350bar hydraulic pressure transmitter:
1. 2188 pressure transmitter has high accuracy and good stability
2. 2188 pressure transmitter has wide range coverage
3. The 2188 pressure transmitter has no moving parts, high reliability and long service life
4. 2188 pressure transmitter is not affected by the mass of the measured medium
5. 2188 pressure transmitter can choose stainless steel shell, protection grade IP67
2. 2188 pressure transmitter has wide range coverage
3. The 2188 pressure transmitter has no moving parts, high reliability and long service life
4. 2188 pressure transmitter is not affected by the mass of the measured medium
5. 2188 pressure transmitter can choose stainless steel shell, protection grade IP67
Application
The Rs485 differential pressure sensor 2088 absolute 350bar hydraulic pressure transmitter adopts diffused silicon core as sensitive element and intelligent digital circuit. The overall performance is stable and reliable, and can be transmitted over long distance. Easy installation, suitable for gas, liquid, steam pressure measurement and control.
Packaging & Shipping
Company Profile
NICON is a high-tech technology enterprise integrating R&D, design, manufacturing, sales service, engineering design and complete system of industrial automation control equipment. The company has strong technical force, advanced production and testing equipment, excellent product technology, reliable quality, and timely after-sales service, and is deeply trusted by users.
Certifications
High standard production processes
1. The screening of components, using pearl cotton all-round package storage, to prevent shell collision scratch. Layer by layer control for you to provide high-quality pressure transmitter.
2. Six accurate calibration, using the United States General Electric automatic calibration system, each product from production to delivery, after six accurate calibration. Zero point, midpoint, full degree of three-point detection, covering the full range, the measurement accuracy is much higher than two-point calibration.
3. High temperature aging test 72 hours aging test to ensure stable and reliable quality.
4. Laser marking, each pressure transmitter has a corresponding'identity number, from production to use, can detect maintenance records, one-click query, digital management, to give you a better use of experience.
2. Six accurate calibration, using the United States General Electric automatic calibration system, each product from production to delivery, after six accurate calibration. Zero point, midpoint, full degree of three-point detection, covering the full range, the measurement accuracy is much higher than two-point calibration.
3. High temperature aging test 72 hours aging test to ensure stable and reliable quality.
4. Laser marking, each pressure transmitter has a corresponding'identity number, from production to use, can detect maintenance records, one-click query, digital management, to give you a better use of experience.
FAQ
1. How long will you reply me?
Normally in 1 hours, no more than 12 hours.
2. How can I get the quotation?
Please provide specification and application including sensing element, pressure range, thread connection, pressure type, medium, electronic connection, shell material etc. More details, more accurate quotation and earlier response.
3. Can I get sample?
Contact with our staff online directly and they would check stock for you.
4. Can I visit your factory?
You are warmly welcomed, our factory is located at Zhengzhou city, Henan province, China.
5. Can we use our logo on the products?
Yes, we provide OEM/ODM service.
6. How long is your warranty period?
Warranty period from the date of acceptance of 12 months.
7. What is your terms of payment?
We could accept T/T, L/C, Western union, PayPal, credit Assurance.
8.How many days we can deliver?
In general, 2-3 days if sample order. 7-10 days if less than 100 pcs.
