Product Overview
Description
Products Description
Integrated with Pipe Monitor Assessment Mapping Platorm
This platorm support users track camera real-time location and manage camera systems online, suitable for all Easy Sight X1H seris pole camera and X5 serial crawlers.

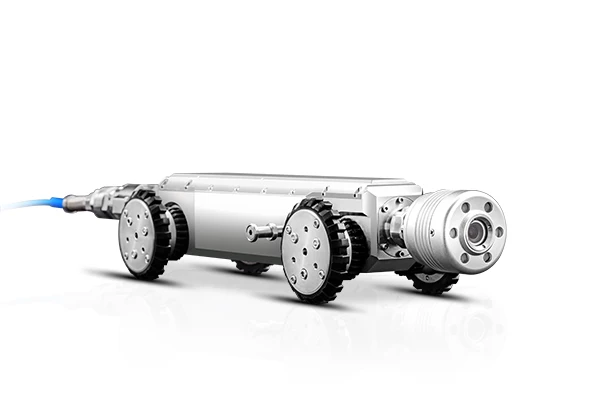

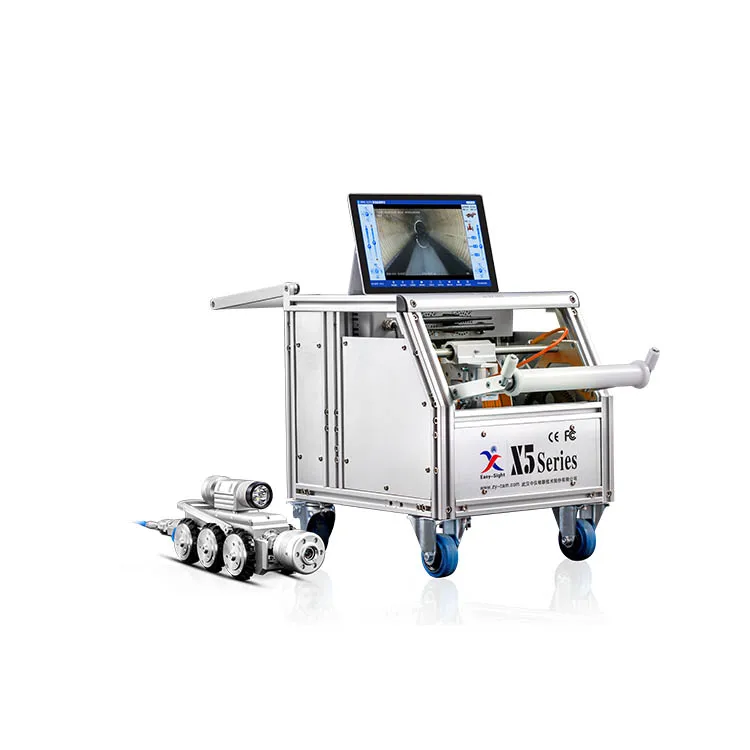

Model: X5-HMA for 150-600mm pipe , camera located in middle center pipe
X5-HMA pipeline CCTV Inspection robot is a product designed on the basis of industrial personal computer (IPC) system, Using a
laptop instead of the traditional controller. During the testing, defect pictures are acquired; afterward, a testing report can be obtained immediately. In addition, a pipeline gradient curve can be obtained in time during the testing to determine the sediment condition inside pipeline. Fish-eye lens is used, integrating "PipePano pipeline panorama testing video analysis software" , so as to generate the panorama image of inner wall of the pipeline, analyze and determine more finely and quantitatively (measurement on pipe diameter, crack width and so on).
X5-HMA pipeline CCTV Inspection robot is composed of crawler, camera, cable reel and main controller. Crawler can be overlapped with rotary camera and direct-view camera to response the operation orders of the main controller after connecting the cable reel with the main controller, such as crawler’s moving forward, retract, turning, stopping and speed adjustment; cameras bracket’s lifting, fall, lighting adjustment; cameras horizontal or vertical rotation, focusing, magnification change, forward and backward switching, etc. In inspection work, the main controller can display and record images from camera and state information of the crawler in time, input the remark information on the touch screen.
Model: X5-HMA for 150-600mm pipe , camera located in middle center pipe
X5-HMA pipeline CCTV Inspection robot is a product designed on the basis of industrial personal computer (IPC) system, Using a
laptop instead of the traditional controller. During the testing, defect pictures are acquired; afterward, a testing report can be obtained immediately. In addition, a pipeline gradient curve can be obtained in time during the testing to determine the sediment condition inside pipeline. Fish-eye lens is used, integrating "PipePano pipeline panorama testing video analysis software" , so as to generate the panorama image of inner wall of the pipeline, analyze and determine more finely and quantitatively (measurement on pipe diameter, crack width and so on).
X5-HMA pipeline CCTV Inspection robot is composed of crawler, camera, cable reel and main controller. Crawler can be overlapped with rotary camera and direct-view camera to response the operation orders of the main controller after connecting the cable reel with the main controller, such as crawler’s moving forward, retract, turning, stopping and speed adjustment; cameras bracket’s lifting, fall, lighting adjustment; cameras horizontal or vertical rotation, focusing, magnification change, forward and backward switching, etc. In inspection work, the main controller can display and record images from camera and state information of the crawler in time, input the remark information on the touch screen.
Products Parameters
Crawler | X5-HMA |
Protection grade | IP68 |
Equipt | Steerable backeye camera |
Elevator | Movable |
Inclination | Maximum 45 degrees warning |
Speed | Speed |
Roll, pitch and inclination sensor | Yes |
Weight |

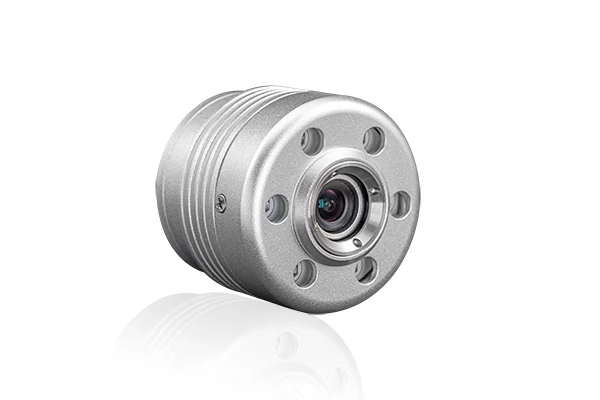

Camera | X5H |
Protection grade | IP68 |
Type | CMOS |
Resolution | 2 mega pixels |
Rotate | Endless rotation range |
Zoom | 10 levels zoom |
Focus | Yes |
Weight | 9.5kg/12kg |
Camera | X5H |
Protection grade | IP68 |
Type | CMOS |
Resolution | 2 mega pixels |
Rotate | Endless rotation range |
Zoom | 10 levels zoom |
Focus | Automatically/manually |
Drum | Motor driven cable drum |
Cable | 150 meter cable |
Protection | IP63 protection class |
Winding aid | Yes |
Meter counter | Yes |
Interface | Wifi / RJ45 |
Cable retract | Automatically/Manually |
Controller | Microsoft surface |
Memory | 256GB |
Operation | Touch Screen |
System | Windows10 |
Warranty | 1 Year |
Interface | Wifi |
Original | China |

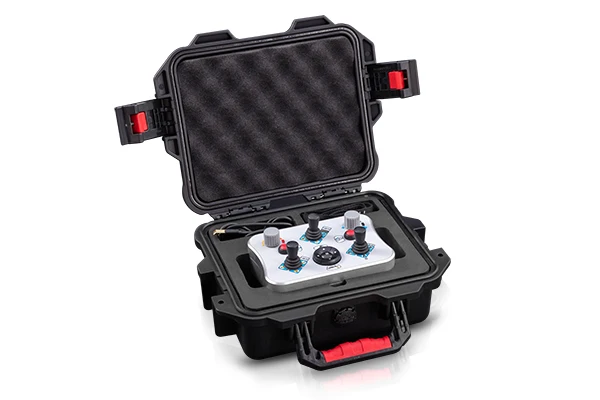

Joy stick | X5-HS,X5-HT,X5-HMA |
Axis | 5 |
Push button | 3 |
System | Windows/Android |
Warranty | 1 Year |
Interface | USB |
Original | China |

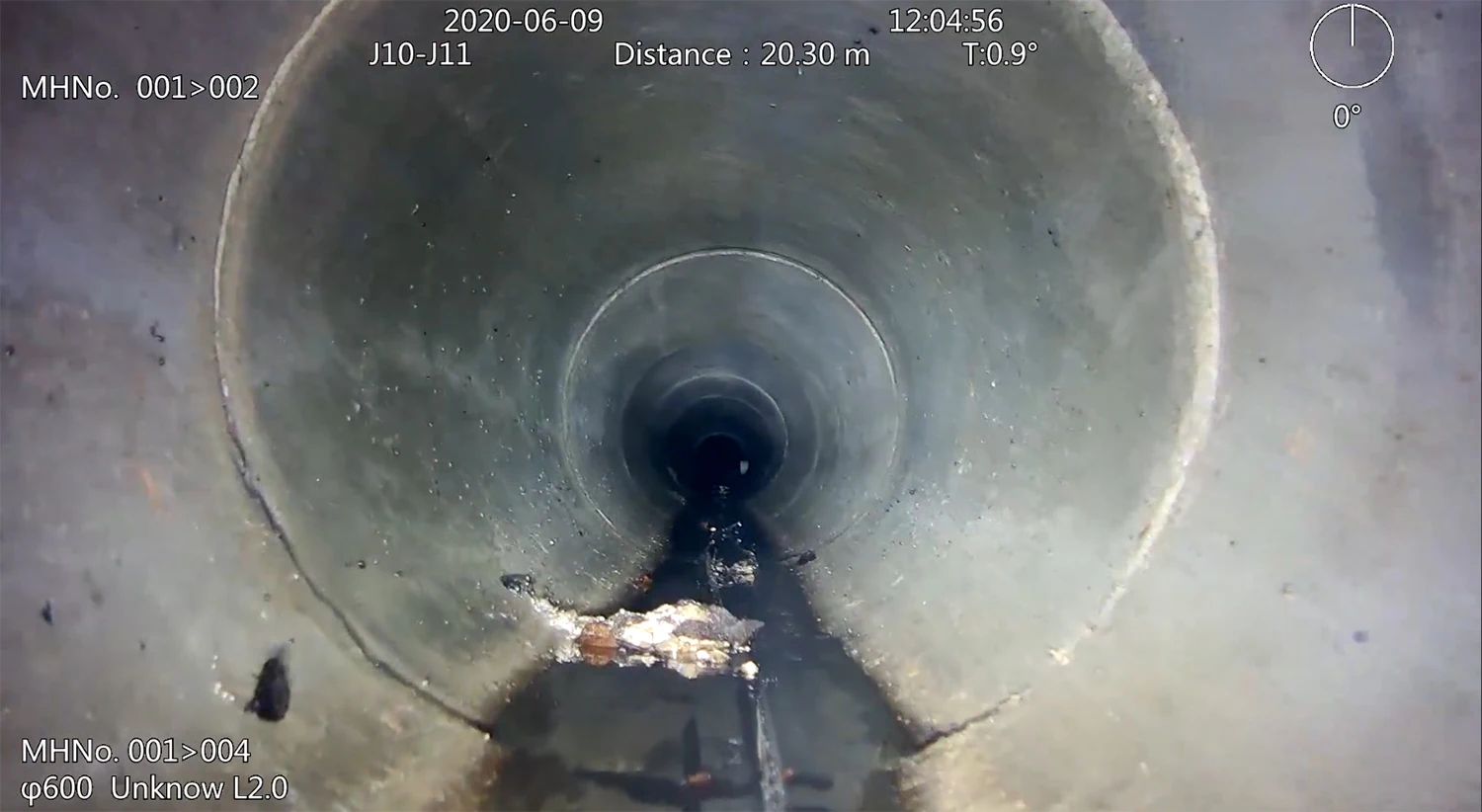

X5-HMA CCTV camera application

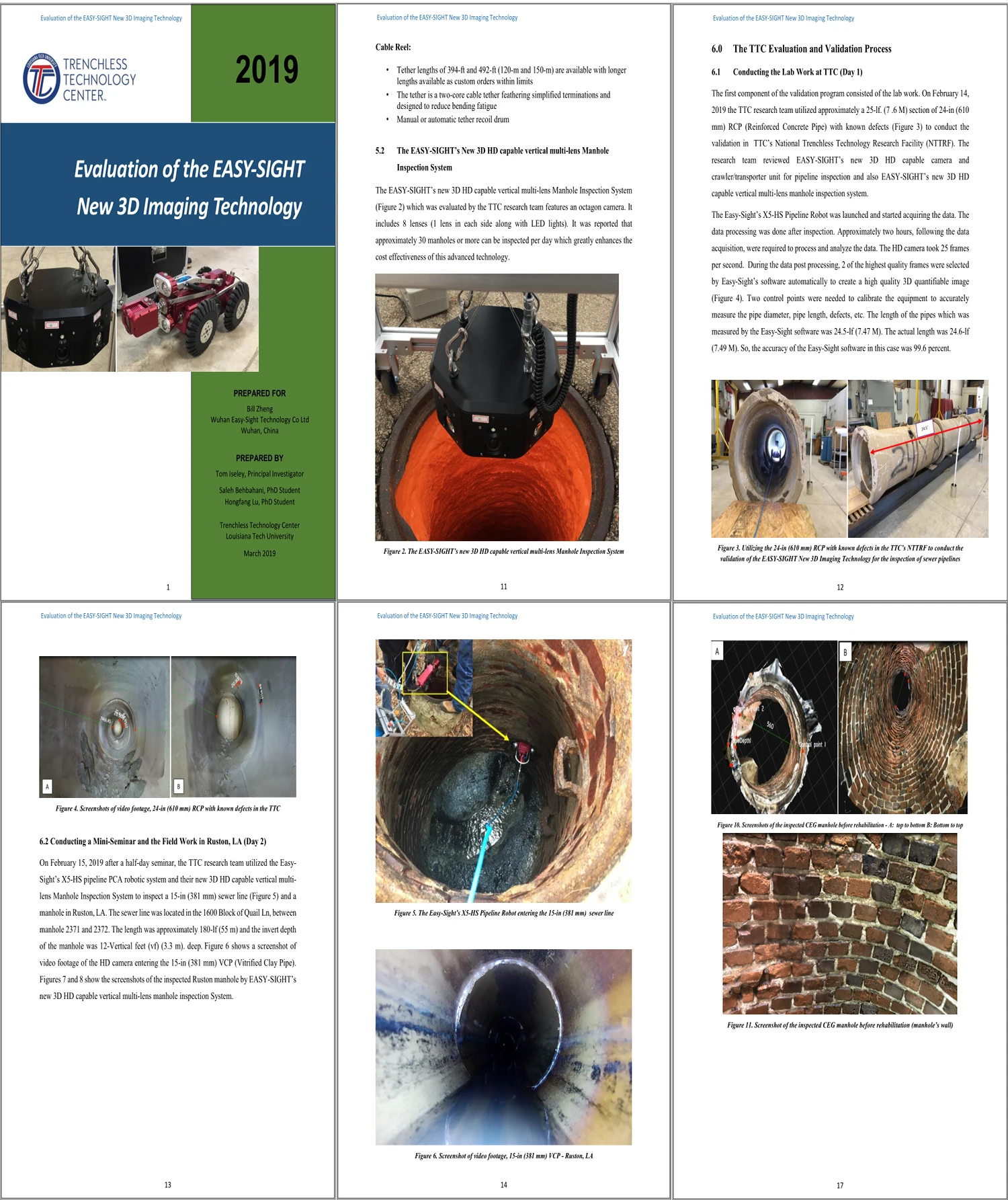

In collaboration with China-US Joint Center for Trenchless R&D, our products are widely applied to infrastructure development including geophysical prospecting, urban development, municipal construction, national defense, water conservancy and hydro power.

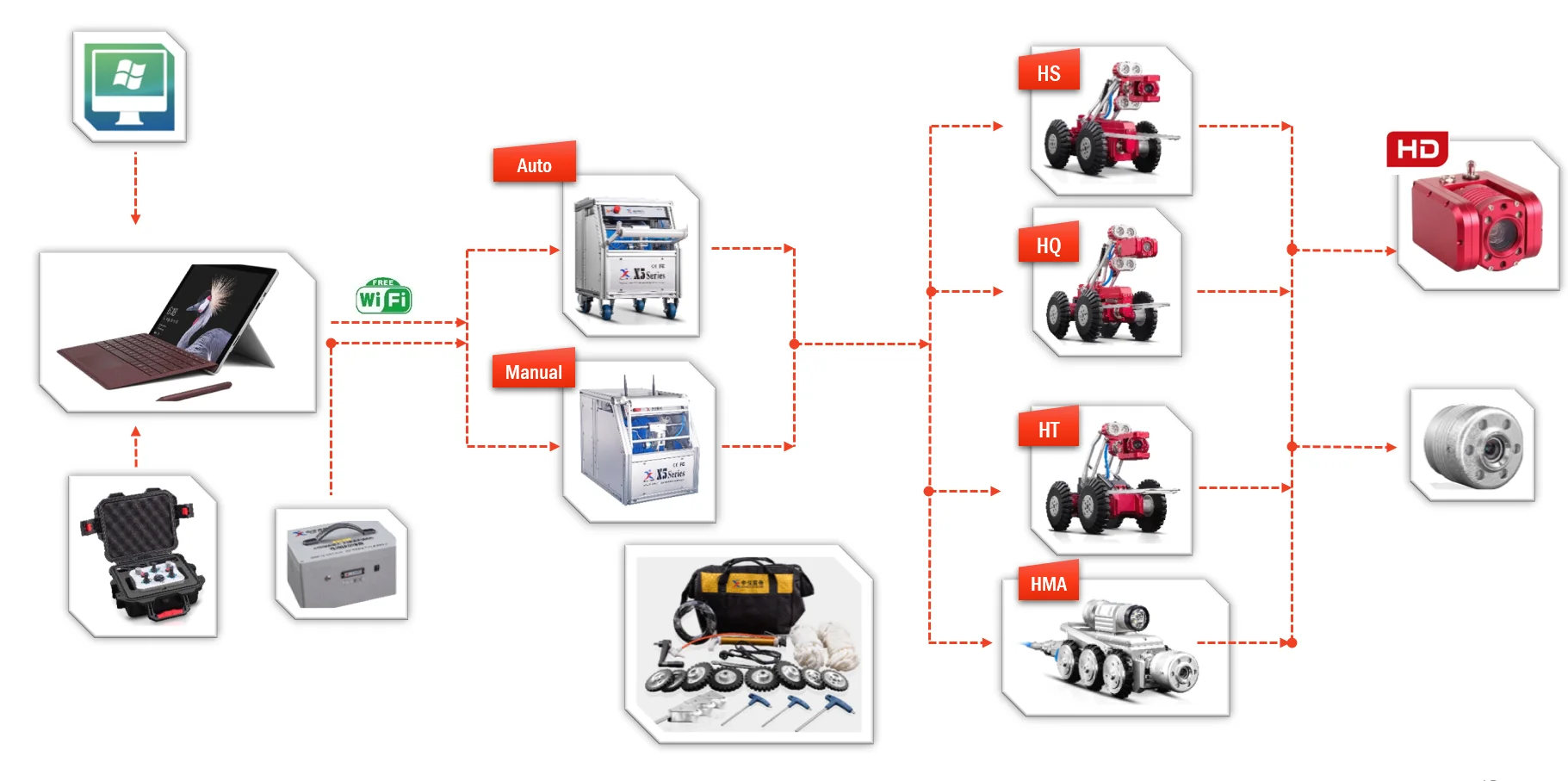

Easy Sight Products Family and Advantages

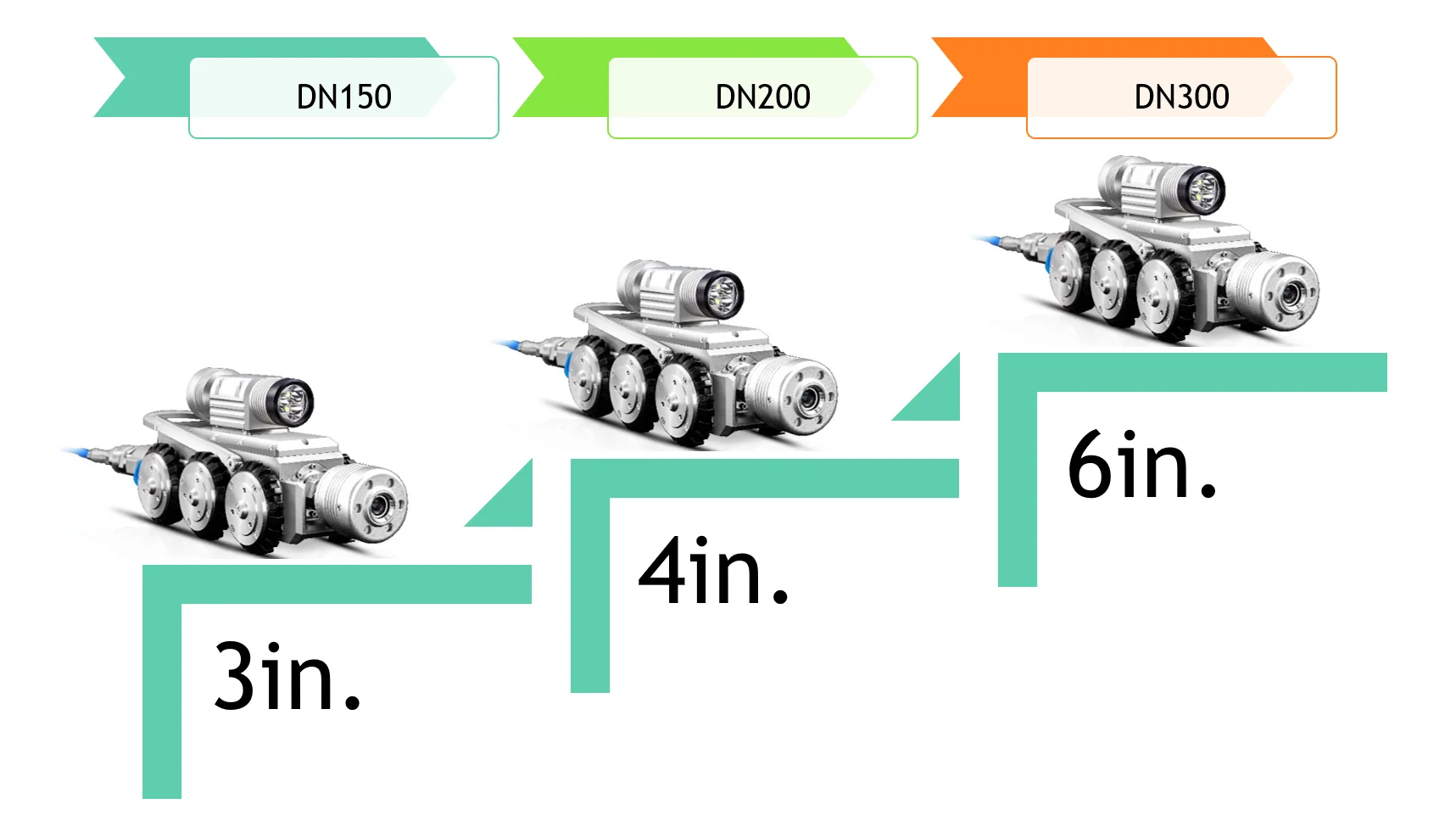

X5H Series Crawler advantages
1.Light
The whole machine is light weight: light weight master control, light weight cable reel, and light weight crawler;
PC control: use laptop (tablet) as a host to control crawler;
2.Fast
Efficient detection: quick assembly on site, time-saving and efficient;
Quick assembly: fast data transmission with no need to connect cable;
3.Good
Good synchronization: synchronization display of the before and after video screens;
4.HD highlight: high definition camera with highlight combination light source;
Convenient
5.Stable performance: the whole machine is waterproof and explosion-proof;
Little effort with no worries : easy to disassemble, and master control has zero failure;
The whole machine is light weight: light weight master control, light weight cable reel, and light weight crawler;
PC control: use laptop (tablet) as a host to control crawler;
2.Fast
Efficient detection: quick assembly on site, time-saving and efficient;
Quick assembly: fast data transmission with no need to connect cable;
3.Good
Good synchronization: synchronization display of the before and after video screens;
4.HD highlight: high definition camera with highlight combination light source;
Convenient
5.Stable performance: the whole machine is waterproof and explosion-proof;
Little effort with no worries : easy to disassemble, and master control has zero failure;

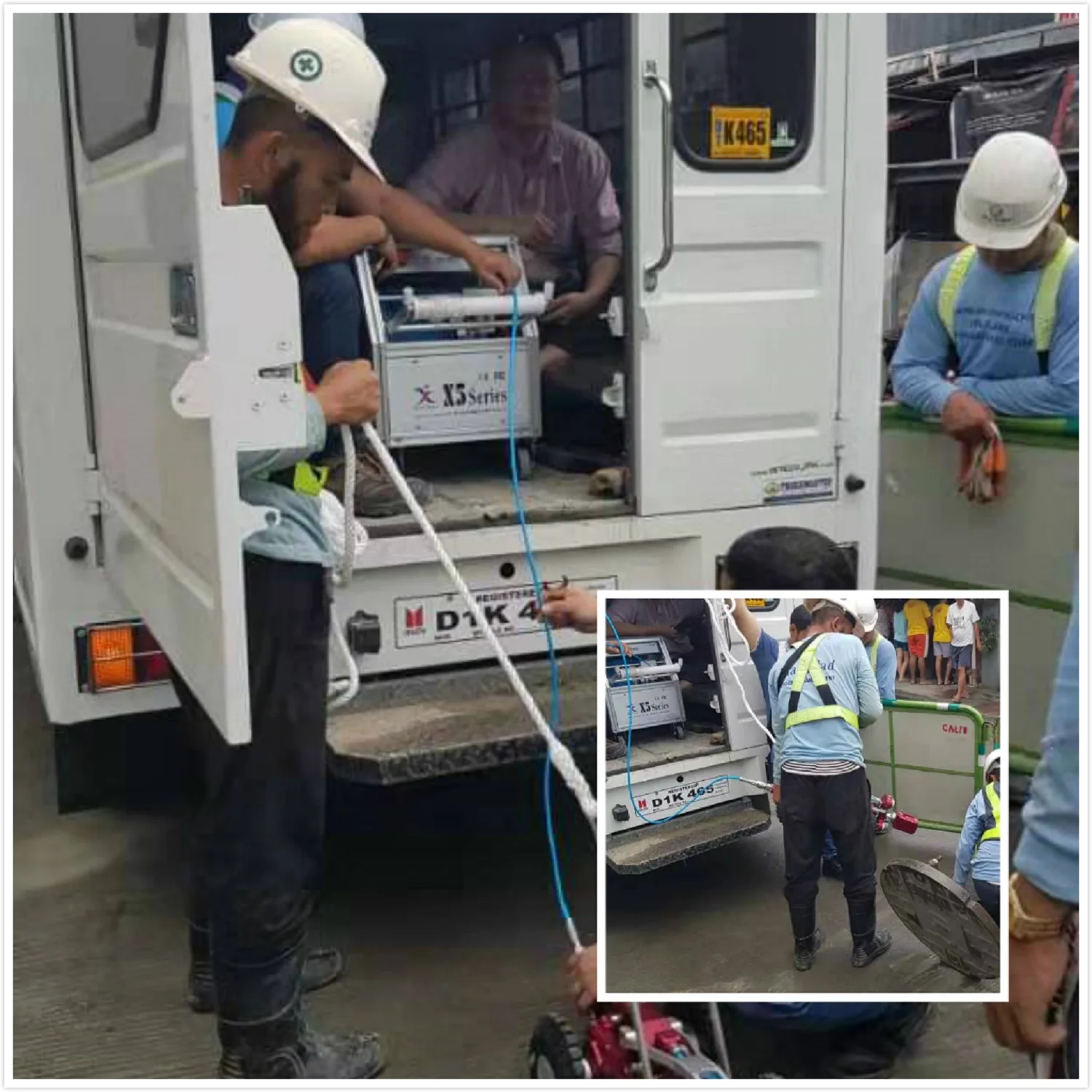

Customer Photos
Exhibition

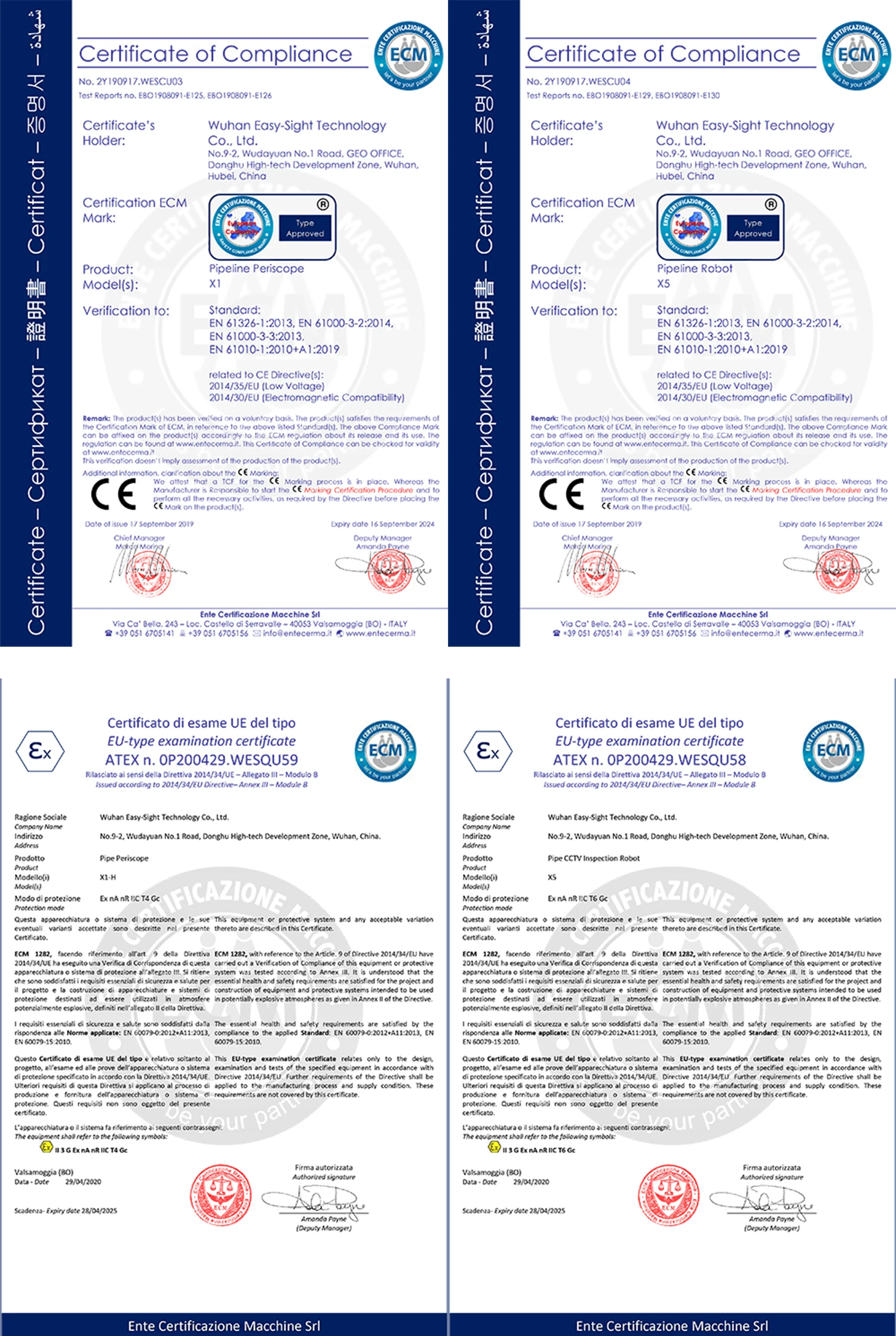

Certifications
Company Profile
Wuhan Easy-Sight Technology Co., Ltd
Found in Nov 2000, in Wuhan, Hubei province, China, is a leading producer of pipe cleaning,
inspection and rehabilitation equipment. In July 2015, Easy-Sight successfully became the first listed company on the New Third Board in the industry in China with a stock code of 833122. As a team with over 300 employees, Easy Sight is dedicated to providing a whole series of sewer industry products and systems to meet customers' different requirements.
Our main products include pipe periscope (Quickview), CCTV inspection robots, pipe sonar system, sonar-CCTV system, push rod camera, video jetting nozzle, UV curing rehabilitation system, 3D manhole scanner, GIS data management system and so on.
The company adheres to the implementation of ISO's quality management system and continuously improves the quality of employees nd products. Easy-Sight, as an intelligent pipeline solution supplier, has got approval of ISO9001, ISO14001, OHSA18001 and other management system certifications, such as CCTV inspection robots and pipe periscope have obtained FCC certification, CE certification.
inspection and rehabilitation equipment. In July 2015, Easy-Sight successfully became the first listed company on the New Third Board in the industry in China with a stock code of 833122. As a team with over 300 employees, Easy Sight is dedicated to providing a whole series of sewer industry products and systems to meet customers' different requirements.
Our main products include pipe periscope (Quickview), CCTV inspection robots, pipe sonar system, sonar-CCTV system, push rod camera, video jetting nozzle, UV curing rehabilitation system, 3D manhole scanner, GIS data management system and so on.
The company adheres to the implementation of ISO's quality management system and continuously improves the quality of employees nd products. Easy-Sight, as an intelligent pipeline solution supplier, has got approval of ISO9001, ISO14001, OHSA18001 and other management system certifications, such as CCTV inspection robots and pipe periscope have obtained FCC certification, CE certification.
