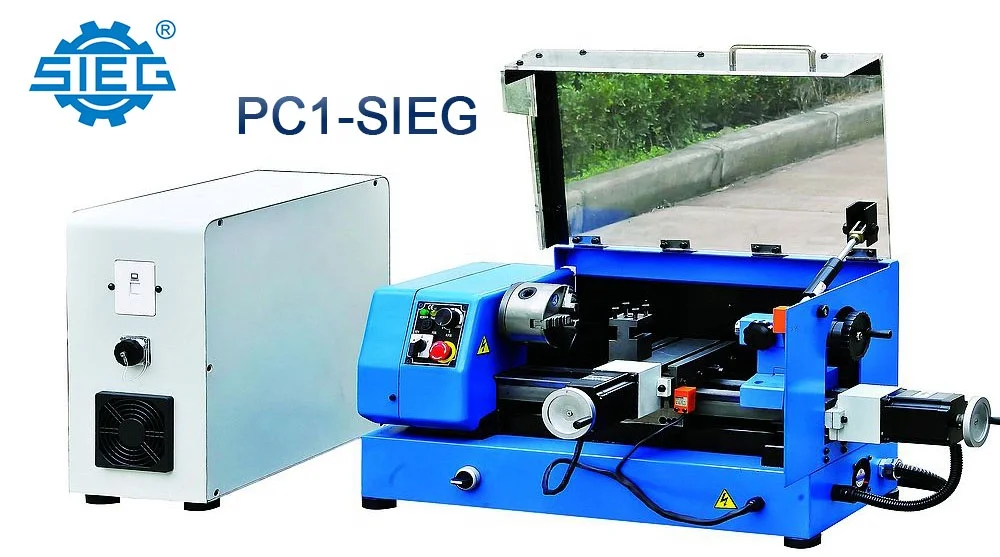

Household small desktop cnc metal lathe machine CE certification SIEG PC1 150W for DIY hobby high quality with good price
- Category: >>>
- Supplier: Liuzhou Gluck Imp& Exp Co. Ltd.
Share on (1600433565672):
Product Overview
Description
WORKING AREA | Turning diameter over bed(max) | 140mm |
Travel across slide | 75mm | |
Center width | 250mm | |

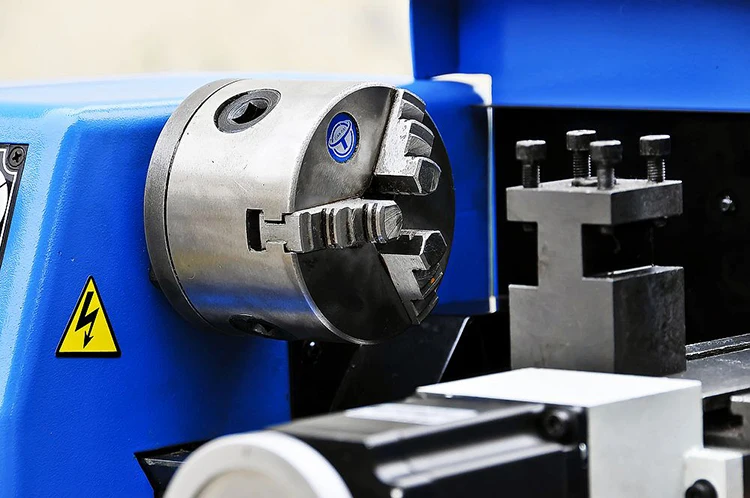

SPINDLE | Chuck diameter | 80mm |
Spindle speed | 100-2000r/min | |
Spindle through-hole | 11mm | |
Spindle mount | MT2 | |
Spindle motor power | 150W | |
FEED (stepper) | X travel | 100mm |
Z travel | 150mm | |
The max moving speed | 300mm/min | |
The max feeding speed | 200mm/min | |
Motor(X/Z) | 1.35 N.m / 3.1 N.m | |
TOOL REST | Tool position | 1 |
Tool dimension | 8×8mm | |
TAILSTOCK | Tailstock taper | MT1 |
Tailstock sleeve diameter | 20mm | |
Travel of tailstock | 25mm | |
ACCURACY | Positioning accuracy | 0.02mm |
Repeatability accuracy | 0.02mm | |
OTHERS | Power | 220V/110V |
Weight（NW/GW） | 45/65KG | |
Dimension | 730×380×350mm |

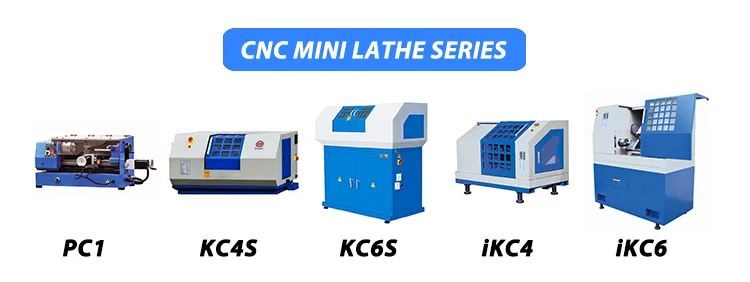

CNC lathe machines | |||||
Swing over the bed (mm) | |||||
Center width (mm) | |||||
Chuck diameter (mm) | |||||
Spindle hole (mm) | |||||
Spindle motor (W) | |||||
X travel (mm) | |||||
Z travel (mm) | |||||
Tool position | |||||
Tool dimension (mm) |

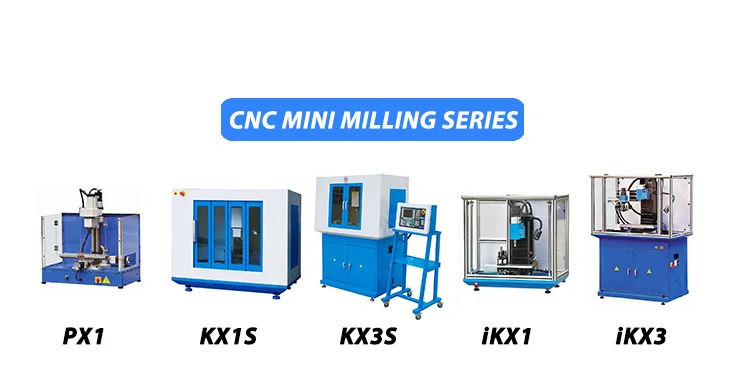

CNC milling machines | |||||
X/Y/Z travel (mm) | |||||
Spindle motor (W) | |||||
Spindle type | |||||
Spindle speed (rpm) | |||||
Max moving speed (mm/min) | |||||
Table size | |||||
Max load |
- Port of loading: Shanghai China.
- Port of destination: As arranged.
- By Express, by Sea, by Air Cargo.
- Port of destination: As arranged.
- By Express, by Sea, by Air Cargo.
WE MAKE SURE THE PRODUCT’S
SAFE ARRIVAL !
FAQ
—————————————————————————————————————————————————————————————————————
Q1: Is your company a factory or a trading company?A1: We are a factory with more than 12 years of production experience.
It alsohas an office in Liuzhou City, Guangxi Province, China.
Q2: Where is the factory and how can I get there?
A2: Our factory is located in Shanghai, China. We warmly welcome you.
Q3: What are your main products?
A3: We focus on various CNC machine tools,such as CNC lathes, CNC
milling machines and CNC vertical machining centers.
Q4: What is the control of your lathe? Can I change it to another brand?
A4: The standard control of our lathe is GlaxoSmithKline. You can also
change other controls, such as FANUC, Siemens, etc.
Q5: How to select the most suitable machine?
A5: Please tell us your requirements for the machine, or you can send
us product drawings, and our engineers can help you choose Best
model.
Q6: What are your terms of payment?
A6: Our terms of payment are 30% t / T in advance and 70% t / T before
delivery.
Q7: When is your delivery time?
A7: After receiving the deposit, the machine order takes 30-45 days.
If some special models will be longer, we will give you the corresponding
answer.
Q8: What is the minimum order quantity and product warranty period?
A8: One year, one set (except for special models)
Q9: What is a delivery package?
A9: Carton packing, wooden case
Q10: How does your company conduct quality control?
A10: ISO9001 and CE quality control
