Product Overview
Description
Product Description

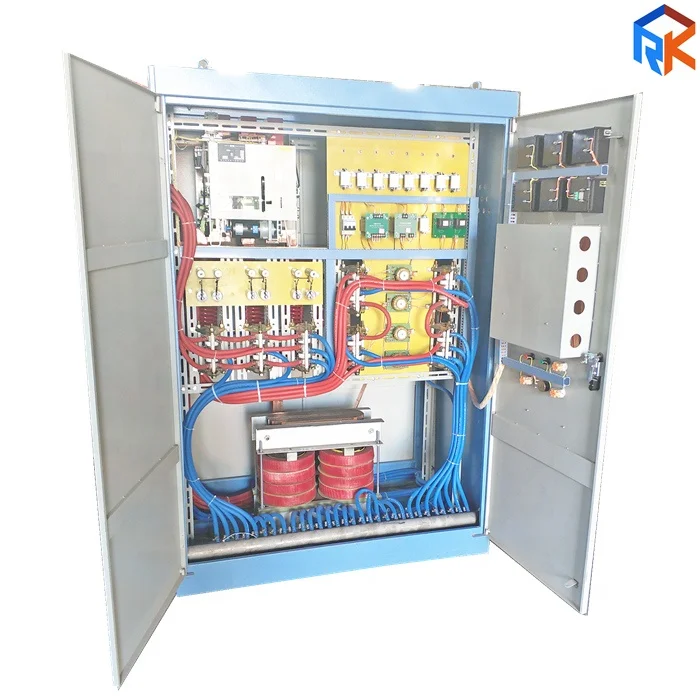

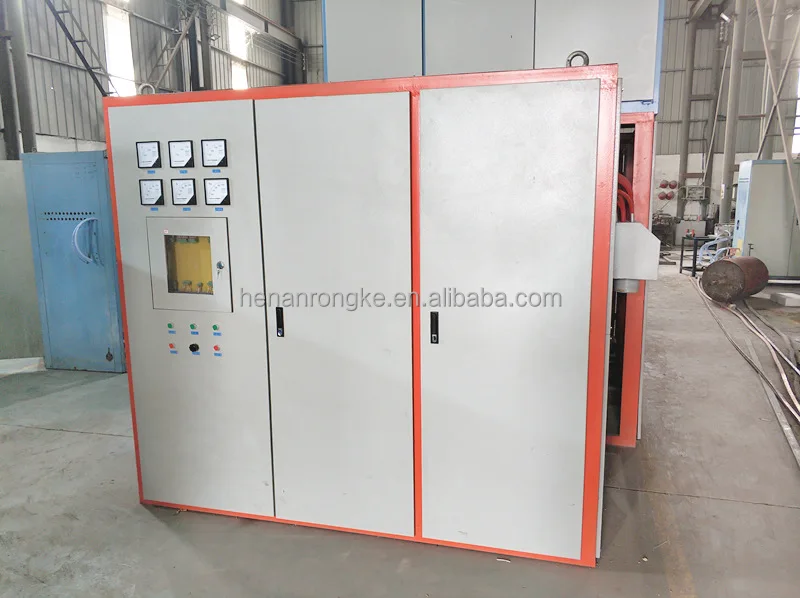

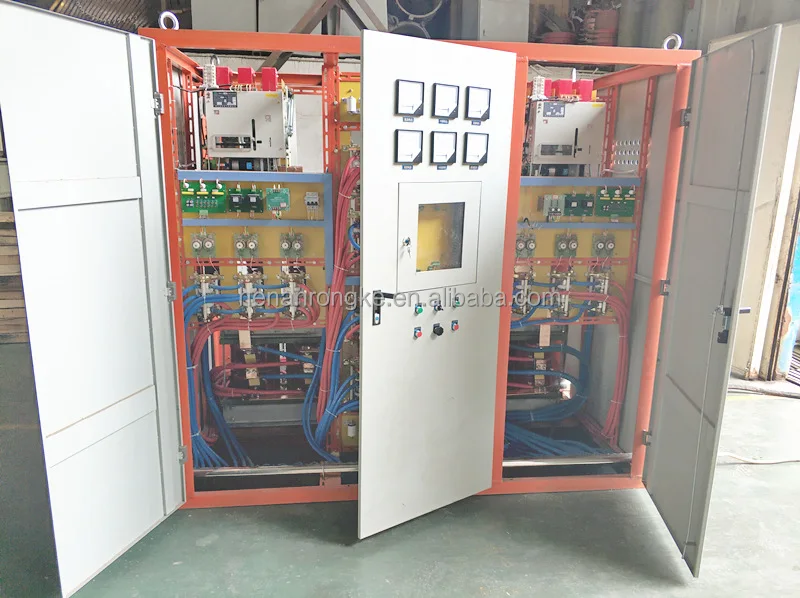

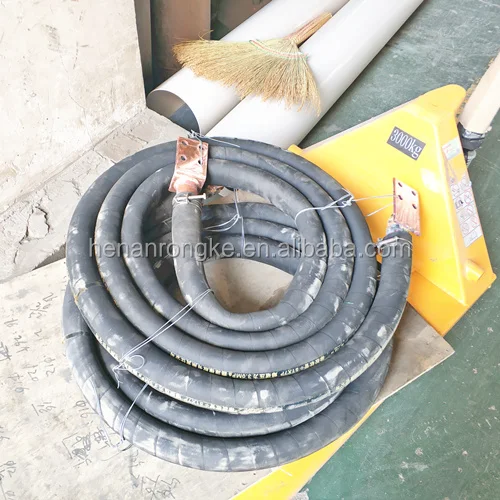

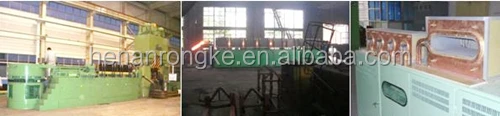

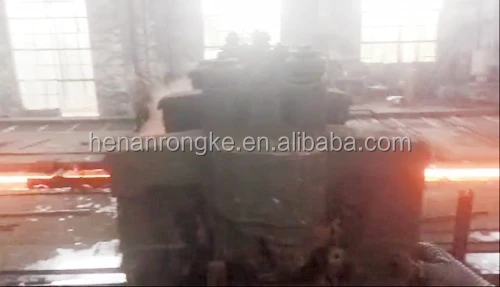

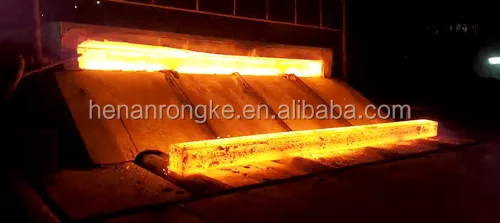

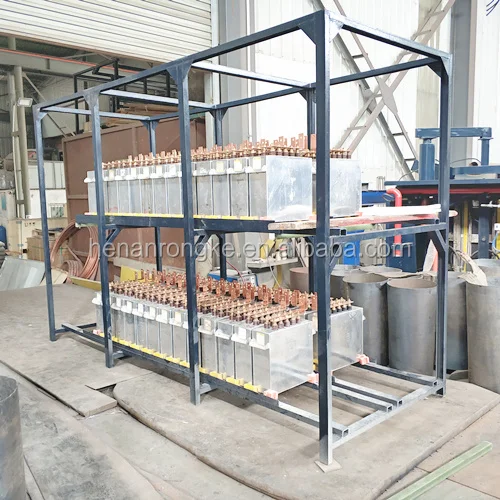

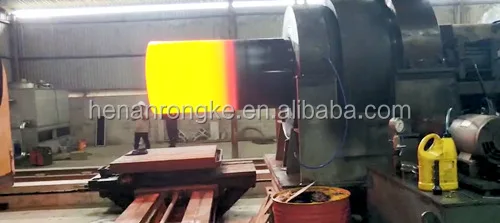

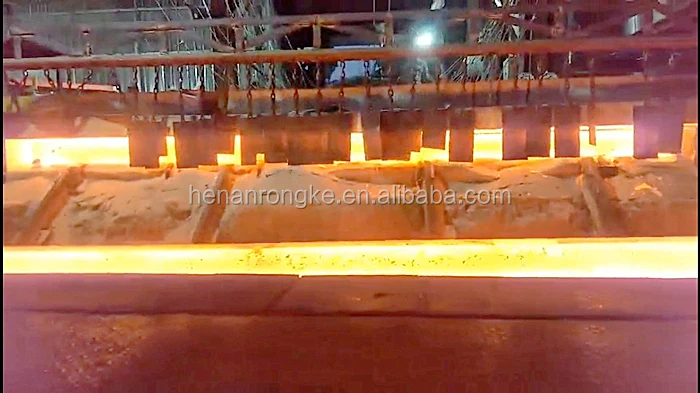

Billets, Bars, slab induction heating systems include high efficiency electrical energy KGPS powers upply units ranges from 50KW to 50000KW,frequencies between 60 and 10,000 hertz,electro-magnetically shunted heating induction furnace coils assembled to the heating sensor, capacitor assembly bank,water cooled cables to supply unifom heating, temperature equalization heated billets, bars and blooms at the proper temperature before rolling mill operation.
Application
Application:Mainly apply for the whole metal materials heating before the forging, extrusion, hot rolling and cutting,and metal
materials quenching and tempering, annealing, tempering and other heat treatment as a whole.
materials quenching and tempering, annealing, tempering and other heat treatment as a whole.
Heating features:
Heating fast speed, less oxidation decarbonization: As the principle of medium frequency induction heating is electromagnetic induction, the heat generated by the work piece itself, so this heating method heating quickly, oxidation very small and high heating efficiency, with good process repeatability. A high degree of automation,without automatic operation can be achieved : Automatic feeding and automatic discharge of the seizure device selected, coupled with the dedicated control software developed by our company.
Heating speed, less oxidation decarbonization:
As the principle of medium frequency induction heating is electromagnetic induction, the heat generated by the work piece itself, so this heating method heating quickly, oxidation very small and high heating efficiency, with good process repeatability.
A high degree of automation,without automatic operation can be achieved :
Automatic feeding and automatic discharge of the seizure device selected, coupled with the dedicated control software developed by our company, without automatic operation can be achieved.
Simple Induction furnace replacement:
According to the different size of the work piece, to be equipped with different specifications of the induction furnace. Each furnace are designed with hydropower quick change connector, so that the furnace is easy, fast and convenient to replace.
Equipment protection completely:
A full set of equipment with water temperature, water pressure, over current, over voltage, lack of phase protection, and with over temperature, lower limit alarm device. So that reliable protection when the equipment in the fault, without damage to components.
Low energy consumption, environmental protection:
High heating efficiency, compared with other heating methods, reducing energy consumption effectively. Equipment in line with environmental requirements, no pollution. In the forging industry, the energy consumption when heated to 1250 ºC is less than 390kwh / t.
NO. | ITEM. | SUPPLIERS AND MANUFACTURERS |
1 | Silicon controlled thyristor | TECH SEMICONDUCTORS |
2 | Resonant capacitor | Xinanjiang power capacitor limited |
3 | Coil tube T2 | Chinalco Luoyang Copper Co., Ltd |
4 | Copper bar T2 | Chinalco Luoyang Copper Co., Ltd |
5 | Main switch for power cabinet | Zhejiang TENGEN |

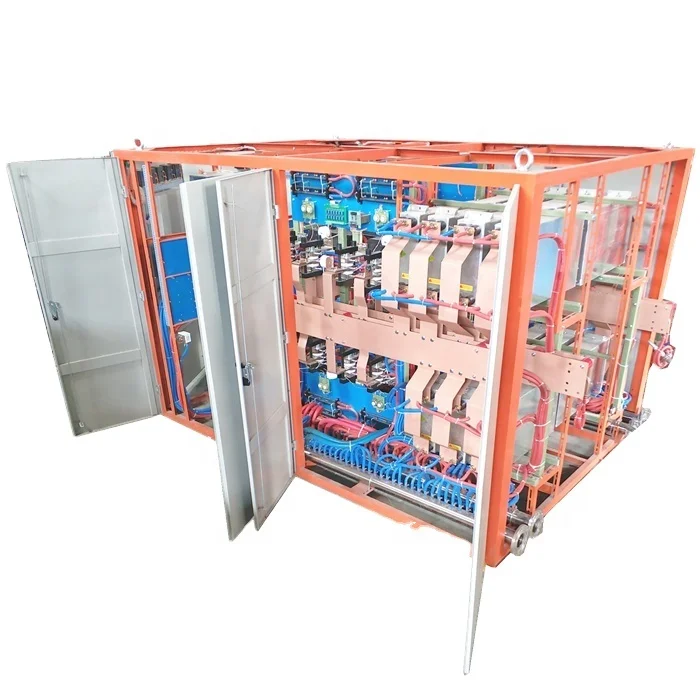

Power supply features:
1. Advanced electronic circuit control, with over-voltage, over-current, limiting pressure, current limiting, lack of phase, under voltage, underwater pressure, phase sequence automatic identification, cooling water temperature alarm protection and many other protection features. Power factor automatic adjustment function. From the cold charge to the heating during the entire cycle regardless of how the furnace conditions change can be achieved, automatically maintain the power to the furnace, so that the maximum amount of molten metal per kilowatt, the shortest same power heating time, thus increasing the profits of manufacturers,increased labor productivity.
improve the control circuit board life and system reliability.
3.High-power converter devices preferred from international and domestic well-known manufacturers, and run at 50% of the rated
capacity, so with 100% design safety factor, increasing the overall system reliability.
4.The equipment uses large air cooling copper, compared with the water-cooled copper, more energy for heating, increased efficiency, don't need maintenance.
5.Power start using zero voltage sweep start, no impact, in the state of no-load, heavy load, cold steel and other states can be reliable from the dynamic, stable and reliable, trouble-free for a long time and facilitate to maintenance.

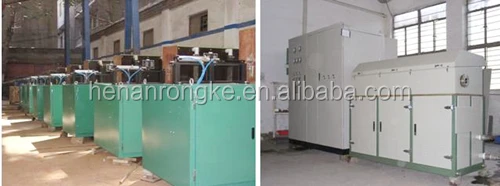

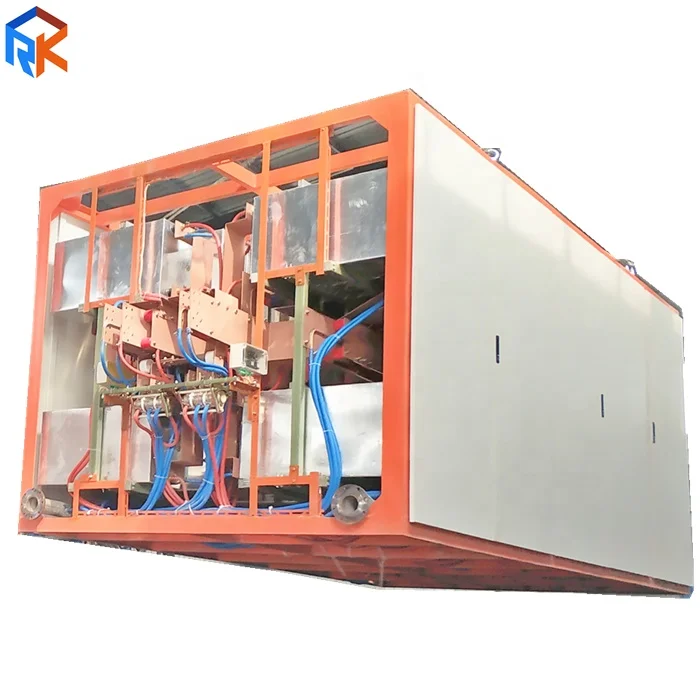

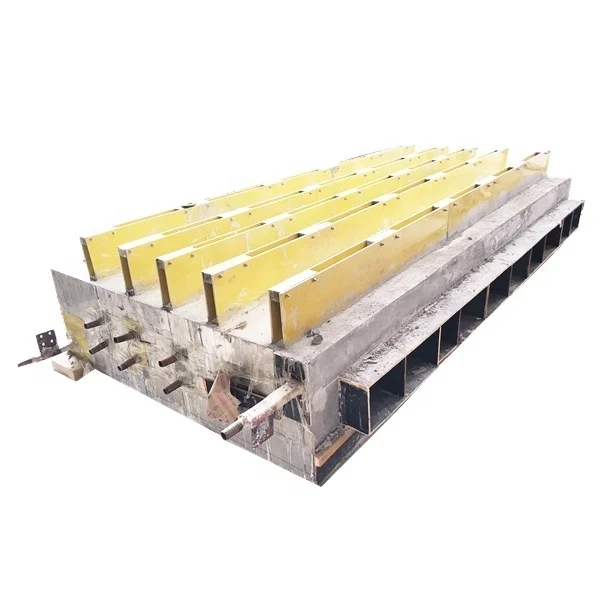

Detailed Images
Product Paramenters
Power(KW) | 50 | 100 | 160 | 250 | 500 | 1000 | >1000 | |||||||
Frequency(KHZ) | 10~1 | 10~1 | 8~1 | 6~1 | 2.5~0.5 | 1~0.5 | 1~0.2 | |||||||
Temperature(℃) | 1250~1100ºC For special materials such as molybdenum, the temperature can be above 1500 ºC | |||||||||||||
diameter (mm) | 10~25 | 10~30 | 15~40 | 15~58 | 50~100 | 50~100 | >100 | |||||||
Heating efficiency (Kg/h) | 145 | 300 | 450 | 750 | 1500 | 3000 | >3000 | |||||||
Consumption (KWh/t) | ≤360 | |||||||||||||
Note 1:The heating rate is data when heated to 1100 ºC. If the heating temperature is higher than 1100 ºC, the heating rate reduced in proportion. According to the heating rate and the workpiece the number of pieces per hour can be calculated (ie,heating the beat) Note 2:Furnace lining: silicon carbide, white steel jade, stainless steel and the overall knot four, the user can choose. If there is no special requirements, we will design according to the structural characteristics of any suitable. On the bolt headset and other single-ended heating, special-shaped material heating, non-standard design to provide imitation, narrow-type heating furnace. | ||||||||||||||
Rated Power (KW) | Frequency (HZ) | Transformer Configuration | Rectifier Pulse | Inductor Voltage (V) | Consumption (KW.h/t) | ||
Capacity (KVA) | Secondary Voltage (V) | ||||||
2000KW | 500~1000(HZ) | 2200KVA | φ660V-380V | 12 Pulse | 1200(800)V | 400(KW.h/t) | |
1500KW | 500~1000(HZ) | 1600KVA | φ660V-380V | 12 Pulse | 1200(800)V | 400(KW.h/t) | |
1000KW | 500~1000(HZ) | 1250 KVA | φ660V-380V | 6 Pulse | 380v | 400(KW.h/t) | |
500KW | 500~8000(HZ) | 630 KVA | 3φ380V | 6 Pulse | 380V | 450(KW.h/t) | |
400KW | 500~8000(HZ) | 500 KVA | 3φ380V | 6 Pulse | 380V | 450(KW.h/t) | |
350KW | 500~8000(HZ) | 500 KVA | 3φ380V | 6 Pulse | 380V | 450(KW.h/t) | |
250KW | 1000~8000(HZ) | 400 KVA | 3φ380V | 6 Pulse | 380V | 450(KW.h/t) | |
200KW | 1000~8000(HZ) | 315 KVA | 3φ380V | 6 Pulse | 380V | 450(KW.h/t) | |
160KW | 1000~8000(HZ) | 250 KVA | 3φ380V | 6 Pulse | 380V | 450(KW.h/t) | |
120KW | 1000~8000(HZ) | 200 KVA | 3φ380V | 6 Pulse | 380V | 450(KW.h/t) | |
100KW | 1000~8000(HZ) | 160 KVA | 3φ380V | 6 Pulse | 380V | 450(KW.h/t) | |
80KW | 1000~8000(HZ) | 100 KVA | 3φ380V | 6 Pulse | 380V | 400(KW.h/t) | |
Product packaging

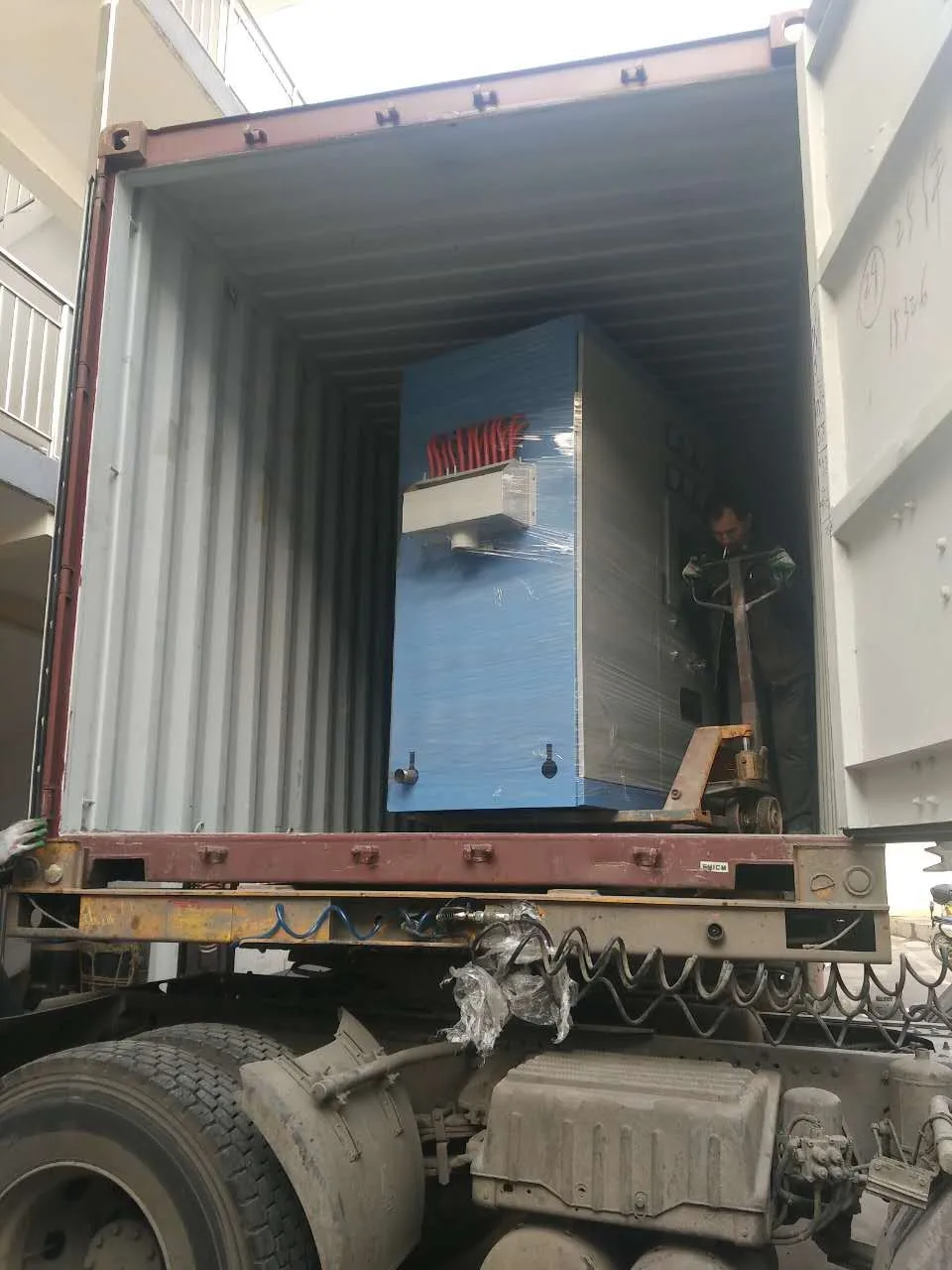

The whole equipment finished full and completely covered by container to delivery. The equipment will fixed by our factory in container to prevent damaged by crash in the delivery process. Small capacity furnace packaged by Plywood Case or as customers' request.
Our service
Installation and commissioning:
The user should first according to our foundation and plane layout to layout the foundation for the building, in accordance with the drawings and use the instructions to install the furnace and the power supply in place, water, circuit materials prepared completely. We dispatch engineers to guide equipment installation,and responsible for Commissioning, When training and installation just need pay wage to engineers.
Company information
Our factory is induction stirring furnace manufacturer.
Series inverter steel melting 550KWH per ton.
Furnace shells working simultaneously 20 minutes highest efficiency and have patent of Mixed Hertz induction stirring melting furnace for alloy casting.
New design billet induction heating equipment less than 300KWH per ton.
Graphene new materials manufacturing furnace with technology can be supplied.
After 30 years development, upgraded to new factory more than 7000 square meters.
Series inverter steel melting 550KWH per ton.
Furnace shells working simultaneously 20 minutes highest efficiency and have patent of Mixed Hertz induction stirring melting furnace for alloy casting.
New design billet induction heating equipment less than 300KWH per ton.
Graphene new materials manufacturing furnace with technology can be supplied.
After 30 years development, upgraded to new factory more than 7000 square meters.
