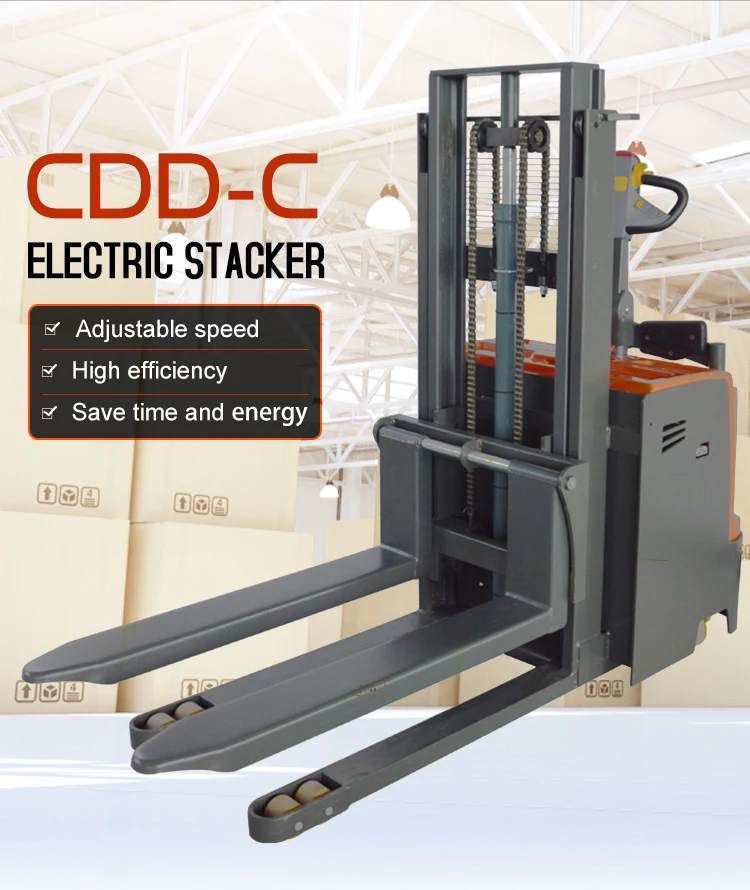

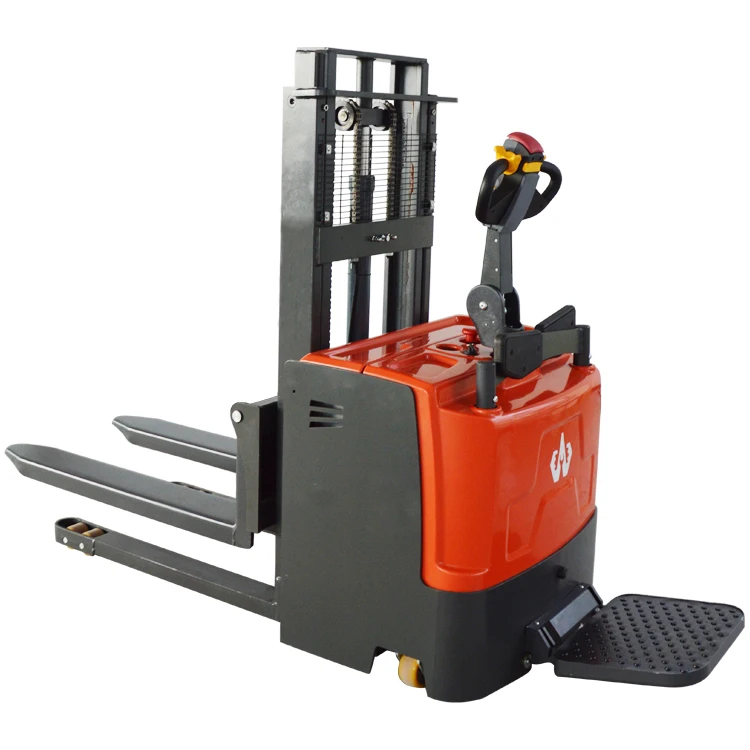

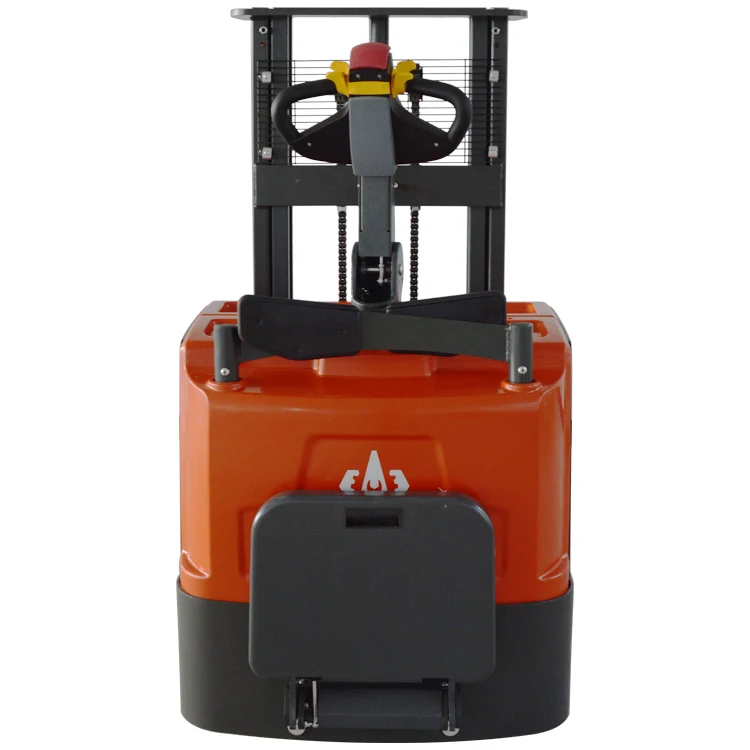

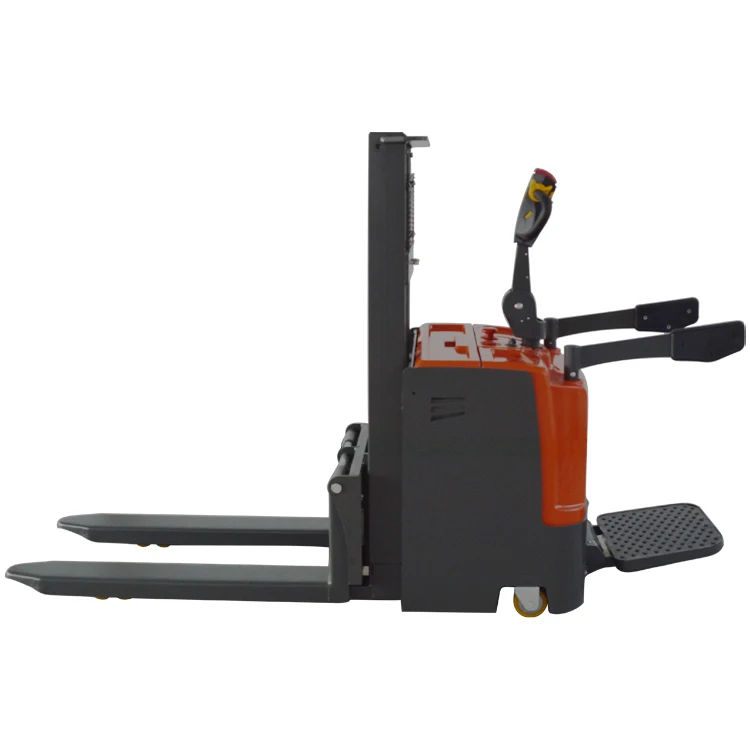

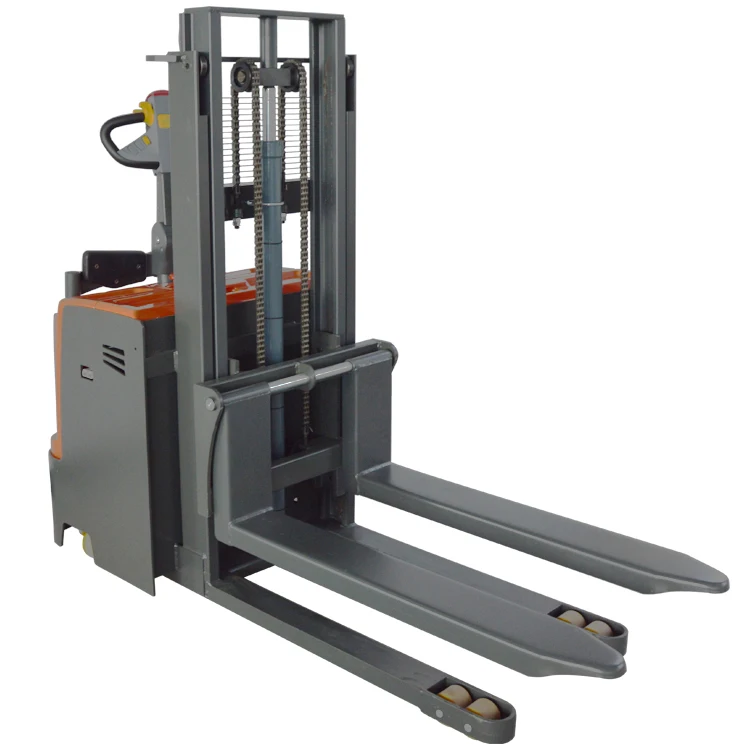

stand on up electric double pallet forklift 1ton electric pallet stacker price
- Category: >>>
- Supplier: Jiangsu Diding Machinery Co. Ltd.
Share on (1600433614741):
Product Overview
Description
Products Display
Product Paramenters
Performance | Maximum load capacity | kg | 1000 | ||
with load center at | mm | 600 | |||
Travel speed without load/with load | km/h | 5/4.5 | |||
Lifting speed without load /with load | mm/s | 110/80 | |||
Lowered speed without load /with load | mm/s | 100/100 | |||
Ascend slope ability without load /with load | % | 8/5 | |||
Dimensions | Overall length/width of frame(without platform) | mm | 2070/850 | ||
Wheelbase | mm | 1370 | |||
Fork size（length *width*thickness） | mm | 1150*170*60 | |||
Fork outside width | mm | 680 | |||
Min frounf height | mm | 30 | |||
Fork lowered height | mm | 90 | |||
Minimum turning radius | mm | 2156 | |||
Minimum intersecting aisie | mm | 2985 | |||
Tire | Front wheel | mm | 80*70 | ||
Drive wheel | mm | 250*75 | |||
Caster wheel | mm | 115*55 | |||
Electrical components | Drive motor Rated output/AC motor | kw | 1.5 | ||
Hoist motor Rated output/DC motor | kw | 2.2 | |||
Li battery | Voltag | V | 24 | ||
Capacity | AH | 100 | |||
Weight | kg | 40 | |||
Mast Type | Max.Fork height | Mast Lowered | Mast Extended | Weight：kg | |
CDD15C | CDD15DC | CDD15DC | CDD15C | ||
Simplex Mast (2stage) | 1600 | 2080 | 2080 | 630 | |
2000 | 1580 | 2550 | 680 | ||
2500 | 1830 | 3050 | 720 | ||
3000 | 2080 | 3550 | 755 | ||
3500 | 2330 | 4050 | 770 | ||
Related Products
Company Profile
Diding covers an area of more than 20,000 square meters, with advanced and standard production workshops, perfect processing equipments and product testing centers. Besides ,The company owns advanced storage equipment manufacturing technology which has obtained a number of patents. Also, The R & D department provides strong technical support, enabling us to receive some OEM, ODM projects. The diversified products have been issued the Modeling Test Certificate for Special Equipment and the Production License of Equipment.
Diding attracts customers from all over the world with the professional engineer support, high efficiency sales team ,competitive price superiority and perfect after-sales service system. Our products are sold all over China and exported in batches to more than 30 countries.
Under the guidence of the business philosophy which is ‘pursuit of excellence, users first’,Diding has made all efforts to create corporate image and product image as a professional manufacturer of electric warehousing equipments as well as an integrated solution vendor of stacking.
Diding attracts customers from all over the world with the professional engineer support, high efficiency sales team ,competitive price superiority and perfect after-sales service system. Our products are sold all over China and exported in batches to more than 30 countries.
Under the guidence of the business philosophy which is ‘pursuit of excellence, users first’,Diding has made all efforts to create corporate image and product image as a professional manufacturer of electric warehousing equipments as well as an integrated solution vendor of stacking.
Certifications
Exhibition
Product packaging
FAQ
Q1: Are you a factory?
A1: Of course. Jiangsu DiDing Machinery Co.Ltd., is a high-tech enterprise which specializes in researching and development, manufacturing, marketing and servings of electric warehousing equipments.
Q2: Can Diding provide customized products?
A2: Yes, Our R&D department provides the strong technical support and enables us to receive some OEM, ODM projects.
Q3: How about the delivery time?
A3: Usually our producing time is 7-20 working days after we receive the advanced payment. The specific delivery time depends on the items and the quantity of your order.
Most of our standard products are in stock，we can deliver immediately.
Q4: How long is the product warranty period
A4: The product warranty period is 12 months after delivery.
Q5: What is your payment term?
A5: T/T or L/C, if you want any other way, please contact us.
A1: Of course. Jiangsu DiDing Machinery Co.Ltd., is a high-tech enterprise which specializes in researching and development, manufacturing, marketing and servings of electric warehousing equipments.
Q2: Can Diding provide customized products?
A2: Yes, Our R&D department provides the strong technical support and enables us to receive some OEM, ODM projects.
Q3: How about the delivery time?
A3: Usually our producing time is 7-20 working days after we receive the advanced payment. The specific delivery time depends on the items and the quantity of your order.
Most of our standard products are in stock，we can deliver immediately.
Q4: How long is the product warranty period
A4: The product warranty period is 12 months after delivery.
Q5: What is your payment term?
A5: T/T or L/C, if you want any other way, please contact us.
