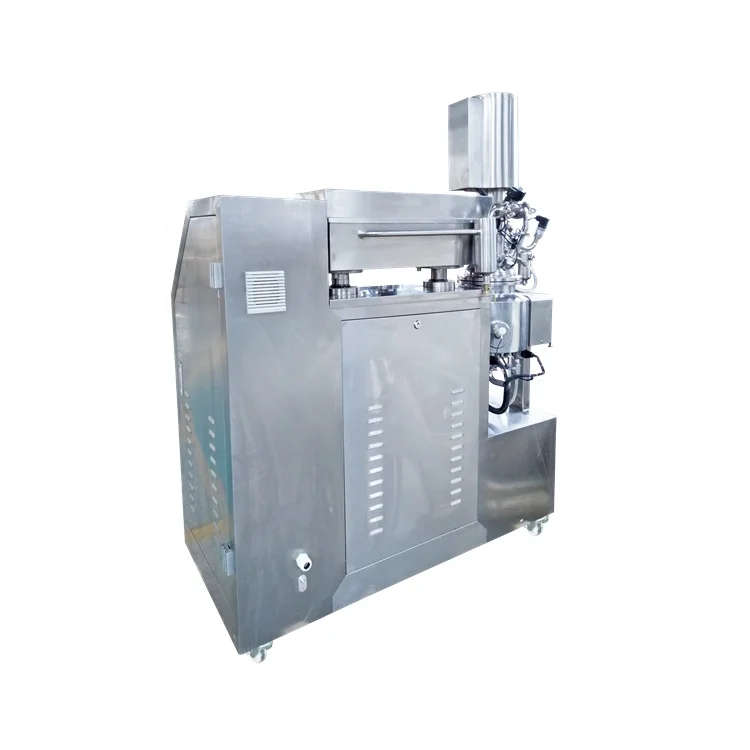

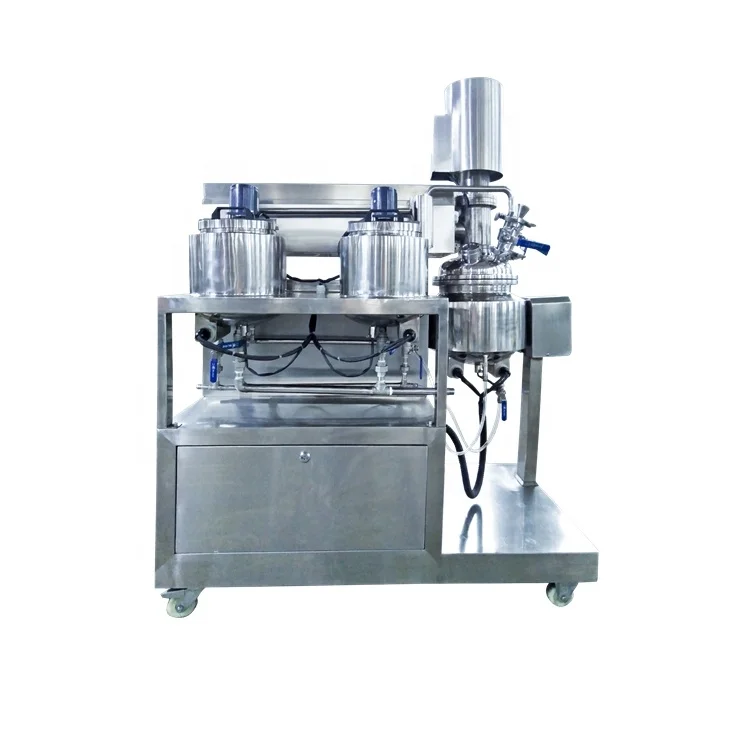

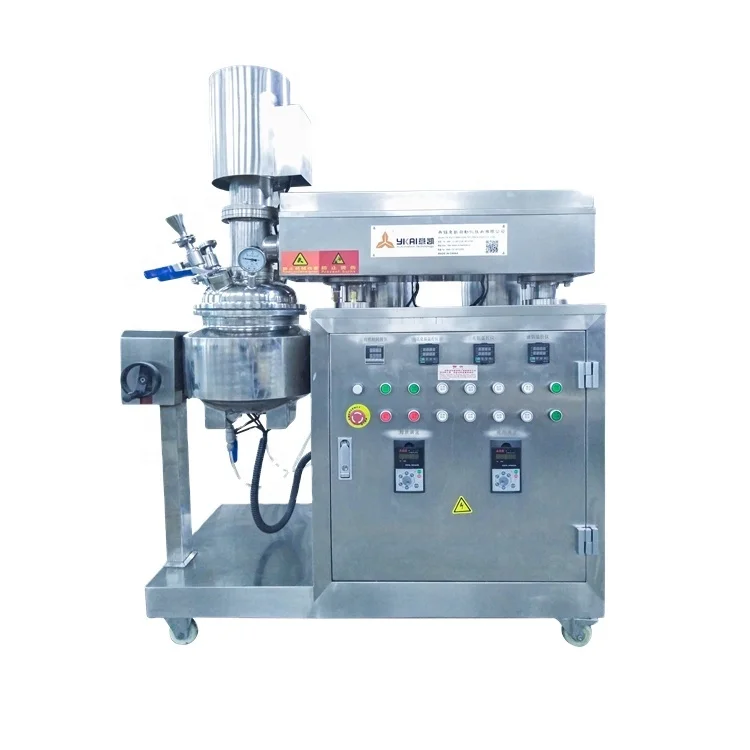

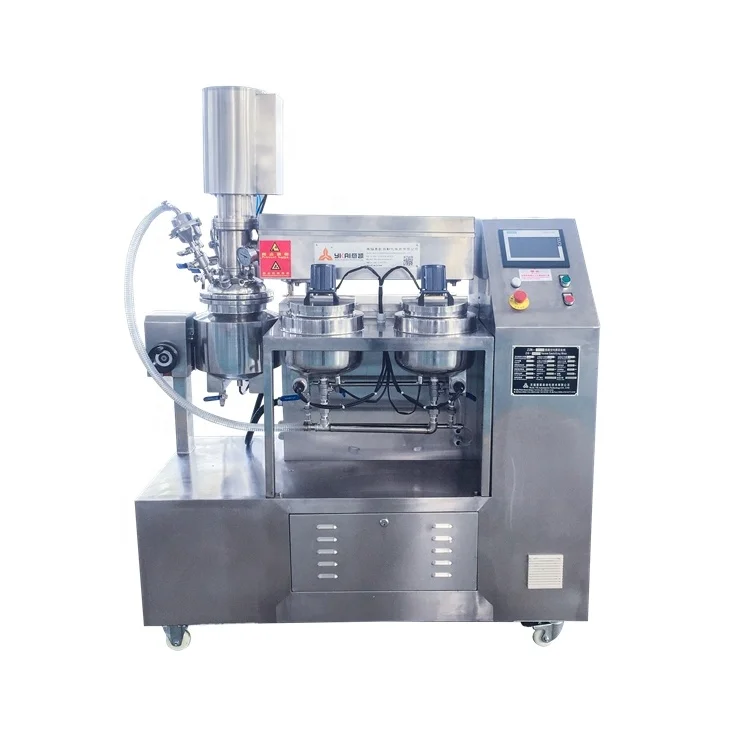

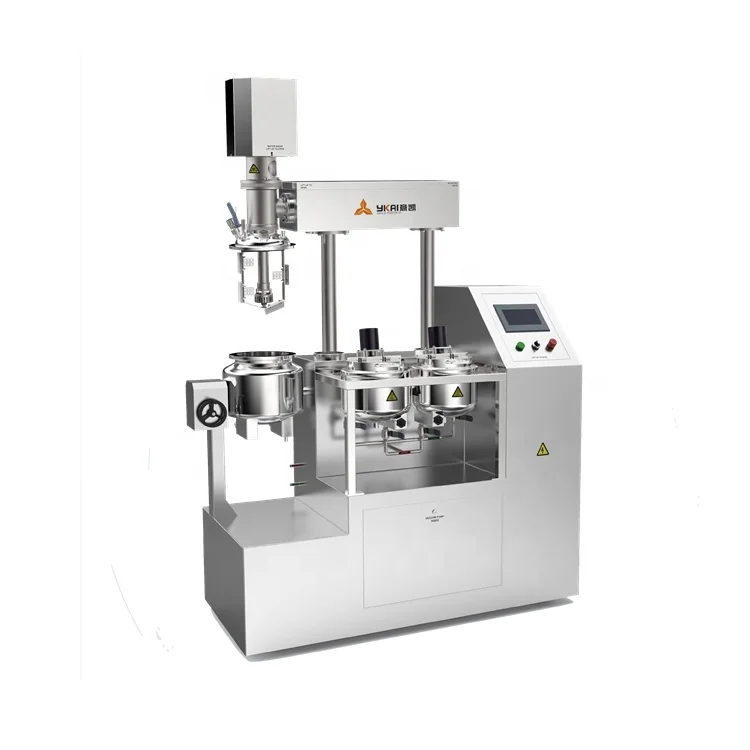

ZJR 10 Shoe cream making machine small emulsifier homogenizer lab emulsifying mixer
- Category: >>>
- Supplier: Wuxi YK Automation Technology Co. Ltd.
Share on (1600433615541):
Product Overview
Description
Product Description
Factory Supply Emulsifying Cream Machine Liquid Mixer Equip For The Product Of Liquid Soap
The pot cover is automatic lift type, the material was directed draw into the emulsifying boiler from oil boiler and water boiler based on a pipe that is under vacuum, the discharge is based on the turn the emulsifying boiler. And the heating system is electric heating or steam heating that the temperature is automation control. Put the cool water into the intercalated bed so cooling the material, simple operation and safety( at the outside have a warm layer). The homogenizer and the blade stirring can together work or separate work. The material sliming, emulsification, mixing, dispersing, etc. what will finished during short time. Contact position adopt high-quality stainless steel (medical use adopt 316L material make with supplies, polish mirror of interior surface, mix the hygiene of the device in vacuum, it accords with the normal hygiene standard manufacture of GMP to adopt that is most ideal production equipment.Laboratory Use High Shear Vacuum Emulsifier Mixer for Sale
ღ Application:
Working Principle

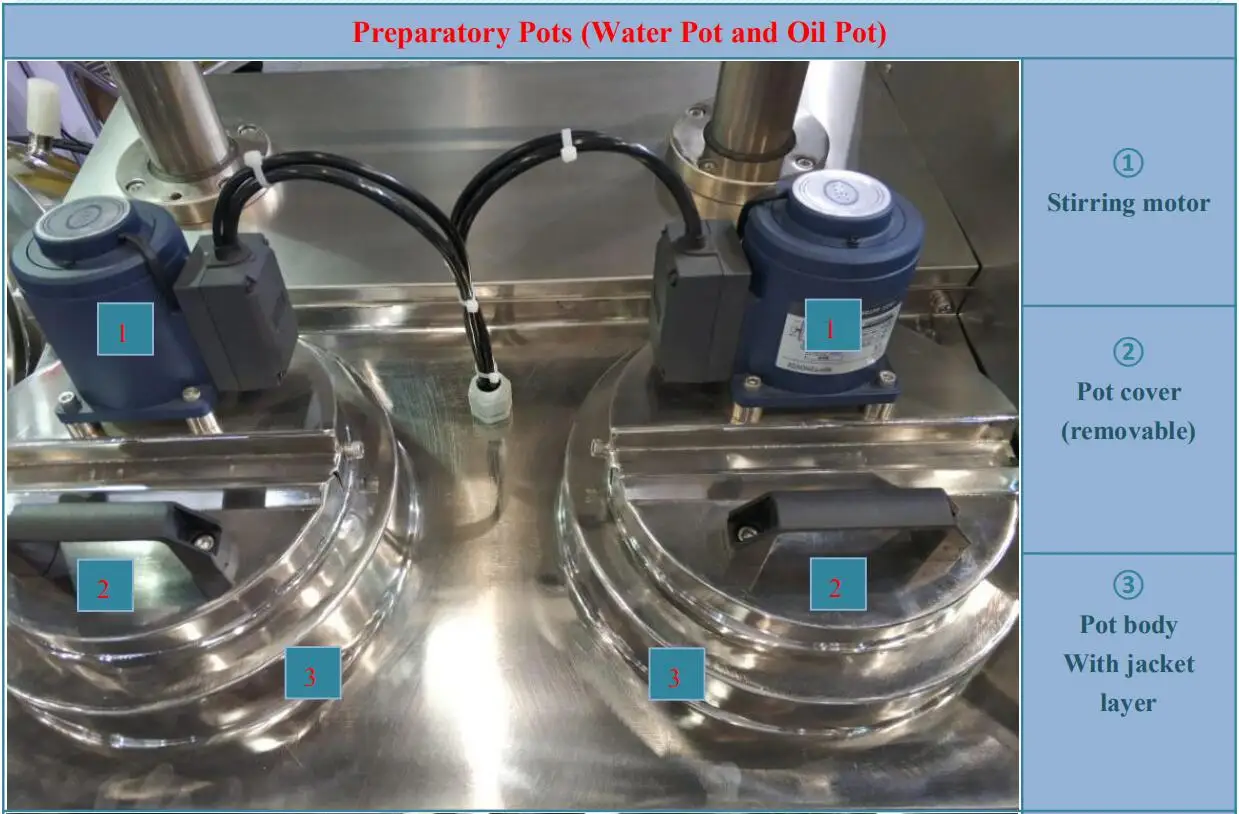

There are three pots : Main pot (Emulsifying pot) and preparatory pots (Water pot and Oil pot).
The water pot and oil pot are preparatory pots. For products which need emulsifying, the raw materials are always including water phase material and oil phase material, so the water pot is for preparation of water phase materials, and oil pot is for preparation of oil phase materials. The two pots both have jacket layer, which can be heated by electrical heating or steam . Meanwhile, the two pots equip with mixing system. The mixing system is dispersing disk with speed of 1400 rpm. After preparing (feeding, heating, mixing), the raw materials in these two pots can be absorbed into the main pot (emulsifying pot) by the power of vacuum through pipeline.

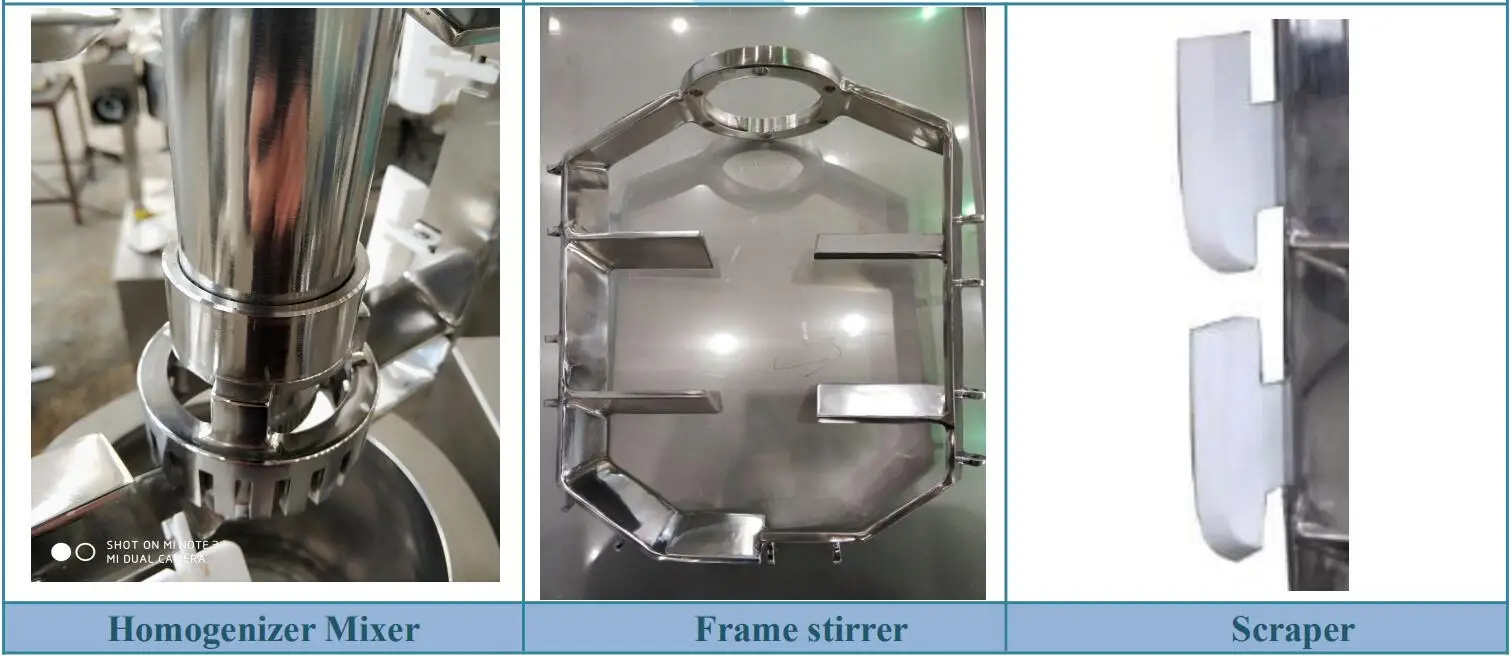

Structure
Technology Parameter
NAME | ZJR-5 | ZJR-10 | ||
Emulsifying pot | Design Volume(L) | 6 | 10 | |
Capacity(L) | 5 | 8 | ||
Scraper Stirring Power(kw) | 0.55 | 0.55 | ||
Scraper Stirring Speed(rpm) | 0-86 | 0-86 | ||
Homogenizer power(kw) | 1.1 | 1.1 | ||
Electrical heating power(kw) | 2 | 2 | ||
Homogenizer speed (rpm) | 3500 | 3500 | ||
Water pot | Design Volume(L) | 3.35 | 7.8 | |
Capacity(L) | 2.7 | 6 | ||
power(kw) | 0.025 | 0.025 | ||
speed(rpm) | 1200 | 1200 | ||
Electrical heating power(kw) | 1 | 1 | ||
Oil pot | Design Volume (L) | 3.35 | 7.8 | |
Capacity (L) | 2.7 | 6 | ||
power (kw) | 0.025 | 0.025 | ||
speed (rpm) | 1200 | 1200 | ||
Electrical heating power (kw) | 1 | 1 | ||
Dimension | Length*Width*Height | 800mm*550mm*1430mm | ||
Our Company
About us, click below to know more...
ღ About YK >
ღ R&D >
ღ Our Customers >
ღ Our Factory >
ღ Our Service >
ღ Our Suppliers >
ღ Honor & Certificates >
ღ Company TIMELINE >
Packing & Shipping
Packaging:
packing by wooden case usually, we also do other packaging as per customer's requirement.
Shipping:
- European Countries: 22-28 days
- United States: East --13-16 days, West--21-28 days
- Brazil: 30-40 days
- Russia: 36 days
- Asia Countries: 3-5days
FAQ
1. Why your machine similar with other supplier?
We are an overseas-funded enterprise. We are manufacturer and had been in this industry for more than 17 years, with more than 9 years export experience. We design machines by ourselves with advanced technology. Appearance just a part of machine, Service and quality is more important than it.
2. I'm new in our industry, but I'm planning to set up a factory, What can I do?
We can suggest customer the most suitable machine according to their formula, Raw material. Manufacturing- Installation- Training- Maintenance- Technical Support. We can introduce you supplier of raw material, bottles, labels etc. We could take you to our customer's factory to learn how they produce. We could customize machines according to your real need, We could send our engineer to your factory to install machines and train your worker of Operation and maintenance. Any more requests. Just let us know.
3. The machine is suitable for the production of?
We could offer various kinds of machines and whole production line.
(1) Cream, paste Products
In cosmetic industry: face cream, body cream, washing cream,hand cream etc
In food industry industry: sauce, ketchup, tomato paste, mayonnaise, mustard, chocolate etc
In chemical industry:welding paste,ink, paint,pigment etc.
Production line for them: RO water treatment- vacuum emulsifying machine- storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc
(2) Liquid products
shampoo, lotion, liquid soap, detergent, juice, solution, etc.
Production line for them: RO water treatment - liquid wash mixer- - storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc
(3) Make-up products:
Lipstick, lip gloss, nail polish, marscara etc
Machines for them: homogenizer mixer, colliod mill, lipstick filling machine, frezzing machine etc
(4) Adhesive products:
Instant glue, AB glue, silica gel, anaerobic adhesive, silicon, sealing etc.
Machines for them: double planet mixer, ribbon blender, tube filling and sealing machine, hydraulic distributing machine, cartridge filling machine, etc.
ღ For your inquiries, pls kindly let us know:
1. What is your products? Cream, toothpaste, moisturizer, face cream, etc.
2. What is the capacity do you want for this vacuum emulsifying machine? 5L, 10L, 30L, 50L, 100L, 150L, 200L, etc.
3. Required heating method: electric heating or steam heating?
4. Required voltage and frequency of power supply? eg:380V 50Hz 3phase?
5. Requirement of Certificate (CE, CSA, or no need)
