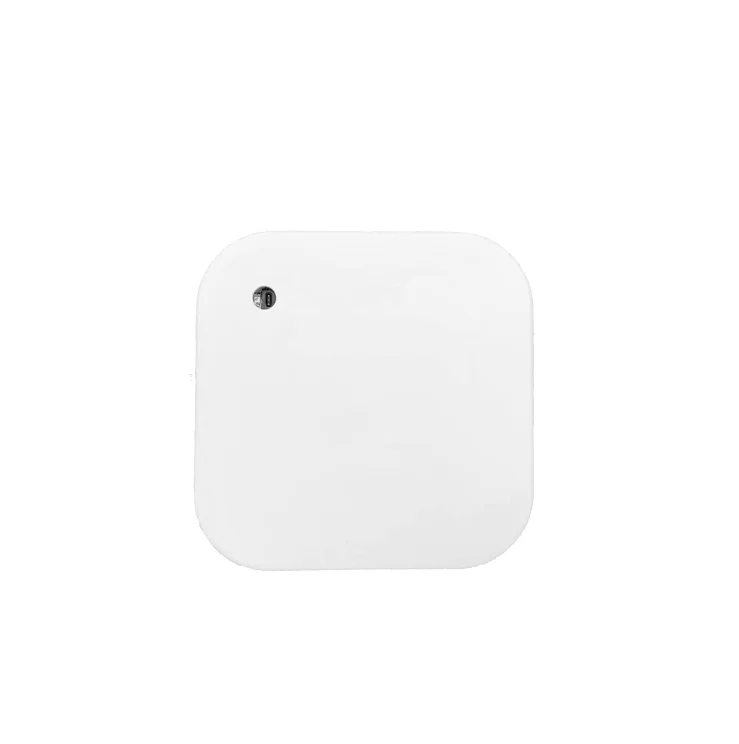

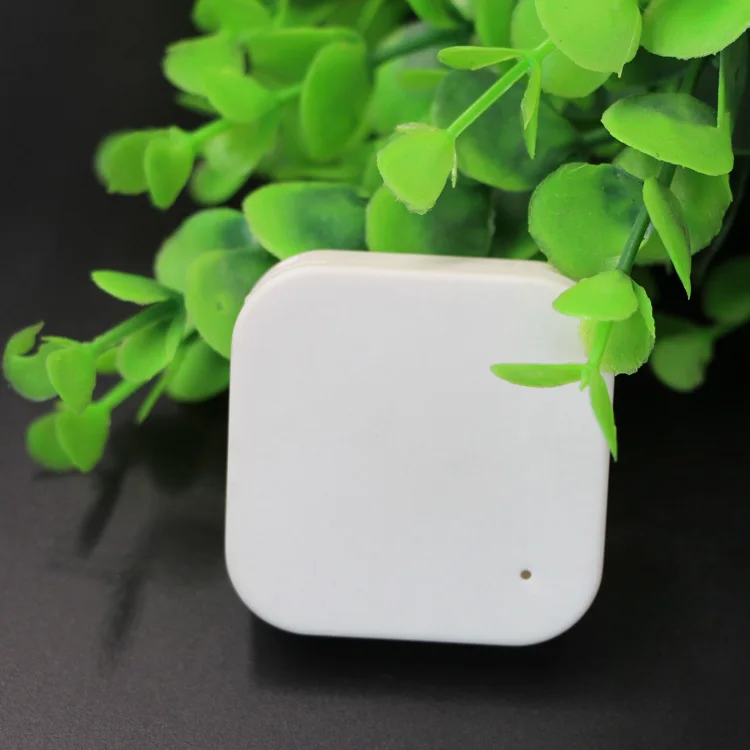

Ankhmaway Temperature Measure Humidity Sensor Portable Ibeacon Button Module With Cr2477 Battery Eddystone Ibeacon
- Category: >>>
- Supplier: Shenzhen AnkhMaway Electronic Technology Co. Ltd.
Share on (1600433618968):
Product Overview
Description
iBeacon Feature
OEM ble low cost hygrometer mini Temperature and Humidity sensor
BLE beacon
Chipset: nRF 52832
Battery type: Panasonic CR2450 battery
Ble range: 100meters in open air
Battery life: 37 months based on broadcasting rate 1 second
Sensor: humidity and temperature sensor
Button: Yes
-We will provide you with a tool APP and API document to configure beacon data, and IOS/Android SDK and Android Source Code to develop your APP.
Functions: monitor temperature and humidity; monitor motions
iBeacon Parameters
Item | Test Data | Remarks |
Chip | NRF52832 | Nordic |
Battery model | CR2450 | Null |
Operation Voltage | 2.0-3.6V | DC |
Operation Frequency | 2400-2483.5MHz | Programmable |
Frequency Error | +/- 20KHz | Null |
Modulation | Q-QPSK | Null |
Standby current | 12uA | Null |
Output Power | 4 dBm - -40dBm | Programmable |
Receiving Sensitivity | -93dBm | High gain mode |
Transmission distance | 100m | BER<0.1%, Open space |
Antenna | 50ohm | Onboard |
State | Operation Current (uA) |
Sleeping Mode | 3.6 |
Connectable Mode | 142 |
Non-Connectable Mode | 22.5 |
Other Models
W1
BLE & WIFI Gateway Beacon
Ble range: 130m
Battery type: Rechargeable Battery
Size: 18*58*85mm
Chipset: Nrf52832
iB004N PLUS
Ble range: 100m
Battery type: CR2477
Working time: 58 months based on broadcasting rate 1second
Size: 40*40*16.5mm
Chipset: N51822 256KB
U1
Ble range: 50- 70m
Battery type: CR2032
Working time: 12 months based on broadcasting rate 1second
Size: 48*25mm
Chipset: Nrf52810
H1
Chipset: N52832
Ble range: 50m- 70 meters in open air
Battery type: Rechargeable battery
Working time: 1 month based on broadcasting rate 1s every charge
With Vibrator and LED
Color: black, blue, orange, red
iB001M
Ble range: 70m
Battery type: CR2016
Working time: 10 months based on broadcasting rate 1second
Size: 40.3mm x 23.9mm x 2.6mm
Chipset: N51822 256KB
S1
Ble range: 40m
Powered by: USB adapter
Size: 19*15*6mm
Chipset: N52810
M52 PLUS
Ble range: 100m
Battery type: CR2477
Working time: 58monthsbased on broadcasting rate 1second
Size: 42.3mmx42.3mmx13.4mm
Chipset: N51822 256KB
M52-SA PLUS
Chipset: Nordic 52832
Battery type: CR2477 battery
Ble range: 100 meters in open air
Battery life: 24 months/broadcasting rate 1 second
Sensor: acceleration sensor, humidity and temperature sensor
M52-PIR
PIR range: 6 meters
with 140° conical radiation
Beacon range: 100 meters in open air
Complys to Ble 4.0
Mode: Trigger broadcasting mode and Service notifying mode
Detailed Images
Certifications
Our Company
Other Models
W1
Ble range: 100m
Battery type: Rechargeable Battery
Size: 75*59*12mm
Chipset: N52832
M52 PLUS
Ble range: 100m
Battery type: CR2477
Working time: 36months based on broadcasting rate 1second
Size: 43.7*43.7*14.5mm
Chipset: N52832 512K
U1
Ble range: 70m
Battery type: CR2032
Working time: 12 months based on broadcasting rate 1second
Size: 45*25.5*4.8mm
Chipset: N52810 192K
H1
Chipset: N52832 512K
Ble range: 50m in open air
Battery type: Rechargeable battery
Working time: 1 month based on broadcasting rate 1s every charge
With Vibrator、Buzzer and LED
Color: black, blue, orange, red
M52 SA PLUS
Ble range: 100m
Battery type: CR2477
Working time: 24 months based on broadcasting rate 1second
Size: 43.7mm x 43.7mm x 14.5mm
Chipset: N52832 512K
iB005N
Ble range: 50m
Powered by: USB adapter
Size: 19*14.7*6.3mm
Chipset: N52810 192K
Our Service
Case customization
For the bulk purchase consumer, we provide the case customization and even the hardware design just for your customized housing
Logo printing customization
We can print your own logo on the case in any color (Gradient color will relatively cost more).
Firmware customization
We provide the firmware customization.you can change the UUID, major, minor and other parameters.
