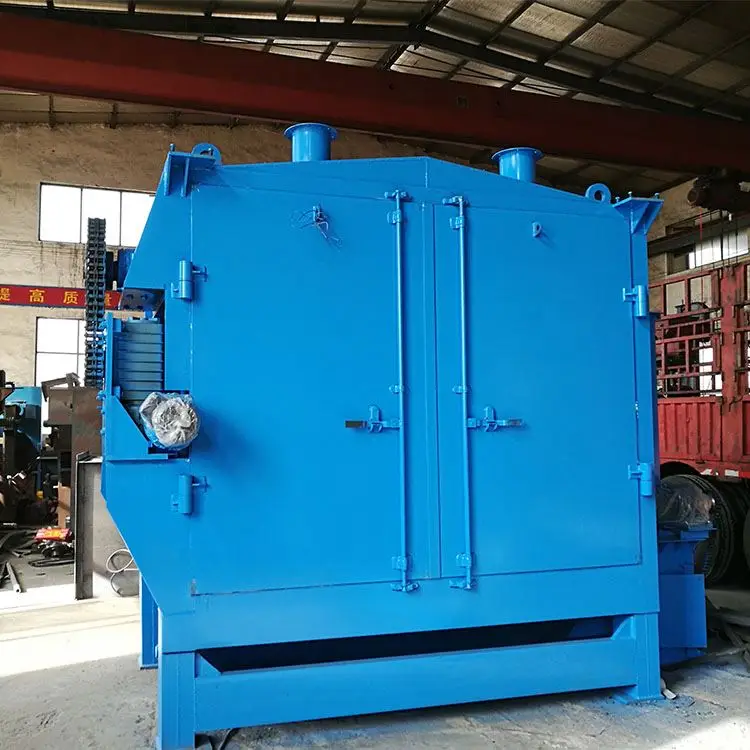

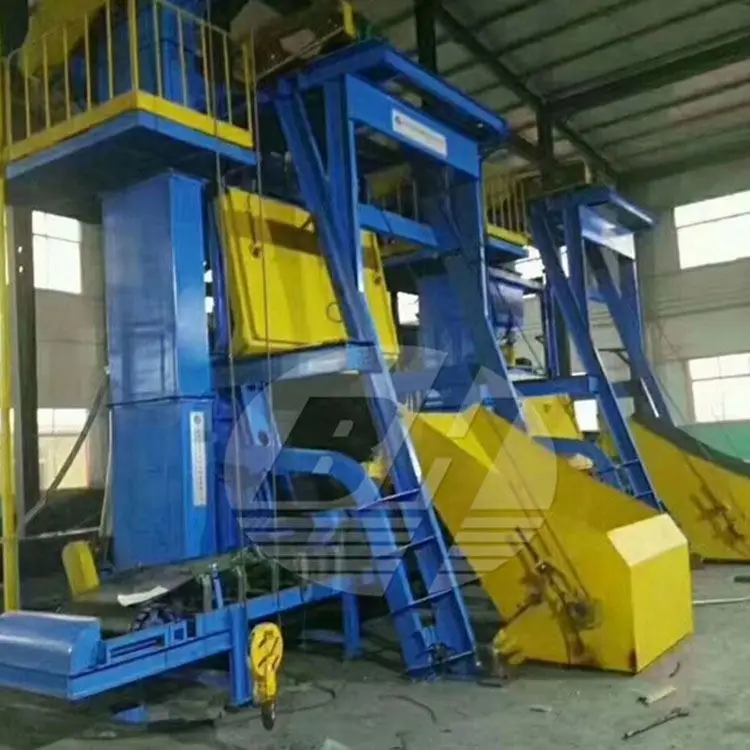

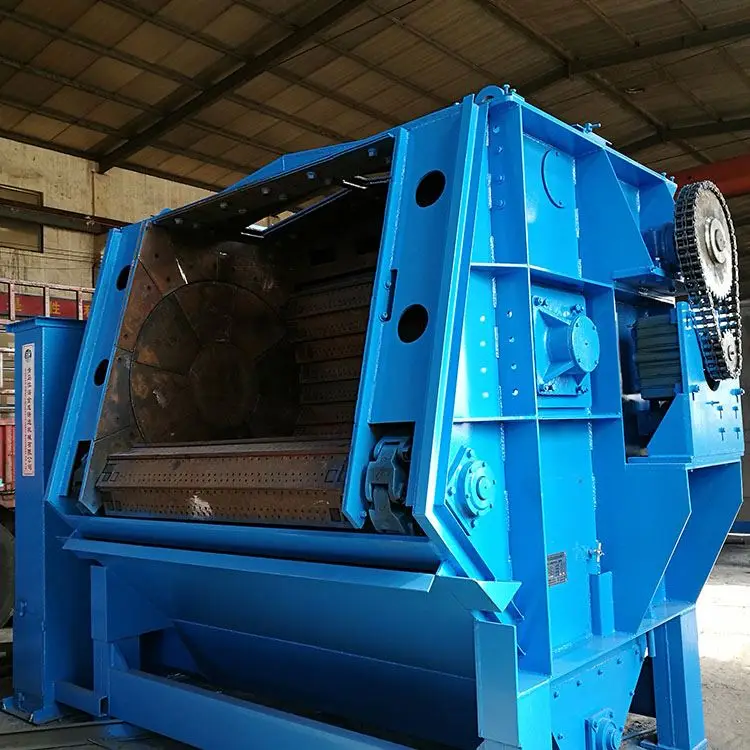

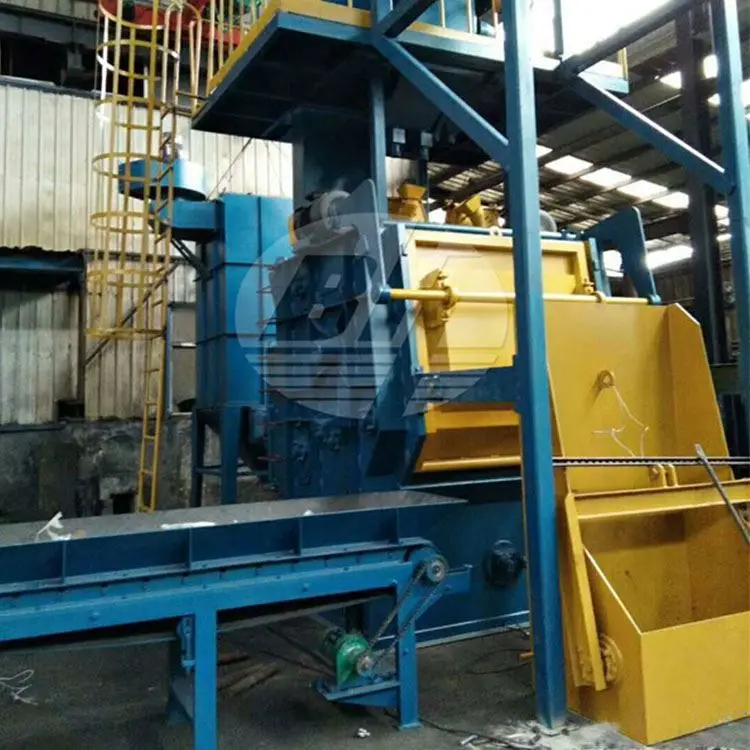

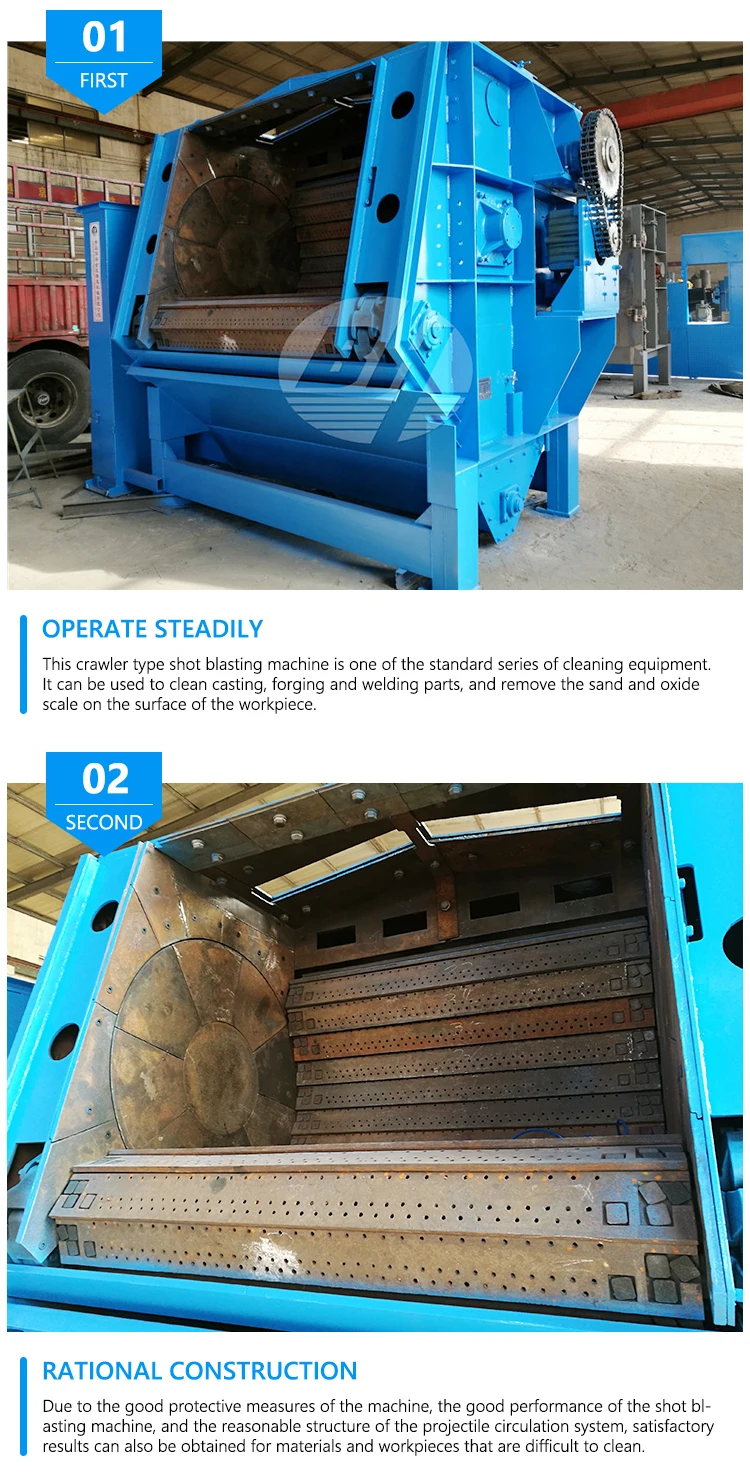

Internal Rotary Crawler Shot Blasting Machine rust Removal Metal Shot Blasting Machine Steel crawler Shotblasting Machine
- Category: >>>
- Supplier: Qingdao Binhai Jincheng Foundry Machinery Co. Ltd.
Share on (1600433620355):
Product Overview
Description
Tumble Steel belt shot blasting machine product information | ||||||
No. | Item/Specification | 15GN | 28GN | |||
1.turbine | Turbine power | 30kw | 22kw*2pcs | |||
Rotation speed | 2250-2900r/min | 2250-2900r/min | ||||
Abrasive flow rate | 480kg/min | 360kg/min*2 | ||||
Abrasive speed | 80-90m/s | 80-90m/s | ||||
2.Belt drive | End disk diameter | 1092mm | 1245mm | |||
End disk space | 1245mm | 1778mm | ||||
Feeding volume | 0.5m3 | 0.79m3 | ||||
Loading weight per time | 1500 kg/drum | 3000kg/drum | ||||
Max. single part weight | 100kg | 150kg | ||||
Belt speed | 5.6m/min | 3.6m/min | ||||
3. power | Screw conveyor | 1.1kw | 3kw | |||
Feeder | 3kw | 7.5kw | ||||
Steel tracks motor power | 2.2kw | 3kw | ||||
elevator | 2.2kw | 4kw | ||||
Door lift/down | 1.1kw | 3kw | ||||
turbine | 30kw | 44kw | ||||
Dust collector | 11kw | 18.5kw | ||||
