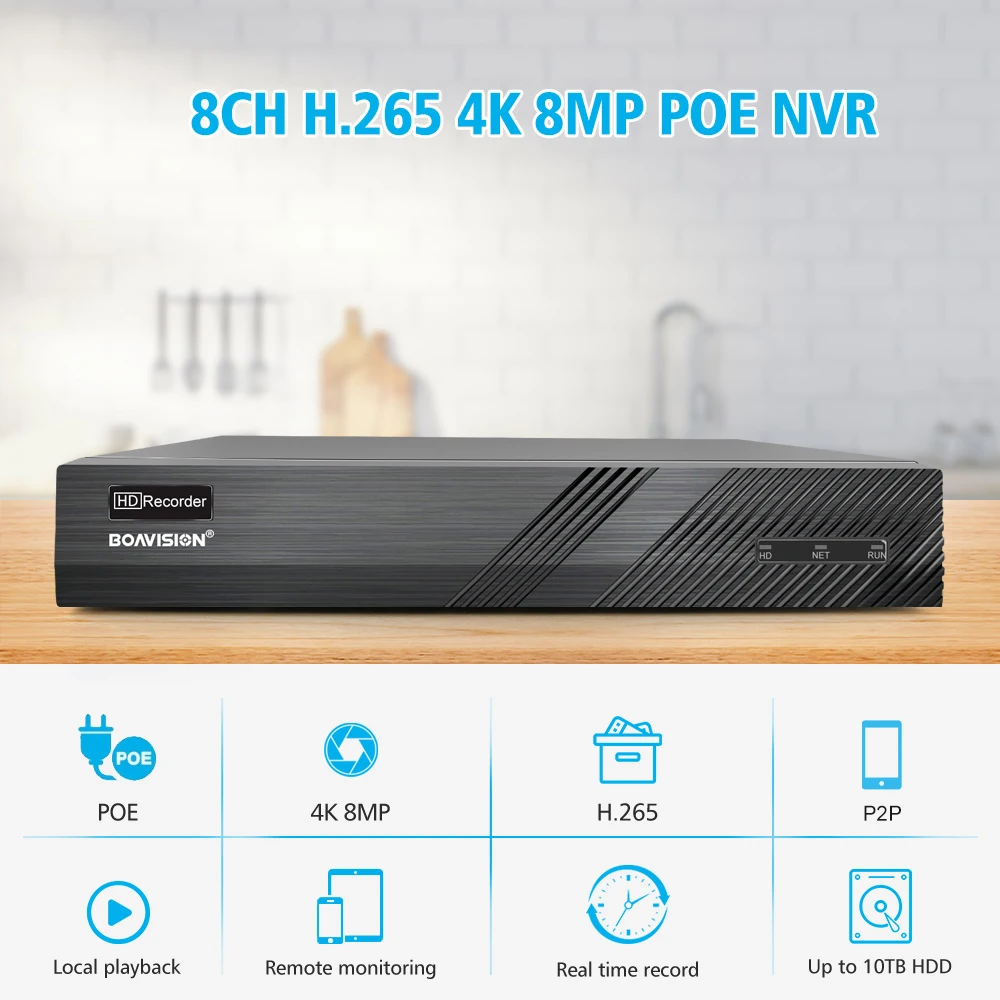

4K 8MP 30FPS POE NVR 8CH Surveillance CCTV System Video Recorder Support 4K, 5MP, 4MP,1080P,52V for POE IP Camera

Product Overview

Description

4K H.265 8CH 4MP 5MP 25/30fps REALTIME POE CCTV NVR

8CH H.265 4K 8MP 25/30fps Real time Industrial Grade NVR, Adopted the Latest H.265 Video Compression

PoE IP Security NVR

8 Channel H.265 4K 8MP HD Video Audio Recorder

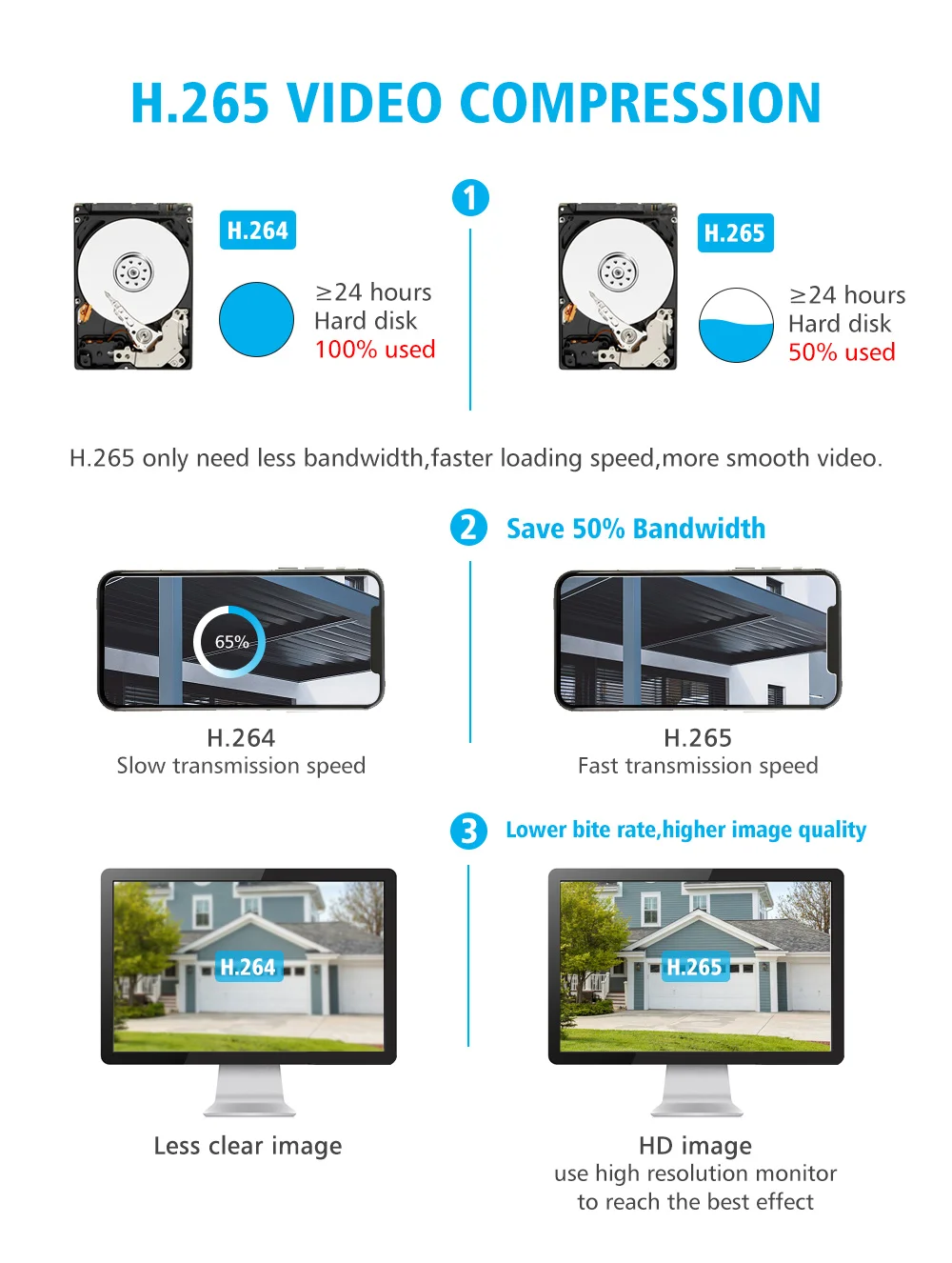

Advanced H.265 compression technology

Advanced H.265 compression technology lets you save on storage space which allows for longer recording times. H.265 technology compresses your video without sacrificing any of the UltraHD video quality.





Real Time Motion Alerts

Cameras will detect moving objects, send real time email alerts and mobile notifications.

Smart Recording- Combine 24*7 Recording & Motion Detected Recording

Never miss a moment and get the motion detecion records easily! Allows you to create specific motion detecting zones to monitor certain areas

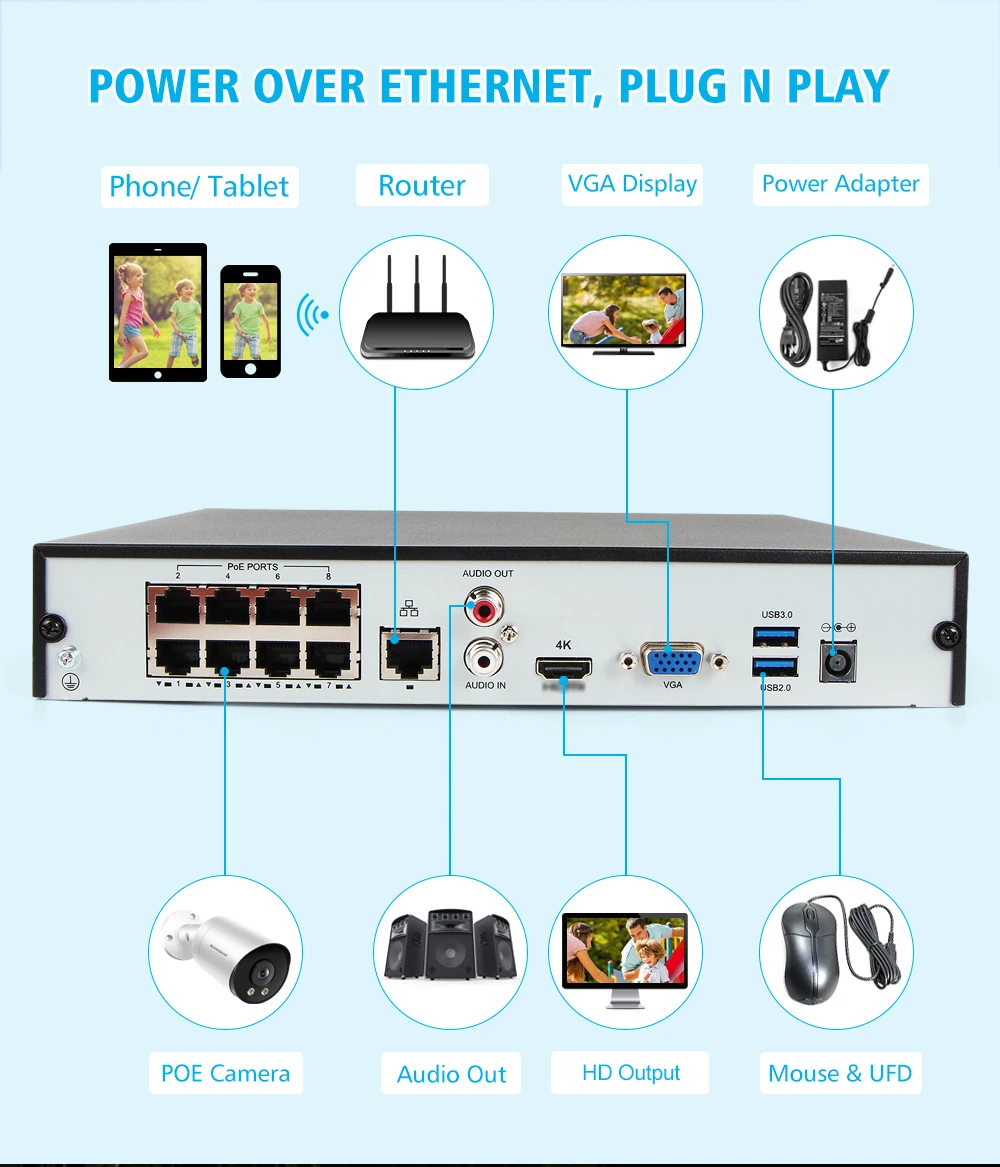

Power over Ethernet, Plug & Play

This security system features Power over Ethernet (PoE) technology, a single network cable run between your NVR and each IP camera provides both power, video and audio transmission, allowing you to position your cameras anywhere without a nearby power outlet.



Features:

*Face detection/Intrusion detection/ Cross line detection/Audio detection/Defocus detection/Scene change detection/Auto tracking

*Power over Ethernet, Plug n Play

*Run up to 330ft CAT6 8-pin Ethernet cable, great for DIY users.

*Support up to 8 cameras, 4K/ 5MP, work with all PoE IP Cameras

*Support 24/ 7 Recording, NO Hard Drive is Included. Support up to 10TB hard drive at most.

*H.265 video standard to save storage space.

*Smart Recording- Combine 24*7 Recording & Motion Detected Recording, never miss a moment and get the motion detecion records easily! Allows you to create specific motion detecting zones to monitor certain areas.

*Easy Remote Access with Real Time Motion Alerts

*Free APP, easy remote viewing on iPhone, iPad, Android devices and PC.

*Easy Video Playback,Playback video records on your mobile app remotely or NVR video recorder locally. Install hard drive first.

*Real Time Motion Alerts,Cameras will detect moving objects, send real time email alerts and mobile notifications.

Model	NVR8108-P8
Video/Audio Input
IP Video Input	8-ch
Two-way Audio Input	1-ch, RCA
Network
Incoming Bandwidth	64Mbps
Outgoing Bandwidth	64Mbps
Remote Users	128
Protocols	P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output

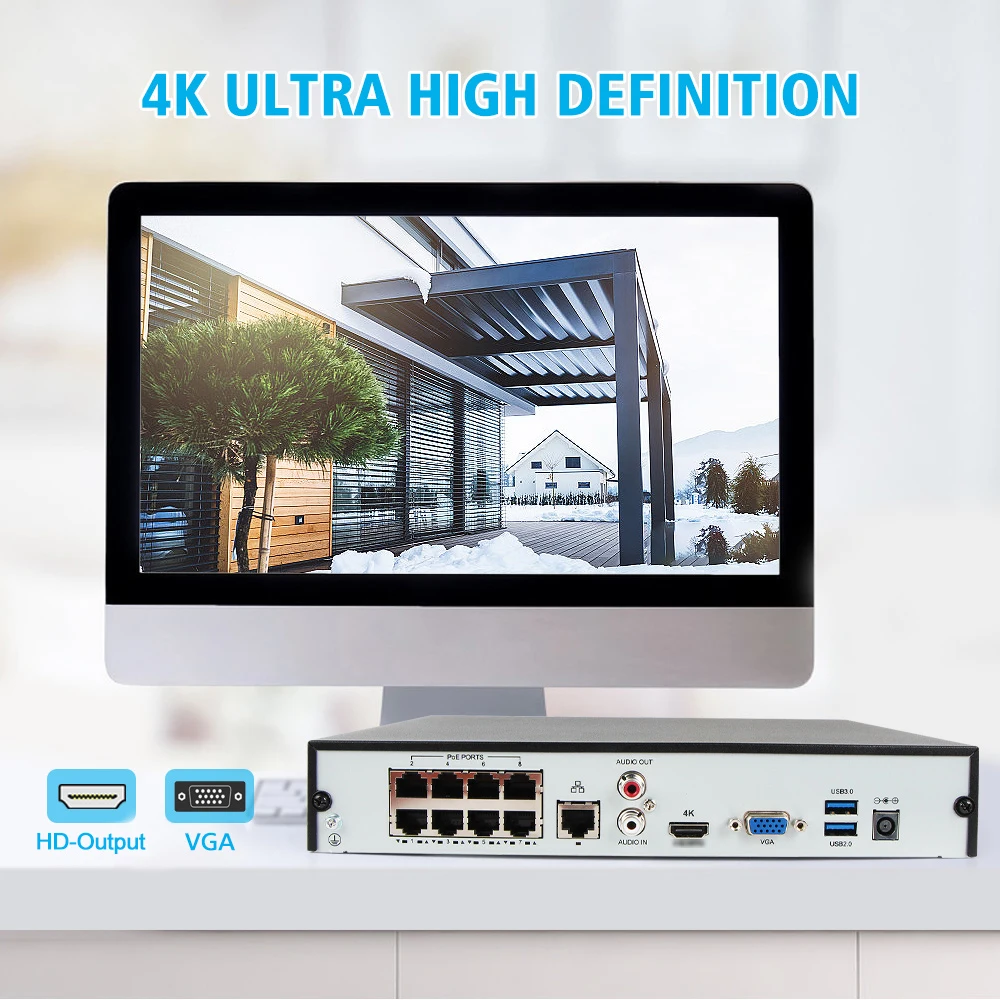

hd output/VGA Output	HD output
	3840x2160/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
	VGA:
	1920x1080p/60Hz, 1920x1080p/50Hz,1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution	4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	NO
Synchronous Playback	8-ch
Corridor Mode Screen	3/4/5/7/9
Decoding
Decoding format	Ultra 265/H.265/H.264
Liveview/Playback	4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30, 16 x 720p@30
Hard Disk
SATA	1 SATA interface
Capacity	up to 10TB for each disk
Smart
VCA Detection	Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA Search	Facesearch, Behavior search
Statistical Analysis	People counting

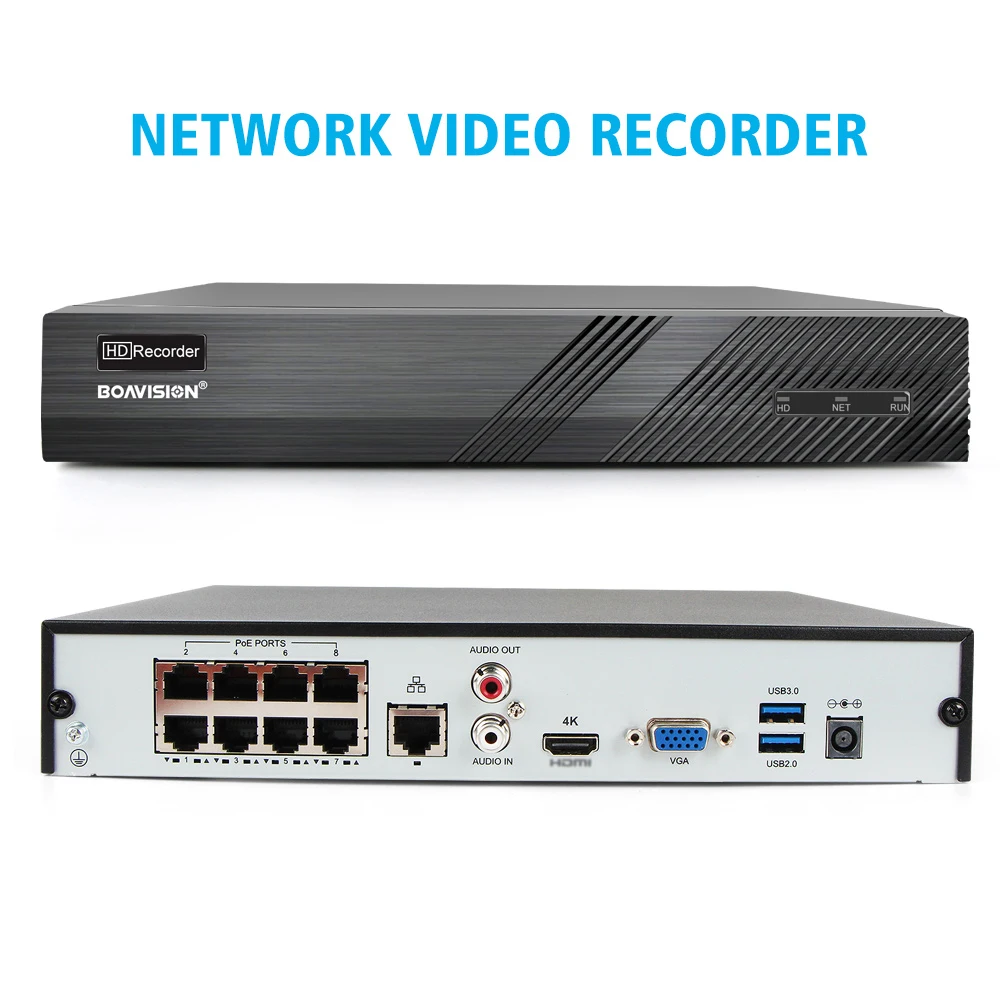

External Interface
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel: 1 x USB2.0,1 x USB3.0
Alarm In	NO
Alarm Out	NO
PoE
Interface	8 independent 100 Mbps PoE network interfaces
Max Power	Max 30W for single port
	Max 108W in total (13.5W for each)
Supported Standard	IEEE 802.3at, IEEE 802.3af
General
Power Supply	52V DC
	Power Consumption: ≤8W (without HDD)
Working Environment	-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH(non-condensing)

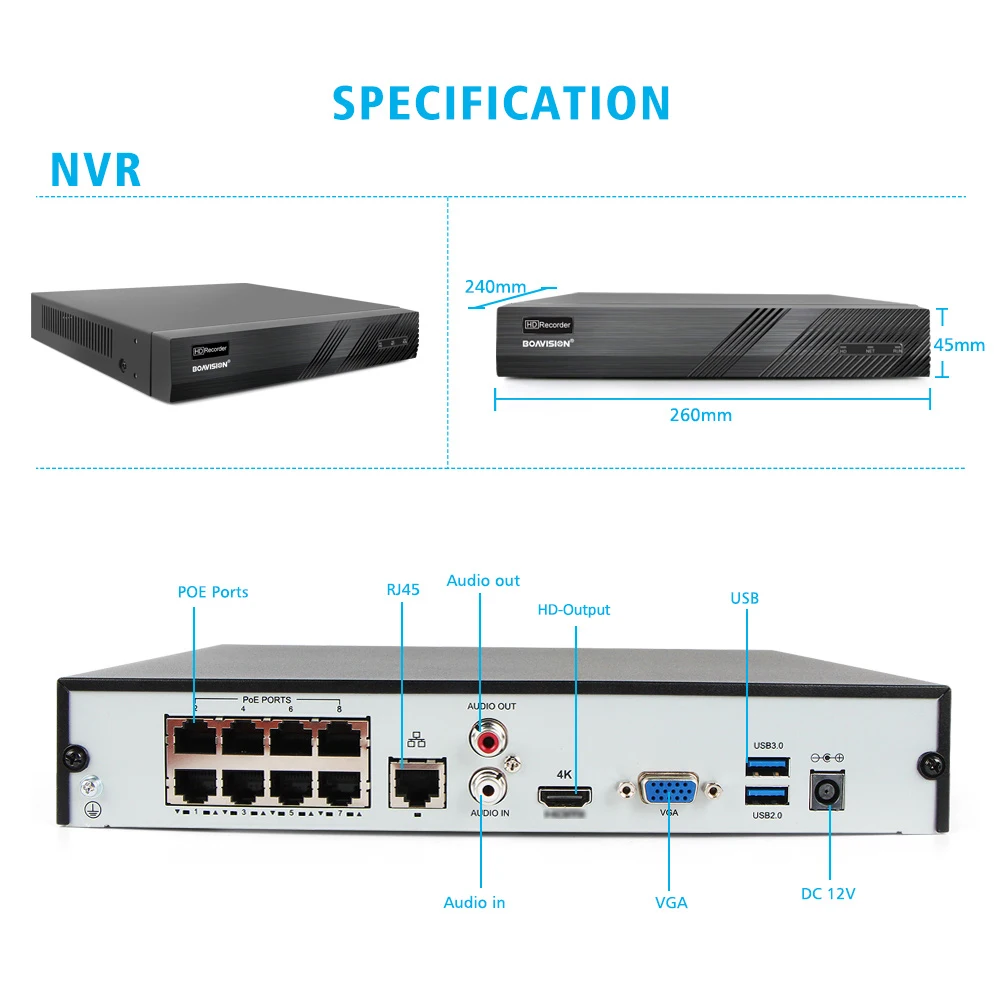

Dimensions (W×D×H)	260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")
Weight (without HDD)	1kg (2.20 lb)



PACKING LIST:



•


  1x 8 Channel 4K 8MP HD H.265 PoE NVR





•


  1x 52V 1.8A DC Power Adapter





•


  1x 3ft Network Cable for Internet Connection





•


  1x Mouse





•


  1x Quick User Guide






Tips:You need a HD TV or PC Monitor with HD output port to view and do settings on screen, the hd output cable is not included
