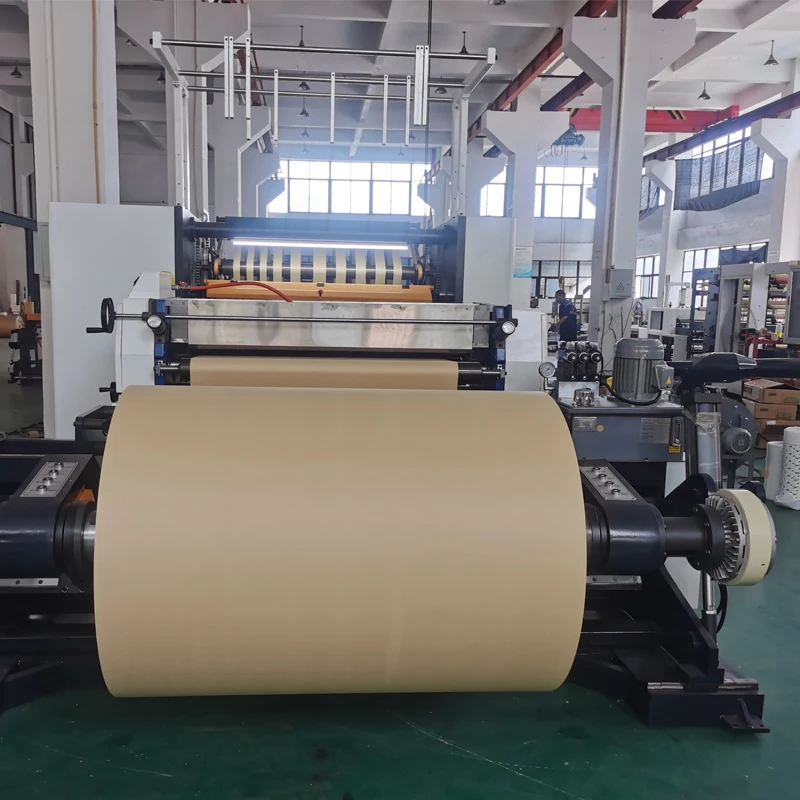

Wax Coated Light Weight Paper Roll To Small Rolls Slitting Machine For Shushi Food Wrapping With Meters Counting Function
- Category: >>>
- Supplier: Wenzhou Binbao Machinery Co. Ltd.
Share on (1600433656746):
Product Overview
Description
Product Description
Wax Coated Light Weight Paper Roll To Small Rolls Slitting Machine For Shushi Food Wrapping With Meters Counting Function
Usage:
This SLA series slitting rewinding machine is an idea equipment to cut jumbo paper roll into
various width small rolls to reach rolls feeding manufacturing machine requirements. It not only can cut general paper roll,also work on the laminated and coated paper roll material, plastic film rolls and so on.
This SLA series slitting rewinding machine is an idea equipment to cut jumbo paper roll into
various width small rolls to reach rolls feeding manufacturing machine requirements. It not only can cut general paper roll,also work on the laminated and coated paper roll material, plastic film rolls and so on.
Feature:
1. The machine body adopt 40mm thickness high quality steel plate.This ensures that the machine avoids shaking when running at high speed, thereby improving the accuracy of paper rolls slitting.

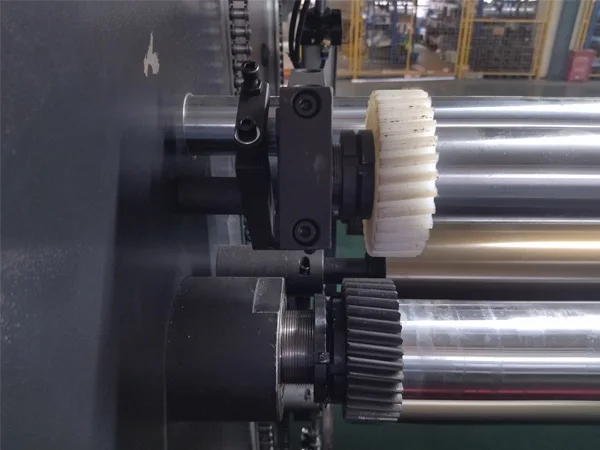

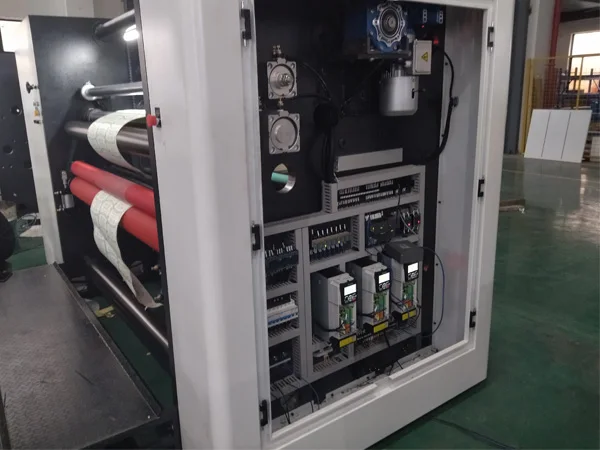

2. The machine has three servo motors, which are used for the transmission of materials and the winding after slitting.

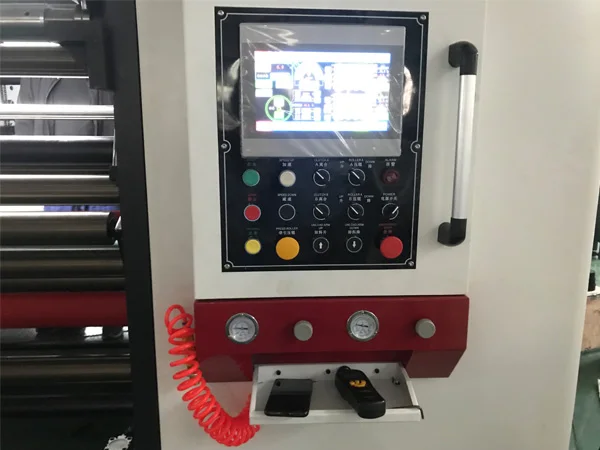

3. SIEMENS PLC,it have an intelligent operating program system with many function,automatic counting meter,automatic stop as setting winding meters,emergence stop and so on.
4. Automatic tension control. The machine can automatically measure the diameter of the mother roll and automatically adjust the output tension.

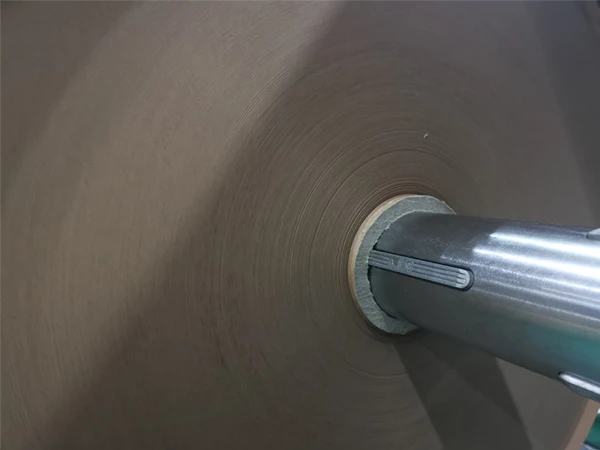

5. Hydraulic lifter unwinding structure make the jumbo rolls loading more easily and save labor.
6. The finished rolls will automatically unload to the ground.
7. The web guider system automatic detect the web edge and adjust position,which can improve the accuracy.

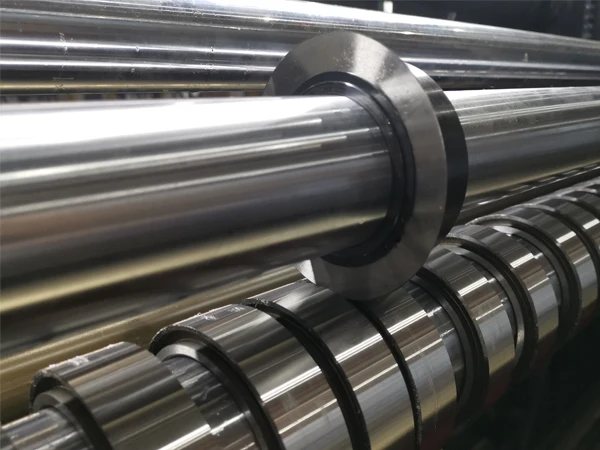

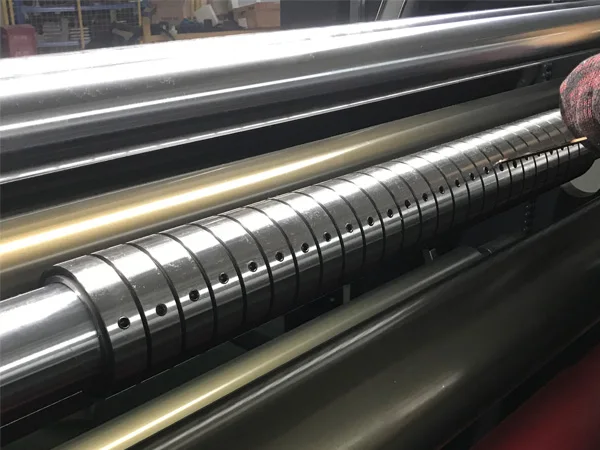

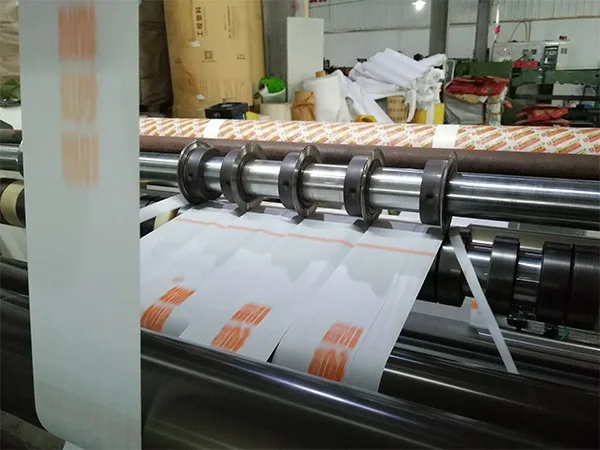

8. Slitting knife installing in the backside of machine,the design makes it more convenient to adjust the knife.
2. The machine has three servo motors, which are used for the transmission of materials and the winding after slitting.
3. SIEMENS PLC,it have an intelligent operating program system with many function,automatic counting meter,automatic stop as setting winding meters,emergence stop and so on.
4. Automatic tension control. The machine can automatically measure the diameter of the mother roll and automatically adjust the output tension.
5. Hydraulic lifter unwinding structure make the jumbo rolls loading more easily and save labor.
6. The finished rolls will automatically unload to the ground.
7. The web guider system automatic detect the web edge and adjust position,which can improve the accuracy.
8. Slitting knife installing in the backside of machine,the design makes it more convenient to adjust the knife.
Specification
item | value |
Model Name | SLA-series |
Mother Roll Width(Max) | 1300-2000mm |
Mother Roll Diameter(Max) | 1400mm |
Mother Roll Weight Capacity | 1400kg |
Slitting Width(Min) | 30mm |
Rewinding Diameter(Max) | 1000mm |
Paper Core Size | 3/6 inch |
Thickness Range | 18-400gsm |
Stable Speed | 300m/min |
Cutting Precision | ±0.2mm |
Application

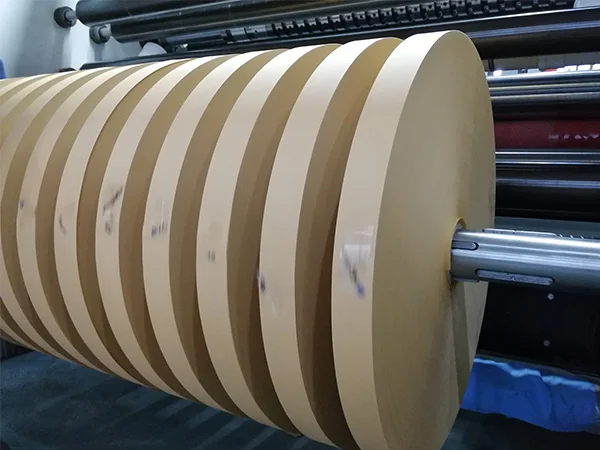

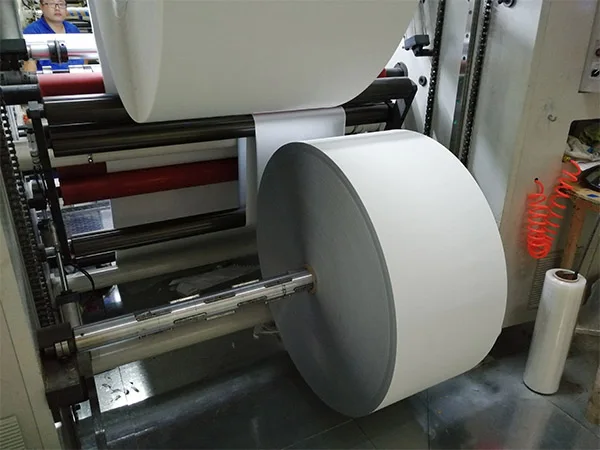

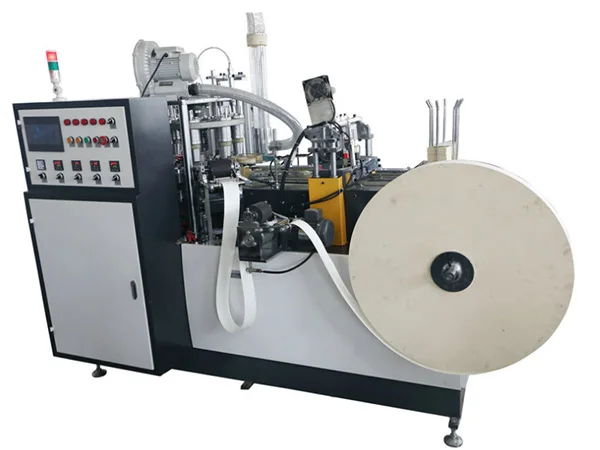

Case One: Paper Cups And Paper Bowls And Paper Lid Manufacturing
The model paper slitting rewinding machines widely used in paper disposable containers manufacturers factory. The paper cups,paper bowls forming machine need feed bottom reels to make these products. The machine can well cut jumbo paper rolls into narrow width rolls(maximum diameter can be 1000mm). Paper lid processing also need feeding specific width roll feeding into the forming machine.
The model paper slitting rewinding machines widely used in paper disposable containers manufacturers factory. The paper cups,paper bowls forming machine need feed bottom reels to make these products. The machine can well cut jumbo paper rolls into narrow width rolls(maximum diameter can be 1000mm). Paper lid processing also need feeding specific width roll feeding into the forming machine.

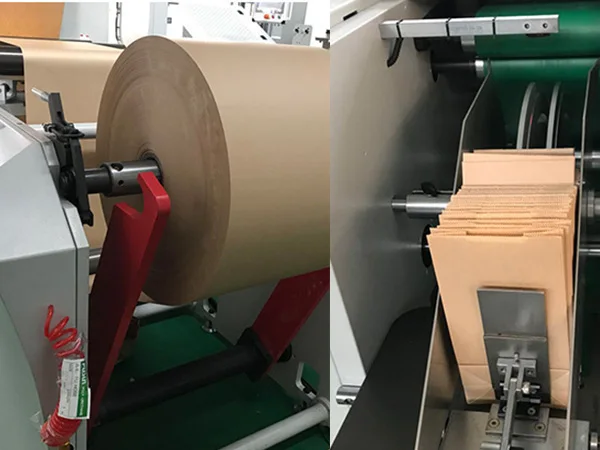

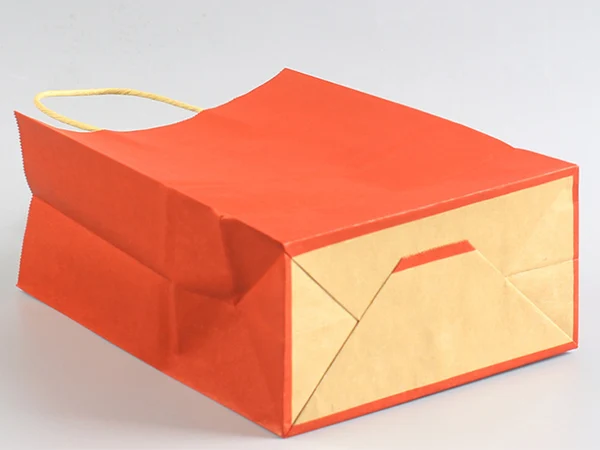

Case Two: Paper Bags Manufacturing

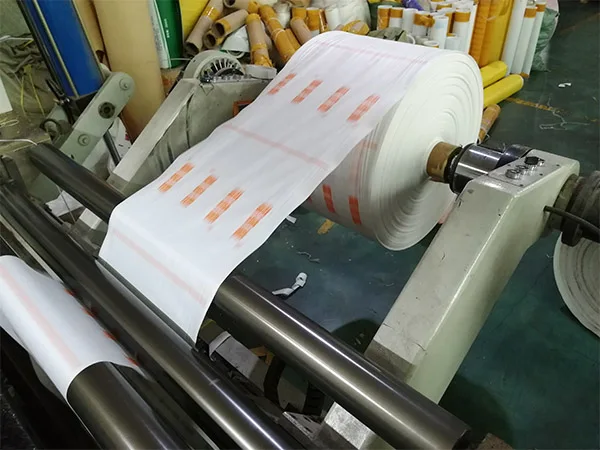

Paper bags normal adopt the kraft paper or coated grease proof paper. Our slitting rewinding machine can cut these types paper stock roll into customize width paper rolls,which will feed into paper bags forming machine. But there still many paper bags manufacturer use sheet-feeding paper bags forming machine for some types paper bags. In these manufacturer factory,the paper slitting rewinding machine use to convert after printing paper rolls.
Paper bags normal adopt the kraft paper or coated grease proof paper. Our slitting rewinding machine can cut these types paper stock roll into customize width paper rolls,which will feed into paper bags forming machine. But there still many paper bags manufacturer use sheet-feeding paper bags forming machine for some types paper bags. In these manufacturer factory,the paper slitting rewinding machine use to convert after printing paper rolls.

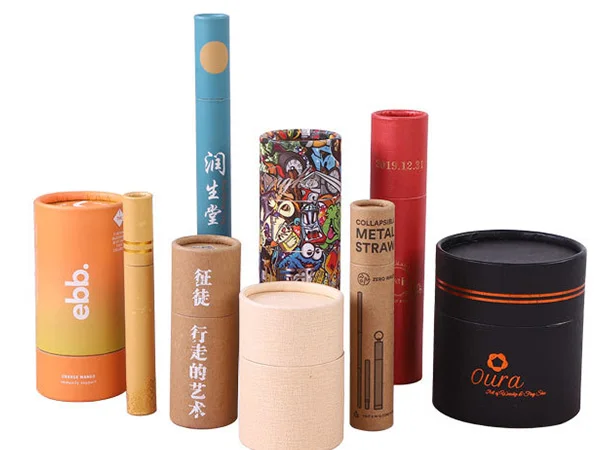

Case Three: Paper Tube & Paper Can
Paper tube is an indispensable tool in the paper product industry. The machine that produces paper tube also needs to input small paper rolls of different widths. These inputting small paper rolls width depend on
the how much diameter paper tube you want to make. Therefore, we must cut the paper jumbo roll into small rolls of different widths to meet the paper tube production requirements. Making paper can processing are similar with the paper tube manufacturing.
Paper tube is an indispensable tool in the paper product industry. The machine that produces paper tube also needs to input small paper rolls of different widths. These inputting small paper rolls width depend on
the how much diameter paper tube you want to make. Therefore, we must cut the paper jumbo roll into small rolls of different widths to meet the paper tube production requirements. Making paper can processing are similar with the paper tube manufacturing.

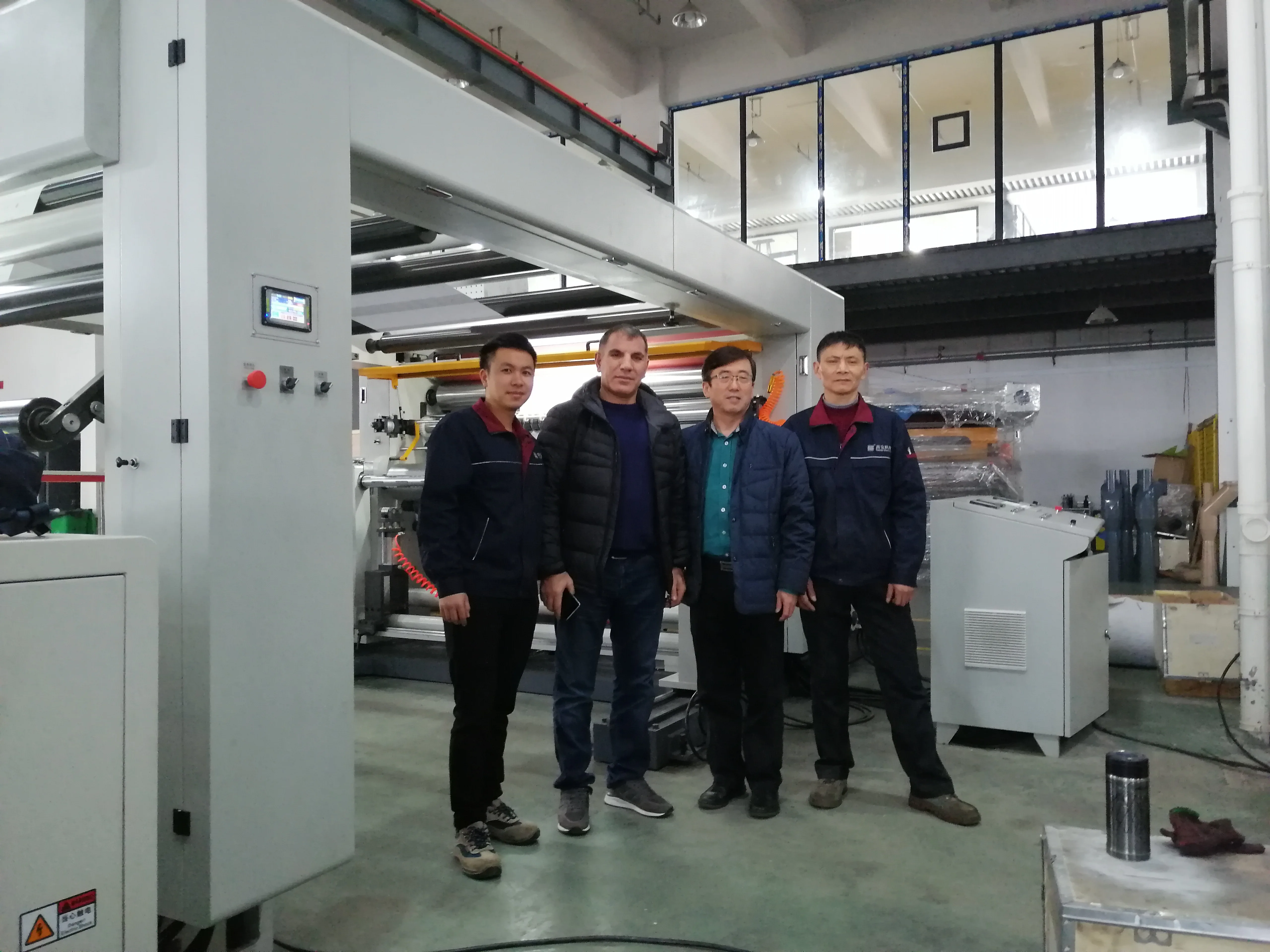

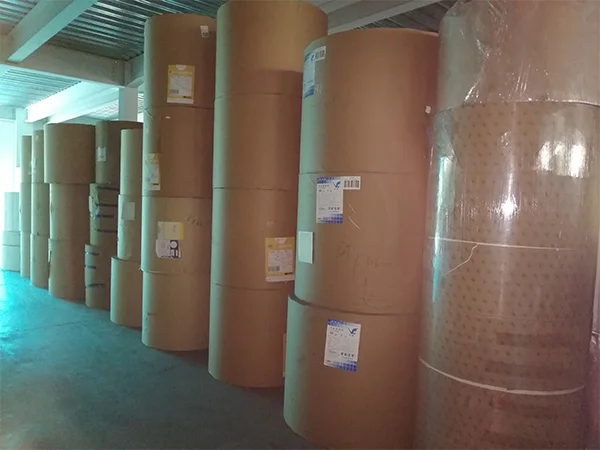

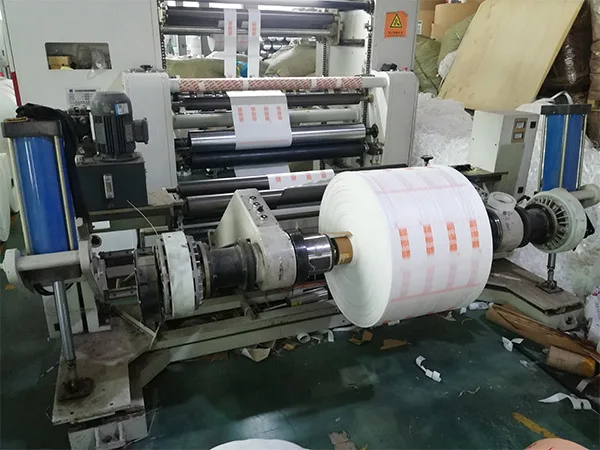

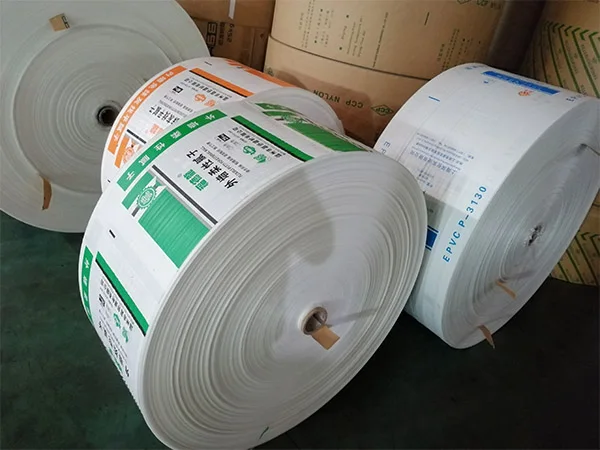

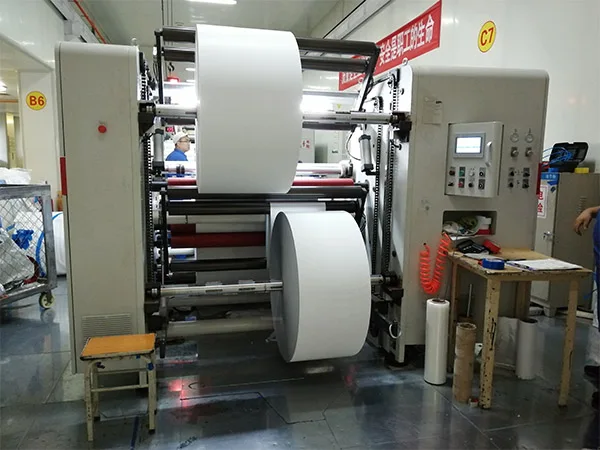

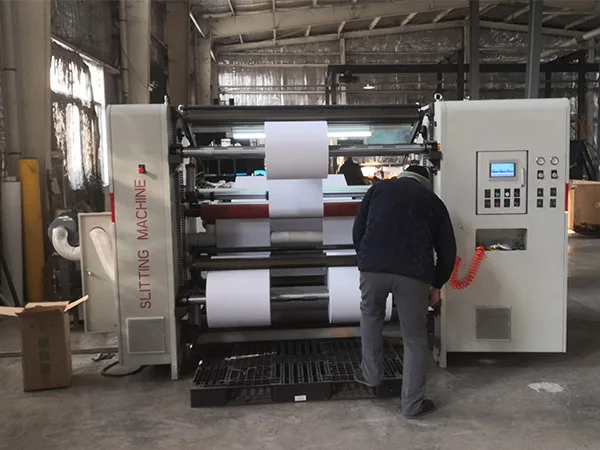

Customer Factory Photos

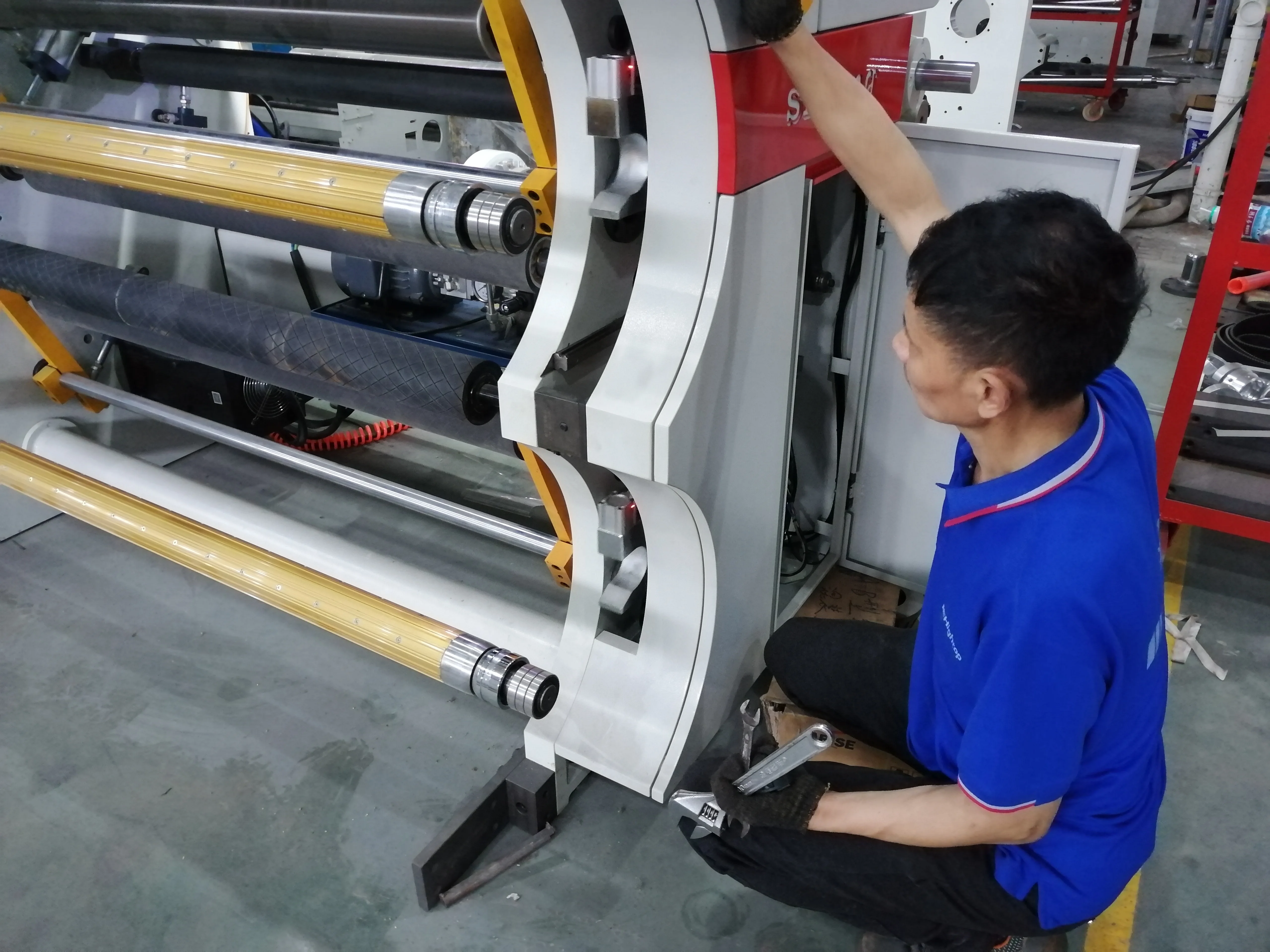

After Sales Service

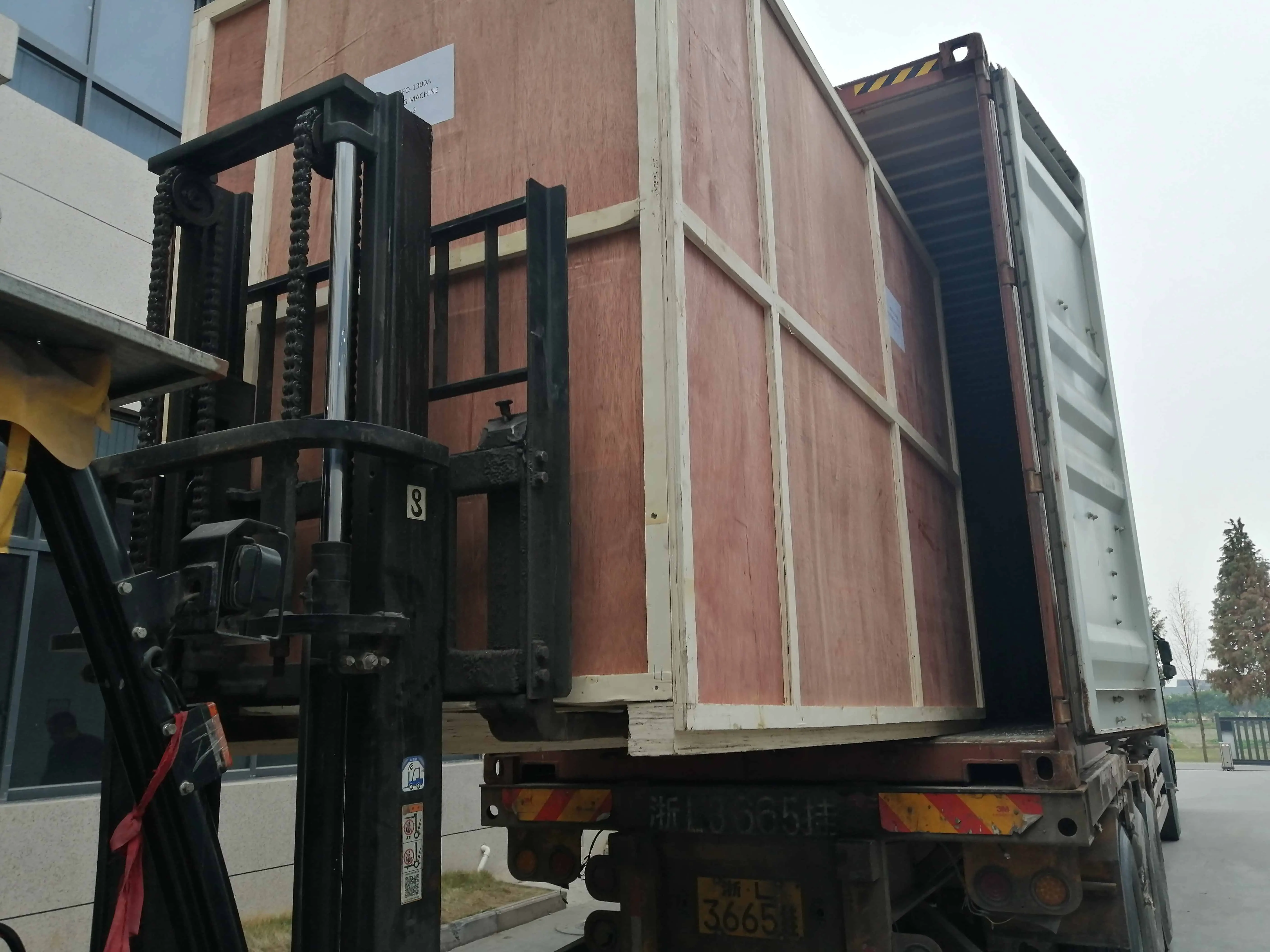

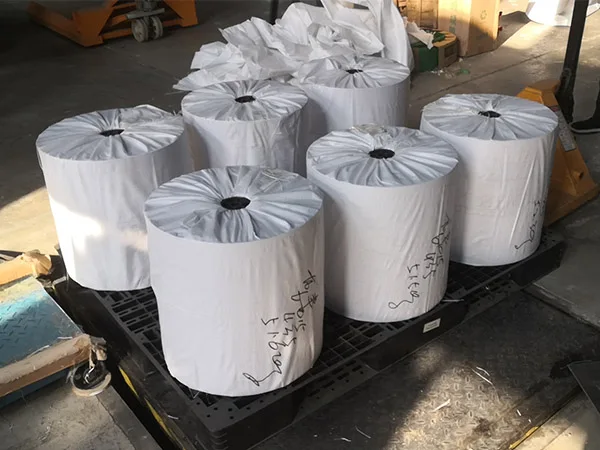

Packing & Delivery
Company Profile
Binbao Machinery was co-founded by three dynamic and experienced young people, they are Alfred, Lam and Ives. They have been working in the packaging and printing machinery industry for nearly ten years. After graduating from Shanghai University of Economics and Business in 2008, Alfred has been working in a well-known bank in Shanghai, but he has never given up his love for machinery. Lam and Ives are colleagues. They have worked together for four years in a packaging and printing machinery manufacturer in Ruian, Wenzhou. Lam is a test engineer and Ives is responsible for mechanical design and assembly. They are willing to think, use their knowledge to improve the performance of the modified machine, and enjoy it.Lam and Ives met Alfred at a European packaging and printing machinery exhibition in 2014. They found that no Chinese company at the exhibition only focused on the production of paper roll slitting machines and sheets cutting machines.This subdivision field made them feel extremely excited. After they returned to China, after careful planning, their first slitting machine was finally completed in the warehouse of Ives father in early 2015. From then on, they began to process paper slitting machines and sheets cutting machines for Ruian's printing presses, paper cup machines, paper bag machines and other manufacturers.
In fact, in Ruian, the base of packaging and printing machinery, there are many machinery companies that produce slitting machines and sheets cutting machines, but they all spend their time and energy on paper products machinery with higher total prices and better profits. Slitting machine and sheets cutting machine are just a common tool, a supporting role ignored by everyone. But the founders of Binbao Machinery don't think so. They firmly believe that supporting roles also play a key role. Slitting machines and sheets cutting machines are widely used in packaging and printing production companies, and their stability and cutting quality also affect the value of the entire company's products. Out of their love for machinery, they continue to transform and upgrade the machines they develop.
Under the influence of the epidemic in 2020, their processing plants lost nearly half of their orders. Fortunately, they finally have enough time to design their own office, factory, and website, and start their brand development. Binbao Machinery will use its rich experience to continuously improve and improve the performance of slitting machines and sheets cutting machines, provide high-quality machinery and after-sales services to end users all over the world, and be the "BEST SUPPORTING ACTOR" for world packaging and printing industry.
In fact, in Ruian, the base of packaging and printing machinery, there are many machinery companies that produce slitting machines and sheets cutting machines, but they all spend their time and energy on paper products machinery with higher total prices and better profits. Slitting machine and sheets cutting machine are just a common tool, a supporting role ignored by everyone. But the founders of Binbao Machinery don't think so. They firmly believe that supporting roles also play a key role. Slitting machines and sheets cutting machines are widely used in packaging and printing production companies, and their stability and cutting quality also affect the value of the entire company's products. Out of their love for machinery, they continue to transform and upgrade the machines they develop.
Under the influence of the epidemic in 2020, their processing plants lost nearly half of their orders. Fortunately, they finally have enough time to design their own office, factory, and website, and start their brand development. Binbao Machinery will use its rich experience to continuously improve and improve the performance of slitting machines and sheets cutting machines, provide high-quality machinery and after-sales services to end users all over the world, and be the "BEST SUPPORTING ACTOR" for world packaging and printing industry.
FAQ
Q: What should I do to find the appropriate machine?
A: You should offer some info.
1. Material name
2. Material thickness or gsm
3. Max. diameter and width of mother roll
4. Minimum width of finished roll
A: You should offer some info.
1. Material name
2. Material thickness or gsm
3. Max. diameter and width of mother roll
4. Minimum width of finished roll
5.Maximum rewinding diameter
You also can send your message of your slitting processing to our sales. They will help you find the best solution.
Q: How can I operate the machine?
A: Our machine is very easy to operate. We also offer the manual and video to teach you. Welcome to visit our factory to learn more details by yourself. We also share the slitting rewinding machine and sheets cutting machine operating
videos in our YouTube Channel.
Q: What about your after-sales service?
A: Call us, email us, or video-chat, we will offer solutions within 24 hours
Q: What is your terms of payment?
A: We accept many kinds of payment. Please contact us for details.
Q: What is your advantage?
A: Not only good quality but also good service
1. Over 20 years manufacturer
2. All the accessories made by ourselves.
3. We have our own research and development design team.
4. We accept products customization.
5. 24 hours after-sales service and engineer oversea service.
You also can send your message of your slitting processing to our sales. They will help you find the best solution.
Q: How can I operate the machine?
A: Our machine is very easy to operate. We also offer the manual and video to teach you. Welcome to visit our factory to learn more details by yourself. We also share the slitting rewinding machine and sheets cutting machine operating
videos in our YouTube Channel.
Q: What about your after-sales service?
A: Call us, email us, or video-chat, we will offer solutions within 24 hours
Q: What is your terms of payment?
A: We accept many kinds of payment. Please contact us for details.
Q: What is your advantage?
A: Not only good quality but also good service
1. Over 20 years manufacturer
2. All the accessories made by ourselves.
3. We have our own research and development design team.
4. We accept products customization.
5. 24 hours after-sales service and engineer oversea service.
