NUC Mini Pc 11Th/10Th Gen Core i7 1165G7 i7 10750H Desktop Computer i5 10200H Win11/10 Linux WiFi HD DP Type C 3x4K Display HTPC
- Category: >>>
- Supplier: Xuzhou Venoen Technology Co. Ltd.
Share on (1600433662654):
Product Overview
Description
VR
Product Description
NUC Mini Pc 11Th/10Th Gen Core i7-1165G7 10750H i5-10200H Desktop Computer Win11/10 Linux WiFi HD DP Type-C 3x4K Display HTPC
Processor Performance:
1. CPU: Intel Core i7-1165G7 - 4 Cores 8 Threads, 12M Cache, 2.80~4.70GHz, Intel Iris Xe Graphics
2. CPU: Intel Core i9-10880H - 8 Cores 16 Threads, 16M Cache, 2.30~5.10GHz, Intel UHD Graphics 630
3. CPU: Intel Core i7-10750H - 6 Cores 12 Threads, 12M Cache, 2.60~5.00GHz, Intel UHD Graphics 630
4. CPU: Intel Core i5-10200H - 4 Cores 8 Threads, 8M Cache, 2.40~4.10GHz, Intel UHD Graphics 630
5. CPU: Intel Core i9-9880H - 8 Cores 16 Threads, 16M Cache, 2.30~4.80GHz,Intel UHD Graphics 630
6. CPU: Intel Core i7-9750H - 6 Cores 12 Threads, 12M Cache, 2.60~4.50GHz, Intel UHD Graphics 630
7. CPU: Intel Core i7-8750H - 6 Cores 12 Threads, 9M Cache, 2.20~4.10GHz, Intel UHD Graphics 630
3. CPU: Intel Core i7-10750H - 6 Cores 12 Threads, 12M Cache, 2.60~5.00GHz, Intel UHD Graphics 630
4. CPU: Intel Core i5-10200H - 4 Cores 8 Threads, 8M Cache, 2.40~4.10GHz, Intel UHD Graphics 630
5. CPU: Intel Core i9-9880H - 8 Cores 16 Threads, 16M Cache, 2.30~4.80GHz,Intel UHD Graphics 630
6. CPU: Intel Core i7-9750H - 6 Cores 12 Threads, 12M Cache, 2.60~4.50GHz, Intel UHD Graphics 630
7. CPU: Intel Core i7-8750H - 6 Cores 12 Threads, 9M Cache, 2.20~4.10GHz, Intel UHD Graphics 630
8. CPU: Intel Core i7-11800H - 8 Cores 16 Threads, 24M Cache, 2.30~4.60GHz,Intel UHD Graphics for 11th Gen Intel Processors
9. CPU: Intel Core i7-11900H - 8 Cores 16 Threads, 24M Cache, 2.50~4.90GHz,Intel UHD Graphics for 11th Gen Intel Processors
- Dual pure copper fan cooling system to quickly cool down. Quiet operation. Long-lasting temperature control, comprehensive improvement Computer operating speed;
Main Features:
- Smart tiny case 202 x 130 x 37mm(L*H*W) , NW: 0.8KG, powerful processor 11Th/10Th/9Th/8Th Gen stronger performance;- Dual pure copper fan cooling system to quickly cool down. Quiet operation. Long-lasting temperature control, comprehensive improvement Computer operating speed;
- Low power consumption only 15W, energy-saving up to 90% compare to traditional desktop computers;

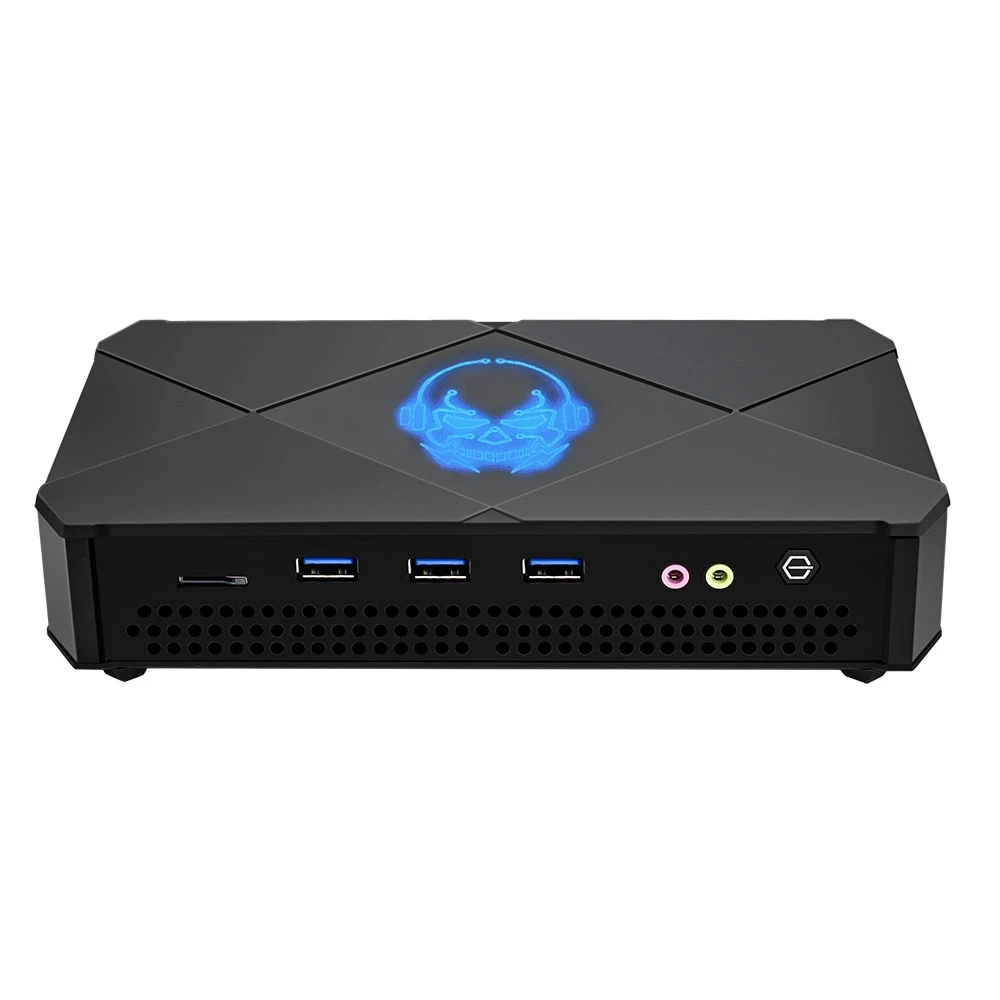

- - Fashion creative craft design with shiny LED logo, DIY customized for bulk order;
- Support Win-dows 11/10, Linux, Ubuntu OS, and more;

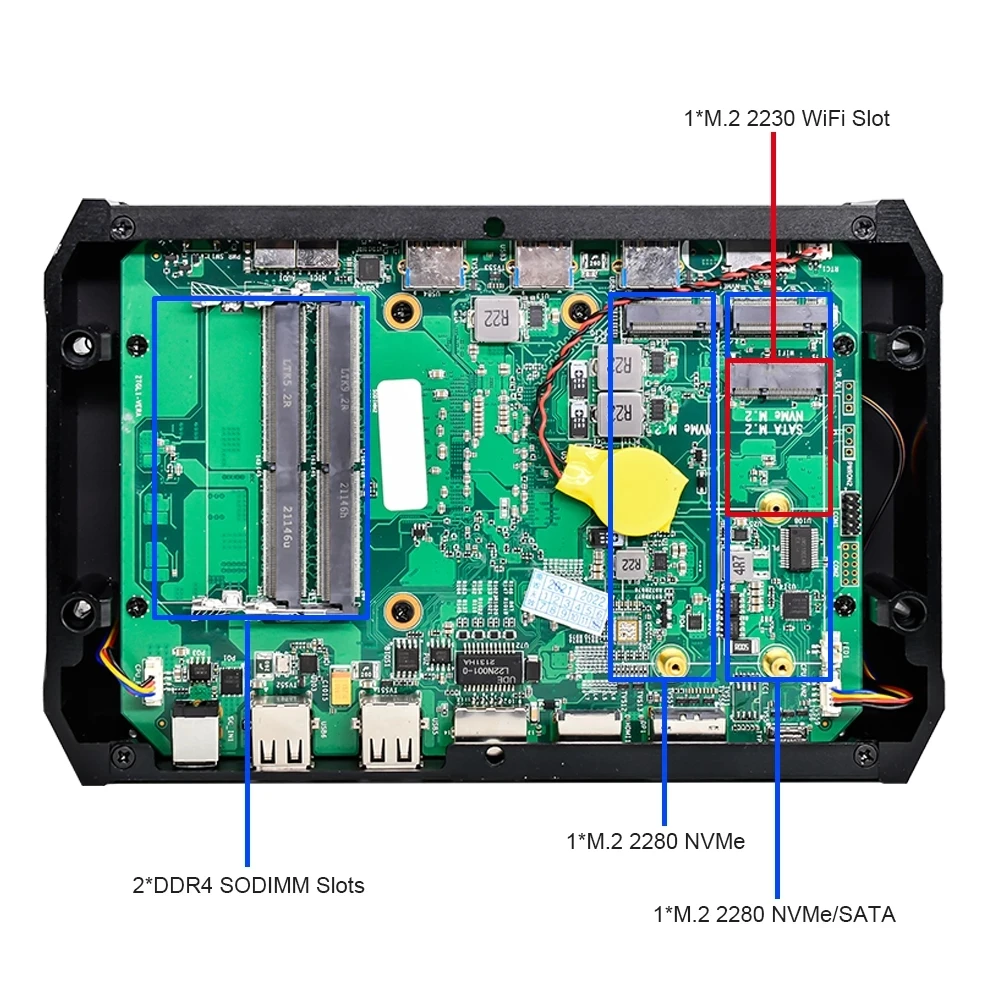

- Support 2*SO-DIMM DDR4 ram slot, up to 64GB large memory;
- Support 2*M.2 2280 NV-Me/PCIe3.0x4 SSD(one also support M.2 SATA);
- Support HDMI+DP+Type-C 4K HD, triple 4K high-definition output;
- Support HDMI+DP+Type-C 4K HD, triple 4K high-definition output;
- Support 1*In-tel Gigabit Ethernet Lan+M.2 2230 2.4G/5G Dual band AC(AX) Wi-Fi/BT4.x;

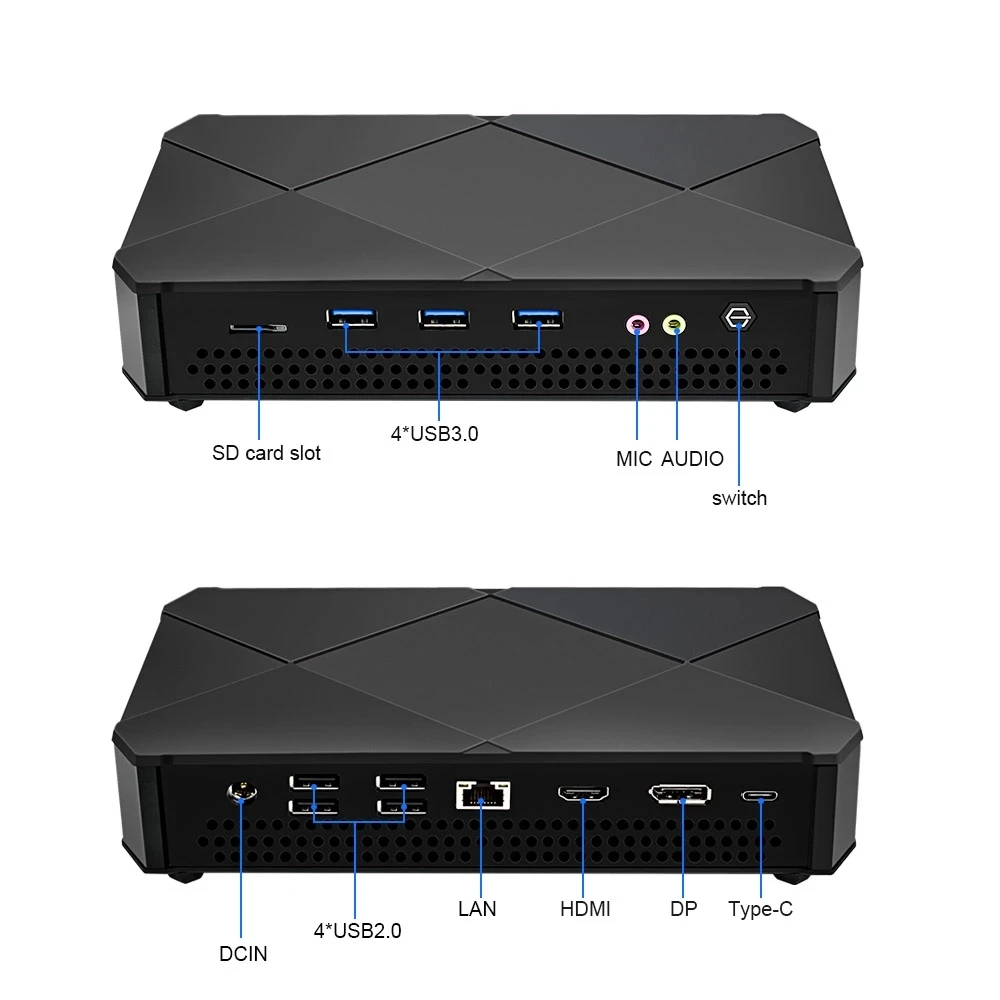

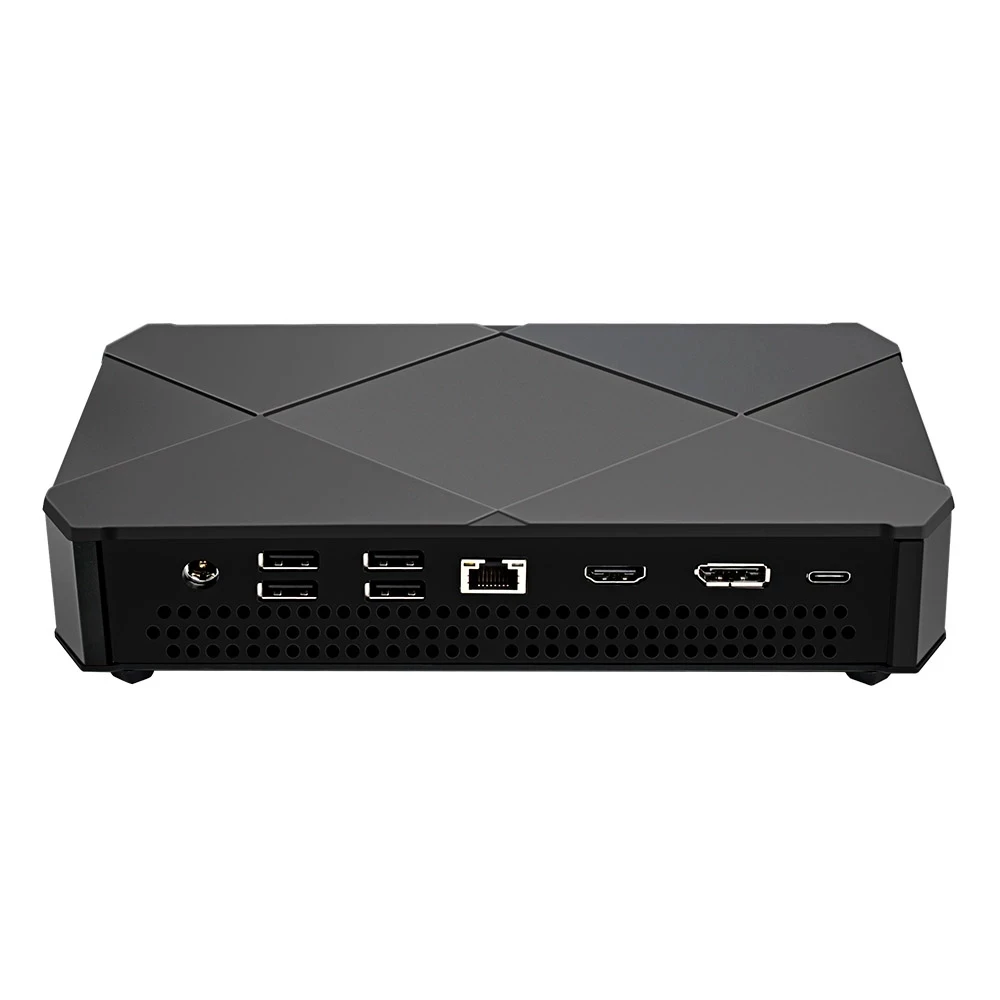

- Rich interfaces with 7*USB, 1*Type-C, 1*HD-MI, 1*DP, 1*LAN, 1*TF card slot etc to connect with more devices;
- I7-1165G7 onboard newest In-tel Iris Xe Graphics, performance match to NVI-DIA GeForce MX350 dedicated graphic card;
- Support PXE, RTC, Wake on LAN, Auto power on etc
Basic Information: | ||
CPU | Core I7-1165G7/I9-10880H/I7-10750H/I5-10200H/I9- 9880H/I7-9750/I7-8750H/I5-8305G/I7-8705G/l7-11800H/I9-11900H | |
TDP | 45w | |
Memory | 2 x DDR4 SO-DIMM memory slot up to 64GB | |
OS | Win 11/10, Linux, Ubuntu etc | |
PXE | YES | |
Audio | High Definition Audio controller | |
Network | 1 x GbE Rj45 Intel i219 | |
Video | In-tel® Iris Xe Graphics/ In-tel UHD Graphics 630 | |
Input/output port | ||
Switch | 1 x Power On/Off Switch | |
USB | 3 x USB 3.0, 4 x USB 2.0, 1 x Type-C | |
Display | 1 x HD-MI , 1 x DP | |
Other | 1 x TF card slot | |
Storage | ||
M.2 | 2 x M.2 NVME SSD (SSD1 supports M.2 SATA) | |
Wi-Fi | ||
Module | Inside M.2 2230 2.4G/5G Dual band AC(AX) Wi-Fi+BT4.x | |
Power and Working Environment | ||
Input | DC100-240V AC/50-60Hz | |
Output | 19V, 4.74A | |
Operating Temperature | 0/70 Centigrade | |
Relative Humidity | 0%~90% (non-condensing) | |
Product Dimension & Details | ||

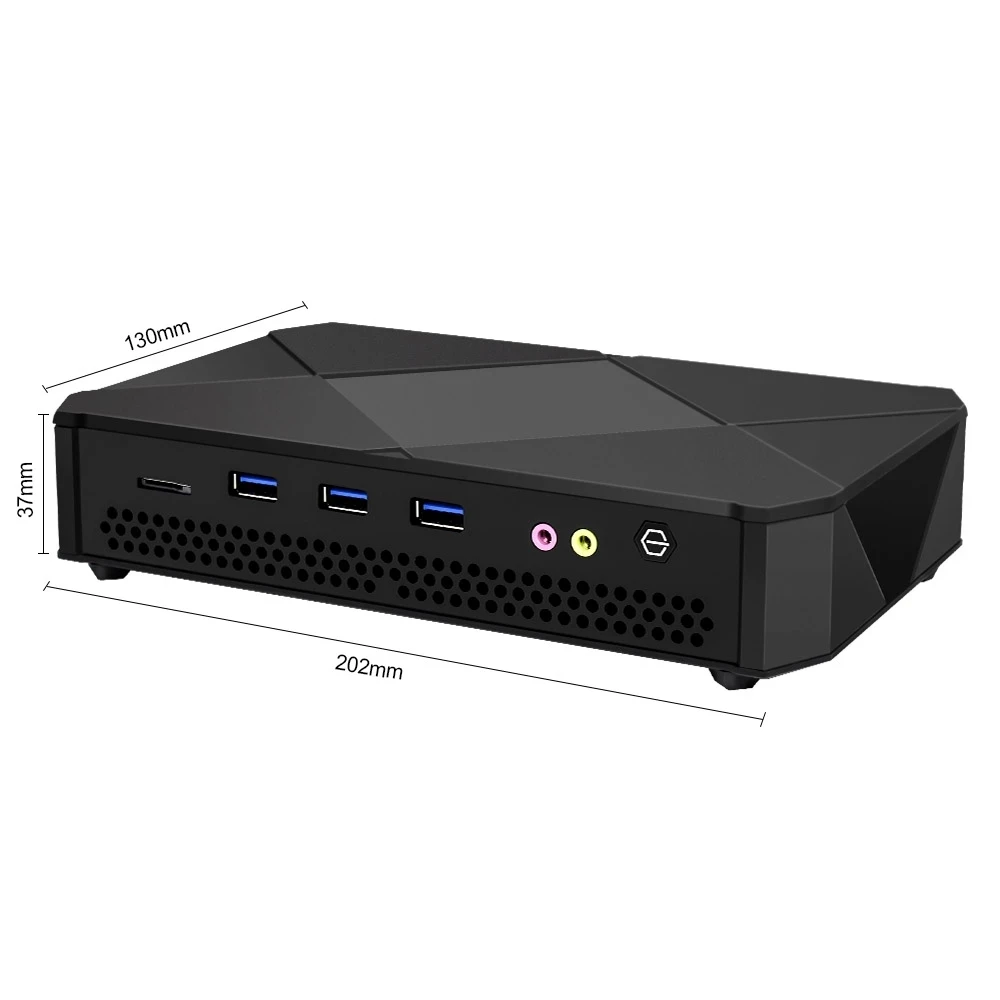

Size | 202 x 130 x 37mm | |
Weight | Net:0.8kg, Gross:2 kg | |
Cooling Mode | Dual pure copper fan | |
Functions | PXE,RTC, Wake on LAN,Auto power on etc | |
Package Content | ||
Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 4xMount Screws, 1xHD-MI cable | |
Packing&Shipping
Packing List:
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
OEM&ODM Service
We can support OEM/ODM service, the process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
Assisting customers in their journey towards customized solutions:
☑ Logo(Packing , Computer Logo)
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
☑ Data Protection
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
☑ Data Protection
Company Introduction
VENOEN Technology Co., Limited was founded in 2013 in XuZhou as a mini computer developer and wholesaler, our factory is located in Shenzhen, producing and supplying thin client and mini PC since 2006. There are 10 professional international sales person in VENOEN overseas sales offices, most of them has 3 to 8 years international sales experience; 5 technical support team has 10 years computer support experience and also support technical guidance in our factory since 2006.
We support retail, wholesale or agency of mini PC, OEM and ODM service and Drop Shipping services to all over the world.
As Quality is our culture, we fully believe quality is the soul of an enterprise, all our products are high quality finishes with
CE, RoHS, FCC, SGS, certifications, with 3 years warranty and competitive price, our products will give you an edge over your competitors;
We support retail, wholesale or agency of mini PC, OEM and ODM service and Drop Shipping services to all over the world.
As Quality is our culture, we fully believe quality is the soul of an enterprise, all our products are high quality finishes with
CE, RoHS, FCC, SGS, certifications, with 3 years warranty and competitive price, our products will give you an edge over your competitors;
FAQ
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model to insure the quality before shipping.
Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc. Some model is support XP, such as C1037U,Core CPU is not support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model to insure the quality before shipping.
Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc. Some model is support XP, such as C1037U,Core CPU is not support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
