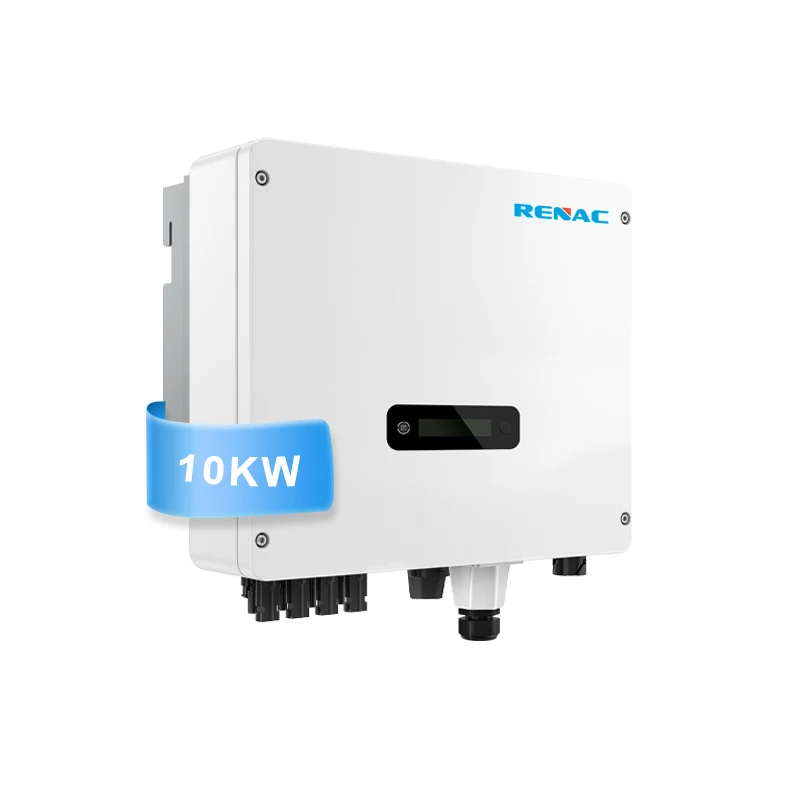

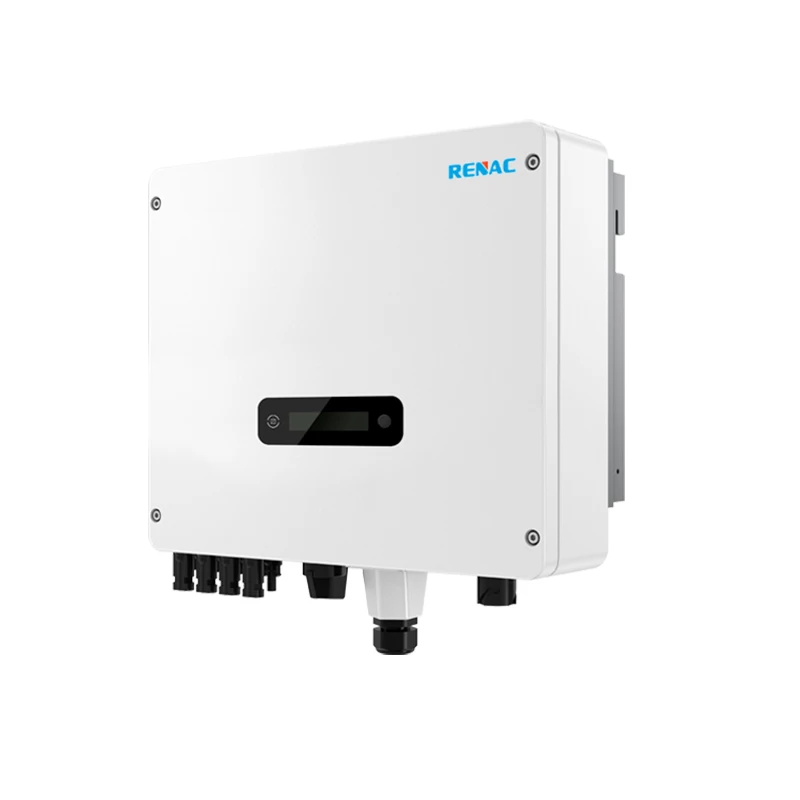

Renac Inverter R1 10K Ds 10Kva Pure Sine Wave Solar Inverter On Grid Inverter 10Kw
Renac Inverter R1-10K-Ds 10Kva Pure Sine Wave Solar Inverter On Grid Inverter 10Kw
Renac Inverter R1-10K-Ds 10Kva Pure Sine Wave Solar Inverter On Grid Inverter 10Kw
Renac Inverter R1-10K-Ds 10Kva Pure Sine Wave Solar Inverter On Grid Inverter 10Kw
Renac Inverter R1-10K-Ds 10Kva Pure Sine Wave Solar Inverter On Grid Inverter 10Kw
Renac Inverter R1-10K-Ds 10Kva Pure Sine Wave Solar Inverter On Grid Inverter 10Kw
Renac Inverter R1-10K-Ds 10Kva Pure Sine Wave Solar Inverter On Grid Inverter 10Kw

Renac Inverter R1 10K Ds 10Kva Pure Sine Wave Solar Inverter On Grid Inverter 10Kw

Share on (1600433664052):


Price:$759.00 - $779.00

Quantity:


Product Overview

Description

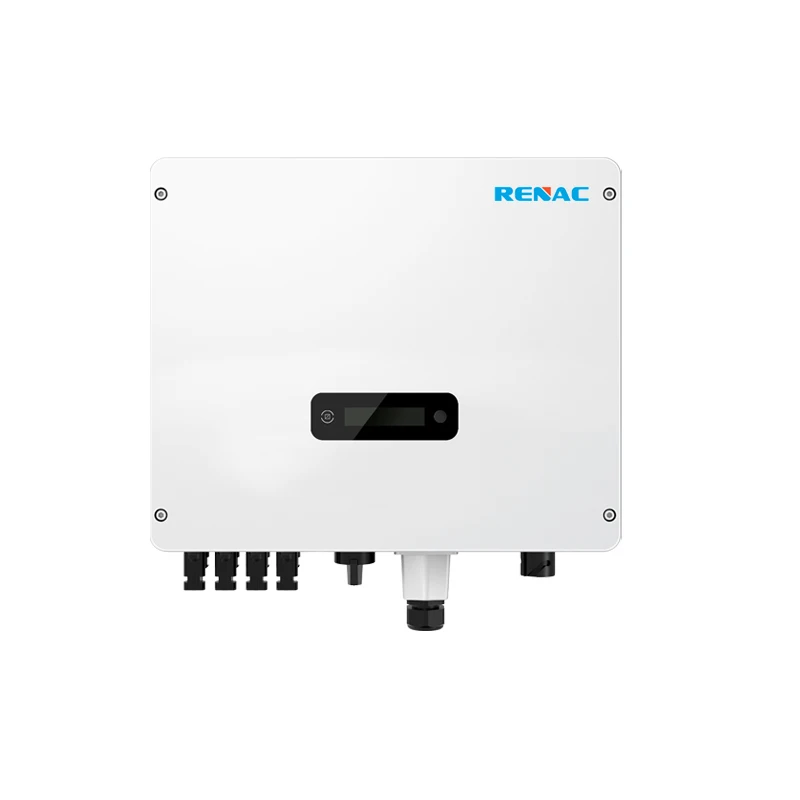

Renac Inverter R1-10K-Ds 10Kva Pure Sine Wave Solar Inverter On Grid Inverter 10Kw




Product Paramenters




R1 Moto Series
R1-10K-DS
8KW / 10KW /10.5KW
Single Phase
2 MPPT



Model
R1-8K-DS
R1-10K-DS
R1-10K5-DS
DC Input Data
Max. Recommended PV Power
12000W
15000W
16000W
Max.DC Input Voltage
600V
MPPT voltage Range
100-550V
Rated input voltage
360V
Start-up Voltage
120V
No. of MPP Trackers
2
No. of Input Strings per Tracker
2/1
2/2
Max. DC Input Current
26A / 20A
26A / 26A
26A / 26A
DC Switch
Optional
AC Output Data
Rated AC Power
8000 W
10000 W
10440 W
Max.output power
8800VA
10000VA
9570VA@220V
10005VA@230V
10440VA@240V
Max. AC Current
36.4A
43.5A
43.5A
Rated AC Voltage / Range
220V/230V/240V; 160-290V
Grid frequency / range
50Hz/60Hz; ±5Hz
Adjustable Power Factor [cos φ]
0.8leading ~ 0.8lagging
Output THDi (@Rated Output)
≤ 2%
Efficiency
Max.Efficiency
97.80%
98.10%
98.10%
Euro Efficiency
97.20%
97.50%
97.50%
MPPT Efficiency
99.90%
99.90%
99.90%


Products Description




Renac Inverter R1-10K-Ds 10Kva Pure Sine Wave Solar Inverter On Grid Inverter 10Kw
RENAC R1 Macro Series is a single-phase on-grid inverter with excellent compact size, comprehensive software and hardware technology. The R1 Macro Series offers high efficiency and class-leading functional fan-less, low-noise design.


Project Cases






R1-10K-DS

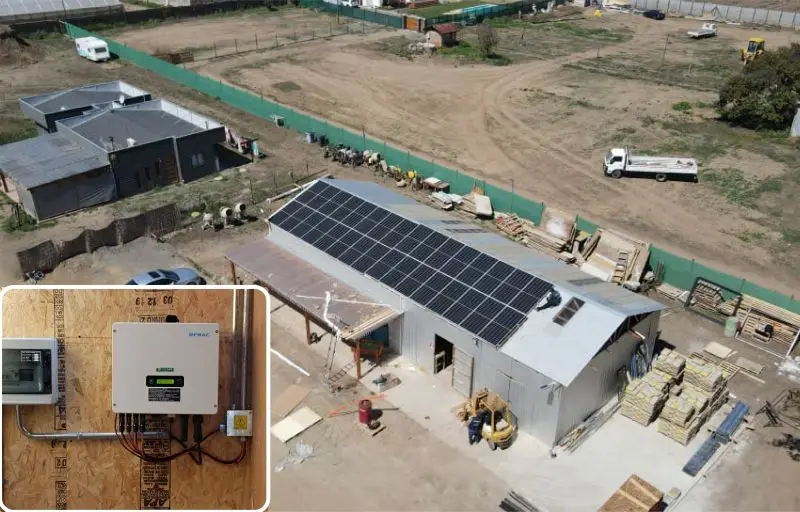

The project located in the beautiful seaside country Chile which uses one Renac R1 Moto 10K on-grid inverter product.




NAC5K-DS
inverter,Thailand

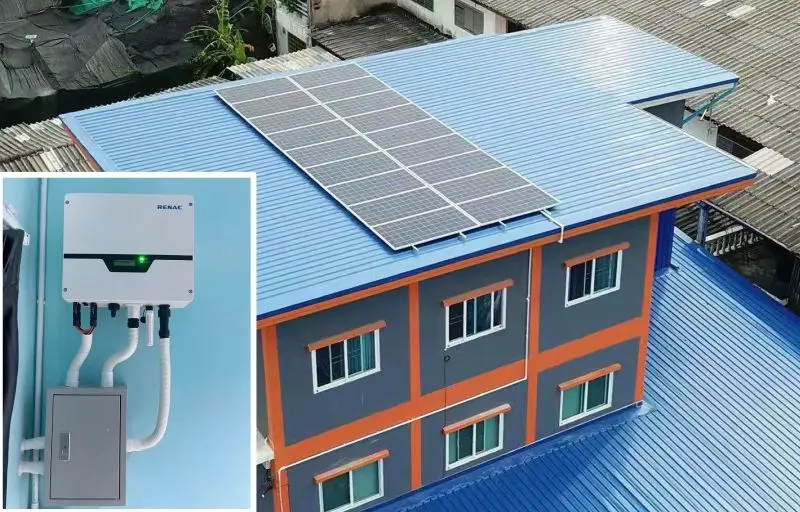

Wonderfully installed under the roof in Thailand! Renac Macro Series single phase NAC5K-DS inverter is now running efficiently to deliver electricity generated from the solar panels to this family!




NAC8K-DS

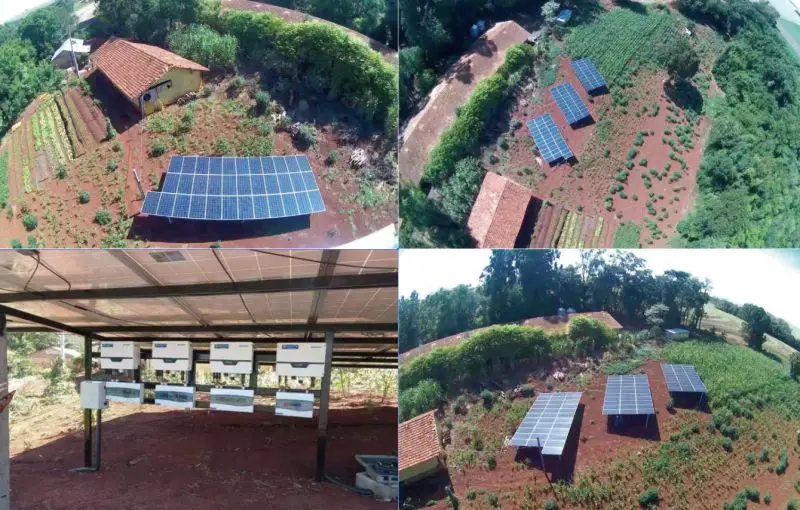

In Brazil, another 4 units of Renac Macro Series single phase 8 KW inverters NAC8K-DS were installed for a carport top solar plant.


Company Profile

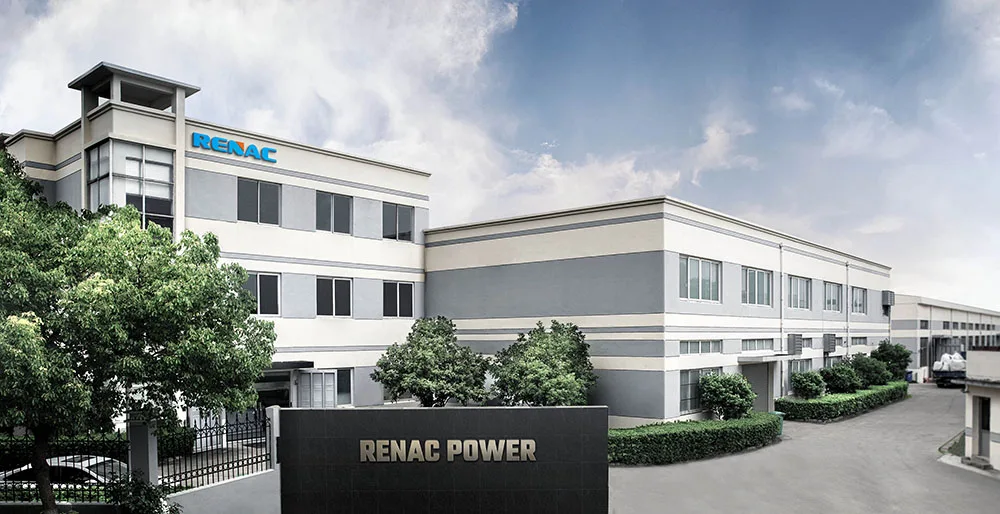

ABOUT RENAC
RENAC Power is a leading manufacturer of On Grid Inverters, Energy Storage Systems and a Smart Energy Solutions Developer. Our track record spans over more than 10 years and covers the complete value chain. Our dedicated Research and Development team plays a pivotal role in the company structure and our Engineers constantly research develop redesign and test new products and solutions aiming at constantly improving their efficiency and performance for both the residential and commercial markets.

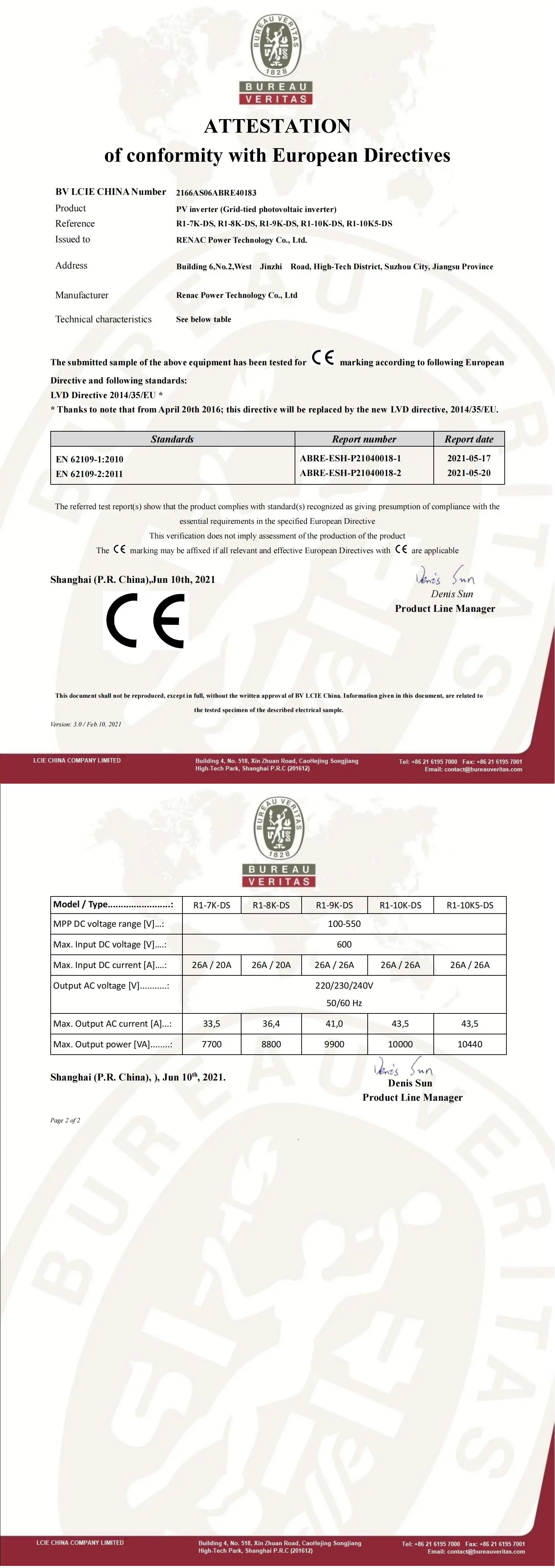

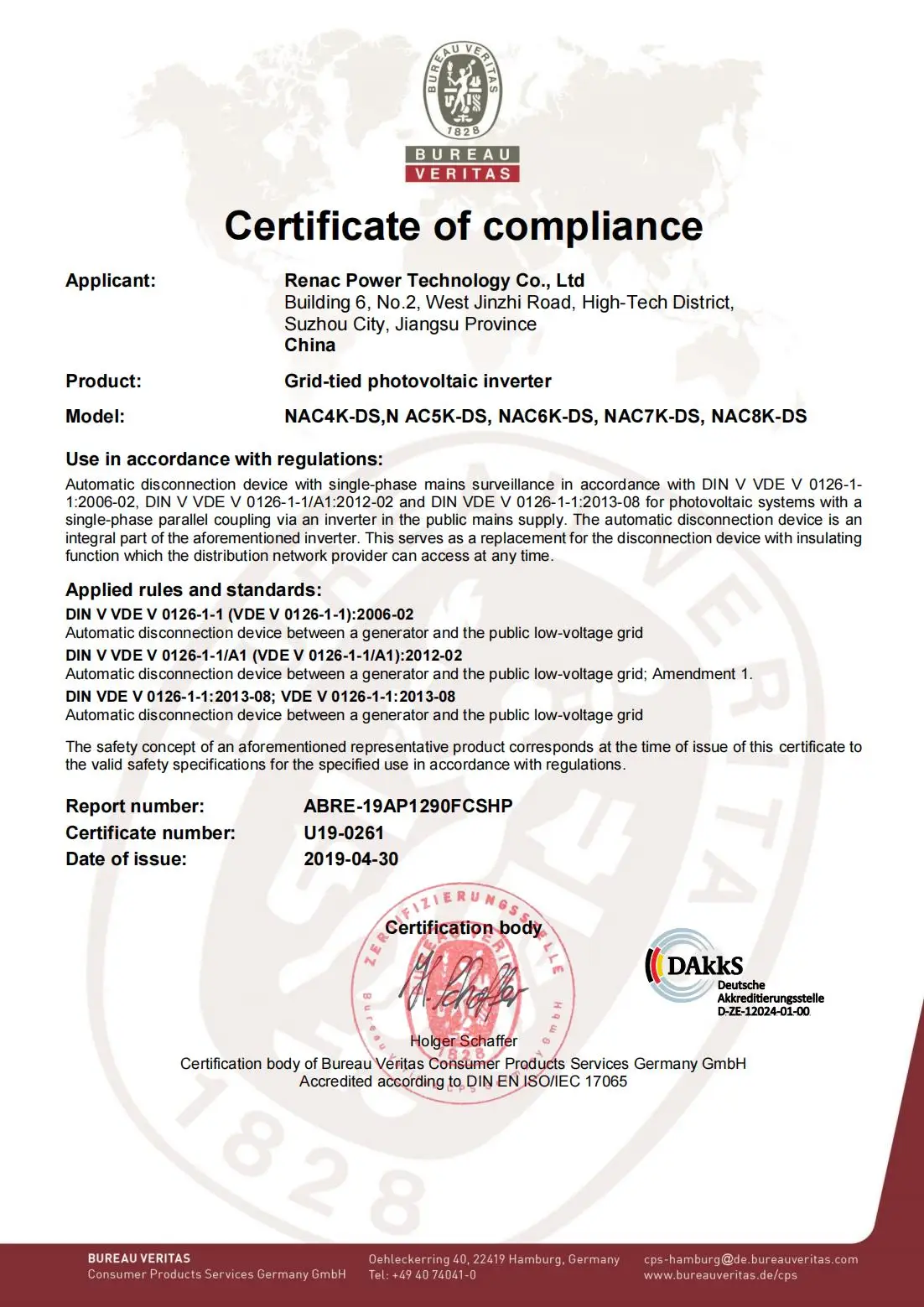

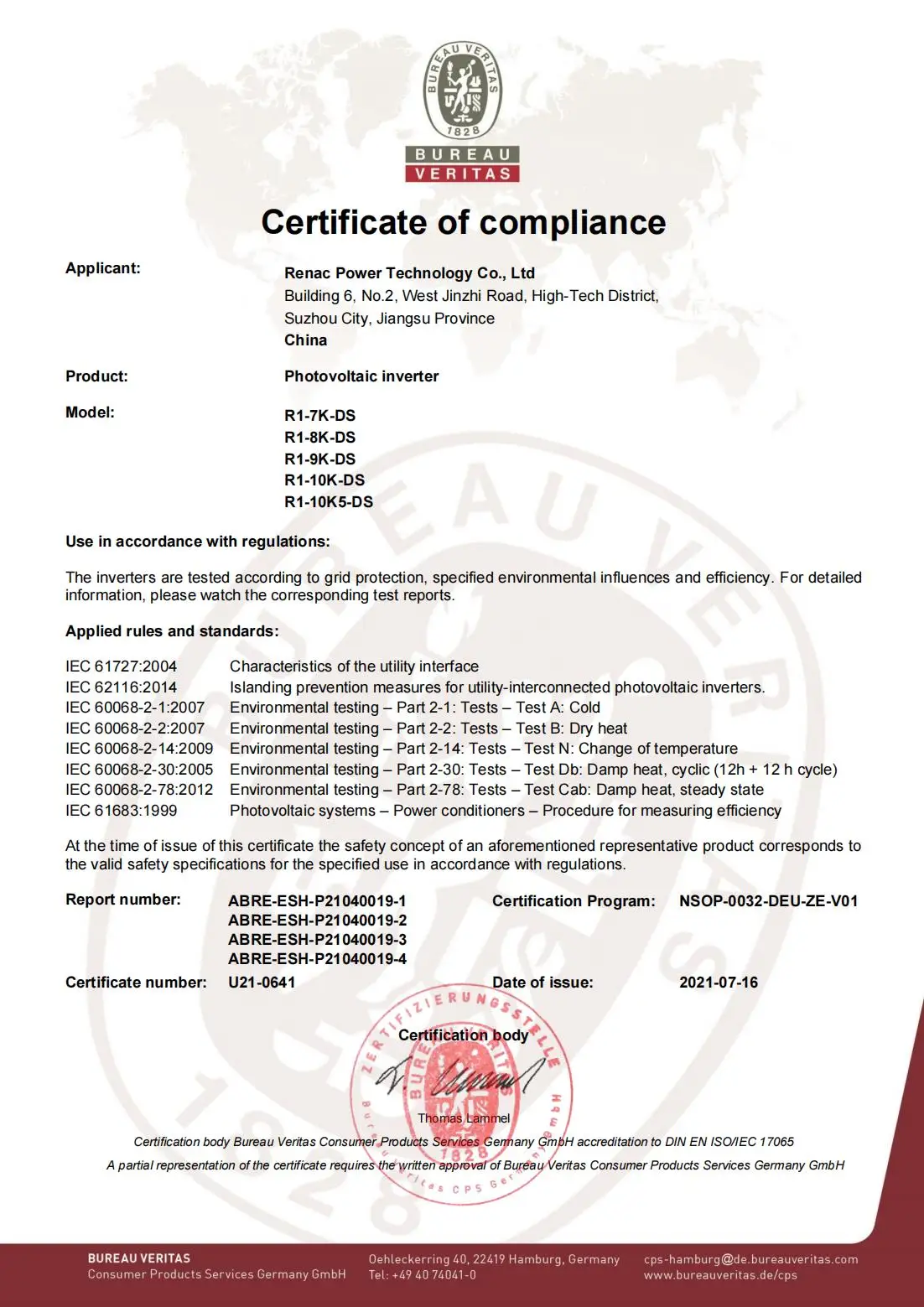

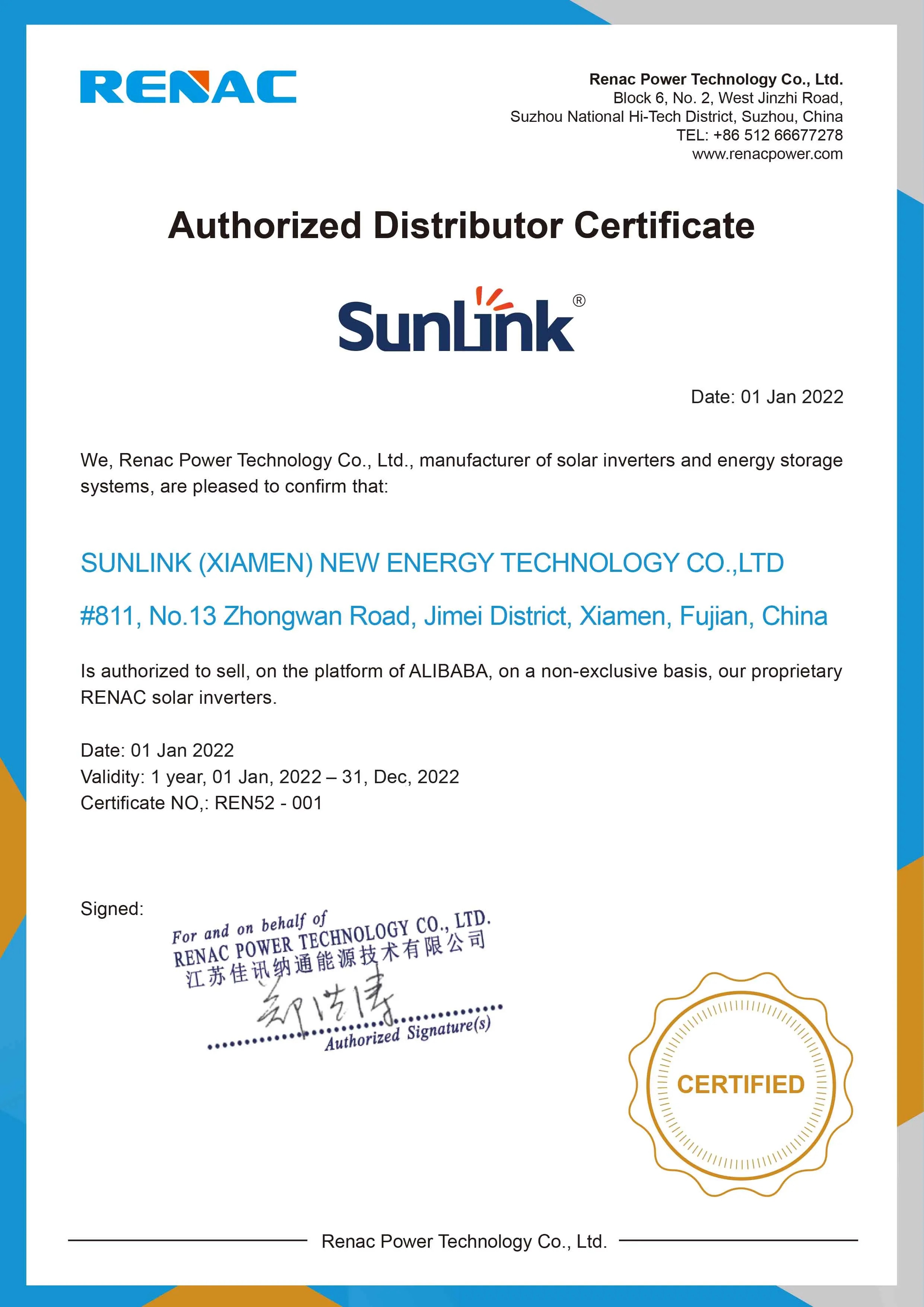

Certificate

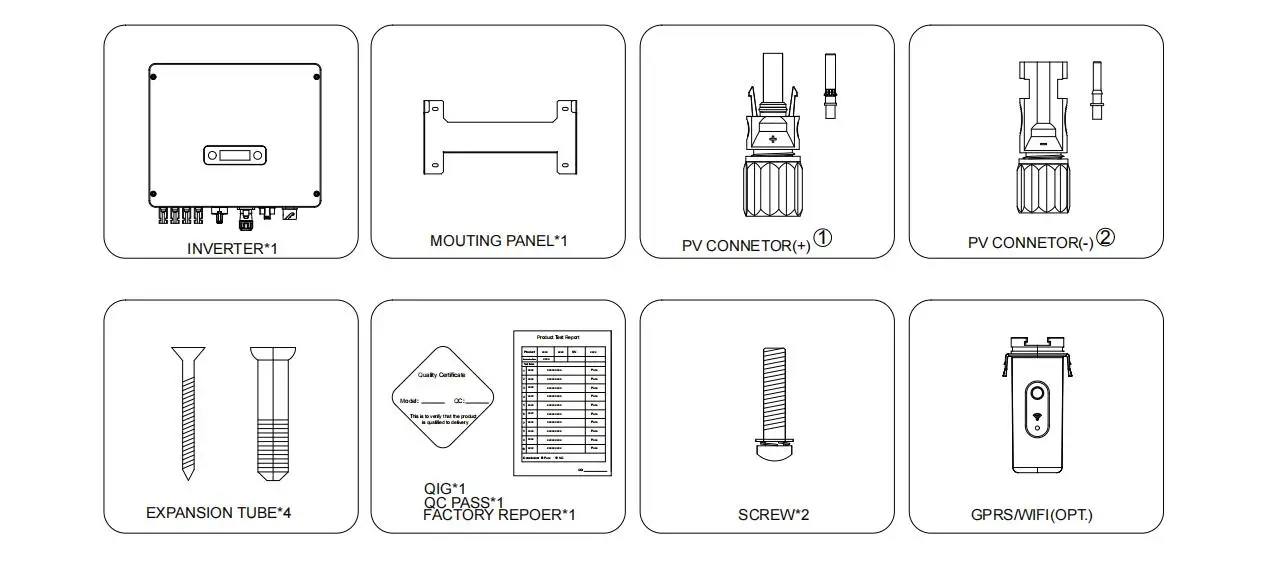

Product Packaging




① There are 2 PV+ connectors for 4/5/6K-DS , 3 PV+ connectors for 7/8K-DS and 4 PV+ connectors for 9/10/10.5K-DS
② There are 2 PV- connectors for 4/5/6K-DS , 3 PV- connectors for 7/8K-DS and 4 PV- connectors for 9/10/10.5K-DS
