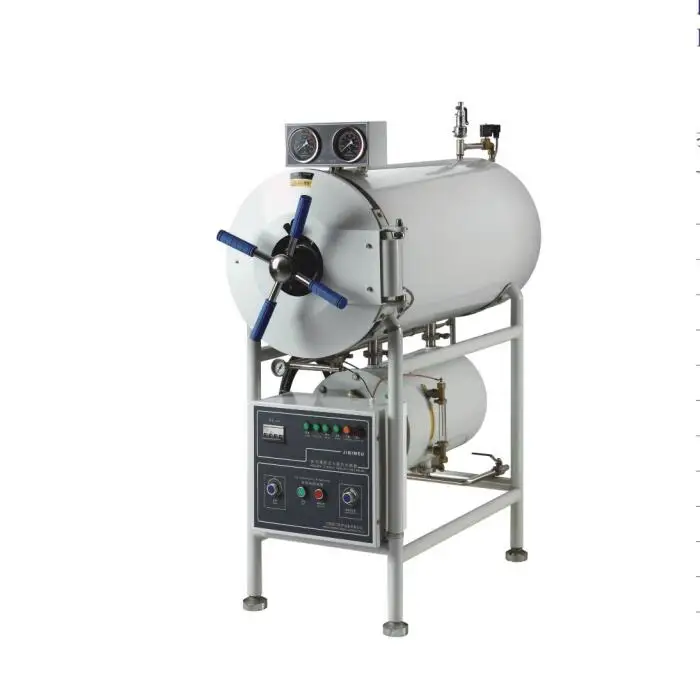

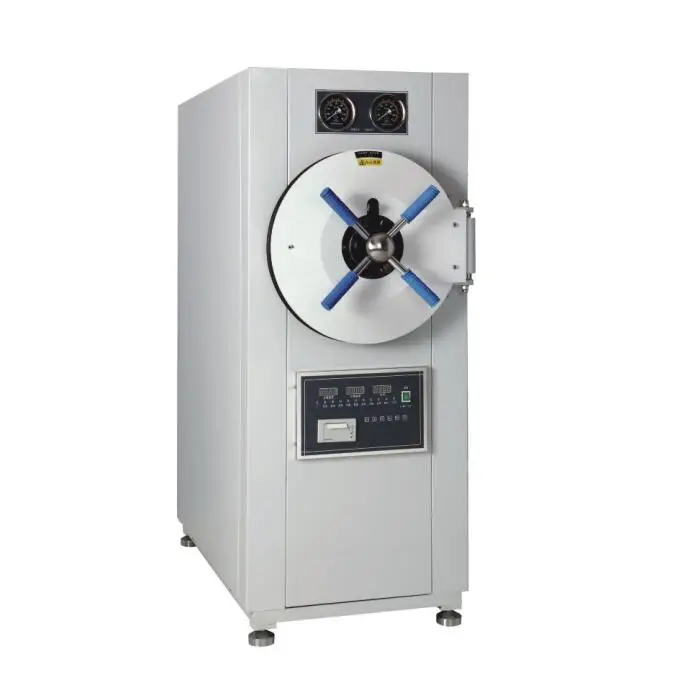

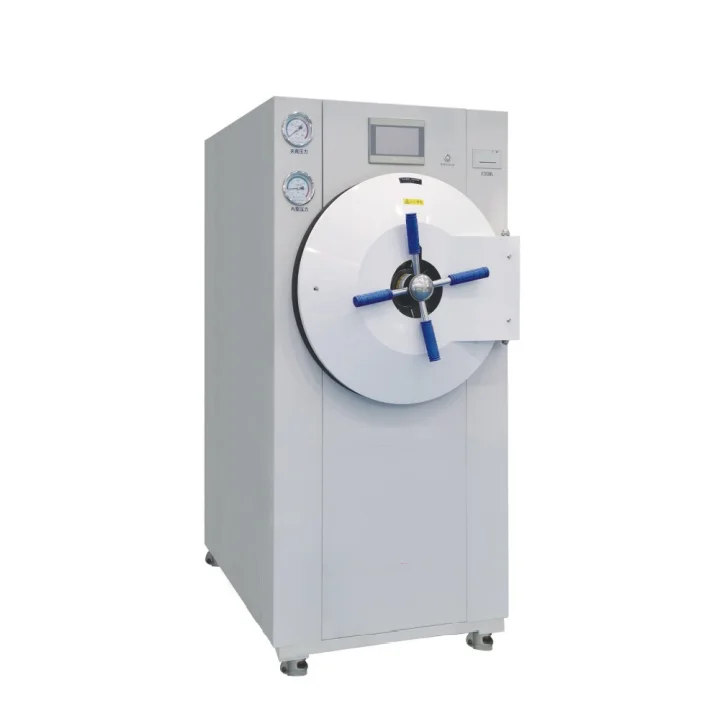

BIOMAISEN Pulse Vacuum Steam Sterilizer / autoclave for hospital and pharmaceutical industry
- Category: >>>
- Supplier: Shandong Biomaisen International Trade Co. ltd.
Share on (1600433668894):
Product Overview
Description
Products Description
Feature:
• Automatically controlled the sterilizing process, easy to operate.
• It has three times or more pulsating vacuum. It is suitable for all kinds of packed, non packed, hollow porous and internal
pipeline instruments.
• The sterilizer is equipped with a steam generator, and one set of movable sterilization plate is randomly adapted.
• The inner cavity of the sterilizer is a circular double-layer design, which is composed of a sterilization chamber and a jacket,
and has the function of deep drying.
• With printing function, the printer can record the whole process of sterilization.
• With Bowie & Dick test function for steam penetration test.
• With over-temperature, over-pressure auto-protect.
• Safety interlock device: when the door is not closed tightly, steam can not enter the main body of the inner layer and give an
alarm. When the pressure in the sterilization room is greater than 0.027mpa, the door is interlocked and cannot be opened.
• Over-pressure protection: when the pressure exceeds the working pressure, the safety valve will automatically relieve the
pressure
• Low water level protection device: the water can not be started until the high water level, and it will be automatically cut off
when the low water level is short of water.
• Over current protection: when the current overload, the power circuit breaker will automatically cut off the power supply.

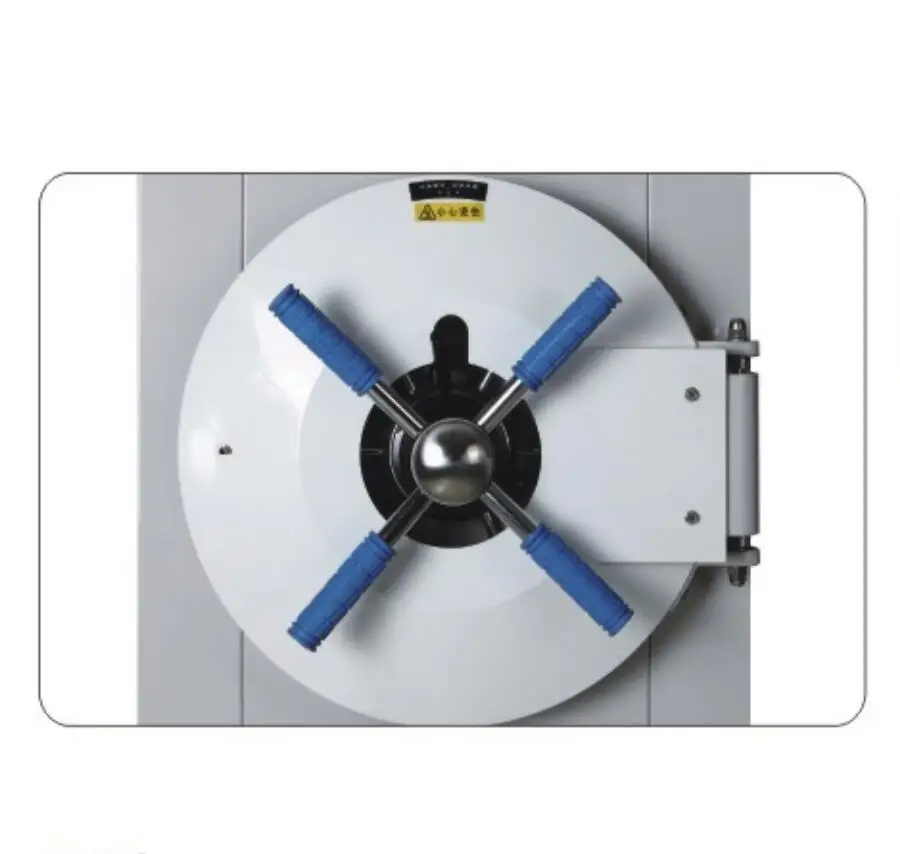

• Sealing door: manual door opening and closing, radial rod rotary table type, equipped with two-stage self-locking, interlocking
safety device, single door (double door optional), with pressure safety interlock device.
• The sterilization room is made of high quality stainless steel.
• It has three times or more pulsating vacuum. It is suitable for all kinds of packed, non packed, hollow porous and internal
pipeline instruments.
• The sterilizer is equipped with a steam generator, and one set of movable sterilization plate is randomly adapted.
• The inner cavity of the sterilizer is a circular double-layer design, which is composed of a sterilization chamber and a jacket,
and has the function of deep drying.
• With printing function, the printer can record the whole process of sterilization.
• With Bowie & Dick test function for steam penetration test.
• With over-temperature, over-pressure auto-protect.
• Safety interlock device: when the door is not closed tightly, steam can not enter the main body of the inner layer and give an
alarm. When the pressure in the sterilization room is greater than 0.027mpa, the door is interlocked and cannot be opened.
• Over-pressure protection: when the pressure exceeds the working pressure, the safety valve will automatically relieve the
pressure
• Low water level protection device: the water can not be started until the high water level, and it will be automatically cut off
when the low water level is short of water.
• Over current protection: when the current overload, the power circuit breaker will automatically cut off the power supply.
• Sealing door: manual door opening and closing, radial rod rotary table type, equipped with two-stage self-locking, interlocking
safety device, single door (double door optional), with pressure safety interlock device.
• The sterilization room is made of high quality stainless steel.
Product Paramenters
MODEL | MS-H100YV | MS-H150YV | MS-H200YV | MS-H300YV | ||||
Technical Data | ||||||||
Sterilizing chamber volume | 100L φ440×670mm | 150L Φ440×1000mm | 200L Φ515×1000mm | 300L Φ600×1080 | ||||
Working pressure | 0.22Mpa | |||||||
Working temperature | 134℃ | |||||||
Temperature adjust range | 115-134℃ | |||||||
Time for sterilization | 0-99min | |||||||
Time for drying | 0-99min | |||||||
Heat average | ≤±2℃ | |||||||
Vacuum limit | -0.08Mpa | |||||||
Power | 10kw/380V 50Hz | 10kw/380V 50Hz | 10kw/380V 50Hz | 13kw/380V 50Hz | ||||
Dimension(mm) | 1400×660×1640 | 1400×660×1640 | 1400×750×1740 | 1520×850×1850 | ||||
Exterior package dimension(mm) | 1560×920×1820 | 1560×820×1820 | 1560×910×1880 | 1680×1080×2100 | ||||
G.W/N.W | 430/340kg | 440/350kg | 460/370Kg | 580/470Kg | ||||
