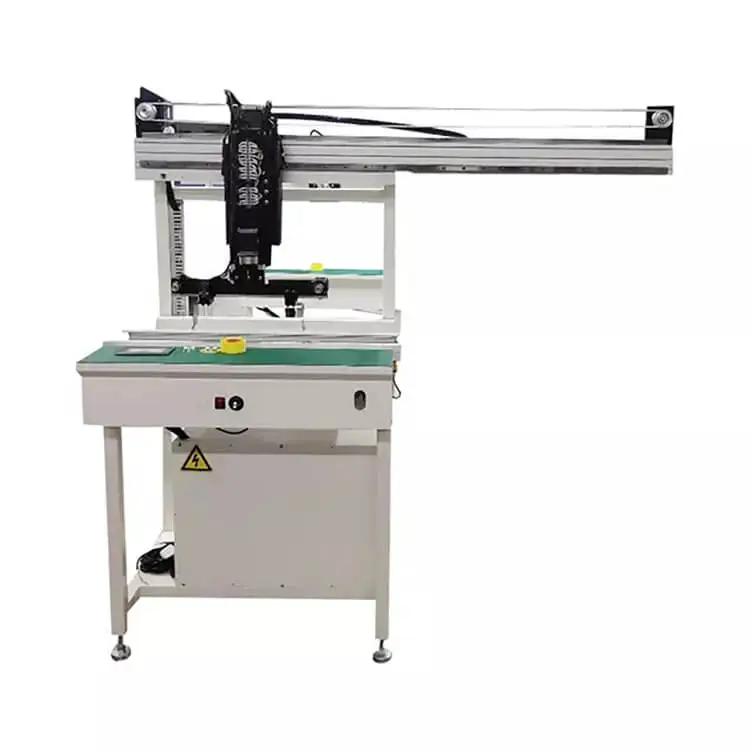

Automatic conveying Type SMT Line Machine PCB Linking Conveyor

This equipment is used for mufti - line integration of SMT production line (using manipulator + corner to send to the belt assembly line and then reflow soldering, saving people

Labor costs and increase production efficiency, improve quality,

1. Using Panasonic PLC, high-precision photoelectric, LEF intermediate relay control system, stable and reliable operation.

2. Touch screen display operation, with fault sound and light alarm and automatic diagnosis function.

3. Stepper motor control, adjustable speed and distance.

4. It adopts imported steel wire belt drive, precise positioning and durable.

5. Adopt Taiwan Sheng yin linear slide rail, which has good sliding performance, durability and precise positioning.

6. The translation position can be set to meet a variety of production processes, and the operation is simple and convenient.

7. The conveying height is 900mm±30

8. Power supply: ± single-phase 220V 50/60HZ 300W.

9. Easy-to-use touch screen function control interface

10. The transfer distance can be set at will,

11. Mufti -line PCB will not overlap

12. Compatible SMEMA interface

Technical Parameters:
