Product Overview

Description



Product Overview


Gear Motor
Gear Motor is suitable for: 3D printer, CNC lathe, manipulator, robot, labeling machine, laser cutting machine, SMT equipment,medical equipment and so on.


Features AT A Glance


Insulation Class
UL/CSA Standards：Class A(105℃)
EN/CSA Standards：Class B(130℃)

Overheat
Protection
Thermal protector inside(automatlc return)
Class B(opening:120℃±5℃、75℃±15℃）
Class F(opening:145℃±5℃、100℃±15℃）
Ambient
Temperature
Single-phase 100V AC、Three-phase200V AC：-10~+50℃(Non Freezing)
Ambient
Humidity
≤85%(Non condensing)


Model
Output
power
Voltage
Frequency
current
Rated
speed
Starting
torque
Rated
torque
Capacior
Gear shaft
Circular
shaft
W
V
Hz
A
r/min
mN.M
mN.M
2IK6RGN-A
2IK6RA-A
6
1ph100
50
0.24
1200
55
48

3.5
60
0.25
1450
50
40
2IK6RGN-C
2IK6RA-C
6
1ph220
50
0.11
1500
50
48

0.8
60
0.265
1200
50
48
2IK6RGN-AZ
2RK6RA-AZ
6
1ph110
50
0.265
1200
60
48

4
60
0.232
1450
55
40
2RK6RGN-CZ
2IK6RA-CZ
6
1ph220
50
0.15
1200
55
48

1
60
0.145
1500
50
48
All safety specifications are certified by the model name on the nameplate of the motor.


Gear Motor-Torque Table


Type
Gear
ratio
Frequency
3
3.6
5
6
7.5
10
12.5
Motor
power
speed
50HZ
433
361
260
200
173
130
 104
/rpm
60HZ
500
417
300
250
200
150
120


6W

2GU-□K
50HZ
0.12
0.14
0.19
0.23
0.29
0.35
0.49
1.22
1.43
1.94
2.35
2.96
3.57
5
60HZ
0.1
0.12
0.16
0.19
0.24
0.29
0.41
1.02
1.22
1.63
1.94
2.45
2.96
4.18


Type
Gear
ratio
Frequency
15
18
25
30
36
50
60
Motor
power
speed
50HZ
87
72
52
43
36
26
22
/rpm
60HZ
100
83
60
50
42
30
25


6W

2GU-□K
50HZ
0.58
0.7
0.88
1.1
1.3
1.6
1.9
5.92
7.14
8.98
11.2
13.3
16.3
19.4
60HZ
0.49
0.58
0.73
0.88
1.1
1.3
1.6
5
5.92
7.45
8.98
11.1
13.3
16.3


Type
Gear
ratio
Frequency
75
90
100
120
150
180
200
Motor
power
speed
50HZ
17
14
13
11
9
8
7
/rpm
60HZ
20
17
15
13
10
9
8


6W

2GU-□K
50HZ
2.4
2.9
3
3
3
3
3
24.4
29.6
30
30
30
30
30
60HZ
2
2.4
2.6
3
3
3
3
20.4
24.5
26.5
30
30
30
30

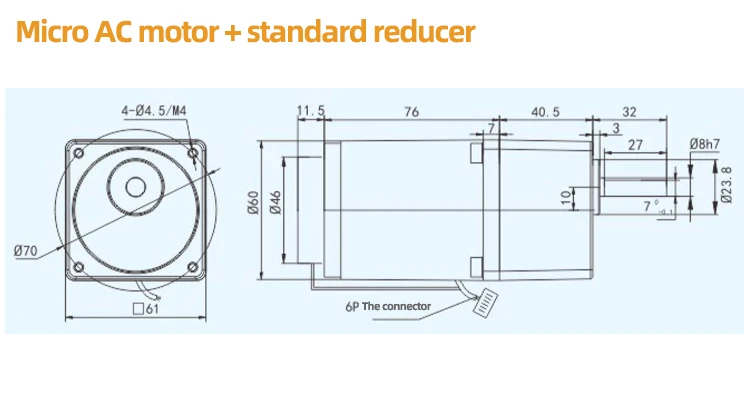

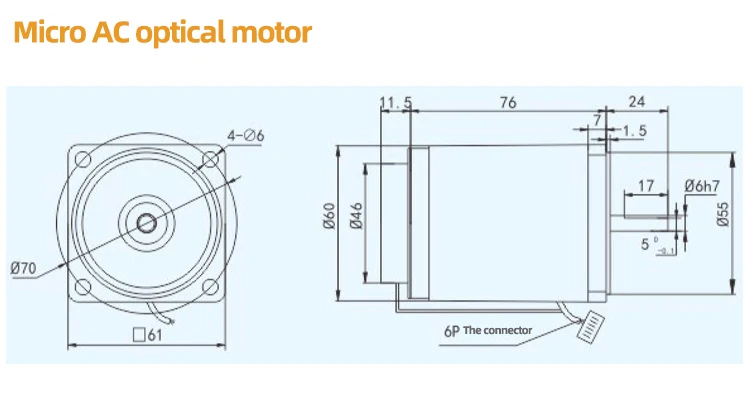

Outline Drawing






Senior Engineering Team


 Excellent talent is the guarantee of quality
The company brings together professionsls in production,technology and sales who have been ploughing for more than ten years in the industry,andis a team formed by a group of like-minded and pursuing personnel.
The company strives to carry out innovation mechanisms such as technological innovation, manufacturing innovation,management innovation and process innovation,has a full set of integrated industrial assembly lines such as imported and domestic production equipment and testing equipment,and has an effcient and sound sales network and after-sales service system.TO provide new and old customers with satisfactory products and services.




Customer Photos




Workshop







 100% Copper core wire

The use of automatic equipment, to ensure that the starting current in the best range, digital detection calibration to avoid manual winding of a variety of bad problems.


CNC
Detection
Large inventories
