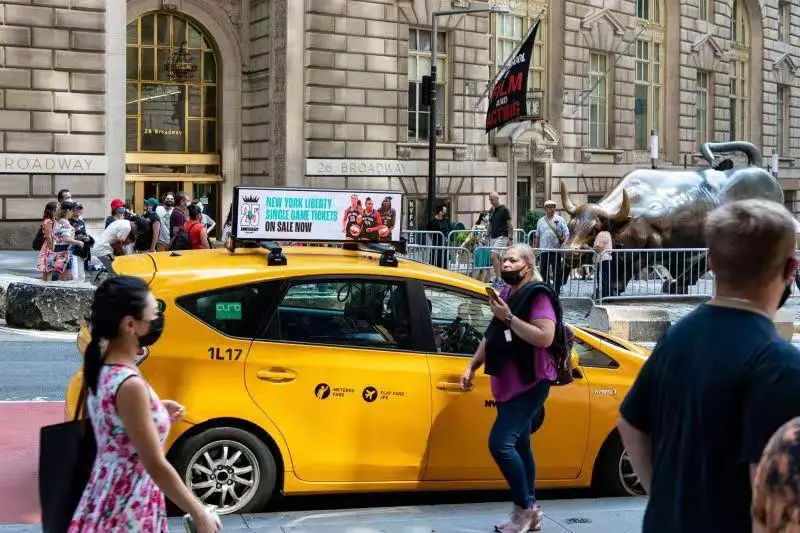

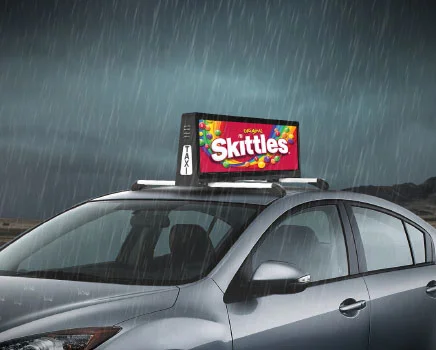

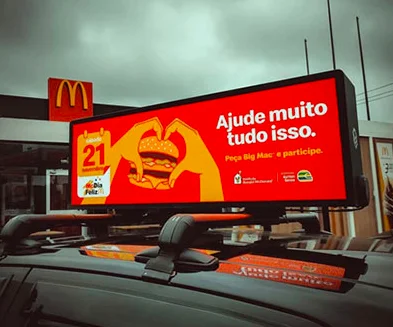

p2.5 p3 p4 p5 outdoor advertising led display sign 4g wifi two double side car roof topper taxi top led panel
- Category: >>>
- Supplier: Shenzhen Longvision Technology Co. Ltd.
Share on (1600433699726):
Product Overview
Description
Product Description
Advantages
1, Patent structure design,aluminum case with oxidation treatment,coating film for unti ultraviolet, outdoor painting foranti-rusting and anti-aging.
2, High tranparent pc cover that not turning yellow color or old in 10 years.
3, high level powersupply,beyond voltage,current load,short circuit will be protected, work in -40°C~+70°C environment.
4, Web control and could manage in anytime and any location through web browser.No need for download software.
5, Easy installtion bracket , fast maintenance structure.

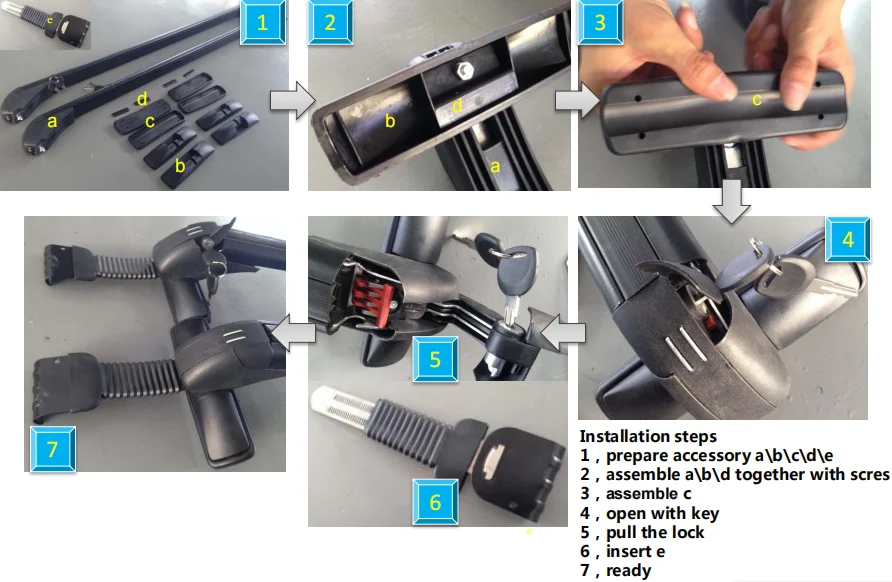

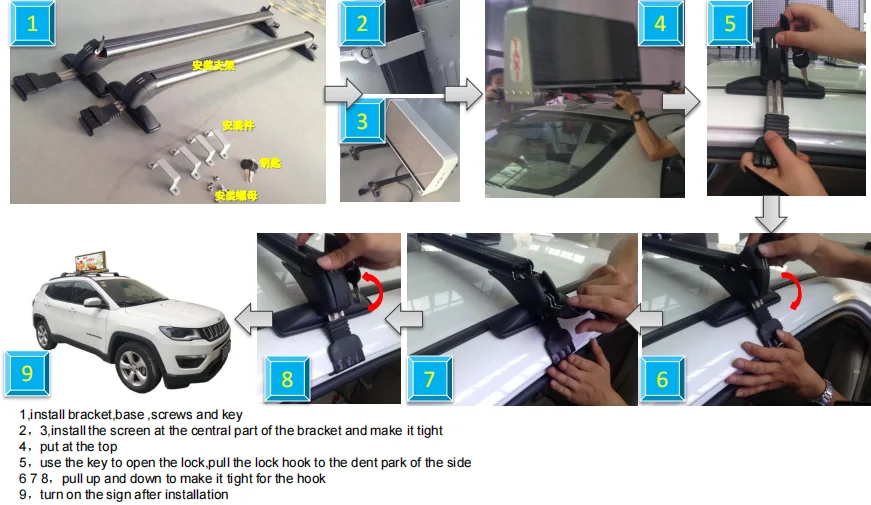

Bracket installation
Easy design leads a quick way installtion of bracket.

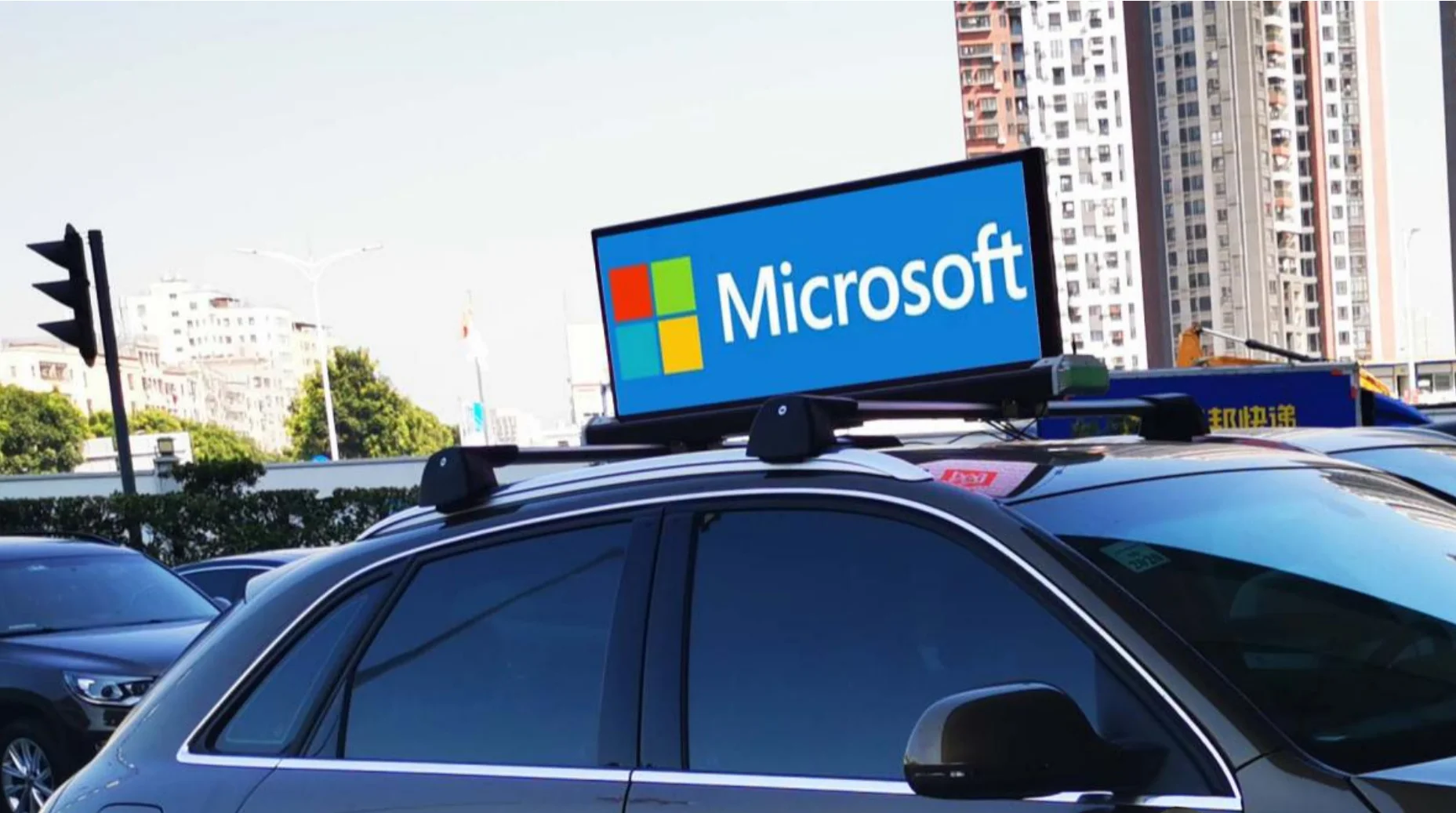

Sign installation
Each type of vehicle has different mounting racks.
Different lengths of mounting racks can be selected according to type to be installed.
The corresponding installation method can be designed according to different types of vehicles.
Control schematic

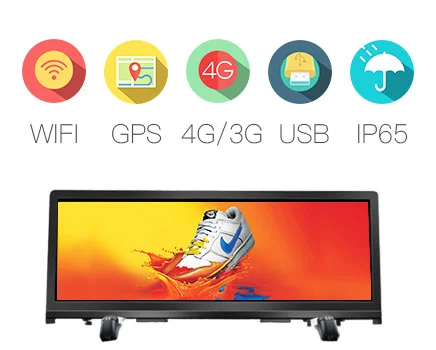

Supports 3G 4G WIFI Internet connection. Quickly and simply change your content anytime, anywhere.
Specification
Model | P2.5 | P3 | P4 | P5 | |||
Pixel Pitch | 2.5mm | 3mm | 4mm | 5mm | |||
Application | Indoor | Outdoor | |||||
LED Configuration | SMD1921 | SMD1921 | SMD1921 | SMD2727 | |||
Pixel Density (dots/㎡) | 160,000 | 111111 | 62,500 | 40,000 | |||
Module size | 160×160mm | 192×192mm | 256×128mm | 320×160mm | |||
Module Resolution | 64×64dots | 64×64dots | 64×32dots | 64×32dots | |||
Cabinet Size | 1600×320 | 1536×384 | 1536×384 | 960×320(Double Sided) | |||
Cabinet Resolution | 640×128dots | 512×128dots | 384×96dots | 192×640dots | |||
Cabinet Weight | 20kg | 23kg | 23kg | 25kg | |||
IP Rating ( front/back) | IP40 | IP40 | IP40 | IP40 | |||
Brightness Intensity | ≥2500cd/㎡ | ≥2500cd/㎡ | ≥2500cd/㎡ | ≥5000cd/㎡ | |||
Viewing Angle | 140° | 140° | 140° | 140° | |||
View Distance | ＞2m | ＞3m | ＞4m | ＞5m | |||
Gray Scale | 16bit | 16bit | 16bit | 16bit | |||
Max./Avg. Consumption (m²) | 400W/130W | 460W/150W | 480W/160W | 500W/160W | |||
Operating Life | 100,000hours | ||||||
Refresh Frequency | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ | |||
Control Mode | Synchronous display with control PC by DVI | ||||||
Operation Power | AC100/240 50/60HZ | ||||||
Operating Condition | - 20℃~+50℃, 10~90% RH | ||||||

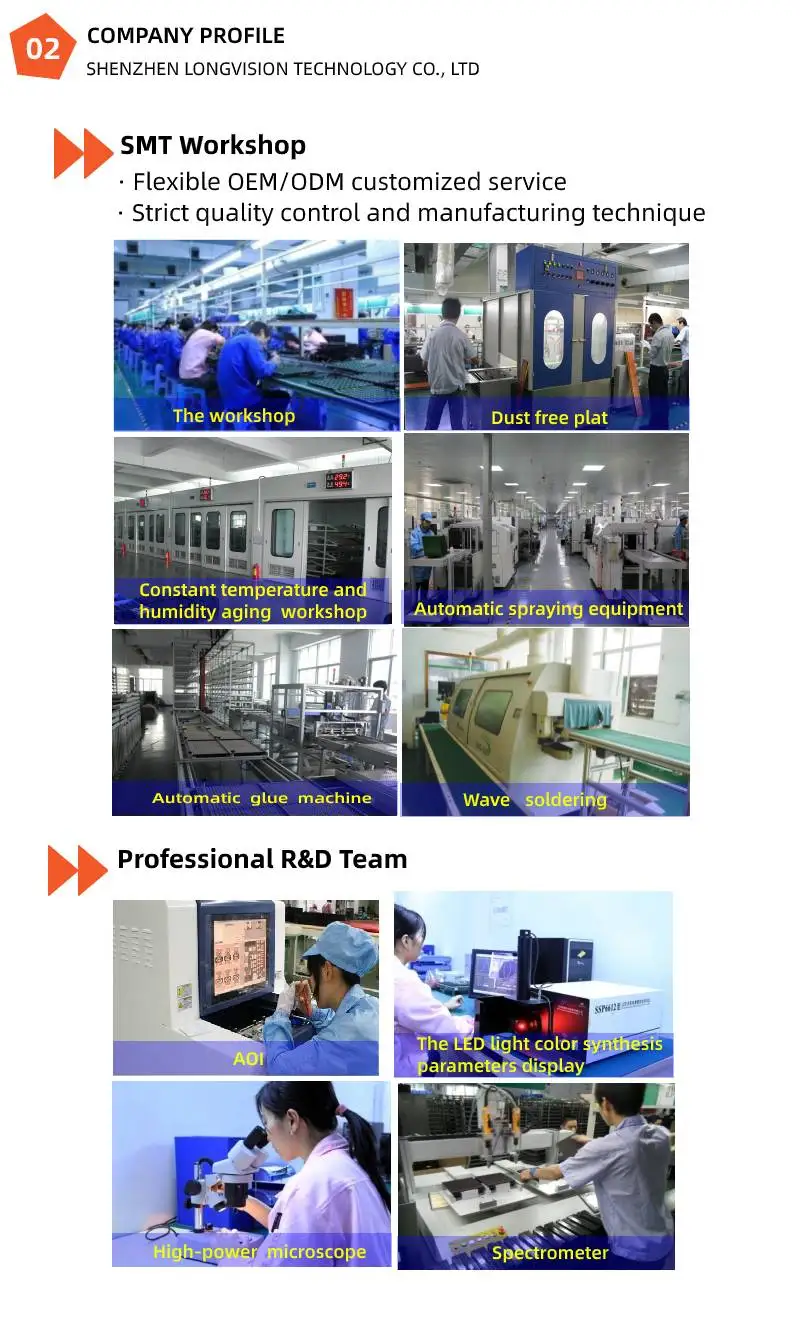

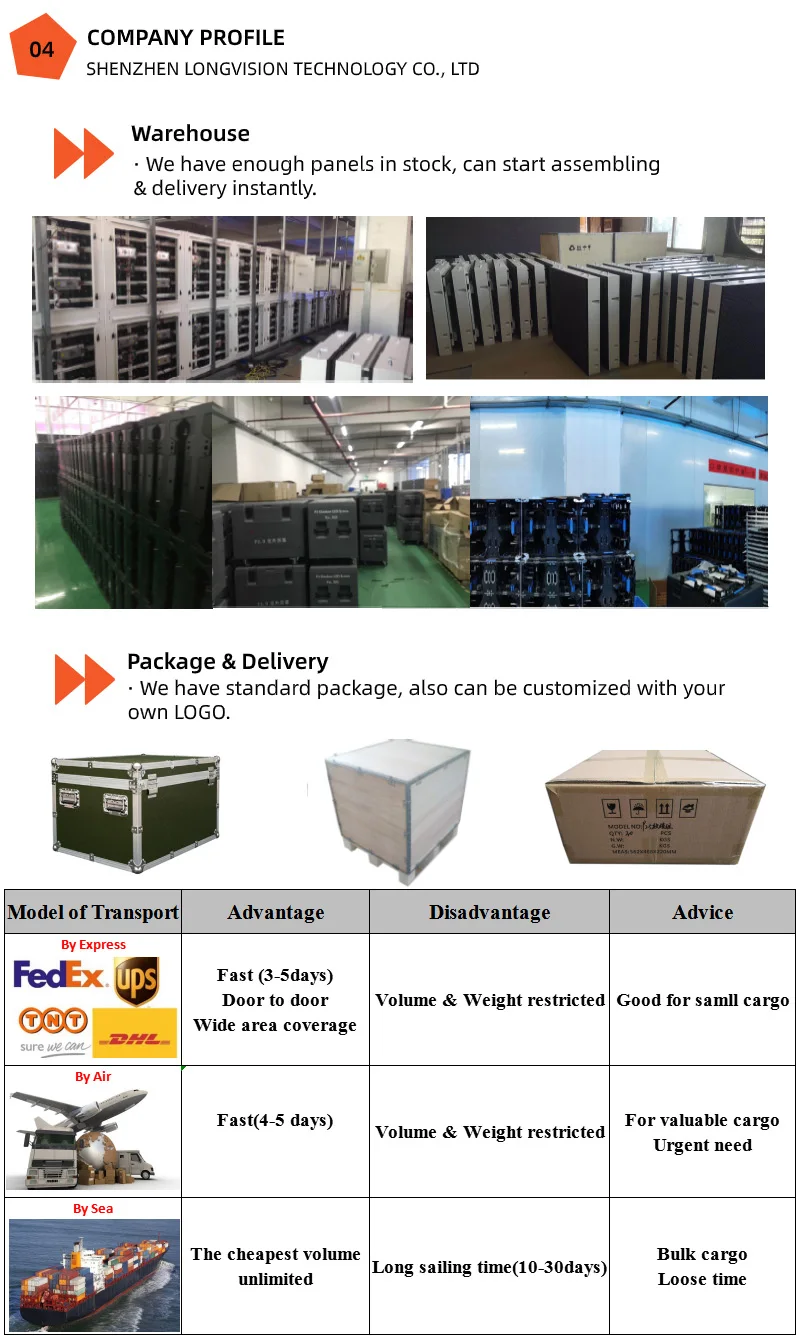

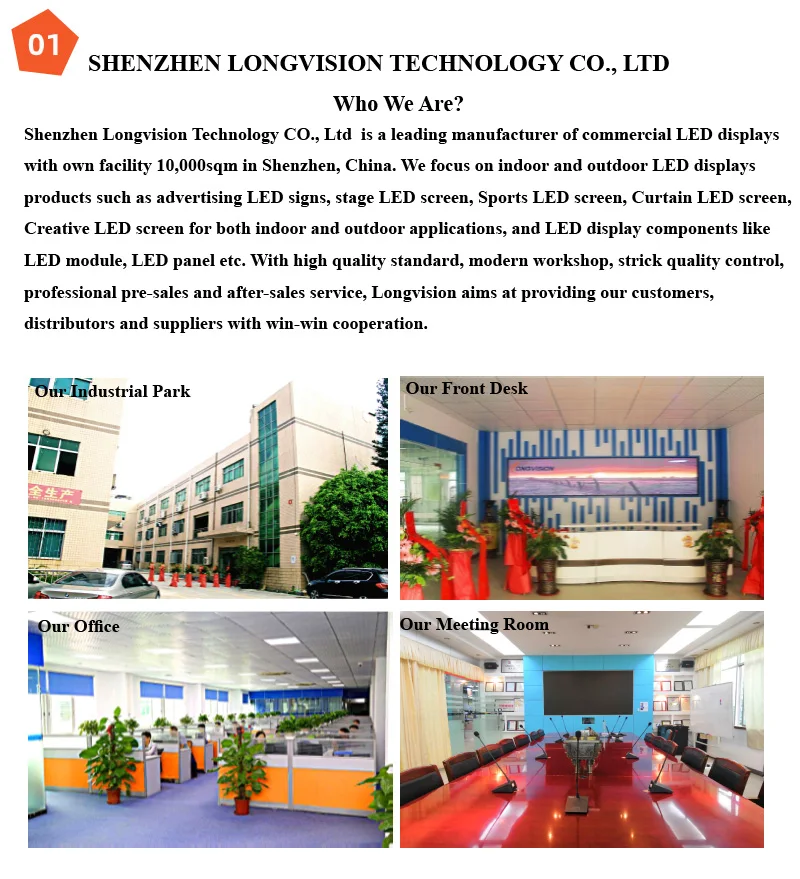

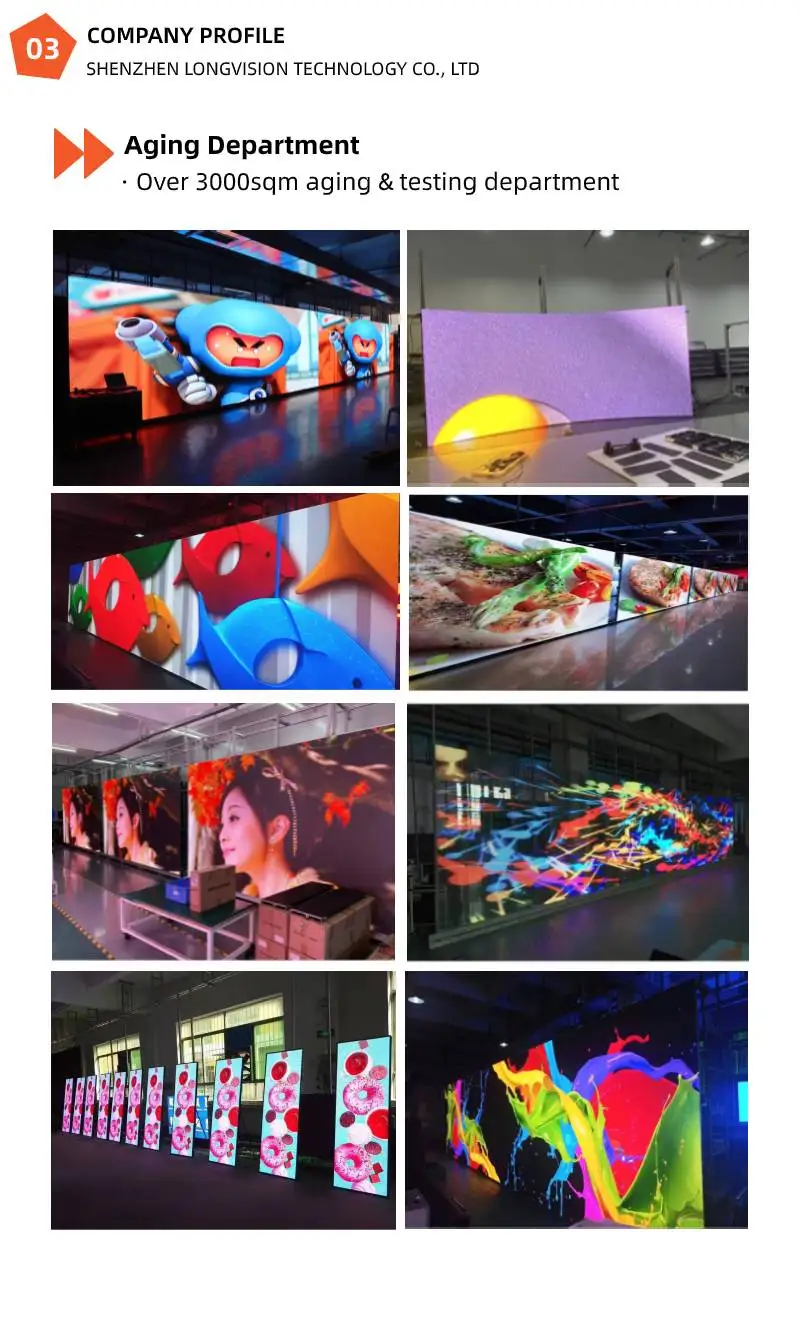

Company Profile
