ZOA 200 Zinc Oxide Arrester Resistance Current Tester Local Display Phase Sequence Detection
ZOA-200 Zinc Oxide Arrester Resistance Current Tester Local Display Phase Sequence Detection
ZOA-200 Zinc Oxide Arrester Resistance Current Tester Local Display Phase Sequence Detection
ZOA-200 Zinc Oxide Arrester Resistance Current Tester Local Display Phase Sequence Detection
ZOA-200 Zinc Oxide Arrester Resistance Current Tester Local Display Phase Sequence Detection

ZOA 200 Zinc Oxide Arrester Resistance Current Tester Local Display Phase Sequence Detection

Share on (1600433717940):


Price:

Quantity:


Product Overview

Description







Description:

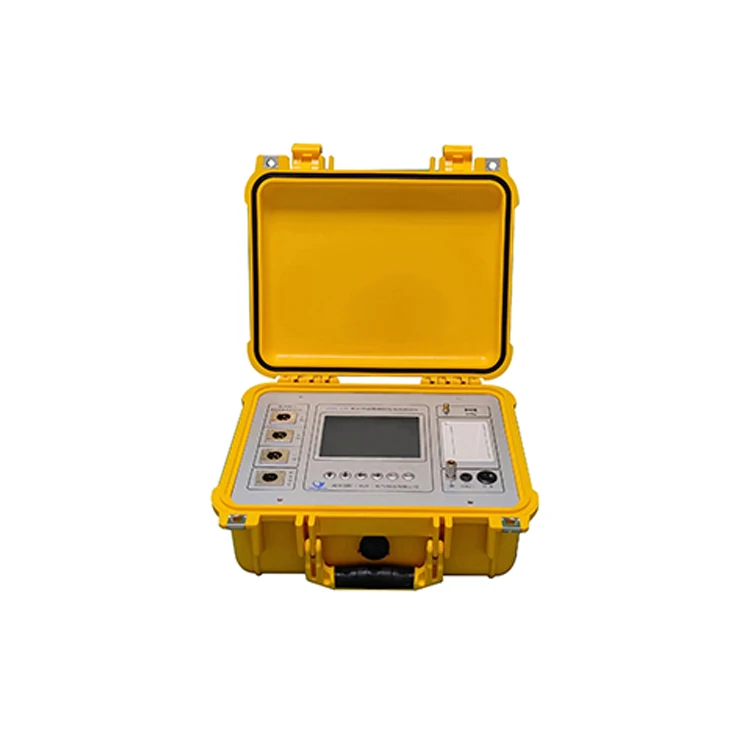

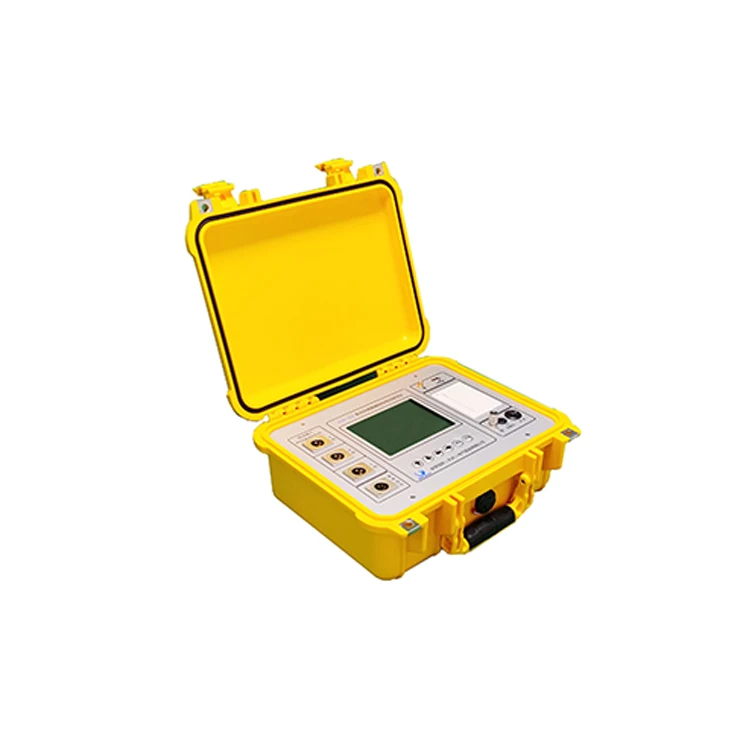

ZOA-200 Zinc oxide arrester resistance current tester is used to test the electrical properties of Metal Zinc Oxide Arrester (MOA). This instrument is suitable for field live test of zinc oxide arrester of different voltage grades, delivery and acceptance test of the laboratory under condition of power off. By measuring parameters such as full current and resistive current, the dangerous defects such as damp inside insulation and valve plate aging can be found in time.


Appearance Design

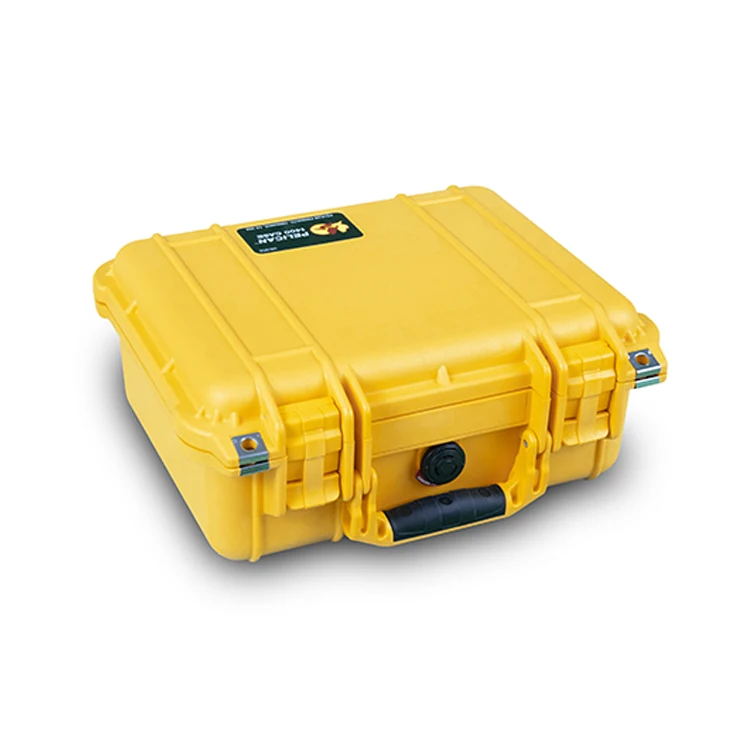

PELICAN Protector Case IP67
Processing Design
Imported materials, brushed metal panels, ultra-light, high-strength, ultra-corrosive titanium alloy screws, highlighting the
quality
Screen Display
Large high-brightness color LCD screen, still clearly visible in strong sunlight
Full Current Measurement Range
0-10mA effective value, 50Hz/60Hz
Accuracy
±（0.05+5uA）
Resistive current Cardinal Wave Accuracy
±（0.05+5uA）
Current Harmonic Measurement Accuracy
±（0.1+10uA）
Current Channel Input Resistance
≤2Ω
Reference Voltage Input Range
25V-250V effective value, 50Hz/60Hz
Reference Voltage Measurement Accuracy
±（0.05+0.5V）
Reference Voltage Channel Input Resistance
≥1500kΩ
Electric Field Intensity Input Range
30kV/m-300kV/m
Electric Field Intensity Measurement Accuracy
±（0.1）
Store and Print
Equipped with an external printer for easy data printing, data can be stored in real time
Power Supply
Built-in large-capacity lithium battery, one charge, can continuously test for more than 8 hours
Dimension
340*295*152mm
Weight
3Kg


Features
1. Appearance design: American PELICAN Protector Case, IP67
2. Processing design: metal drawing panel, ultra-light, ultra-anticorrosive titanium alloy screw
to highlight quality
3. Color screen with high brightness: still visible under strong sunlight
4. Customized accessory housing, reducing wear and tear on core accessories


Six innovative technologies
1. Real three-phase simultaneous measurement of zinc oxide parameters, and automatically compensate
phase interference
2. Built-in large capacity lithium battery, no worry for on-site power
3. Humanized interface display, for some
important operation and parameter Settings, display its prompt message
4. Double digital isolation and special Induction Plate Method make the test more safe and reliable
5. Intelligent power management system, backlight automatic adjustment, long time idle prompt
6. Local display and phase sequence detection
