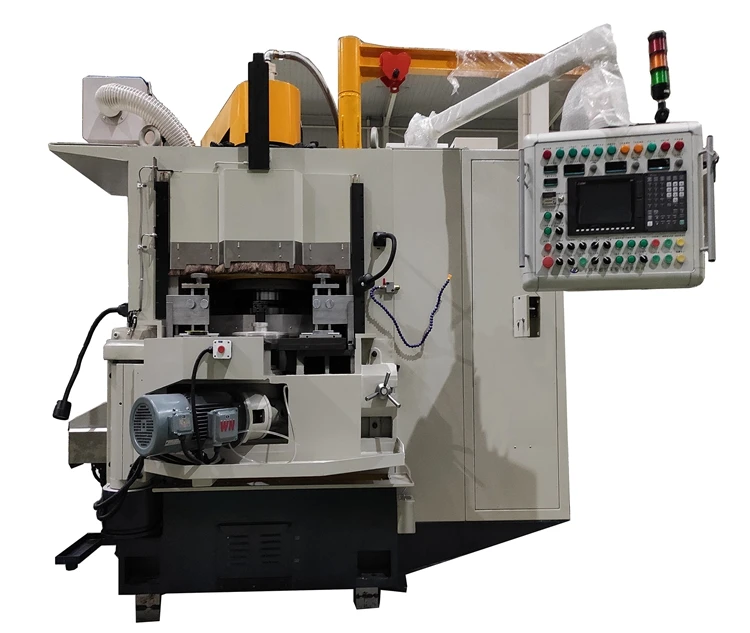

YHDM580 precision double disc grinding machine


















Main purpose

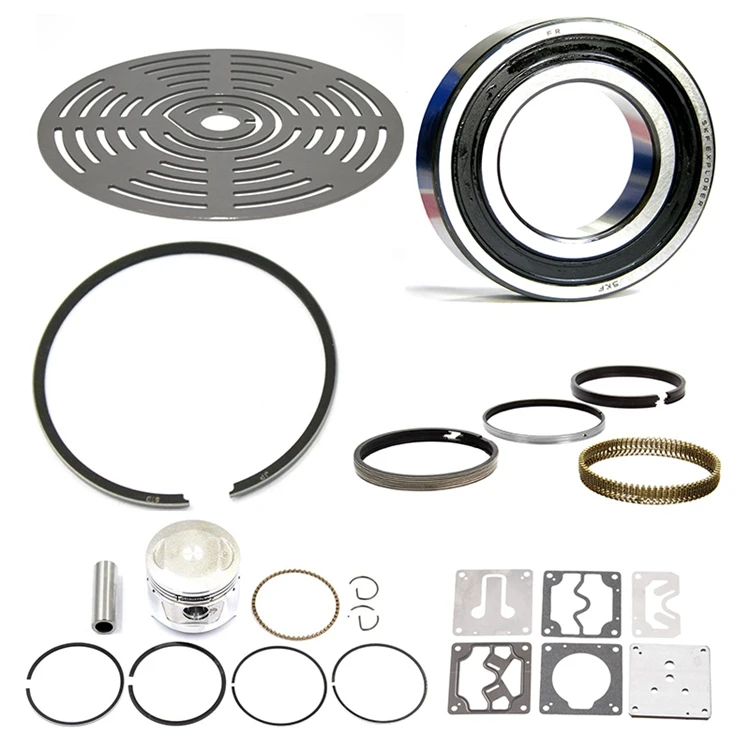

It can process and grind double ending-surface for non-metal parts(glass,ceramics etc) which are featured by hard,brittle,thin in high-efficiency and precision,also precisely grind two up & low parallel surfaces for metal thin precision parts(bearing,valve plate,seal,oil pump vane,piston ring etc).



 Technical characters

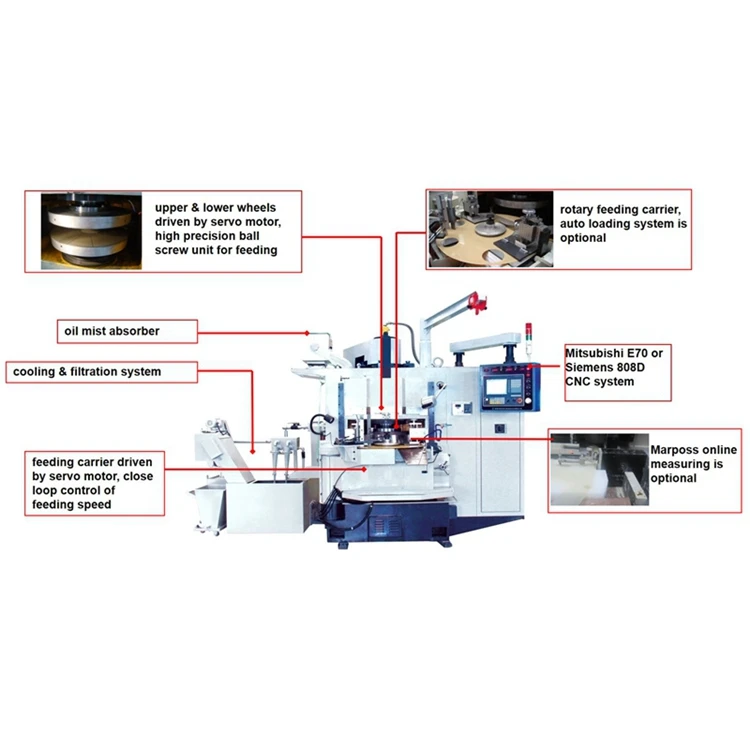

1.This machine is newly developed product based on high-efficiency&precise thinning process for hard,brittle,thin non-metal parts,It is compatible with YHDM580 double disc grinder function.

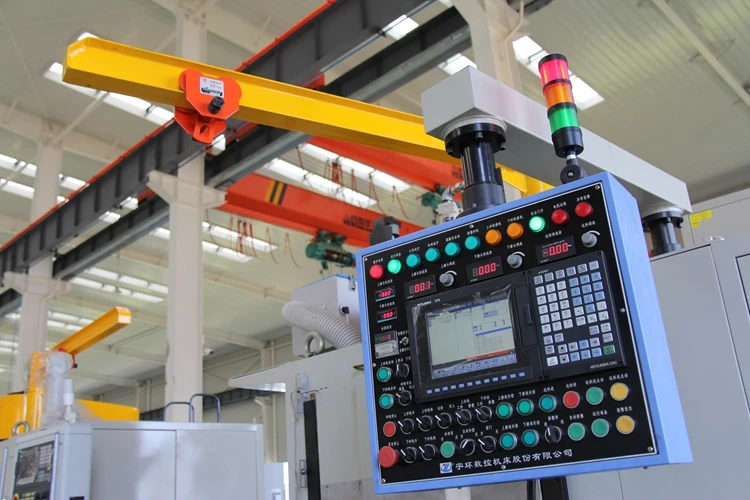

2. Adopts Siemens 808D CNC system, More optimized HMI.


3.Using Marposs line detection technology to realize on-line closed loop precise control for work pieces’size.

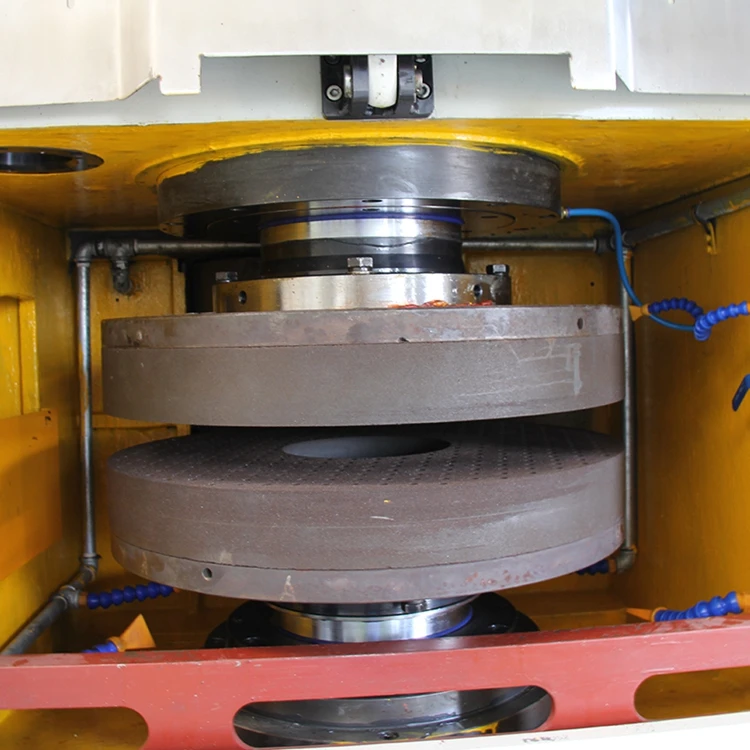

4.Adopts diamond wheel/CBN wheel/diamond pad to realize high-efficiency,high-quality grinding.


5.Suitable for high-efficiency dressing device &technology to wheel/CBN wheel/diamond pad.


6.Wheel head feeding adopts high-precision ball screw,feeding precision:0.001mm.

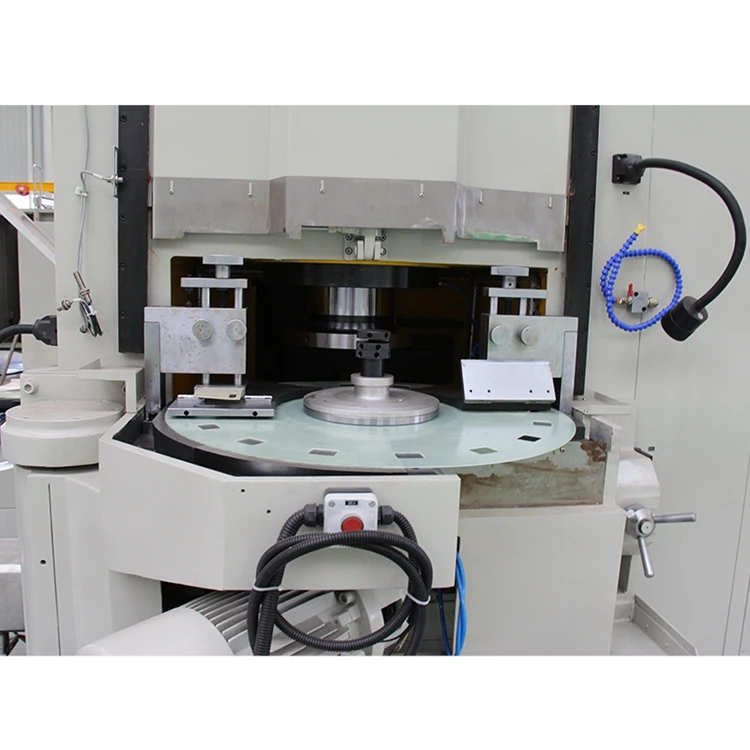

7.Feeding carrier mechanism adopts servo-motor,stable drive,realize 1~10 r/min stepless speed control;


8.Adopts hinged disc carrier mechanism,easy to start,convenient for wheel replacement&dressing and grinding area maintenance.


9.Auto charge&discharge device is used for thin/brittle parts,automation production line can be built.


 Specifications





































































Model






Unit



YHDM580



Dimension of parts



mm



12~120


10~160



Thickness of parts



mm



0.8~40



Size of grinding wheel



mm



585×50×70



Power of wheelhead motor



Kw



22Kw×2



Wheel head speed



rpm



150~950



Power of feeding carrier motor



Kw



1.5Kw



Feeding carrier speed



rpm



1~10



Plainness and parallelism



mm



≤0.003



Surface roughness



μm



≤Ra0.32



Total Weight



Kg



10000



Overall dimensions(L*W*H)



mm



2700×2620×2650







 580.jpg580b details.jpg580b.jpggrind Machine (3).jpg-1.jpg



Packaging & Shipping


.jpg


1.Moisture-proof packaging+Wooden Box.
2.Special packing requirements available.





Company Information


Grinding Machine (1).jpg Grinding Machine (2).jpg


Our R&D team has about over 50 engineers, occupied 20% of total staffs. Includes 19 SenierMechanical engineers( 4with doctor’s degree,8 with master’s degree),7 Senierelectrical engineers,5 CNC soft engineers



  • The workshop and office area covers 20K Sqmeters.

  • With over 270 staffs, including over 50 R&D technical engineers.

  • Main products output more than 1000 sets per year.





Certifications


Grinding Machine (3).jpg Grinding Machine (4).jpg


Our R & D team  establish a long - term partnership with National University of Defense Technology , Dalian University of Technology , Hunan University , Central South University , and other renowned institutions . Yuhuan is also research base for Hunan University’s doctoral student,get 5—9 patents per year .



  • has got 36 related patents

  • A certificate of international standard products in 2005

  • has passed ISO9001 : 2000 international quality system certification, has estabished corporate product standards





Foreigners Visiting


IE9PJKT$G{`8FG%IPTPOF~O


Our products have been in great demand by more than twenty provinces including Taiwan all around China, and Vietnam, Portugal, Russia, Kenya, Brazil and other countries. We have obtained high prestige from our customers for the high quality products, satisfactory after-sales services and competitive price.







Customers


$009~3%(NM)EB{[TMLBXMEB


Our products are widely used in Automotive/3C IT Electronic/Military/ Aerospace/ Shipbuilding/Bearings/seals/ Household Appliances/ And other key areas of National Economy.





After-Sales Service


1.Guarantee period is one year. Within this period,  the replaced parts will be offered free if has quality problem.

2.We could arrange engineers to user’s site for installation and final-acceptance  according to customer’s requirements.

3.  We will offer free the  training for machine’s management /operation/maintenance to user’s related people.
