40G 100G SFP Patch Cord Aqua Color USCONE SENKO 12 Core OM3 MPO MTP Fiber Patch Cable
- Category: >>>
- Supplier: Shenzhen CREDEK Technology Co. LTD
Share on (1600433745855):
Product Overview
Description

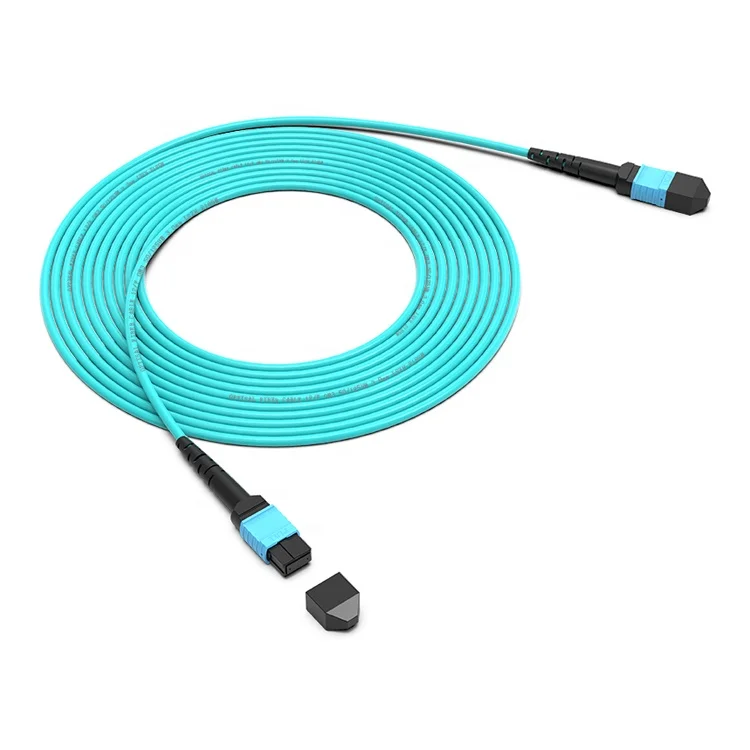

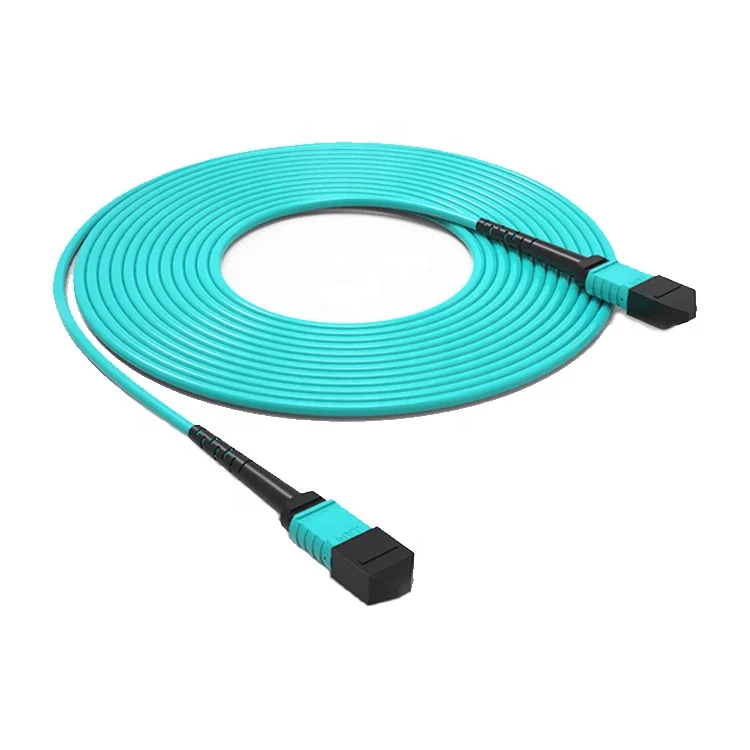

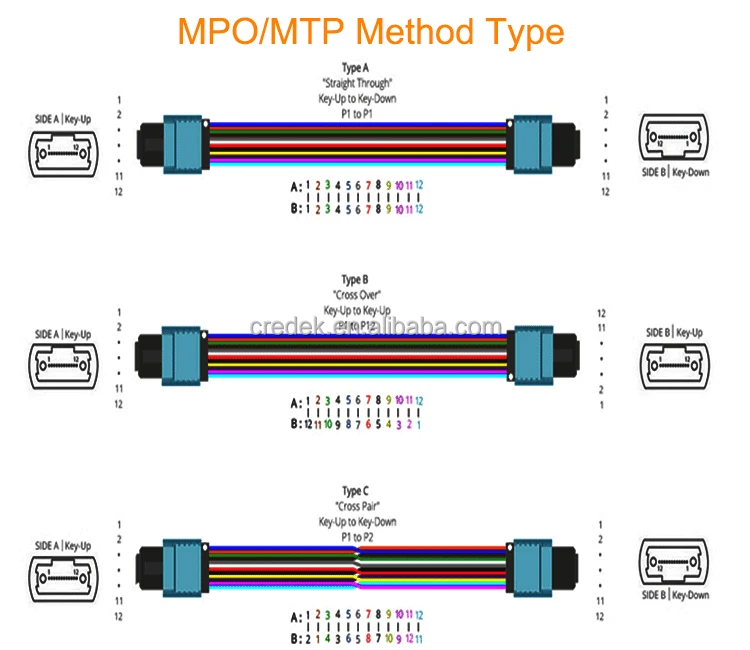

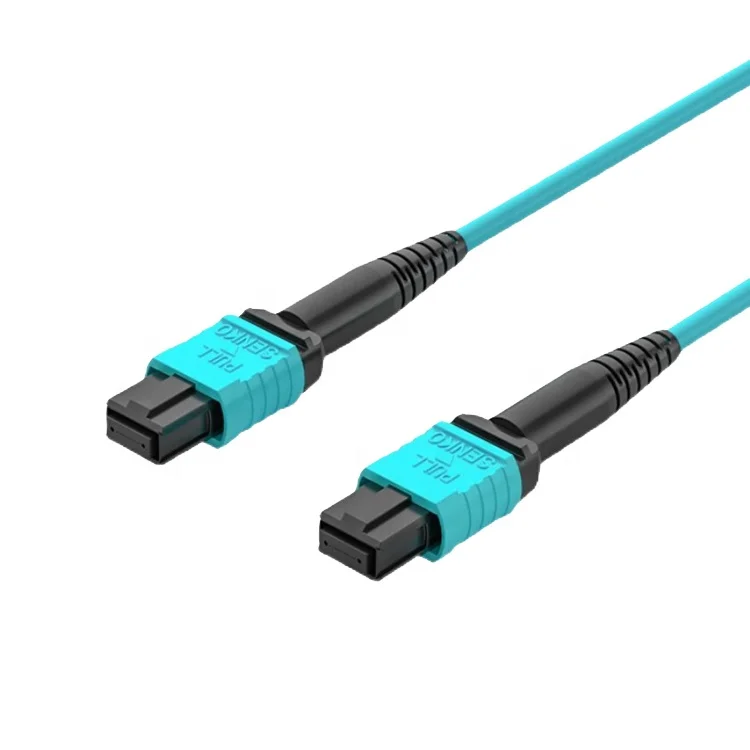

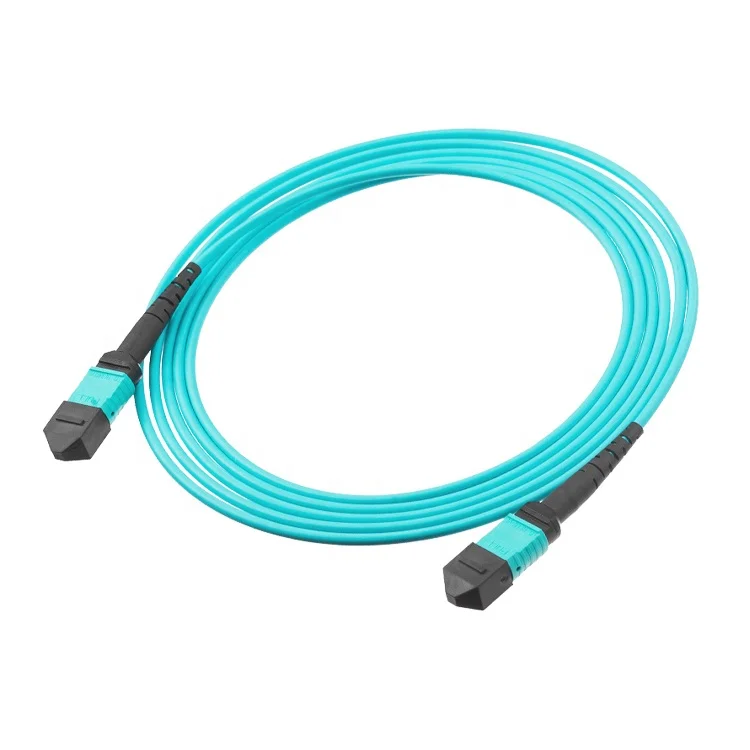

Female to Female MPO-MPO Trunk Cable, 12 Fibers, OM3, LSZH, 3.0mm, Type B
Descriptions:
12Core MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost.

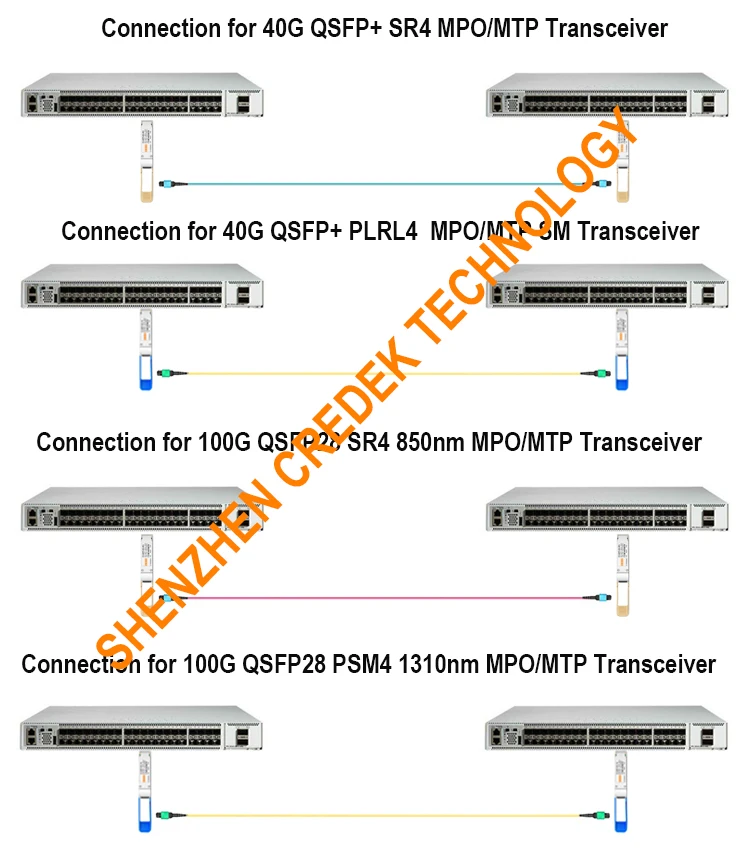

MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber types in standard 8, 12, 24, 48, 96, 144
cores versions using a compact and rugged micro cables structure. The compact cable optimize cable way use and improve airflow.
12Core MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost.
MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber types in standard 8, 12, 24, 48, 96, 144
cores versions using a compact and rugged micro cables structure. The compact cable optimize cable way use and improve airflow.
Product Paramenters
Model | SM | MM | |

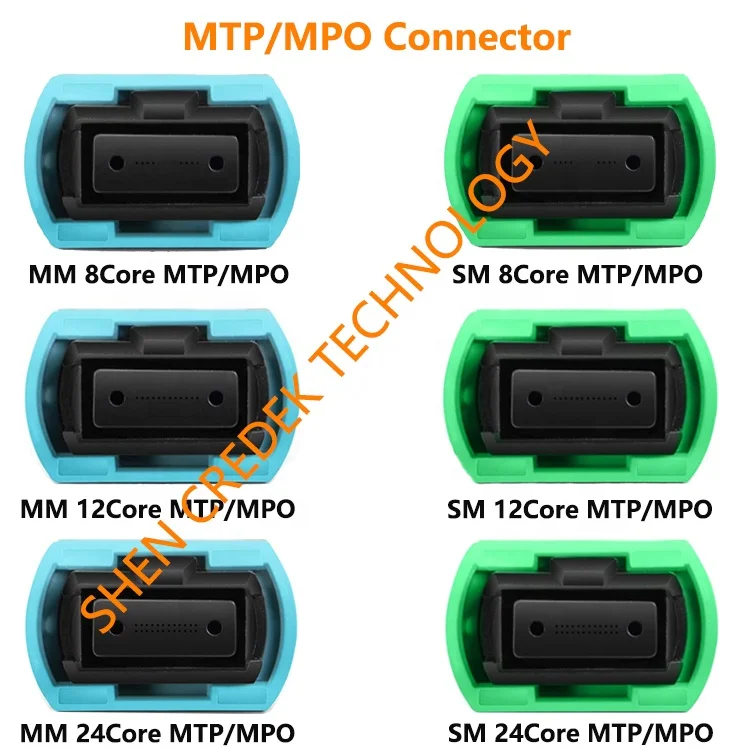

Connector Fiber Count | 8, 12, 24 core | ||
Polish | UPC, APC | ||
Housing Color | Standard (Green) | OM3(Aqua), OM4(Purple) | |
Insertion Loss Standard type | less than 0.7dB | Less than 0.5dB | |
Insertion loss Elite type | Less than 0.35dB | Less than 0.3dB | |
Return Loss | UPC >50dB, APC>60dB | >30dB | |
Durability (500 matings) | less than 0.2dB | ||
Test Eavelength | 1310/1550nm | 850/1300nm | |
Fiber Type | OS2, OM1, OM2, OM3, OM4 | ||
Fiber Count | 8, 12, 24, 48, 72, 96, 144 cores | ||
Cable Diameter | 3.0mm 5.5mm or customized | ||
Jacket Color | Yellow, Orange, Aqua, Purple | ||
Jacket Material | OFNR, OFNP, PVC, LSZH | ||
Tensile Strength | 500N | ||
Operating Temperature | -40 to 70℃ | ||
Storage Temperature | -40 to 80℃ | ||
Standard conformance | IEC-61754-7,GR-326,GR-1435. | ||
Recommend Products
Company Profile
Exhibition
Certificate

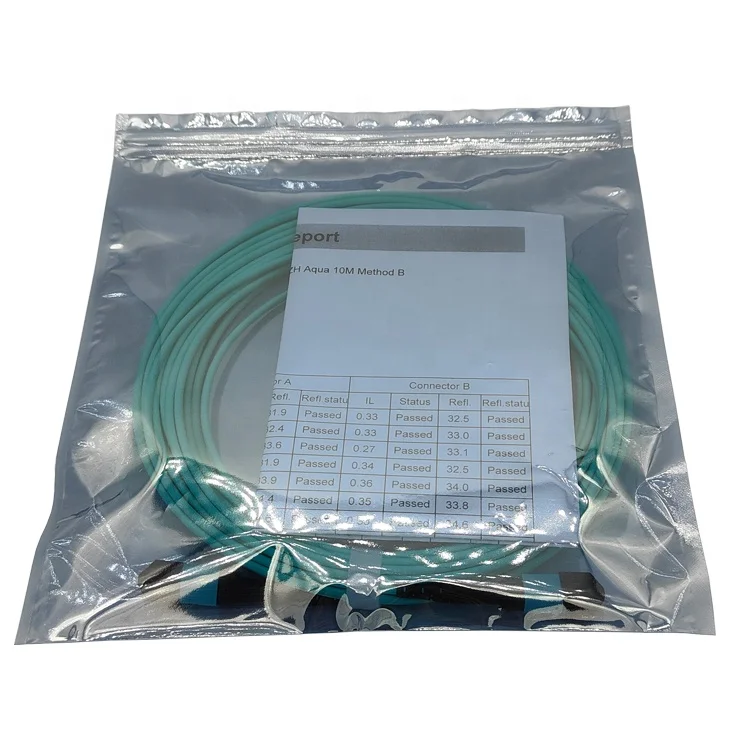

Packing And Shipping
