Product Overview

Description







Introduction:

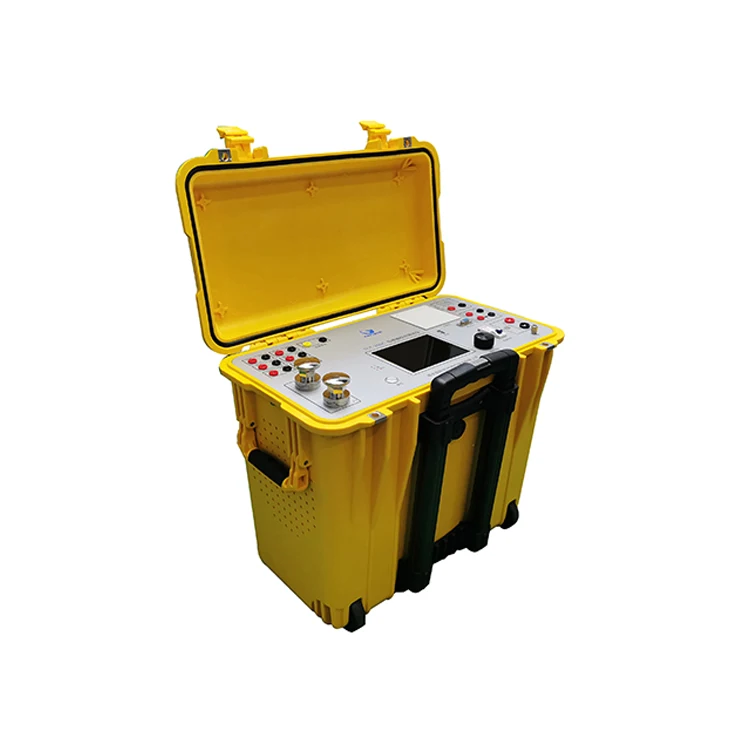

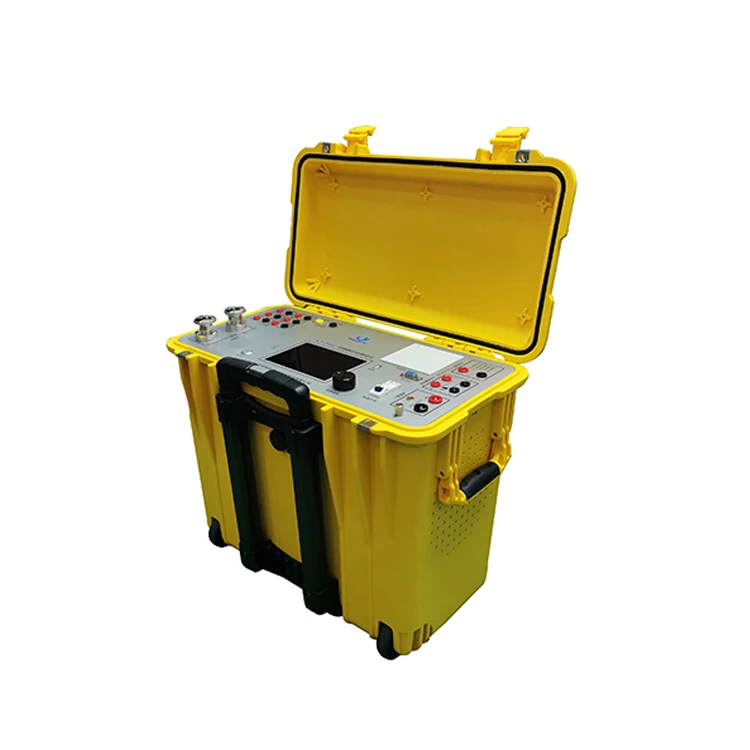

TCT-200C is the latest new generation of intelligent transformer comprehensive test product. It adopts the integrated design of the American trolley case, convenient to move on site. It integrates functions of CT volt-ampere characteristic test, PT volt-ampere characteristic test, CT transformation ratio polarity test, PT transformation ratio polarity test, secondary load test, etc. It has powerful functions, simple testing, and one-key intelligent test results. With the large output capacity, multi-function and high intelligence, it becomes an indispensable tool for transformer characteristic test of power system.


Appearance Design

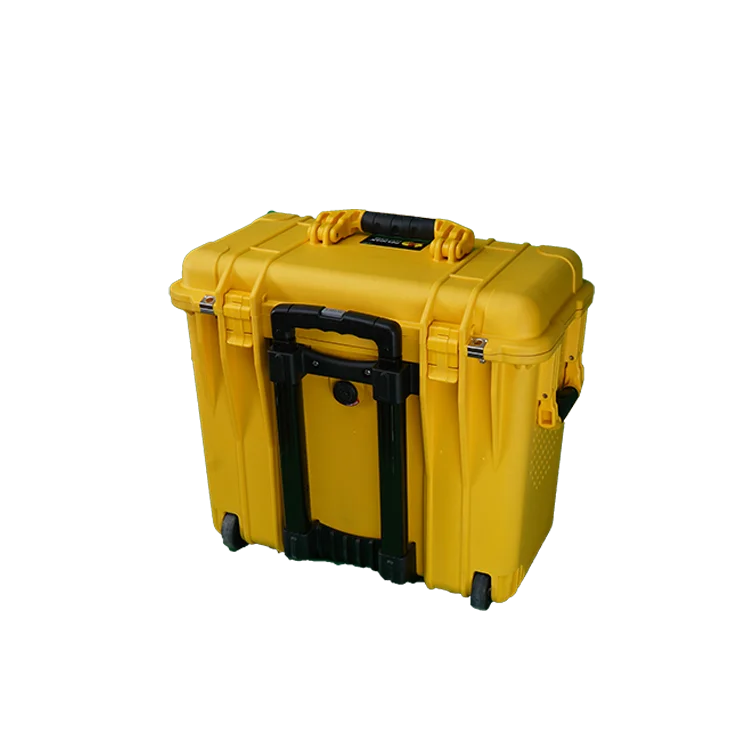

PELICAN trolley case, light, portable IP67
Screen Display
Large high-brightness LCD screen, still clearly visible in strong sunlight
Output Capacity
Max:5000VA
Output Current
Max:1000A*5V


Output Voltage
AC:
0-2500V·2A, 0-2000V·2A
0-1000V·5A, 0-500V·10A
0-250V·20A, 0-125V·20A
0-50V·20A, 0-15V·20A
Voltammetry test max current
1A, 2A, 3A, 4A, 5A, 10A, 15A、20A
Primary Ammeter Range
0-1100A
Secondary Ammeter Range
0-6A
Secondary Load Impedance Measurement
1A:0-10Ω @ 5A: 0-2Ω


Accuracy
Primary voltage : ±（0.005+0.2V）
Secondary voltage : ±（0.005+2 words）
Primary current: ±（0.005+0.2A）
Secondary current: ±（0.005+2 words）
Store and Print
Built-in thermal printer, real-time printing, real-time data storage
Power Supply
AC 220V 50/60Hz
Dimension
500*305*457mm
Weight
43kg


Features
1. Appearance design: light, delicate, portable
2. Portable: Adopt the United States PELICAN trolley case integrated design
3. Interface: Smart touch large LCD screen


Five innovative technologies
1. Multiple protection, protect equipment and people
2. Fully automatic synchronous test, meet requirement of 6 groups of CT secondary winding ratio polarity tests completed at one time
3. A multi-purpose tester, compatible with the function of large current generator
4. High brightness large LCD screen, still clearly visible under strong sunlight
5. Volt-ampere test value set arbitrarily, test curves and data displayed in real time
