Line Laser 520nm 650nm Green Red 70mW 80mW Line Laser Diode Module
- Category: Industry Laser Equipment >>>
- Supplier: Elite Optoelectronics Co. Ltd.
Share on (1600433770776):
Product Overview
Description

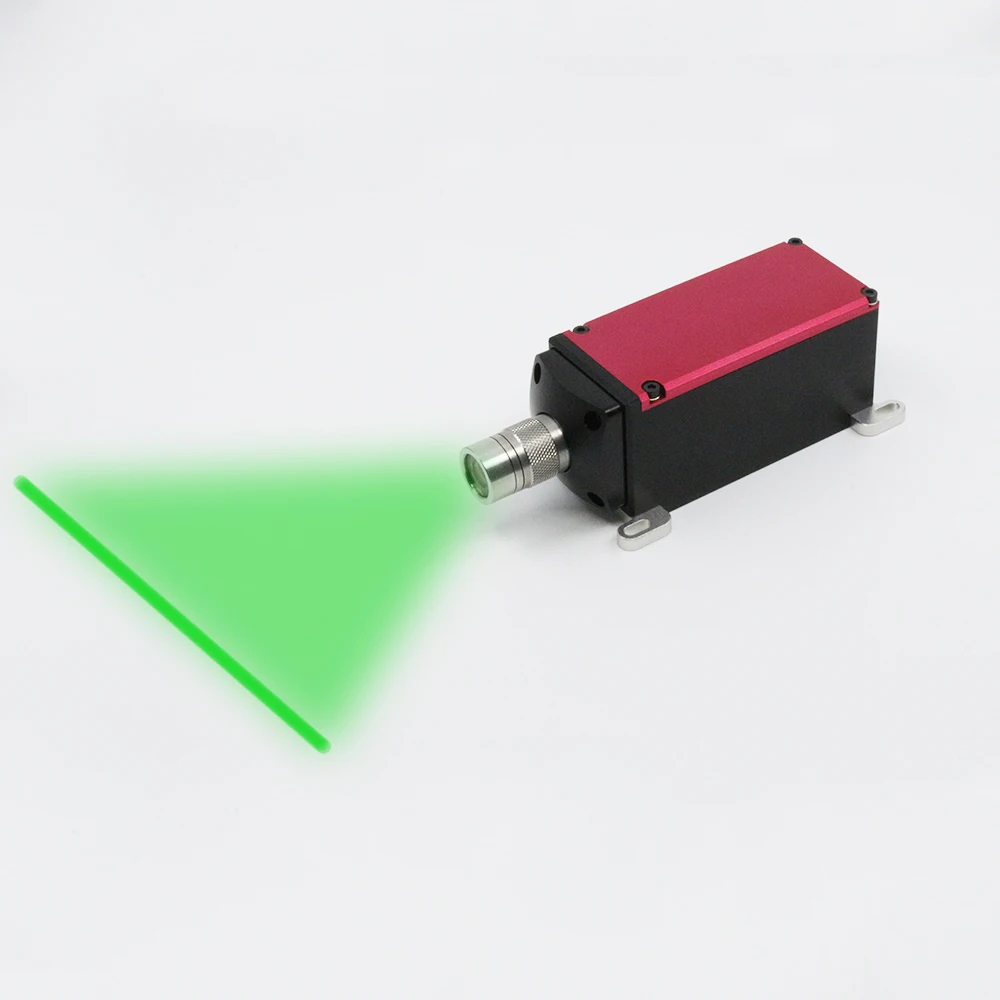

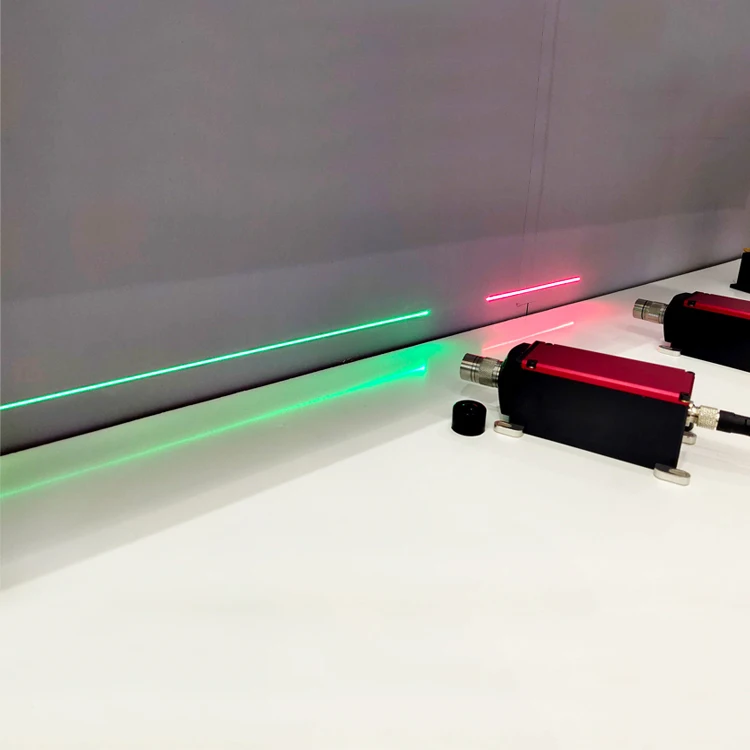

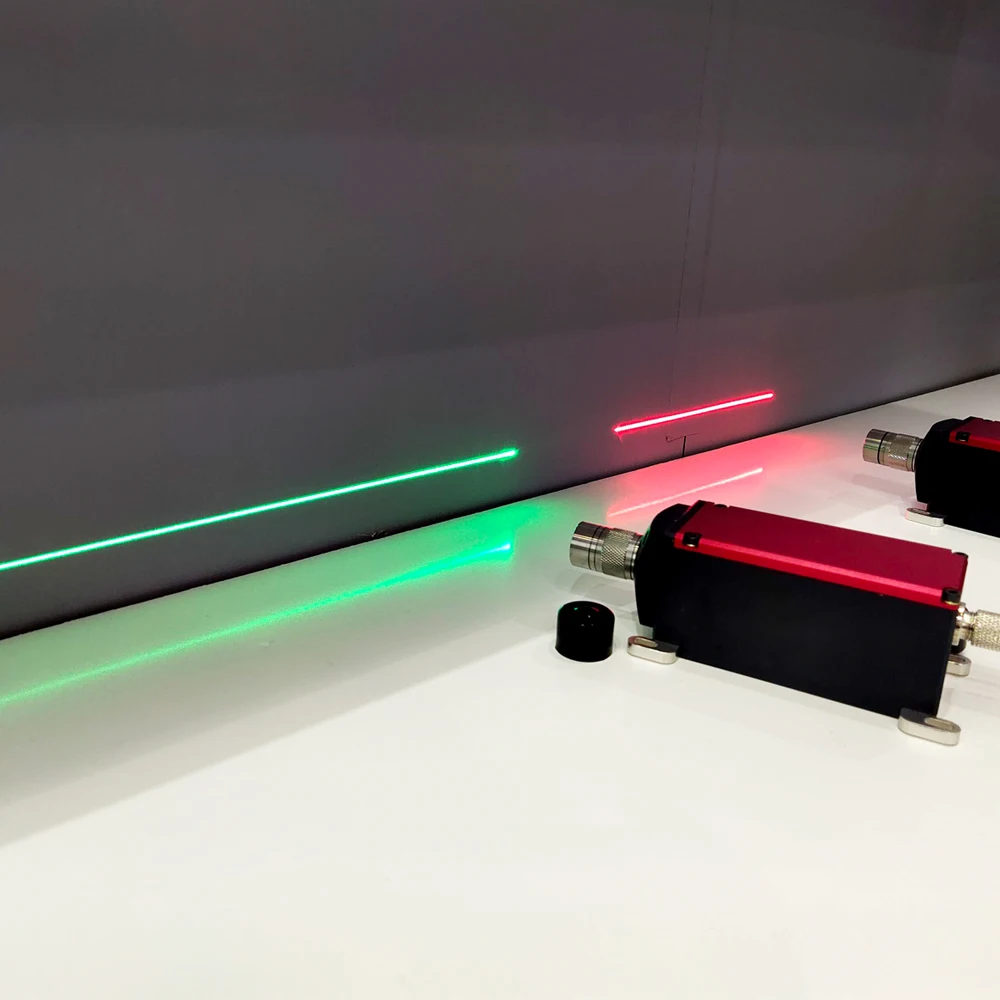

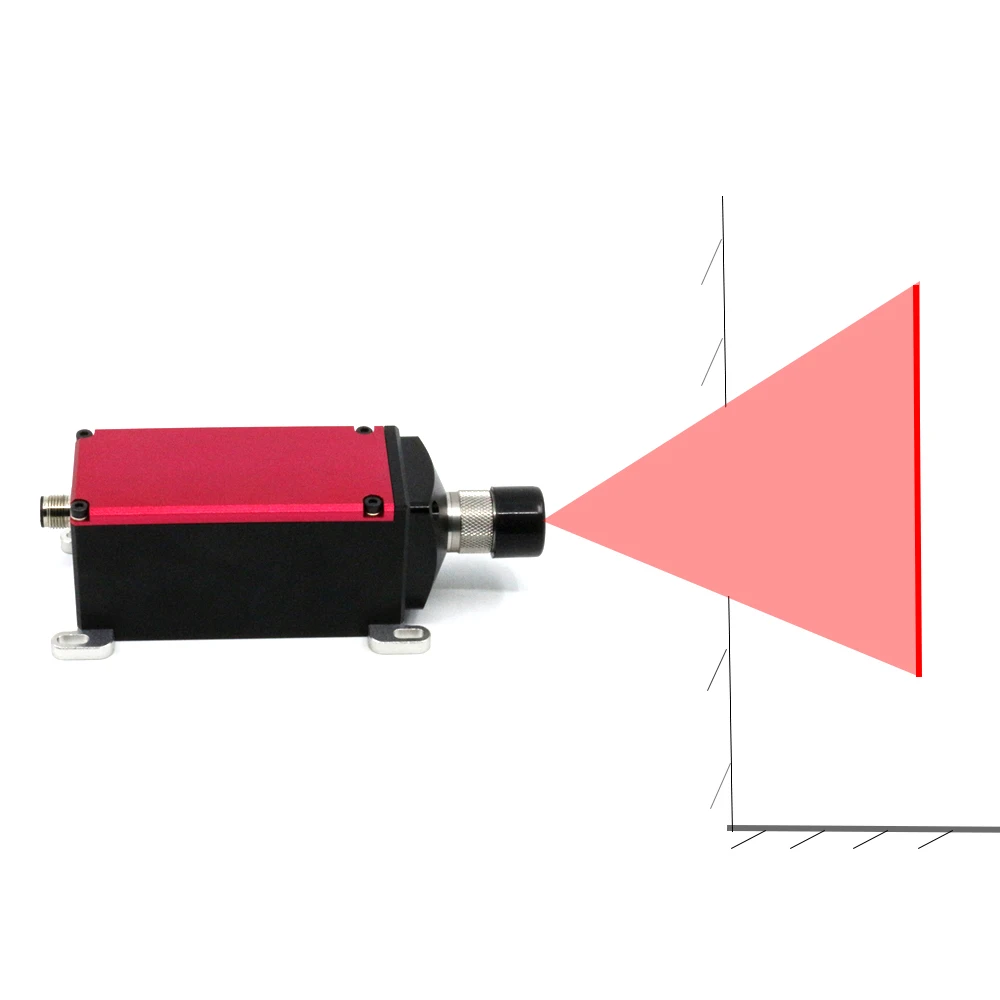

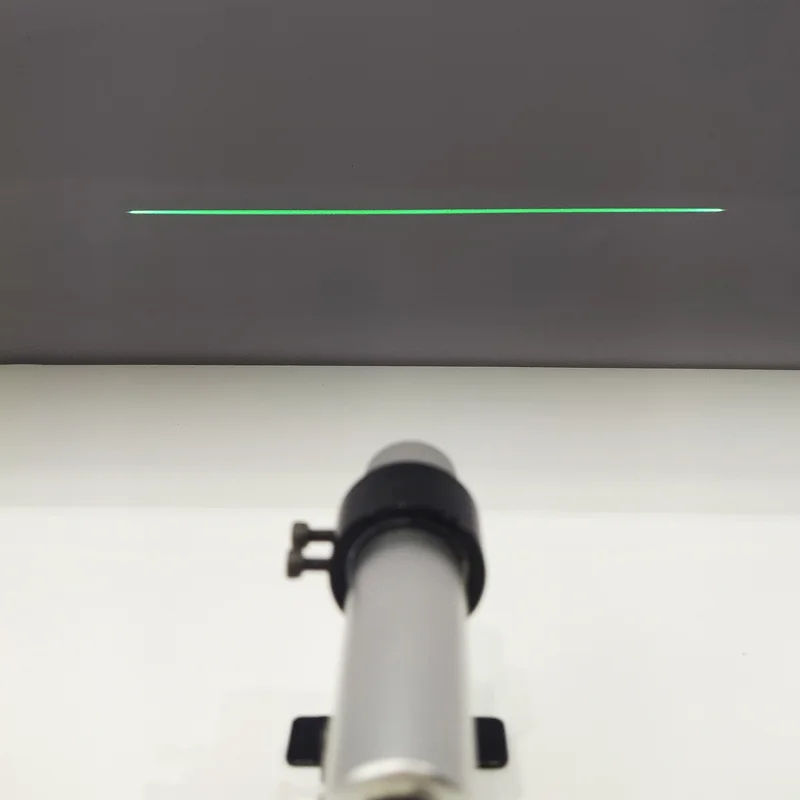

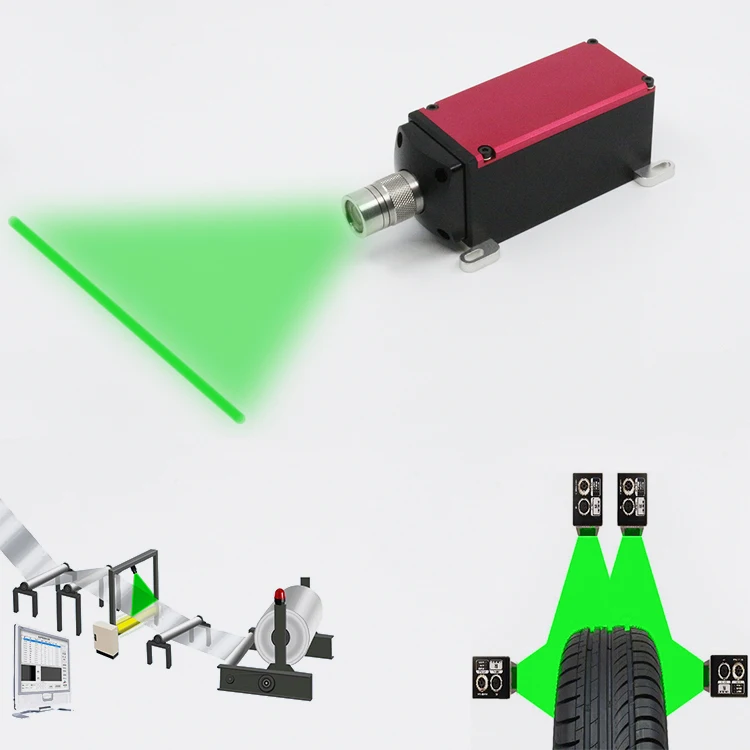

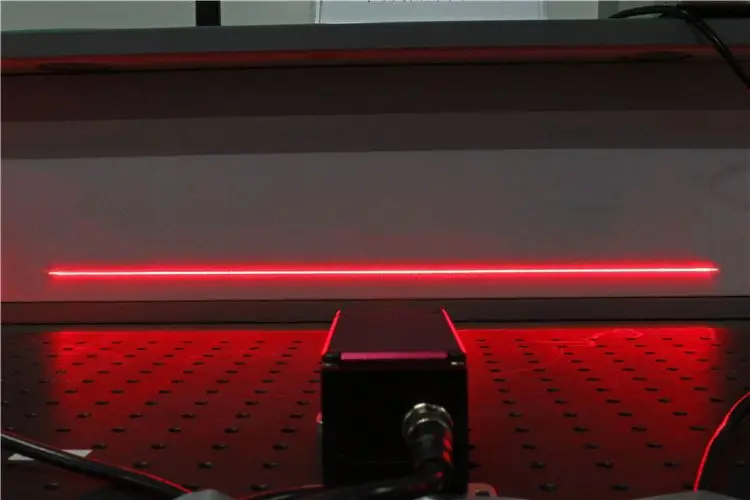

Elite Optoelectronics Uniform line laser includes "Special lens" and "Powell lens" are the high-performance laser line generator(projector). "Powell lens" is the standard uniform line laser solution in the market. Elite "Special Lens" Uniform Line Laser is an exclusive patent, provides better uniform line width and intensity. This special solution has solved "bright spot" at both ends of the laser line and improved beam quality, Therefore, the sharpness and resolution of scanning can be improved. "Special lens" Uniform line laser extensively using in Machine Vision, 3D Scanning, and Industrial inspection.
Available in wavelengths at 405, 450, 488, 505, 635, 650, 685, 785, 808, 830, and 850 nm
with output powers including 1 , 5, 10, 20, 35, 50, 75, 80, 100, 150 and 200mW.
Available in wavelengths at 405, 450, 488, 505, 635, 650, 685, 785, 808, 830, and 850 nm
with output powers including 1 , 5, 10, 20, 35, 50, 75, 80, 100, 150 and 200mW.
Absolute Maximum | ||||||
Parameter | Symbol | Ratings | Unit | |||
Optical Output Power | P0 | ≤500.0 | mW | |||
Operating Temperature | Topr | -20 to +50 | °C | |||
Storage Temperature | Tstg | -40 to +85 | °C | |||
Operating Humidity (none condensing) | RHopr | 90 | % | |||
Optical and Electrical Characteristics | ||||
Parameter | Specifications | Test Conditions | ||
Wavelength | 640±5nm | Tc = 25°C | ||
Output Power | 0-500mw | Signal = 0-5.0V (Yellow wire) | ||
Line Width (1/e2) | ≤110μm (@380mm) | Factory fixed @ 380mm | ||
≤130μm (@380±10mm) | ||||
≤150μm (@380±20mm) | ||||
Fan Angle | 75° (uniform line) | / | ||
Divergence | 1.20mrad | Tc = 25 ±3°C | ||
Optics | Glass lens | / | ||
Operating Current | <1800mA | Tc = 25±3°C | ||
Operating Voltage | 12.0VDC | / | ||
CDRH Class | Class II | / | ||
MTBF | >8000 Hrs. | Tc = 25±3°C | ||
Mechanical Characteristics | ||
Parameter | Specifications | |
Dimensions | 130x52x48mm (with computer interface) | |
Case Material | Aluminum black anodized | |
Vibration | DIN EN 60068-2-6 Standard | |
Shock | DIN EN 60068-2-29 Standard | |

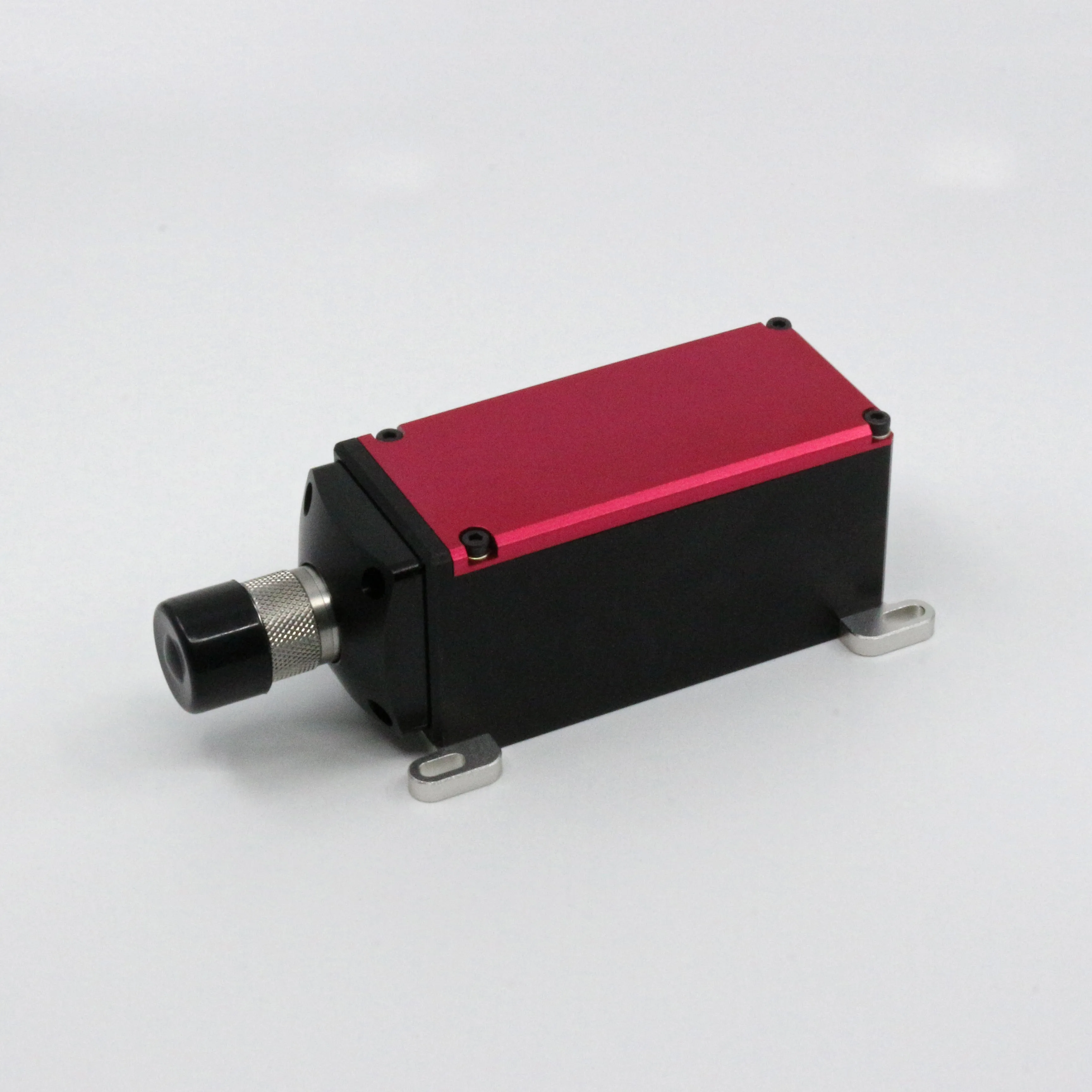

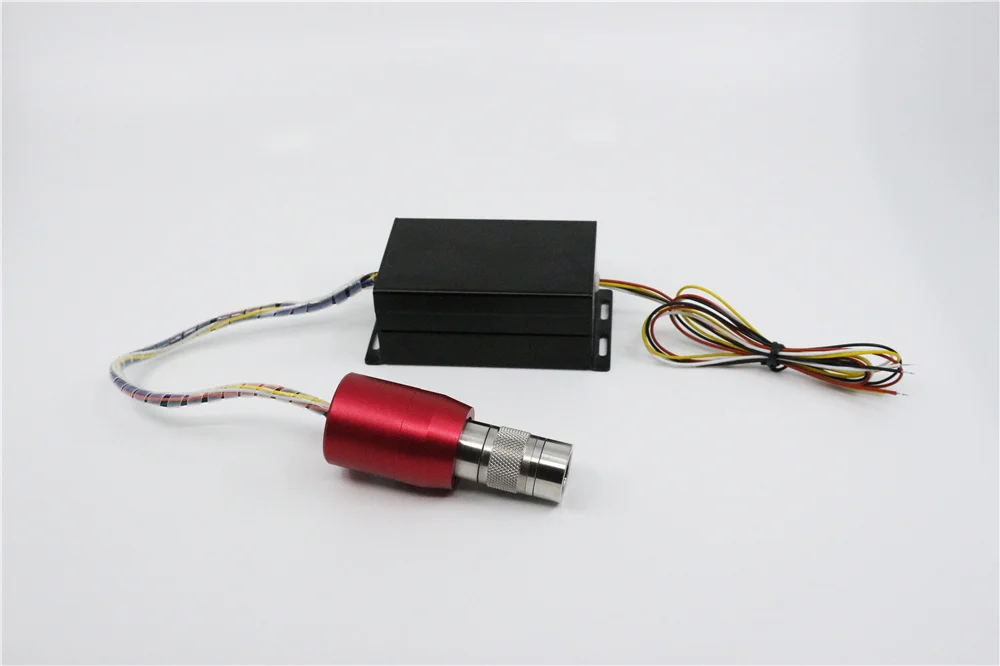

Split type

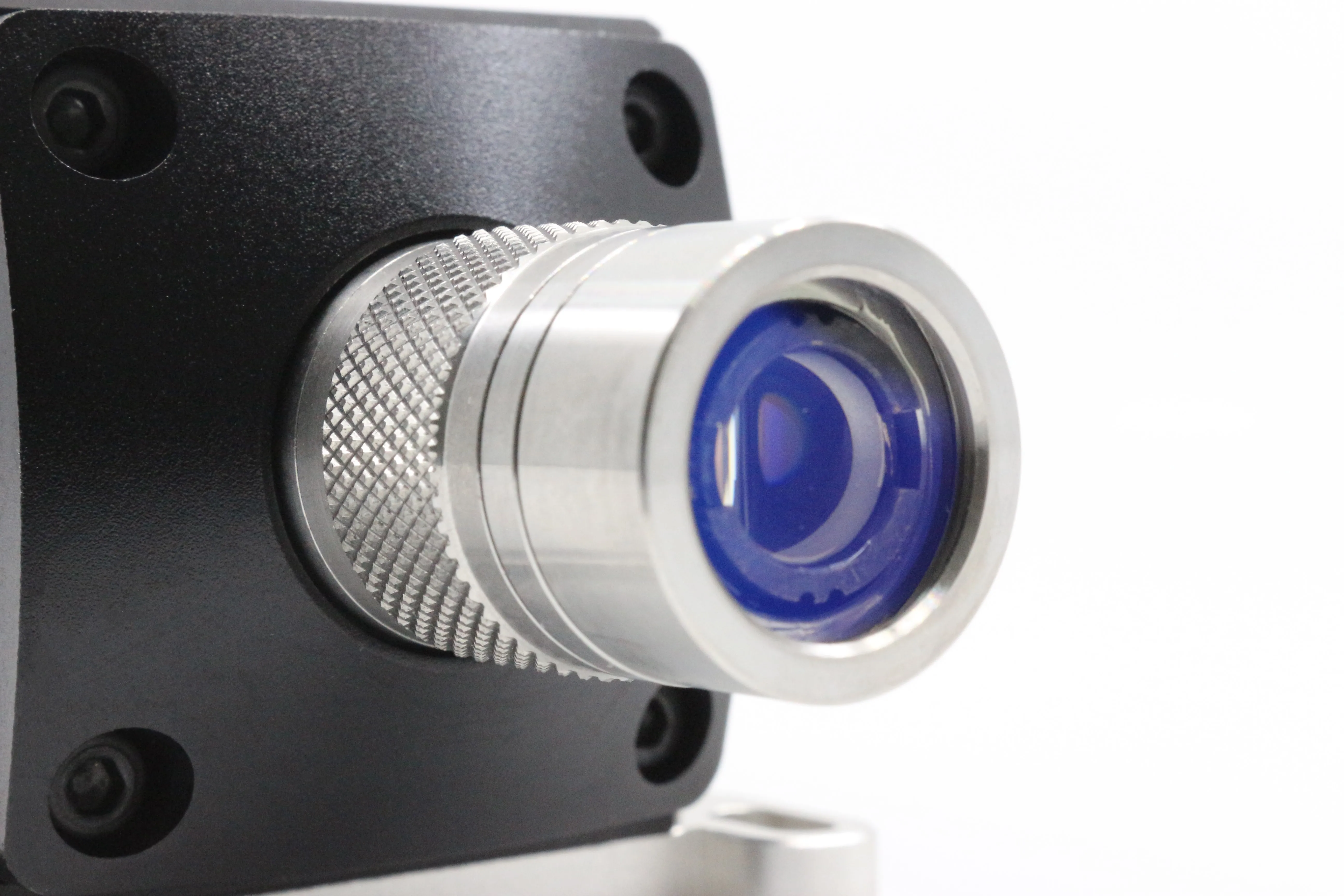

Special lens
Powell Lens
