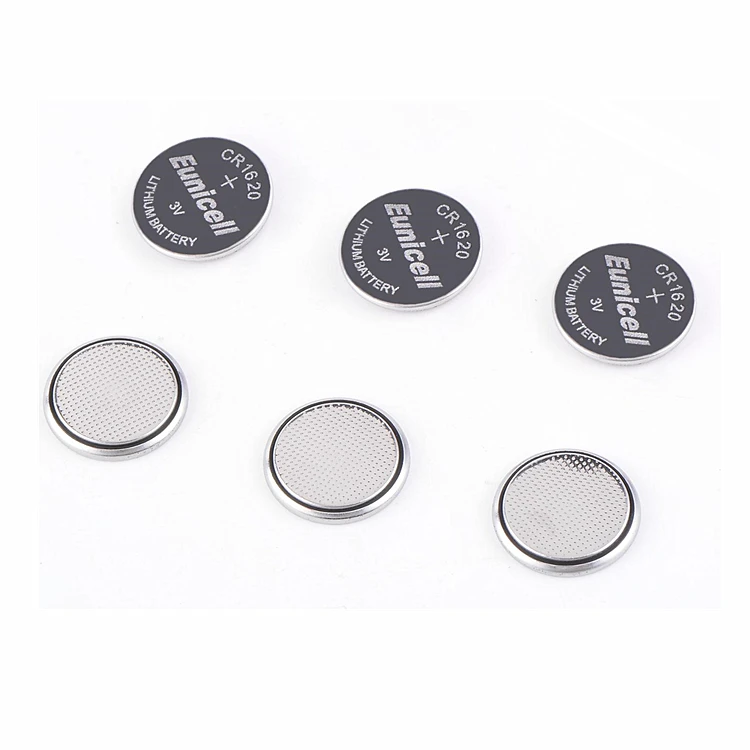

3V CR1620 lithium coin cell battery CR1616 CR1632 CR2032 CR1625 CR2450
- Category: >>>
- Supplier: East (shenzhen) Technology Co. Ltd.
Share on (1600433782726):
Product Overview
Description
Product Description
Brand | Eunicell (ODM&OEM are acceptable) |
Model | CR1620 |
Battery Type | Manganese dioxide Lithium Battery |
Nominal Voltage | 3.0 volts |
Nominal Capacity | 70mAh (Load: 30K ohms, End voltage 2.0V) |
Outside Dimensions | D 16.0mm * H 2.0mm |
Weight | 1.20 g |
Instantaneous Short-cut Circuit | ≥250mA |
Off-Load Voltage | 3.10~3.45V |
Storage Temperature | 0~40℃ |
Appropriated Temperature | -20~60℃ |
Discharge Life | ≤3%/yr |
Disposable | Yes |
Rechargeable | No |
Quick Test Use Of Life | Initial: ≥66.5 H |
After 12 months: ≥65 H | |
Guarantee | 1 year (at the temperature of less than 25 deg. C and the relative humidity of less than 75%RH.) |
Appearance | Will be free from flaw, stain, deformation, uneven tone, electrolyte leakage and other defects which impair the value of the commodity. |
Product performance description
1.12 months quality warranty.
2. Ultra environmental friendly button cell battery.
3. Long working time.
4. Made from high-quality materials.
5. Excellent performance.
6. Multi-applicable.
7. Excellent storage performance and low self-discharge rate.
8. Excellent safety performance.
9. MSDS / RoHS / SGS / CE certificate
10. Also if the customers want the battery with PCB tabs, we can do as their drawing.
2. Ultra environmental friendly button cell battery.
3. Long working time.
4. Made from high-quality materials.
5. Excellent performance.
6. Multi-applicable.
7. Excellent storage performance and low self-discharge rate.
8. Excellent safety performance.
9. MSDS / RoHS / SGS / CE certificate
10. Also if the customers want the battery with PCB tabs, we can do as their drawing.
Product Usage
Product usage introduction
Warning:
1. Keep separated in a tray and cool place.
2. Do not throw in fire. Do not throw then into a dustbin.
3. Keep clean, wipe the cell with dry cloth.
4. Keep out of the reach of the chidren. If swallowed, visit a doctor.
5. Not rechargeable, remove when fully drained.
6. Connect + to - Correctly.
2. Do not throw in fire. Do not throw then into a dustbin.
3. Keep clean, wipe the cell with dry cloth.
4. Keep out of the reach of the chidren. If swallowed, visit a doctor.
5. Not rechargeable, remove when fully drained.
6. Connect + to - Correctly.
Related Products
MODEL | NOMINAL VOLTAGE(V) | MAX.SIZE | NOMINAL CAPACITY (mAh) | SUGGESTED OPERATION CURRENT | WEIGHT (g) | ||||||
NOMINAL VOLTAGE(V) | DIAMETER MAX.SIZE (mm) | HEIGHT MAX.SIZE (mm) | NOMINAL CAPACITY (mAh) | STANDARD CURRENT (mA) | MAX. CURRENT (mA) | CONTINUOUS CURRENT (mA) | EACH PIECE WEIGHT (g) | ||||
CR632 | 3.0V | 6.8 | 3.2 | 15 | 0.03 | 3 | 1 | 0.2 | |||
CR927 | 3.0V | 9.5 | 2.7 | 30 | 0.05 | 5 | 1 | 0.6 | |||
CR1025 | 3.0V | 10 | 2.5 | 30 | 0.05 | 5 | 1 | 0.6 | |||
CR1130 | 3.0V | 11.6 | 3 | 40 | 0.05 | 5 | 1 | 0.9 | |||
CR1216 | 3.0V | 12.5 | 1.6 | 25 | 0.05 | 5 | 1 | 0.7 | |||
CR1220 | 3.0V | 12.5 | 2 | 40 | 0.05 | 5 | 1 | 0.85 | |||
CR1225 | 3.0V | 12.5 | 2.5 | 48 | 0.1 | 5 | 1 | 1.3 | |||
CR1616 | 3.0V | 16 | 1.6 | 50 | 0.1 | 8 | 1 | 1.15 | |||
CR1620 | 3.0V | 16 | 2 | 70 | 0.1 | 8 | 2 | 1.2 | |||
CR1625 | 3.0V | 16 | 2.5 | 90 | 0.1 | 8 | 2 | 1.4 | |||
CR1632 | 3.0V | 16 | 3.2 | 120 | 0.2 | 10 | 2 | 2.4 | |||
CR2020 | 3.0V | 20 | 2 | 115 | 0.2 | 15 | 2 | 2.1 | |||
CR2016 | 3.0V | 20 | 1.6 | 75 | 0.2 | 15 | 2 | 1.75 | |||
CR2025 | 3.0V | 20 | 2.5 | 150 | 0.2 | 15 | 3 | 2.4 | |||
CR2032 | 3.0V | 20 | 3.2 | 210 | 0.2 | 15 | 5 | 2.9 | |||
CR2050 | 3.0V | 20 | 5 | 300 | 0.4 | 20 | 3 | 3 | |||
CR2320 | 3.0V | 23 | 2 | 150 | 0.2 | 18 | 8 | 2.9 | |||
CR2325 | 3.0V | 23 | 2.5 | 210 | 0.2 | 18 | 8 | 3.5 | |||
CR2330 | 3.0V | 23 | 3 | 250 | 0.2 | 18 | 8 | 4 | |||
CR2354 | 3.0V | 23 | 5.4 | 480 | 0.2 | 18 | 8 | 6 | |||
CR2412 | 3.0V | 24.5 | 1.24 | 100 | 10 | 2.1 | |||||
CR2430 | 3.0V | 24.5 | 3 | 275 | 0.2 | 18 | 10 | 4.5 | |||
CR2450 | 3.0V | 24.5 | 5 | 540 | 0.4 | 18 | 13 | 6.2 | |||
CR2477 | 3.0V | 24.5 | 7.7 | 1050 | 0.5 | 20 | 13 | 8.7 | |||
CR3032 | 3.0V | 30 | 3.2 | 580 | 0.5 | 20 | 13 | 8 | |||
