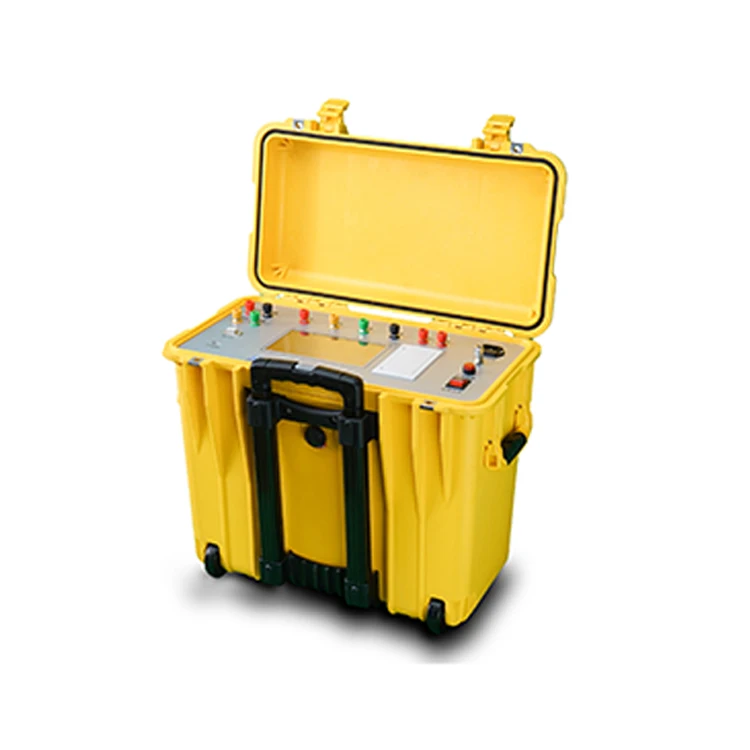

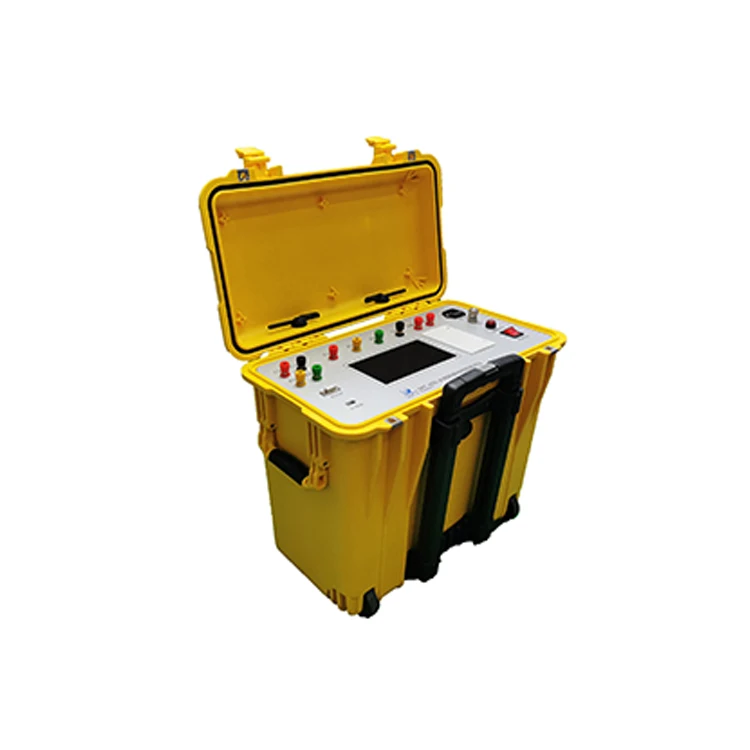

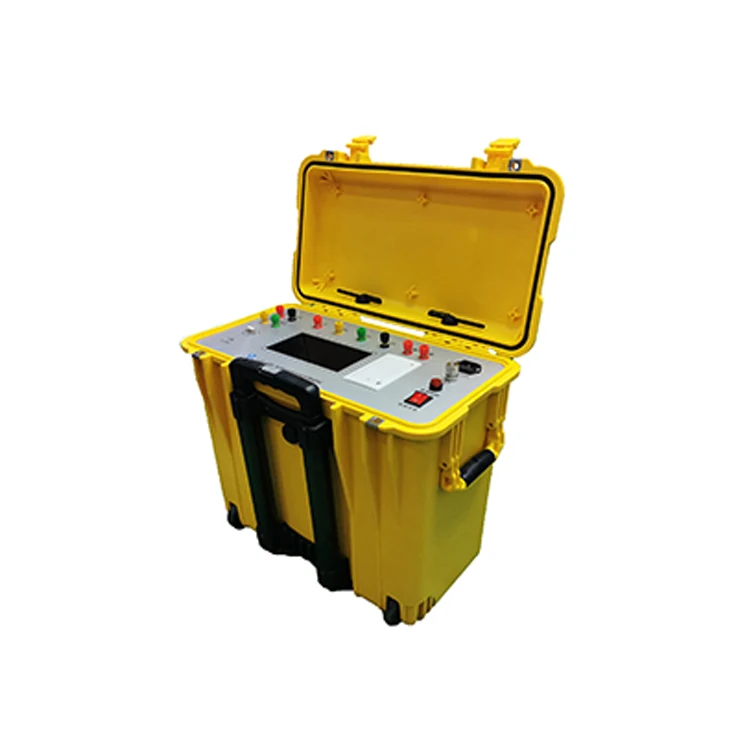

ERT 600 Color Screen Digital Color Screen Intelligent Earth Grid Ground Resistance Tester
- Category: >>>
- Supplier: Xianheng International Science & Technology Co. Ltd.
Share on (1600433794435):
Product Overview
Description
Description :
ERT-600 color screen intelligent earth grid grounding resistance tester is the latest new generation of intelligent earth grid test products launched in 2020. It adopts the integrated design of the American imported trolley case, convenient on-site movement, intelligent touch LCD large color screen, and automatic digital display , The operation is simpler. The instrument adopts frequency conversion anti-interference technology and does not require high current measurement. It can measure accurate data of 50Hz in a strong interference environment of substations. It can measure ground impedance and ground resistance at the same time. Accuracy is higher. Measurement results are directly displayed and can be more realistically reflected actual characteristics of ground network.
Technical Parameter
Appearance Design | PELICAN integrated trolley case, light, portable IP67 |
Humanized Interface | Intelligent touch large color screen, simple operation, super large graphic operation interface, clear test process |
Measure Range | 0-5000Ω |
Resolution | 0.001mΩ |
Accuracy | ±（0.02+0.005Ω） |
Anti-interference | Anti-power frequency: 50Hz Anti-voltage interference: 10V |
Test Current Frequency | Single frequency: 40-70Hz set arbitrarily , resolution 0.1Hz |
Dual frequency: 50±0.1Hz to 50±10.0Hz set arbitrarily 60±0.1Hz to 60±10.0Hz set arbitrarily | |
Output Current | 5A or external power supply 30A |
Output Voltage | 400V or external power supply 1000V |
Measuring Wire Requirement | Current wire Copper core ≥1.5mm2 Voltage wire Copper core ≥1.0mm2 |
Power Supply | AC220V±10％, 50Hz |
Dimension | 500*305*457mm |
Weight | 20kg |
Features
1. Appearance design: exquisite, light and portable;
1. Appearance design: exquisite, light and portable;
2. Lightweight: weight of the whole machine is only 22kg;
3. Portable: adopt integrated design of American PELICAN trolley case;
4. Interface: smart touch large color screen.
Five innovative technologies
1. Wide test range, extreme low error, 0.005Ω
2. Multiple protection, ensure equipment and people safe
3. Arbitrary set test frequency
4. Powerful function, many test contents: Grounding resistance, soil resistivity, ground connection;
5. New generation of frequency conversion anti-interference technology, ensure test accuracy
