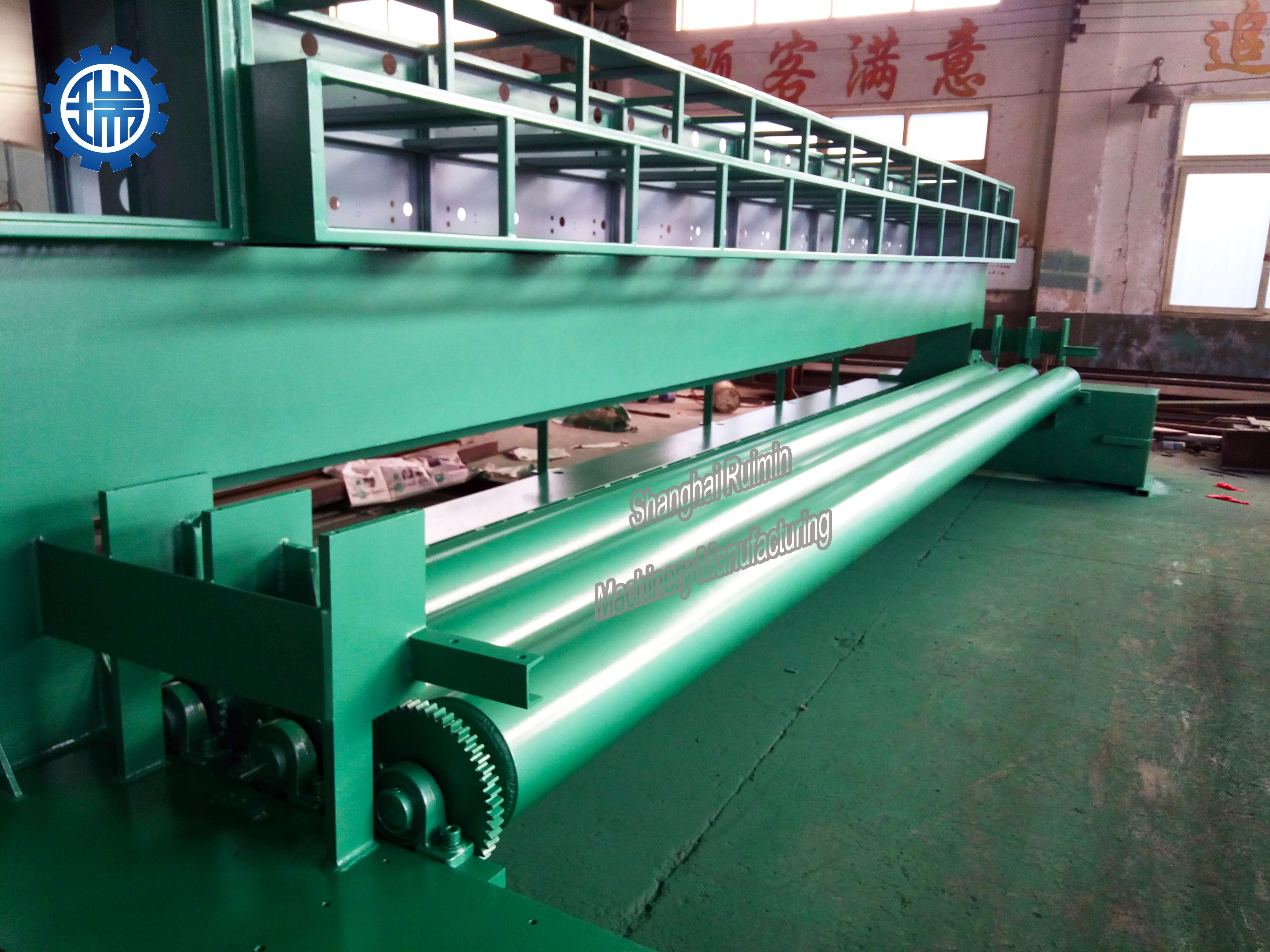

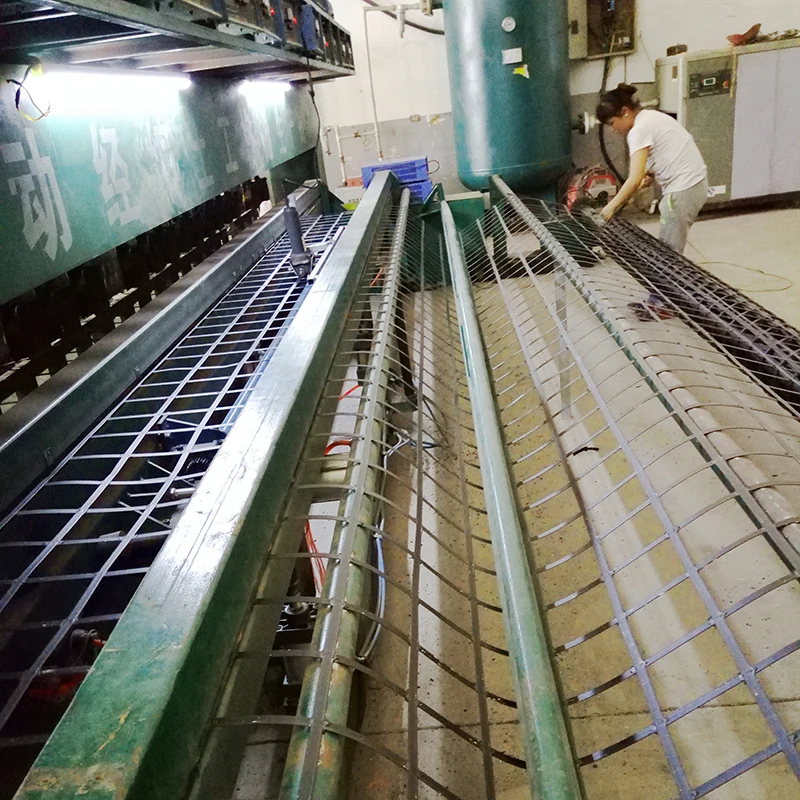

Automatic biaxial Geogrid Welding Machine Ultrasonic Steel Plastic Composite Geogrid Production Line
- Category: >>>
- Supplier: Shanghai Ruimin Machinery Manufacturing Co. Ltd.
Share on (1600433805684):
Product Overview
Description
Product Description
Specification

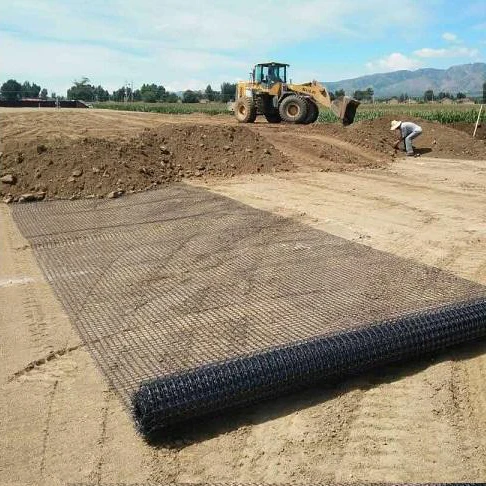

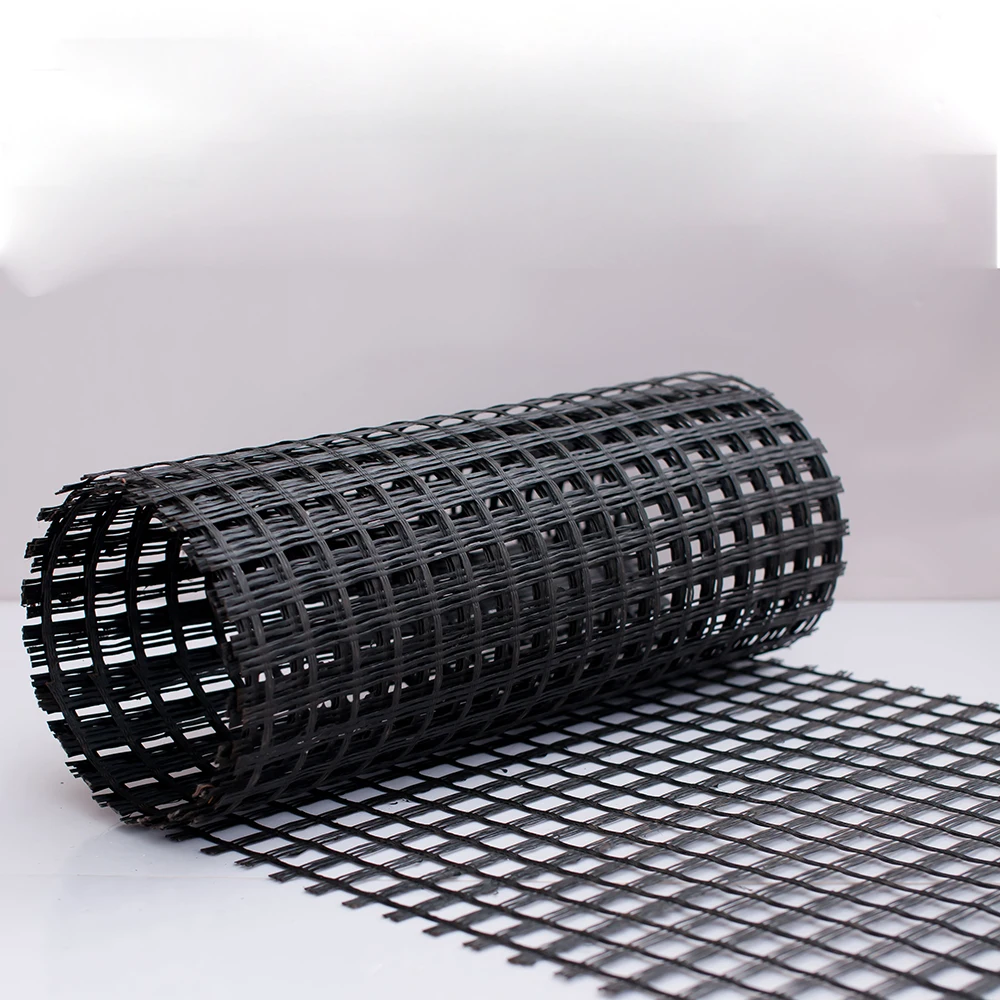

Geogrid is a major geosynthetic material. Compared with other geosynthetics,
it has unique performance and efficacy. Geogrids are often used as reinforcements for reinforced soil structures or composites.
Geogrid is divided into four categories: plastic geogrid, steel-plastic geogrid, glass fiber geogrid and polyester warp-knitted
polyester geogrid.
it has unique performance and efficacy. Geogrids are often used as reinforcements for reinforced soil structures or composites.
Geogrid is divided into four categories: plastic geogrid, steel-plastic geogrid, glass fiber geogrid and polyester warp-knitted
polyester geogrid.
Rated Input Voltage: | AC380v N50-60HZ three-phase four-wire system |

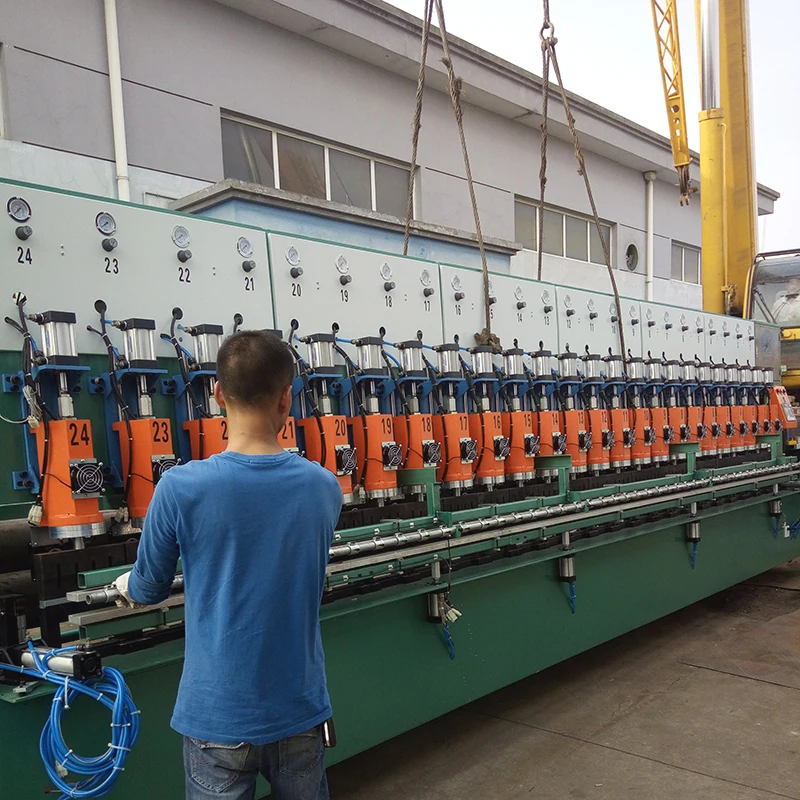

Ultrasonic Generator: | 24pcs,automatic frequency tracking 20 khz 2800w |
Horn material: | CR12MOV |
Rated input power: | 38.5kw |
Transducer: | 20khz 24 pcs |
Welded material: | Plastic-steel, Fiberglass, geogrid, PP, PE, PVC |
Net size: | 5-15cm |
Strips width: | 8~18.5 mm |
Strips thickness: | 1~2.5mm |
Geogrid width: | ≤6000 mm |
Air compress: | 0.6~0.80mpa |
Air pump; compressor: | 2.5 -3 M3 /S |
Machine weight: | 5.7 ton |
machine size length: | 7500 width (mm)* 1800 height(mm)* 2460 (mm) |
Computer Management LG (South Korea),
the display-Weinview (Taiwan)
Pneumatic Yabang (China)
valves, solenoids Airtac (Taiwan)
Low Voltage Products Delixi (China)
Material vibrator (crystal) ceramics (Germany)
the display-Weinview (Taiwan)
Pneumatic Yabang (China)
valves, solenoids Airtac (Taiwan)
Low Voltage Products Delixi (China)
Material vibrator (crystal) ceramics (Germany)
Daily production 24hours: 8000-16000 SQM
