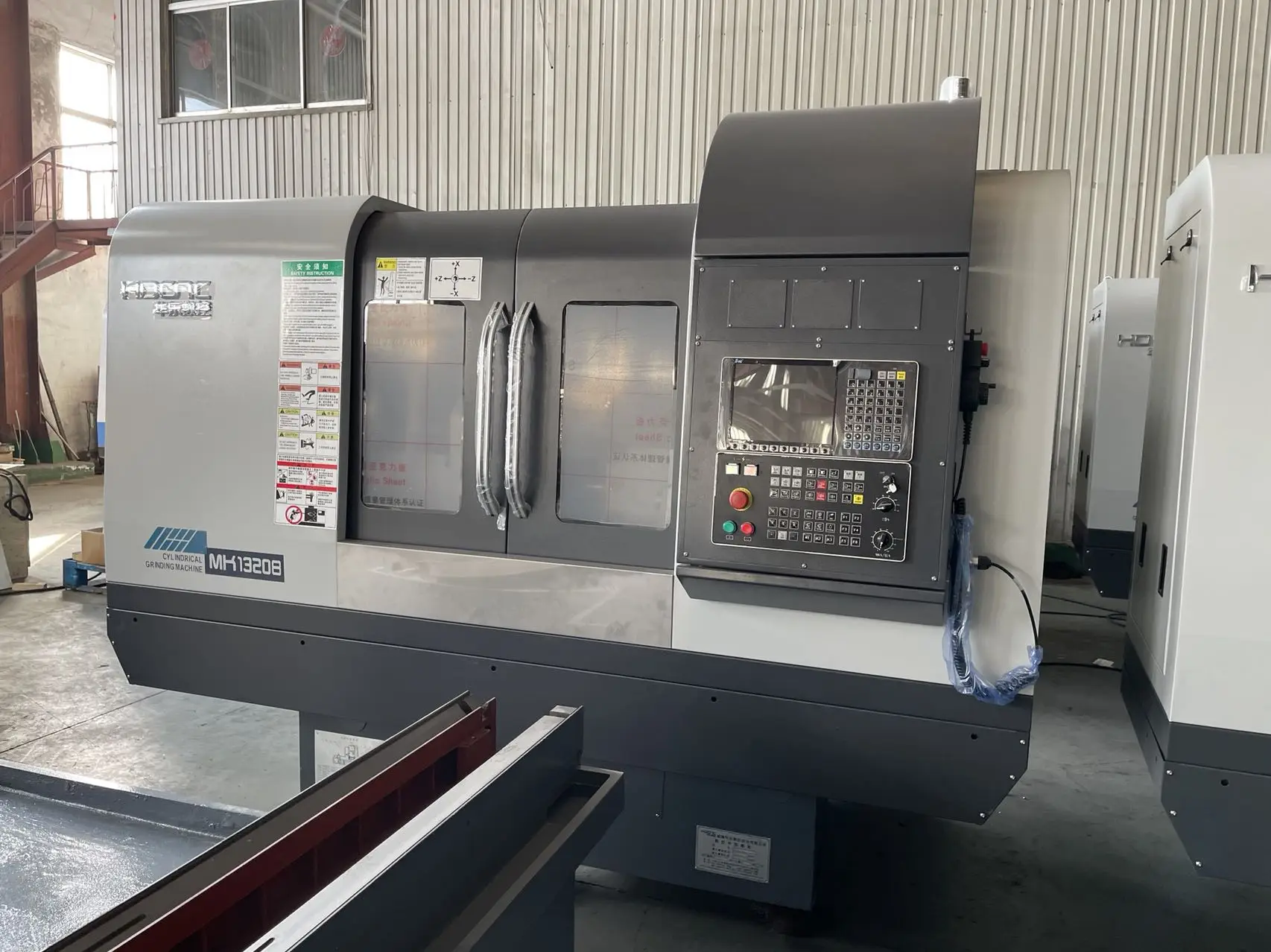

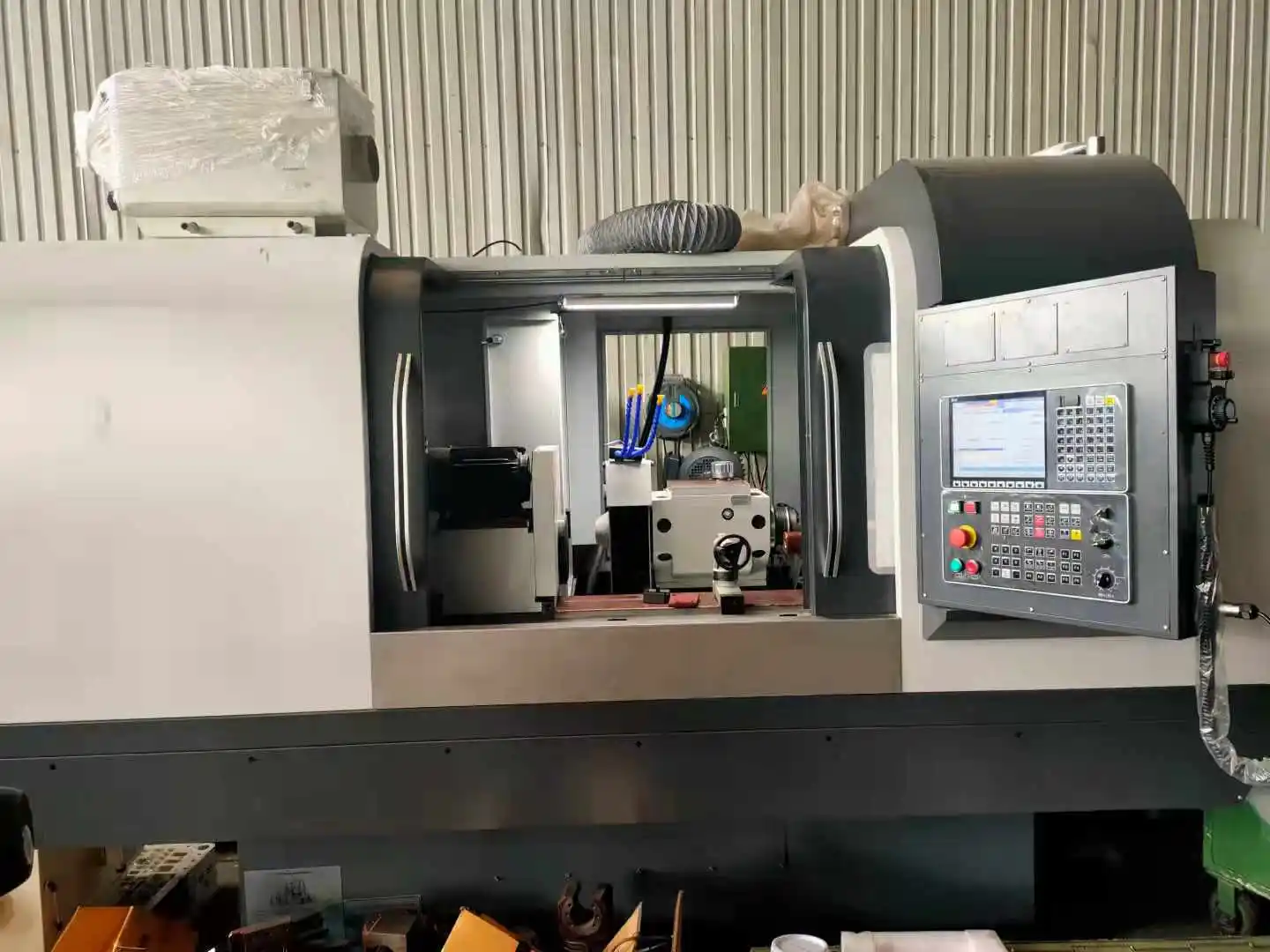

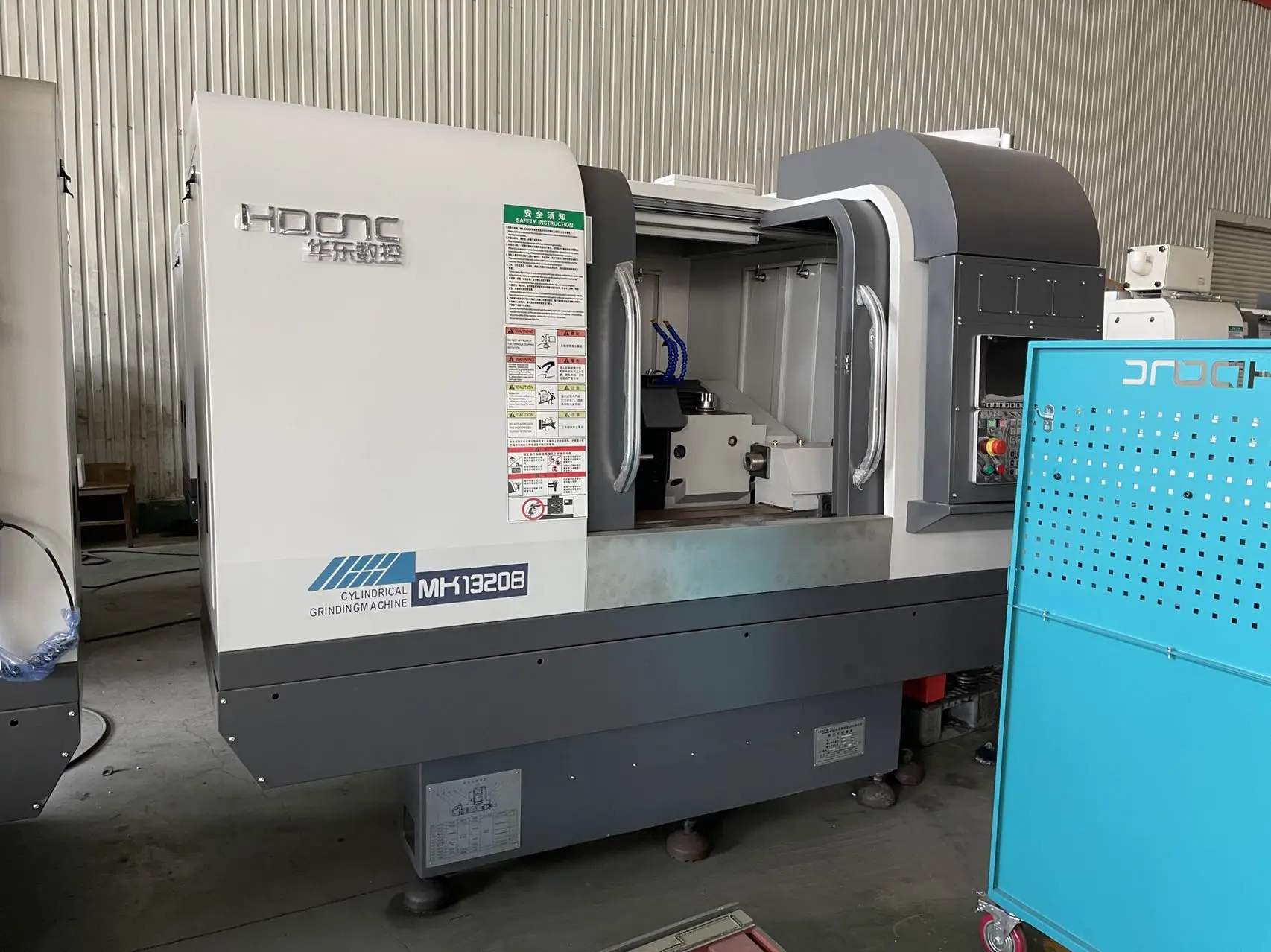

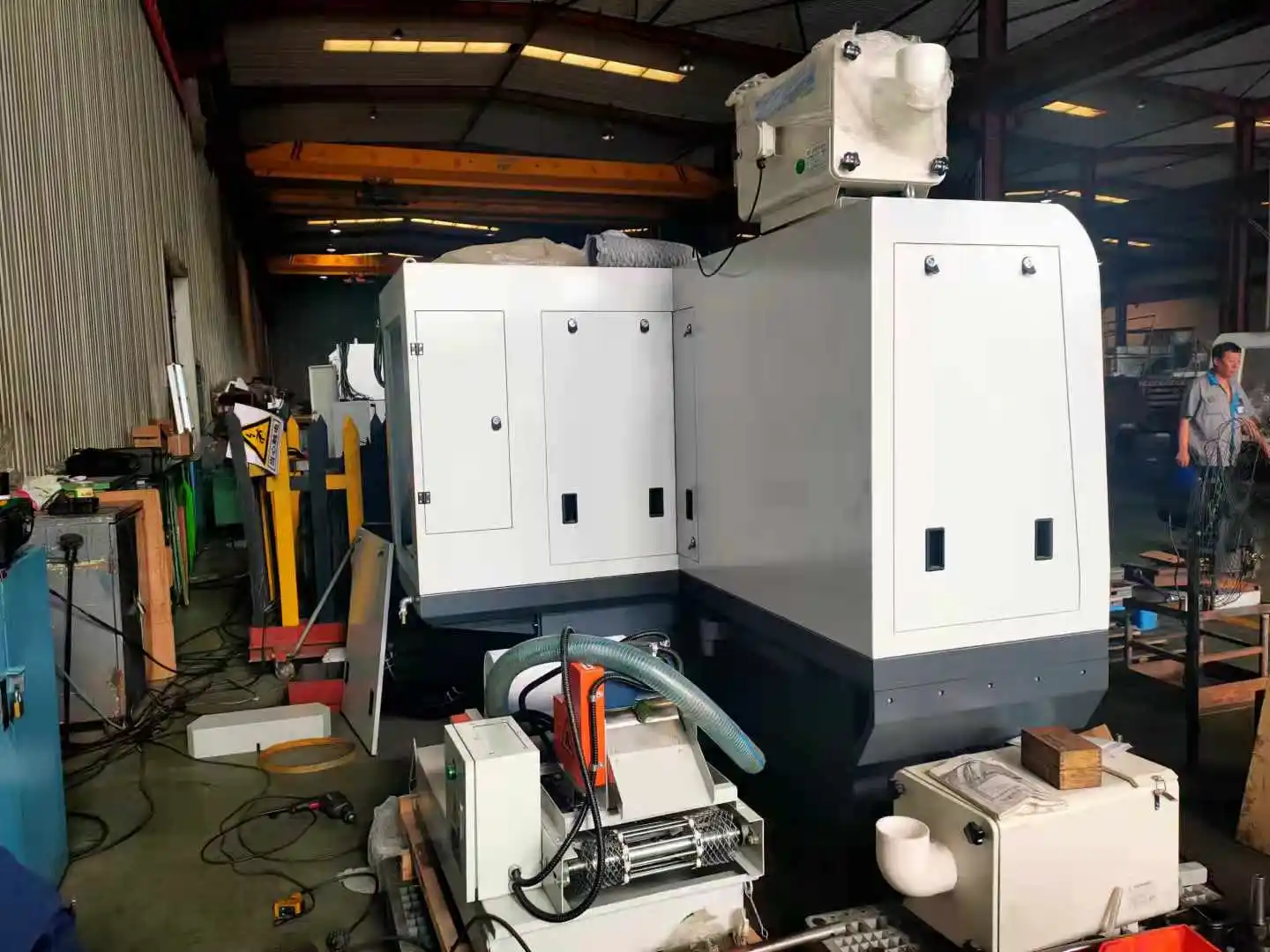

CNC High Precision Cylindrical Grinding Machine MK1320X750 ready to ship
- Category: >>>
- Supplier: Tengzhou Topway Machinery Co. Ltd.
Share on (1600433809398):
Product Overview
Description
READY TO SHIP!
1 SET CNC CYLINDRICAL GRINDING MACHINE MK1320X750
Configuration:
Brand:HDCNC
Controller: HNC808DG
Wheel Flange, Balancing Arbor, Wheel Exacter, Coolant Tank, Working Lamp, Tool Box And Tools, Wheel Dresser Stand, Standard Grinding Wheel, Leveling Wedge And Bolt;
Balance Stand, Close Steady Rest, Magnetic Separator Apparatus, Coolant With Magnetic Separator And Paper Filter.
Mist Collector; Wheel Flange
Item | Unit | MK1320 |
Distance between centers | mm | 750 / 1000 |
Center height | mm | 135 |
Dia. Ground (O.D) | mm | 8-200 |
Max. weight of work piece | kg | 50 |
Center taper | MT | 4 |
Spindle speed | r/min | Stepless 25-2600 |
Wheel size (ODxWxID) | mm | 400×50×203 |
Peripheral velocity | m/s | 35 |
Min set unit | mm | 0.0001 |
Max. swivel angle of table (clock wise) | ° | 3 |
Max. swivel angle of table (Anticlockwise) | ° | 9 |
Center taper | MT | 4 |
Quill travel | mm | 30 |
Wheelhead motor power | kw | 4 |
Workhead motor power | kw | 1.5 |
Machining roundness | μm | 2 |
Machining cylindricity | μm | 5 |
Machining roughness | μm | Ra0.2 |
Gross weight | t | 3.2 / 3.6 |
Packing size | cm | 285 / 340x190x220 |
