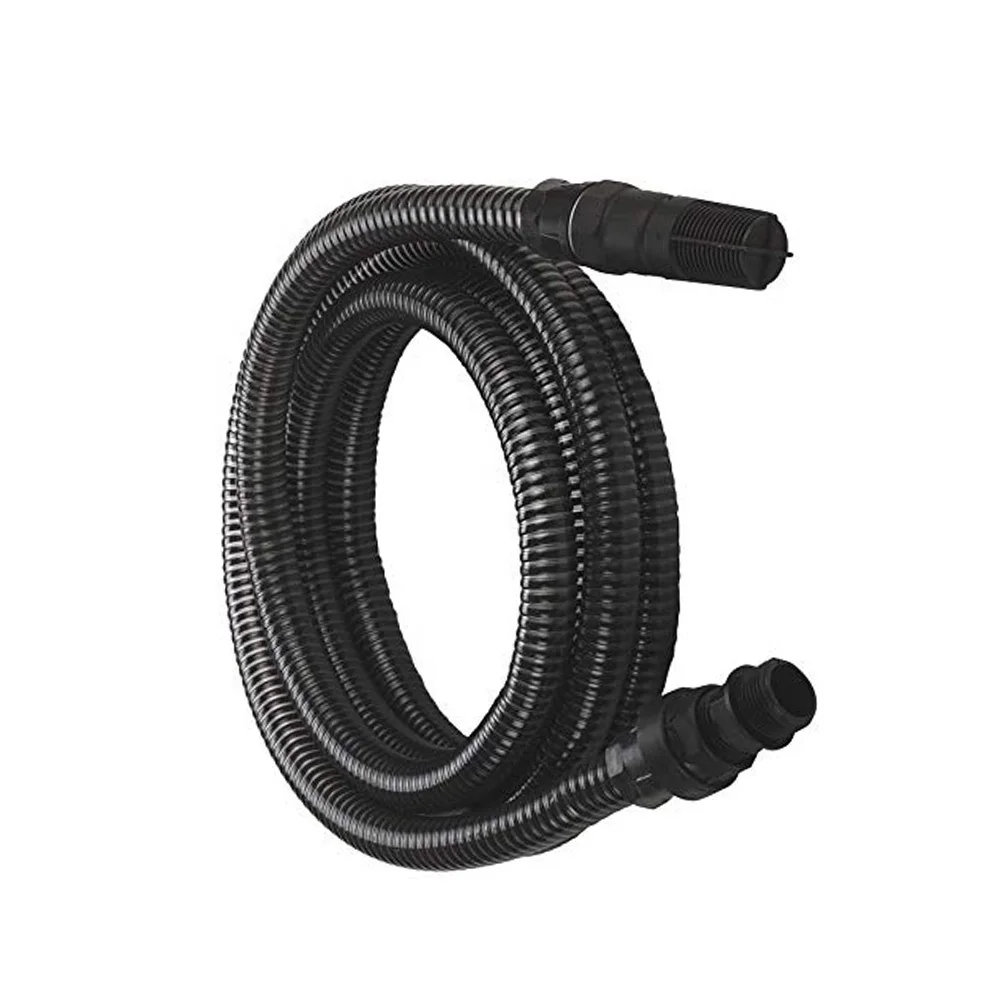

Quality Guarantee Discharge Pipe Sewage Expandable Water Pump Suction Garden PVC Reinforced Hose
- Category: >>>
- Supplier: Wuxi Rongyi Plastic Electrical Appliance Co. Ltd.Wuxi Ltd.
Share on (1600433823100):
Product Overview
Description
Product description
Material | PVC |
Color | Blue, black, transparent or customized |
Standard | REACH ,ROHS |
Length | <=20m or customized |
Temperature | -10℃ to 60℃ |
Inner Diameter | 8mm--210mm |
outer Diameter | 11.5mm-225mm |

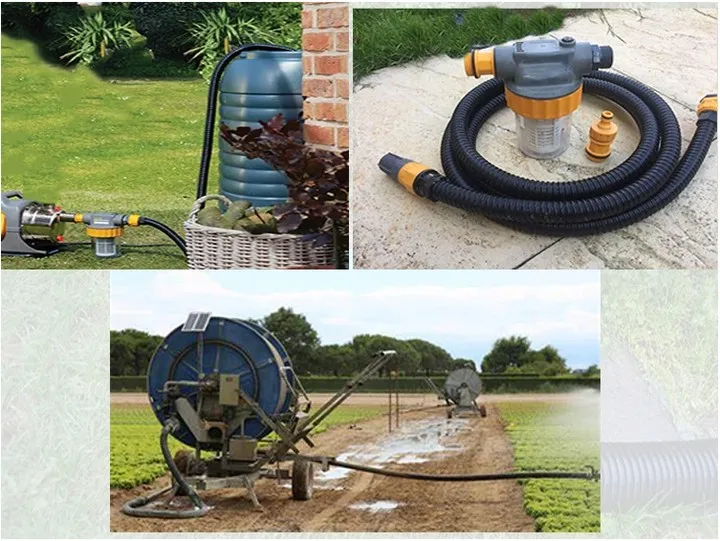

Used | For suction hose ,supply water,material processing ,vaccuum supply |
Thickness | 0.5-1.2mm |
hose size detail
Item | gram Weight(g/m) | ID*OD | Thickness(mm) | length(m) | MAX VP. | MAX BP. | The screw pitch (mm) | |||||||
SJBW008.0045.00 | 45 | ID8±0.1mm OD11.5±0.1mm | 0.5±0.1 | 5 m/roll or less | ≥ -50 | ≥ 6 | 5.0±0.1 | |||||||
SJBW012.0070.00 | 70 | ID 12±0.1 OD 16±0.1 | 0.6±0.1 | 20m/roll or less | ≥ -50 | ≥ 5 | 6.0±0.2 | |||||||
SJBW016.0110.00 | 110 | ID 16±0.2 OD 20±0.2 | 0.7±0.1 | 20m/roll or less | ≥ -50 | ≥ 4 | 6.5±0.2 | |||||||
SJBW025.0165.00 | 165 | ID 25±0.2 OD 30±0.2 | 0.7±0.1 | 20m/roll or less | ≥ -45 | ≥ 4 | 7.0±0.2 | |||||||
SJBW060.0615.00 | 650 | ID 60±0.3 OD 27mm | 1±0.1 | 20m/roll or less | ≥ -40 | ≥ 2.5 | 9.5±0.2 | |||||||
SJBW110.1100.00 | 1100 | ID110±0.4 OD120 | 1.2 | 10m/roll or less | ≥ -35 | ≥ 1 | 15 | |||||||
SJBW170.1800.00 | 1790 | ID 170mm OD 182mm | 1.2±0.1 | 10m/roll or less | ≥ -35 | ≥ 1 | 15 | |||||||
remark:Diameter and thickness can be customized in scope | ||||||||||||||

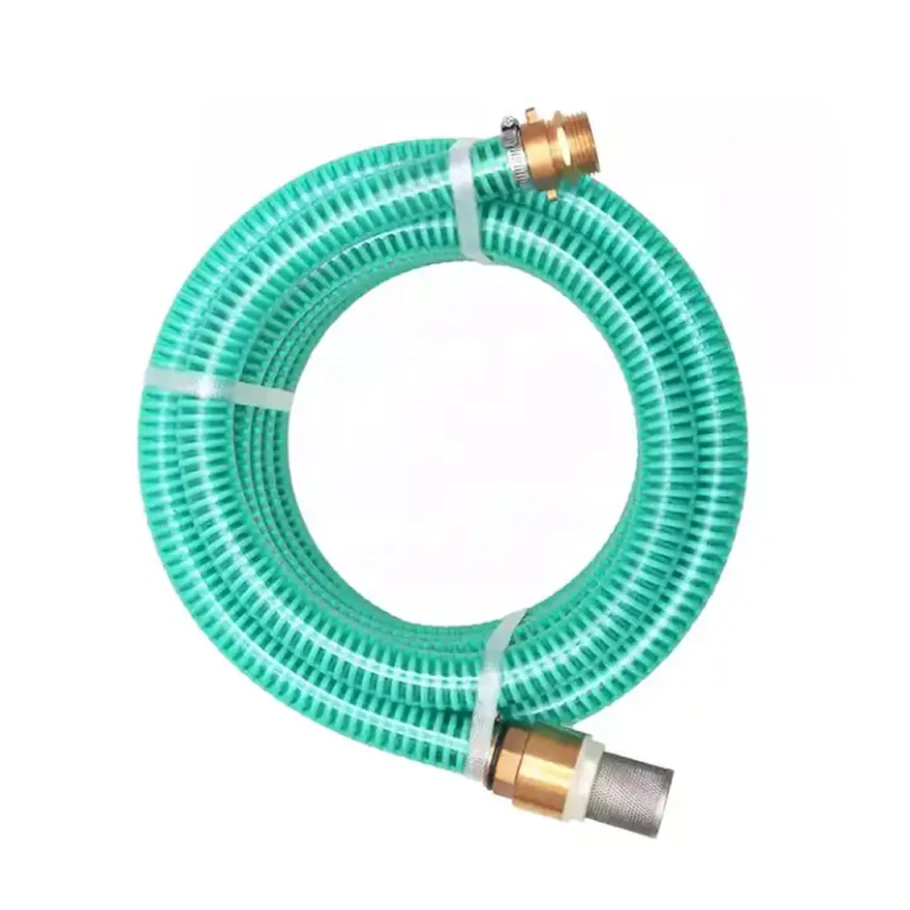

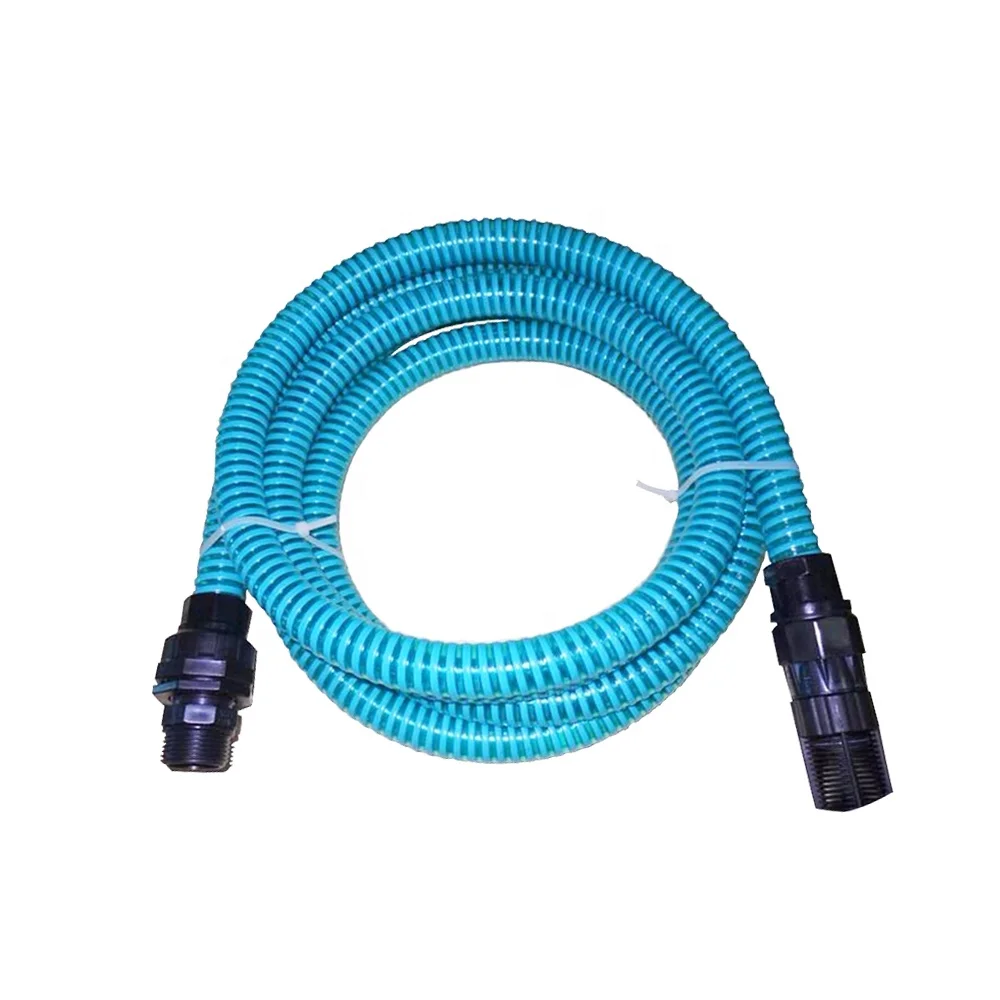

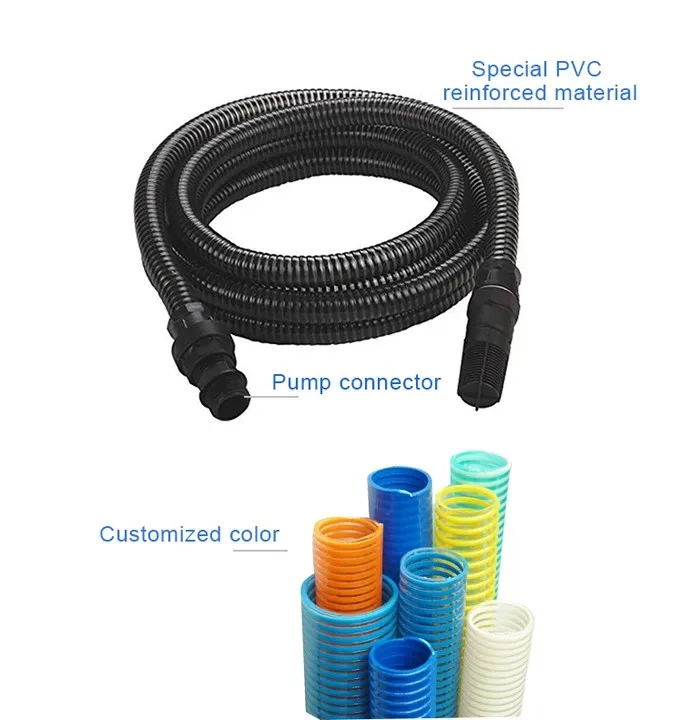

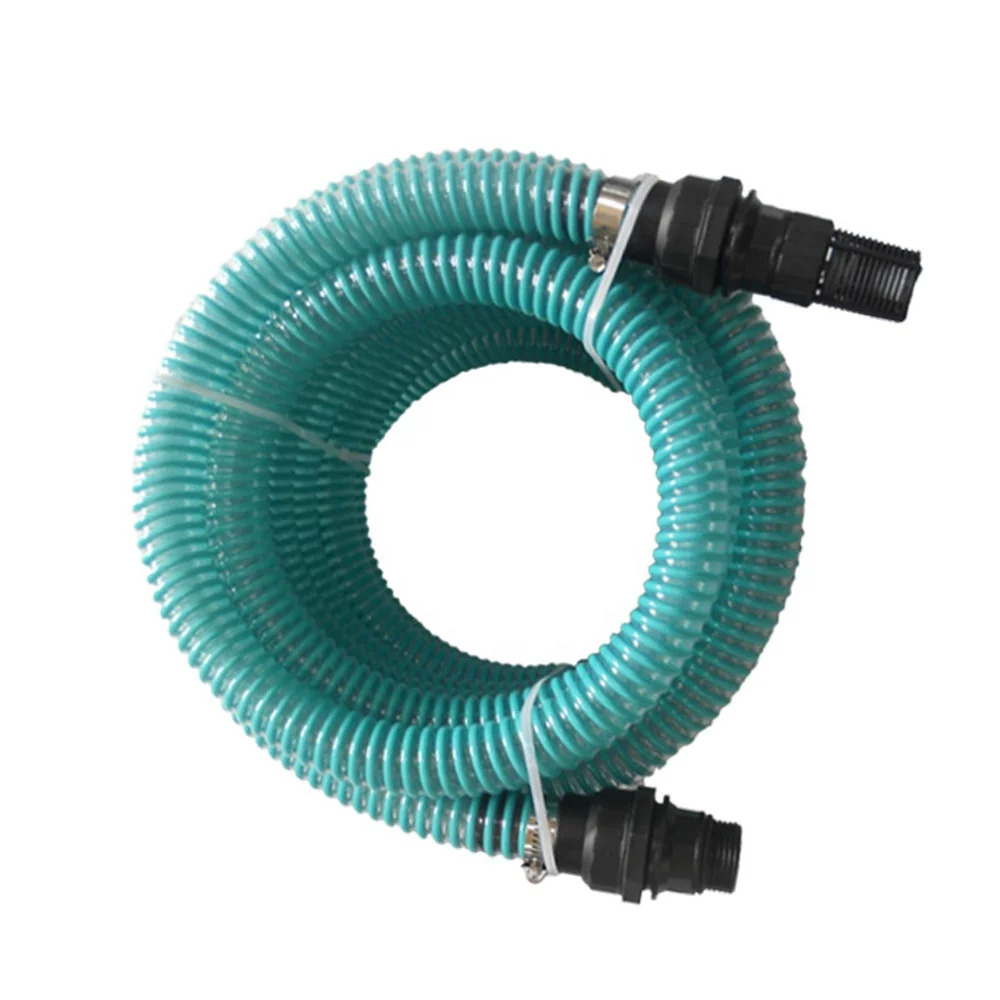

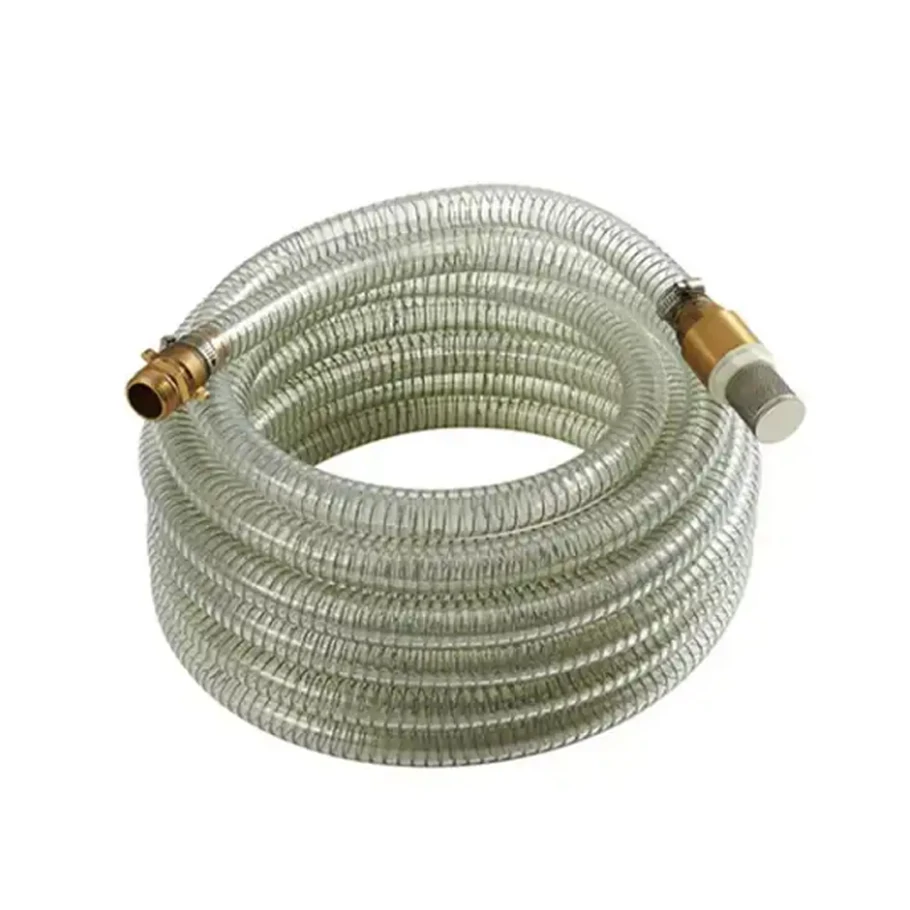

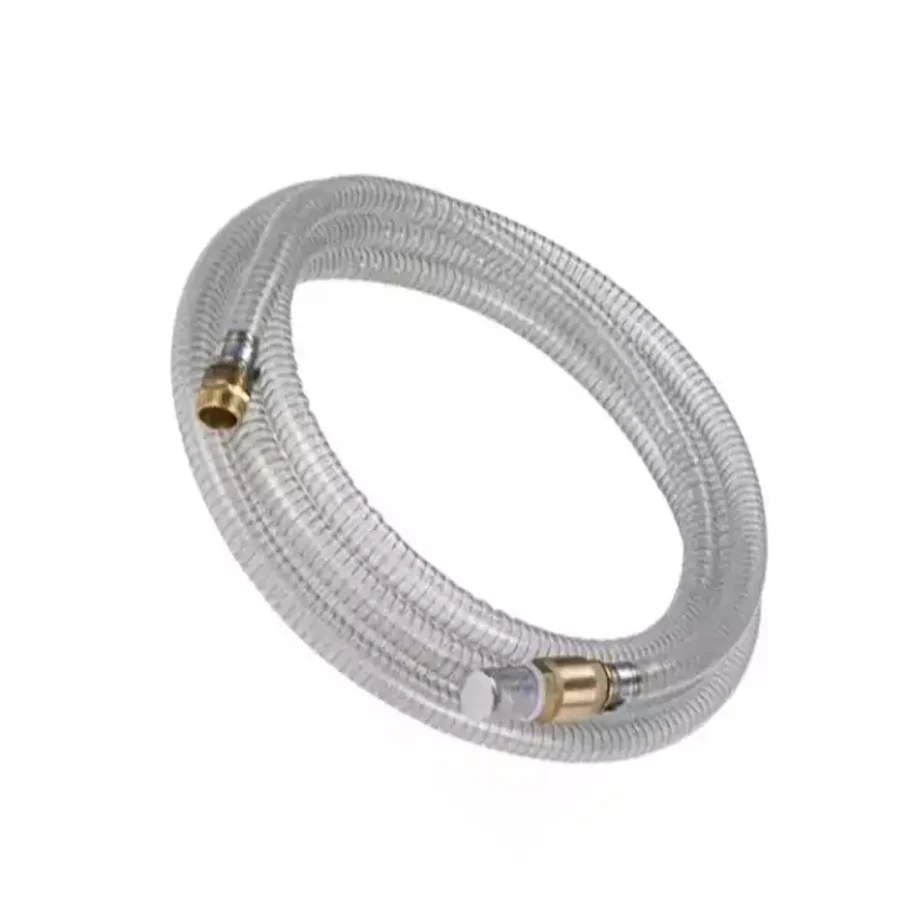

Products show
Q: How long is your delivery time?
A: Generally it is 25 days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment 50% T/T in advance ,balance before shippment. We accept T/T, Paypal,Western Union and so on.
Q: Which port is the nearest from your company ?
A: Shanghai Port .
