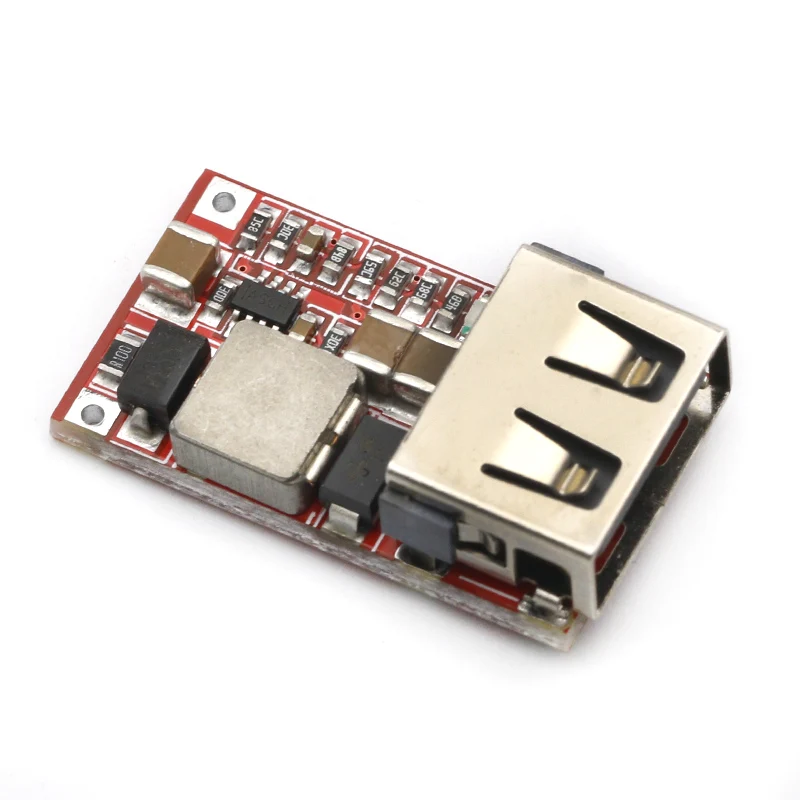

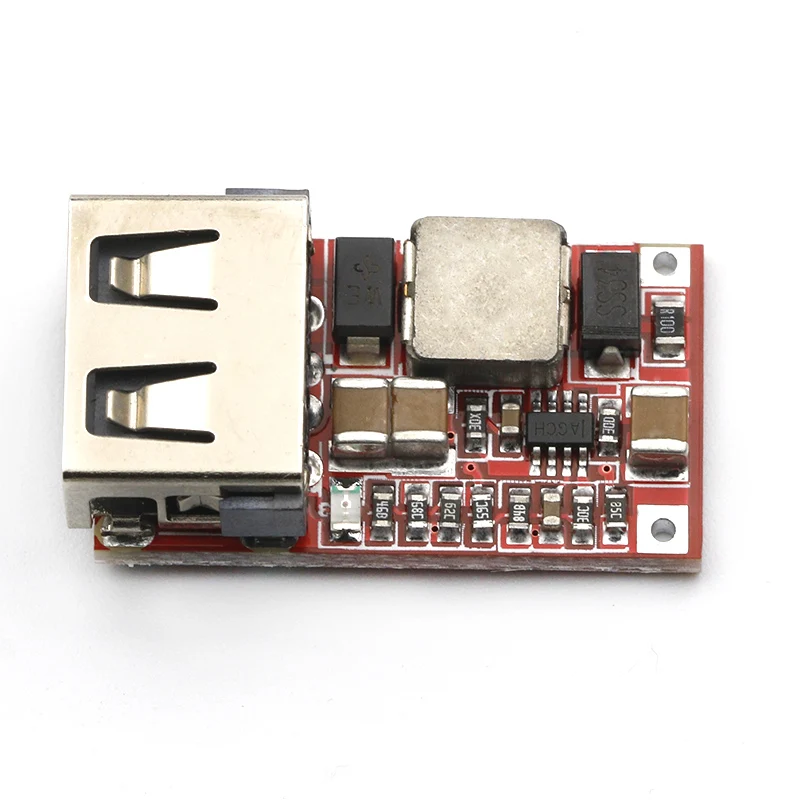

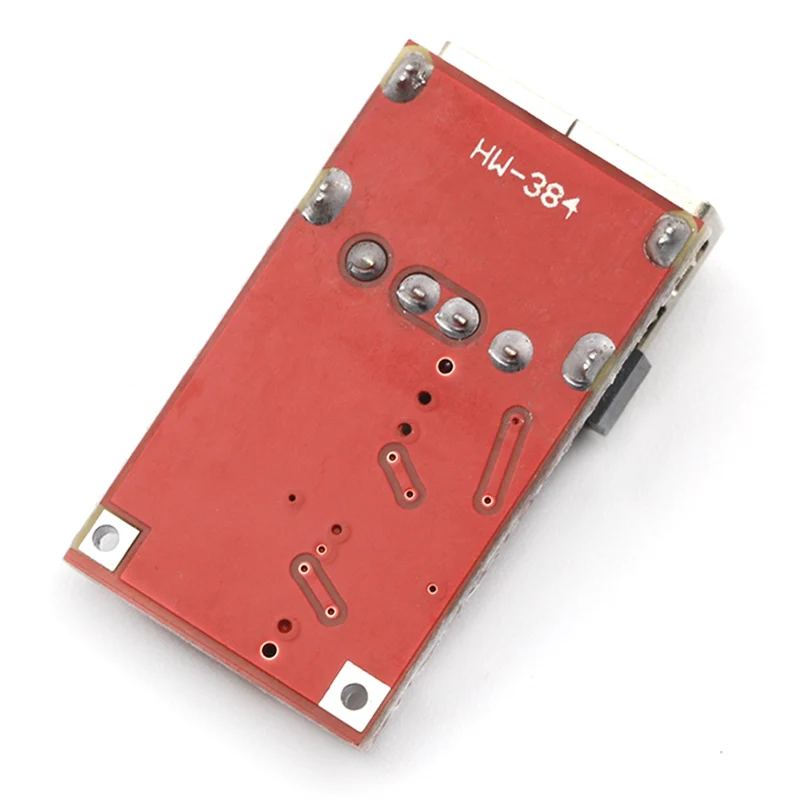

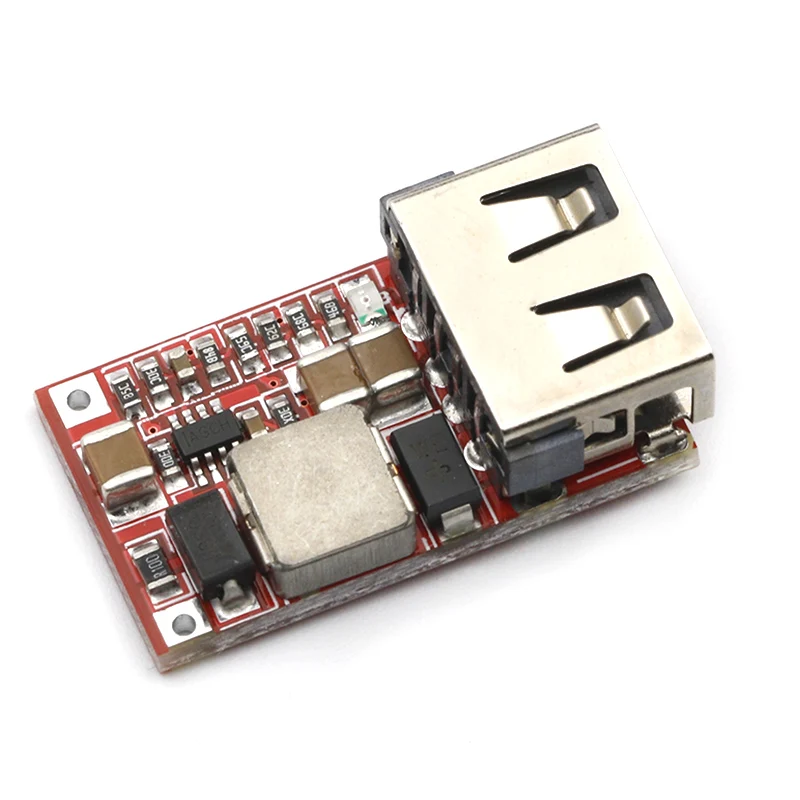

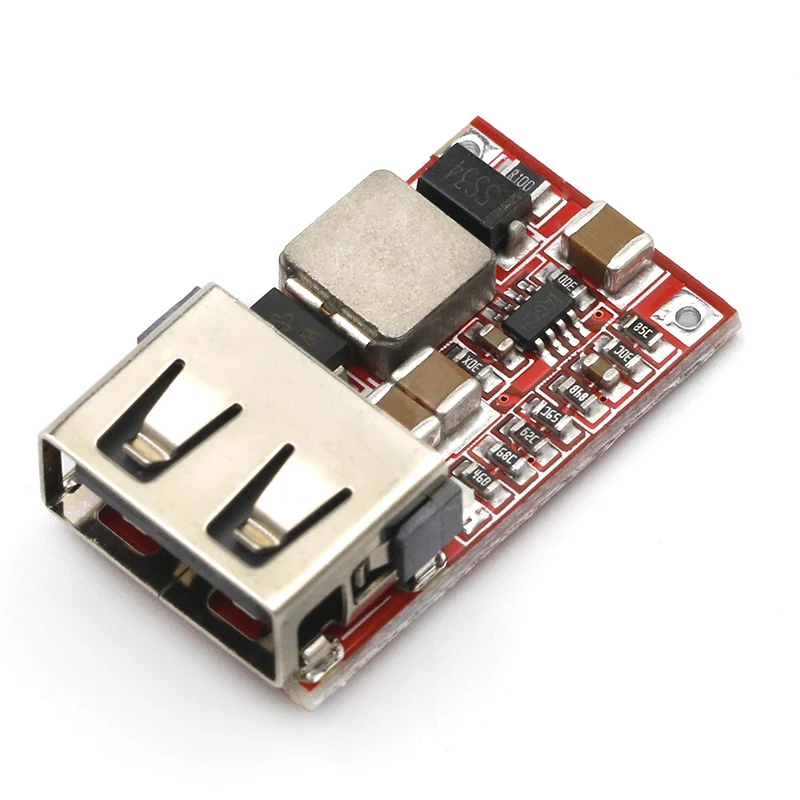

Fine 6 24V 12V/24V to 5V 3A CAR USB Charger Module DC Buck step down Converter
- Category: >>>
- Supplier: Shenzhen Jiaqisheng Electronics Co. Ltd.
Share on (1600433832236):
Product Overview
Description
Product Description
Features: - The max output current 3A, long time use 2.1A, enough use - New design, 3 solid state ceramic capacitors(MCC), more safe and low ripple - Synchronous rectification, High efficiency, 6.5V to 5V 0.7A can up to 97.5%, 12V to 5V 1A can up to 94% - Flat copper inductor, improve conversion efficiency - With output overvoltage protection. There is 1.5A fuse, output 5V have 300W TVS tube protect your USB device - Using the latest USB identification circuit, perfectly compatible with IPHONE, the most of Android phones, IPAD etc - High quality USB port - Output voltage indicator (RED) - Small size, 26.4 (L) * 15 (W) * 7.4 (H) mm - Input with reverse polarity protection diode, will not damage when input connect incorrect - Ultra-low static current, 0.85 mA only. Do not need to add swith when connected to the car battery, can be connected to car cigarette lighter cable or ACC power supply cable Module Parameters: Module Properties: non-isolated buck module (BUCK) synchronous rectification Input voltage: DC 6-24V Output voltage: 5.1-5.2V Output current: 3A MAX (please enhance heat dissipation when full load using), the actual test result input 12V output current 2A do not need to enhance heat dissipation. Conversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value) Switch frequency: 500KHz Output ripple: 10mV around (12V to 5V3A) 20M bandwidth Output indicator: Output voltage indicator is red Operating temperature: Industrial grade (-40 ℃ to + 85 ℃) (the higher the ambient temperature, the lower the output power) Output overvoltage protection: Yes, input 1.5A fuse, output 5V have 300W TVS tube clamp protection. Full load temperature: 30 ℃ Static current: 0.85 mA Load regulation: ± 1% Voltage Regulation: ± 0.5% Dynamic response speed: 5% 200uS Output short circuit protection: Yes, but please do not short circuit for a long time Input reverse polarity protection: Yes, there is reverse polarity protection diode Connection mode: Welding Input mode: Welding Output mode: USB
Packaging & Shipping
Company Profile
We are a professional manufacturer of electronic modules and development boards. We focus on Arduino accessories, Bluetooth modules, sensors, switching power supply modules, electronic components, 3D printer accessories, Raspberry Pi accessories, smart robots, STEM education kits and customization Modules, etc. With complete testing equipment and strong technical force, we have won the trust of our customers with professional services, high-quality products and competitive prices.
FAQ
Q1. What is your terms of packing?
A: Generally, our modules are all with Anti-static bag individually wrapped,also can be accepted customized package.
Q2. What is your terms of payment?
A: Full payment. Goods would be shipped in 1-7work days after payment received, finally depends on quantities.
Q3. What is your terms of delivery?
A: Generally EXW,can be according to customer's requests.
Q4. How about your delivery time?
A: Generally, goods would be shipped in 1-3 work days after payment received, finally depends on order quantities.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
