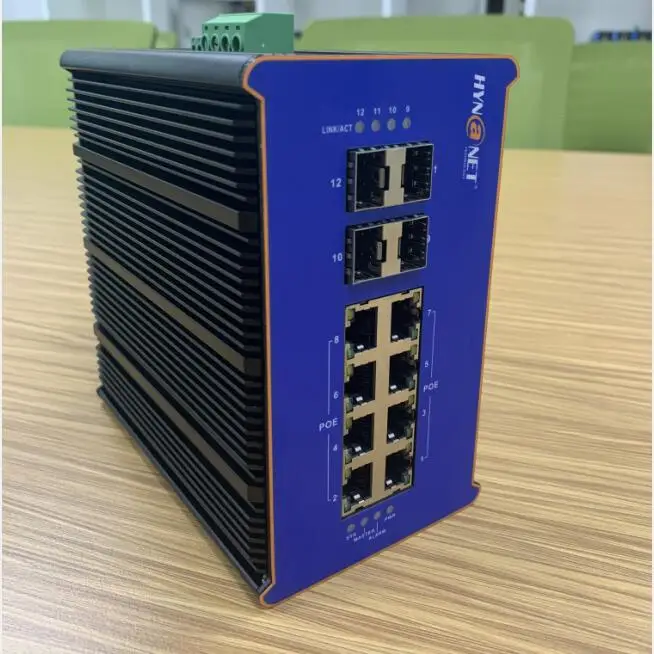

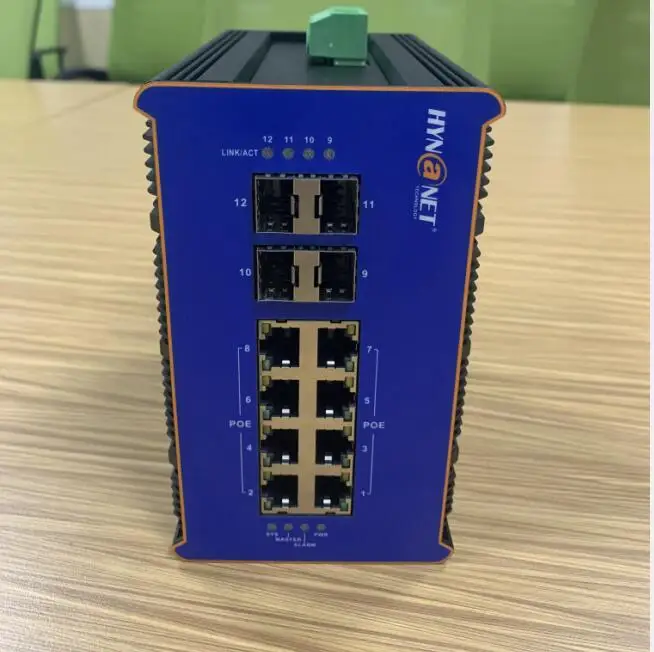

Outdoor switch 8G 4 *10G SFP L3 Broadcom managed din rail industrial network switch
- Category: >>>
- Supplier: Shenzhen Hi-Net Technology Ltd.
Share on (1600433836132):
Product Overview
Description
Product Description
L3 8G +4 *10G SFP Broadcom managed din-rail industrial network switch.
The IDS5008F4 is a high performance L3 Managed Ethernet Switch with 8 x10/100/1000TX RJ45 Copper ports with 4 x10G
SFP Ports, which meets the high reliability requirements demanded by industrial rolling stock applications. It provides L2/L3
wire speed and advanced security function for network aggregation deployment. It delivers enhanced ring recovery less
than 20ms in single ring. For more usage flexibilities, It supports wide operating temperature from -40~70℃.
Features
IEEE802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3ae
Provides 8 10/100/1000 Base-TX ports + 4 10G SFP ports
High back-plane bandwidth 96Gbps
Support MLD Snooping
Support standard IP/ Extend IP / MAC IP / ARP ACL
Support IGMP snooping for Multi-media application
Support Port mirror and bandwidth control
Support IEEE802.3x Flow control
Support Port Based VLAN / 802.1Q Tag VLAN
Support IEEE802.3ad Port trunk with LACP
Support Spanning tree protocol IEEE802.1d/802.1w/802.1s
Support IEEE 802.1p class of service
Support IEEE 802.1x user authentication
Support Broadcast storm filter
Support DHCP client, DHCP relay, DHCP server, DHCP snooping
Support Static Route, Policy Route, RIP, OSPF, VRRP
Support System event log
Support command line interface management
Management by Web / SNMP / SSH / Telnet / Console
CE Class A, LVD, ROHS2.0
Support Broadcast storm filter
Support DHCP client, DHCP relay, DHCP server, DHCP snooping
Support Static Route, Policy Route, RIP, OSPF, VRRP
Support System event log
Support command line interface management
Management by Web / SNMP / SSH / Telnet / Console
CE Class A, LVD, ROHS2.0

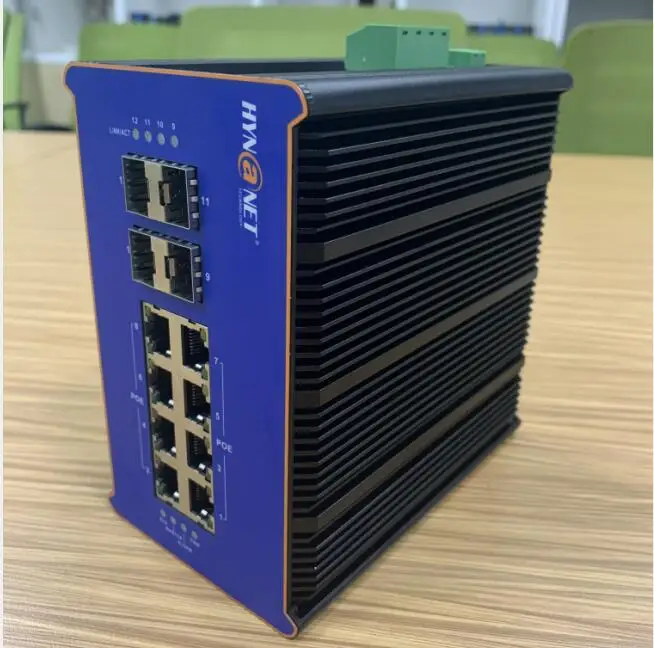

Detailed Images

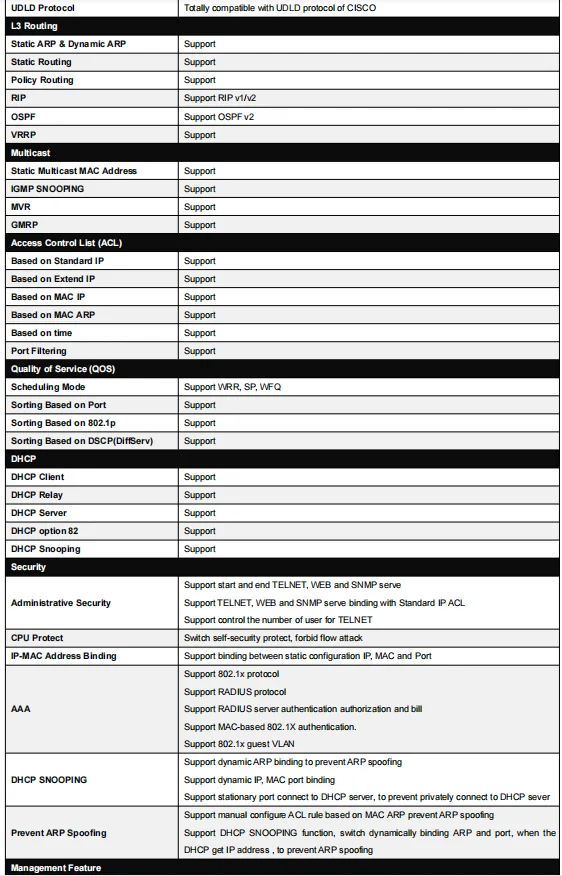

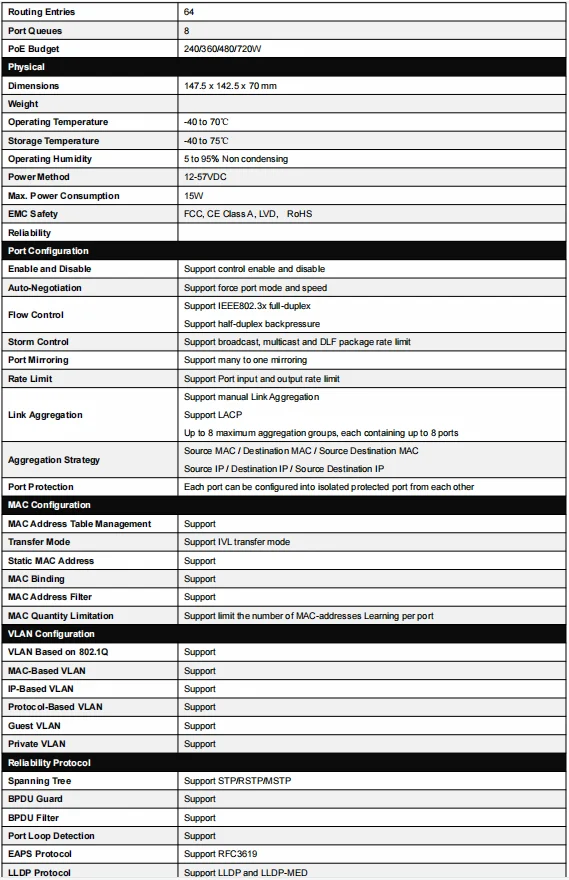

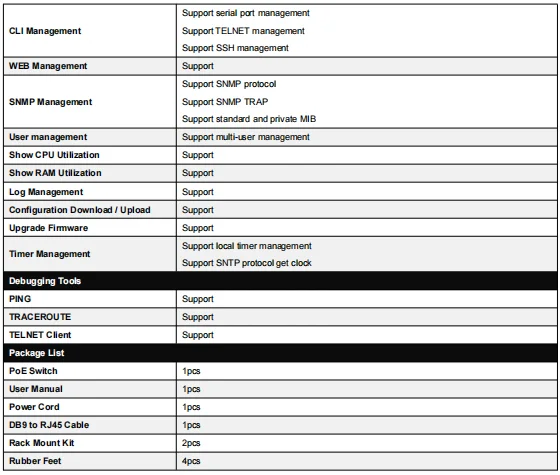

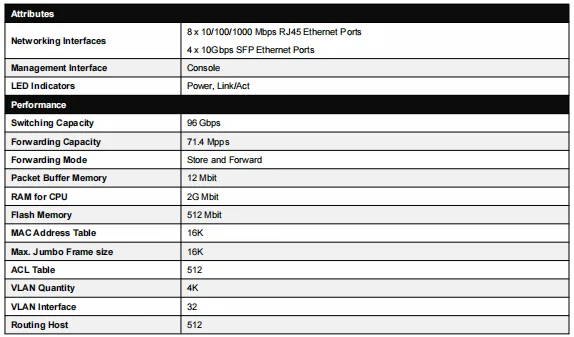

Specifications
