Automatic high speed Medical Cotton Gauze Bandage Rolling Cutting Packing Machine
- Category: >>>
- Supplier: Hefei Kerrian Machinery Co. Ltd.
Share on (1600433884273):
Product Overview
Description
Product Description

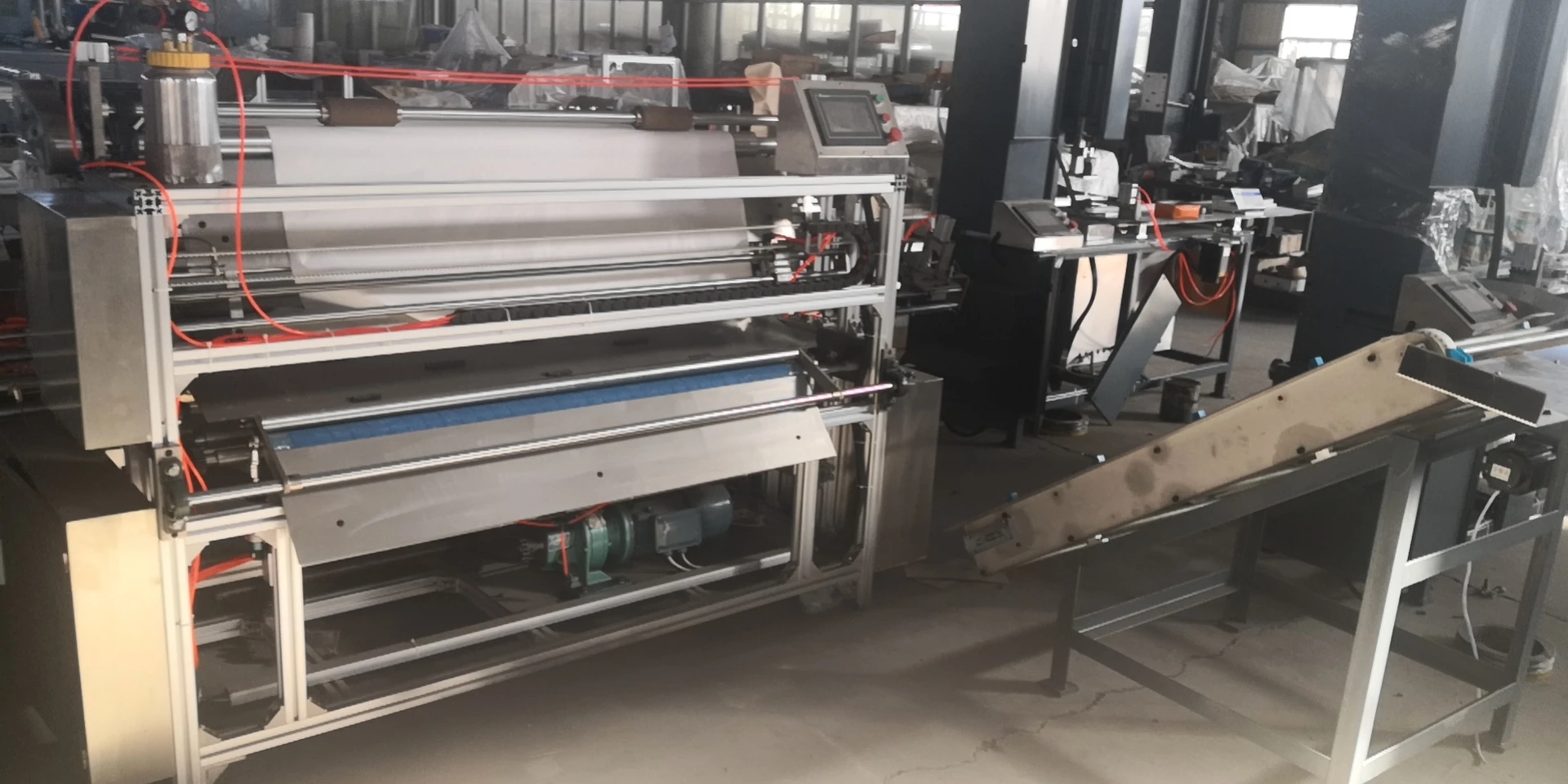

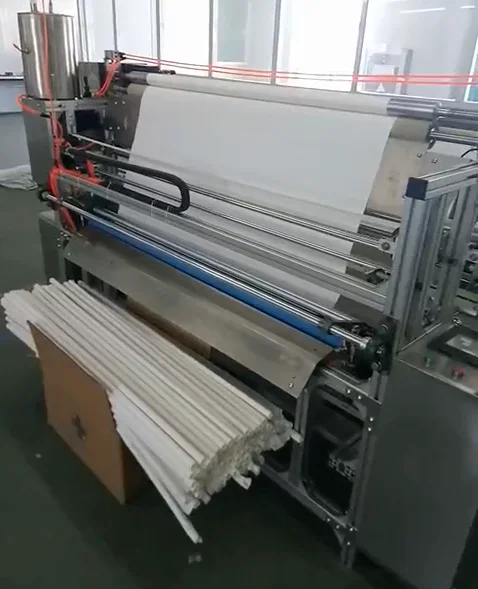

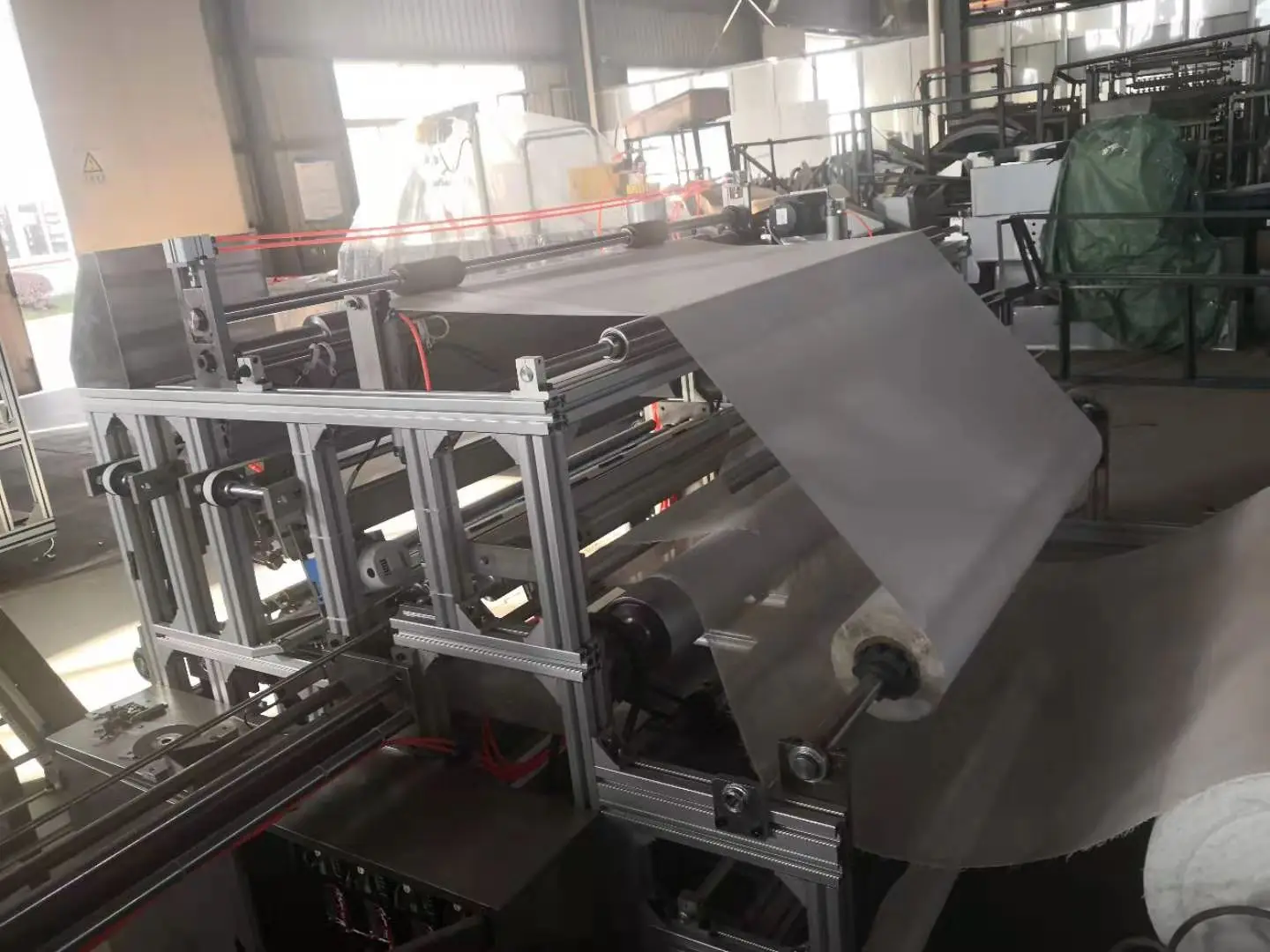

This automatic gauze bandage rolling and cutting machine is used to cut jumbo gauze roll(e.g. width 120cm) and rewind to bandages,
both width and length of bandage are adjustable. The whole process adopt PLC control, rewind and take out bandages automatically.
Main features:
1. PLC control, bandage length can be adjusted easily
2. count bandage length automatically, automatic rewind, take out bandage
3. cross cutter cut bandage length automatically, cutting ends of bandage are even
4. pressure with cylinder, make sure rolling diameter be same
5. step motor driving, bandage length is counted accurately
6. aluminum alloy frame, nice look
7. automatic tension control, ensure product quality
8. adjustable lengthways cutters, easy to change product specification
Main technic parameters:
1. machine outer dimension: app. 2450x1900x1500mm, LxWxH
2. machine weight: app. 500kg
3. power: 1.5kw
4. power supply: 380V, 3-phase, 50Hz, or made on customers’ special request
5. air pressure: ≤0.8Mpa
both width and length of bandage are adjustable. The whole process adopt PLC control, rewind and take out bandages automatically.
Main features:
1. PLC control, bandage length can be adjusted easily
2. count bandage length automatically, automatic rewind, take out bandage
3. cross cutter cut bandage length automatically, cutting ends of bandage are even
4. pressure with cylinder, make sure rolling diameter be same
5. step motor driving, bandage length is counted accurately
6. aluminum alloy frame, nice look
7. automatic tension control, ensure product quality
8. adjustable lengthways cutters, easy to change product specification
Main technic parameters:
1. machine outer dimension: app. 2450x1900x1500mm, LxWxH
2. machine weight: app. 500kg
3. power: 1.5kw
4. power supply: 380V, 3-phase, 50Hz, or made on customers’ special request
5. air pressure: ≤0.8Mpa
Specification
item | value |
Place of Origin | China |
Brand Name | KERRIAN |
Condition | New |
Weight (KG) | 500 |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | PLC, Engine, Motor |
Warranty | 1 Year |
Applicable Industries | Manufacturing Plant, medical bandage production |
Showroom Location | CHINA |
Application | surgical bandage production |
style | full automatic |
After-sales Service Provided 1 | Free spare parts |
After-sales Service Provided 2 | Field maintenance and repair service |
After-sales Service Provided 3 | Video technical support |
After-sales Service Provided 4 | Online support |
After Warranty Service 1 | Video technical support |
After Warranty Service 2 | Online support |
After Warranty Service 3 | Spare parts |
After Warranty Service 4 | Field maintenance and repair service |
Packing & Delivery
wooden box packing is made on request
Company Profile
As a mainstay subsidiary of China Kerrian Medical Technology Group, our company is engaged in producing and delivering medical dressing making and packing machines to worldwide with good quality, these machines have been delivered to more than thirty countries and won very good reputation. The machines can be designed and produced on users' different requests, and we always provide the best solution for our clients.
Besides machine production plant, we also have built a gauze weaving plant, for supplying raw material of jumbo gauze fabric roll, and medical gauze dressings, we have passed ISO13485 certificate already.
For further info, please feel free to contact us.
Thank you.
Besides machine production plant, we also have built a gauze weaving plant, for supplying raw material of jumbo gauze fabric roll, and medical gauze dressings, we have passed ISO13485 certificate already.
For further info, please feel free to contact us.
Thank you.
FAQ
1. who are we?
We are based in Anhui, China, start from 2016,sell to Eastern Asia(30.00%),Southeast Asia(20.00%),South America(10.00%),Eastern Europe(10.00%),Africa(10.00%),Mid East(10.00%),South Asia(10.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
medical gauze folding machine,cotton pad machine,gauze packing machine,medical bandage machine,gauze swab folding machine
4. why should you buy from us not from other suppliers?
with more than 20years experience in the production of medical dressings making and packing machines, we always provide machines with good quality by our advanced technology, we have delivered the machines to more than 40 countries and won good reputation
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
We are based in Anhui, China, start from 2016,sell to Eastern Asia(30.00%),Southeast Asia(20.00%),South America(10.00%),Eastern Europe(10.00%),Africa(10.00%),Mid East(10.00%),South Asia(10.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
medical gauze folding machine,cotton pad machine,gauze packing machine,medical bandage machine,gauze swab folding machine
4. why should you buy from us not from other suppliers?
with more than 20years experience in the production of medical dressings making and packing machines, we always provide machines with good quality by our advanced technology, we have delivered the machines to more than 40 countries and won good reputation
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
