Lcd Screen Emi Shielding Film 150Opi

Share on (1600433943610):


Price:$233.00-235.00

Quantity:


Product Overview

Description



Product Description

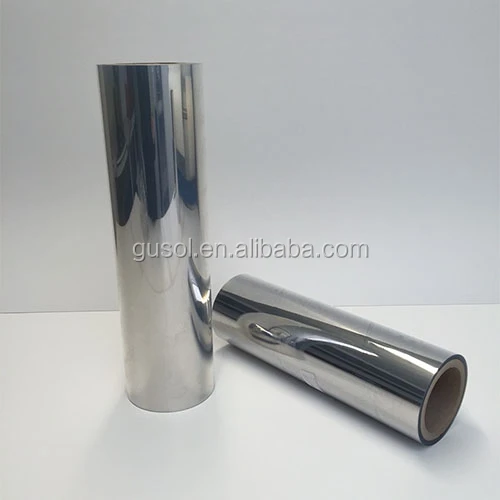

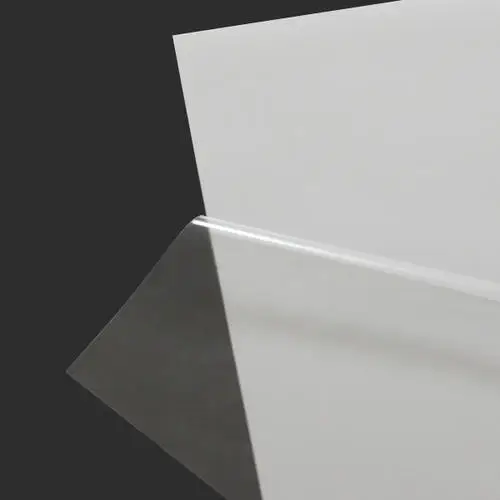

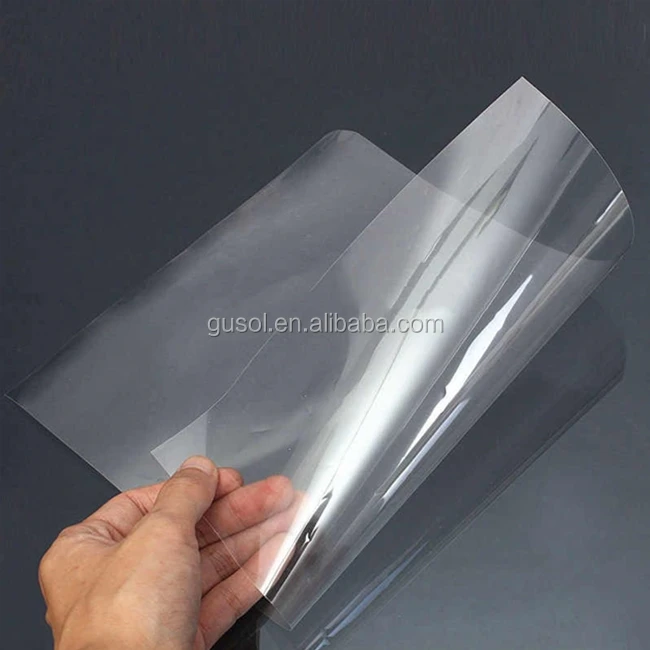

Metal Mesh Pet Film For LCD Display

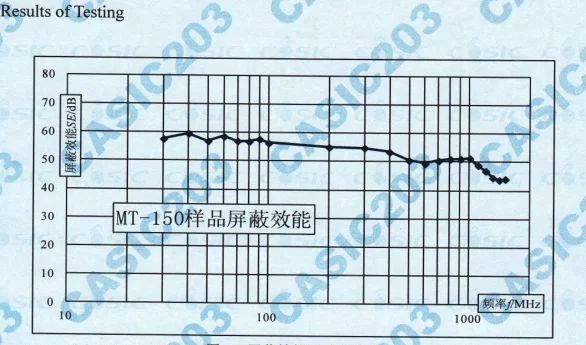

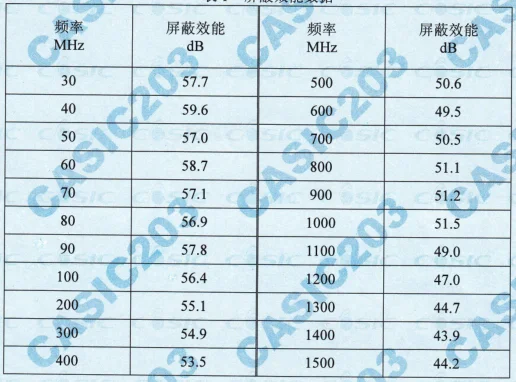

150Opi mesh film has natural product vision, no distortion of dynamic and static objects, and no color difference. Shileding effect can reach 48dB.




Specification


item
value
Material
PET
Type
Metallized Film
Usage
Emi Shielding
Feature
Flexible & Conductive
Hardness
Soft
Transparency
Transparent
Place of Origin
China
Model Number
EMI-150
Product Name
150Mesh Emi Shielding Film
Thickness
125um
Width
1500mm
Adhesive
Available
Color
Transparent
OCA Thickness
25um
Transmittance
>76%
Line Width
17um
Line Spacing
143um
Resistance
<0.09ohm/sq


Packing & Delivery




plastic bag and carton


Company Profile






Mianyang Prochema Commercial Co., Ltd. is a leading manufacturer of ITO transparent conductive films for EMI,EL,E-PAPER,FPV(flexible solar cell),LCD etc. And Prochema is in supply of resistive Touch screen, capacitive touch film as per customer design. Meanwhile we still go on with our old business of insulation films.

Below is the list of supplying:
1.ITO PET FILM
Resistance:35, 50,100 ,150 ohm/sq
Thickness:25-175microns
Width:305-1220mm
2.Touch screen
Type: resistive , capacitive
Size:2-22"
Form:film+glass,film+film, film single layer
3.Insulation film
Material:FEP, PFA,PVDF,PCTFE,ETFE ,Polyimide,polyester film
Insulation temperature range:130-265C


Prochema has well trained staff to help you source in China for other special materials. Keep watching us, and start enjoying the excellent service.

We are looking forward to your cooperation with us for mutual benefits.


FAQ


1. who are we?
We are based in Sichuan, China, start from 2004,sell to South Asia(30.00%),North America(20.00%),Eastern Europe(18.00%),South America(10.00%),Mid East(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Domestic Market(2.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Transparent Conductive Film,Printing Film,Touch Control Film and Panel,Electronic Insulation Film,Handwriting Pad

4. why should you buy from us not from other suppliers?
1.Self produce ITO PET film
2.Professional expereinc in insulation film,wide knowledge service
3.TUV and Alibaba audit gold member,honest business
4.Stable quality and reasonable cheap price

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese


Application


Our company is in a leading position in the innovation and development of display &
window EMI/RFI shielding solutions. With the design update of display size and definition,
the new generation of nano mesh film has higher transparency and stronger shielding
effect. Adopting the innovative principle of nano-alloy wire conductive printing process, the
introduction of etching grid technology, and the optimized display mode, making our
mesh film to be the first choice for window and touch screen shielding.


SPECIFICATION

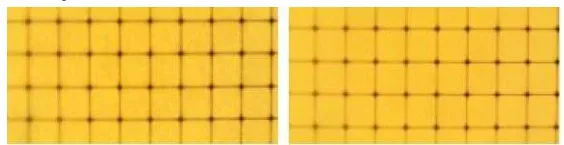

The line spacing of 143um (150 OPI) is the best spacing for electronic displays. The
metal surface is blackened, no need to adjust the angle, to avoid moire fringes, it is
an anti-glare shielding film.


Other Data


Diffuse Reflection@45°
≤0.14%
Specular Reflectivity@45°
≤1.2%
Standard Angle
45°+/-1°
Resistance
≤0.09ohm/sq
Total Thickness
125um
OCA Thickness
25um






OPTICAL PERFORMANCE
In addition to increasing transparency, blackening reduces diffuse reflection, even in the
sun, the grid is visible.
