High Standard Safety Graphite Fire Collar for UPVC Pipes
- Category: >>>
- Supplier: Huaian Shengchang Chemical Materials Co. Ltd.
Share on (1600433973105):
Product Overview
Description
High Standard Safety Lower Price Fire Collar
Density:Compared
Min.Order Quantity:10 Piece/Pieces Pipe Collar
Port:ingang
Packaging Details:in carton or as your requests
Delivery Detail:15-25 days after receiving your order

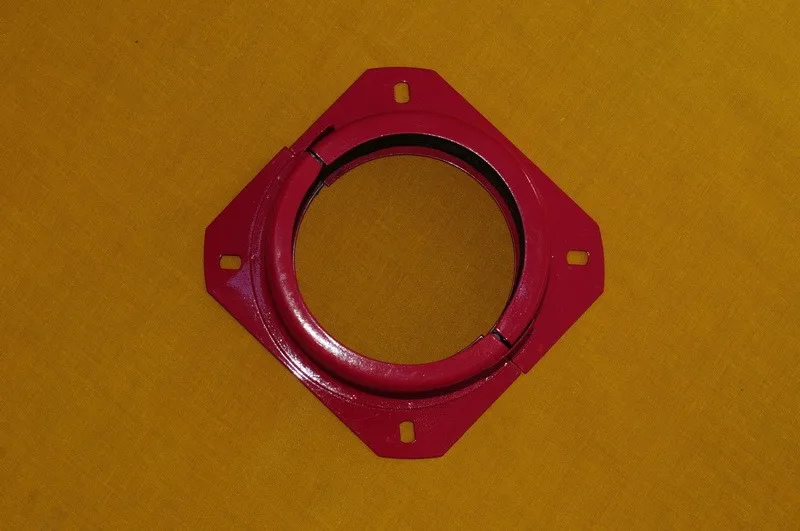

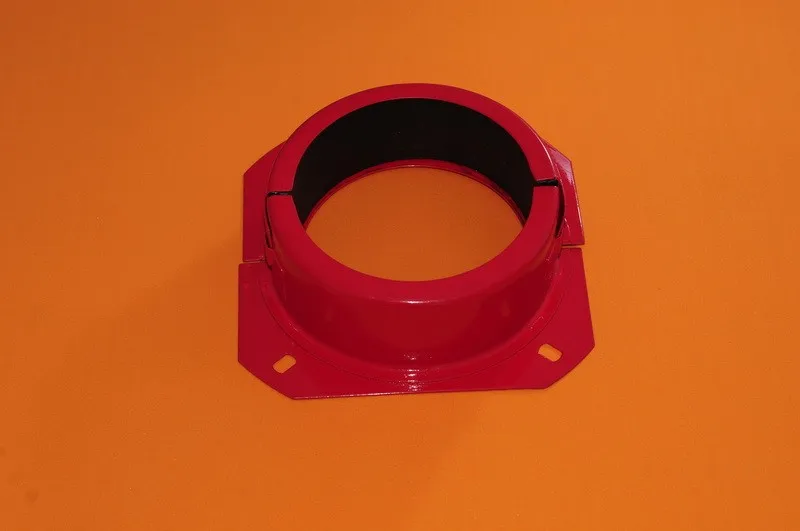

Fire Collar for UPVC Pipes

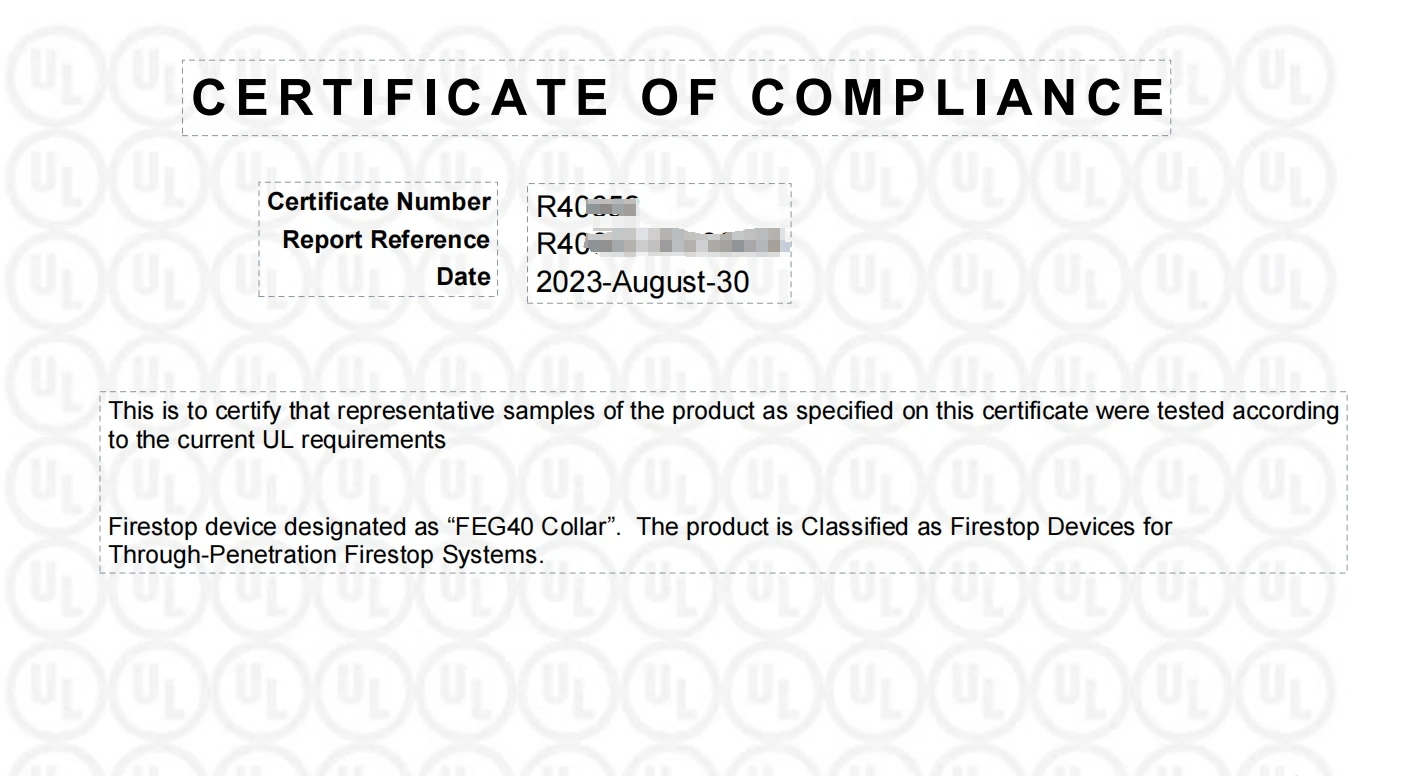

Introducing the FEG40 Collar, the first product in China to achieve UL 1479 certification for firestop devices.

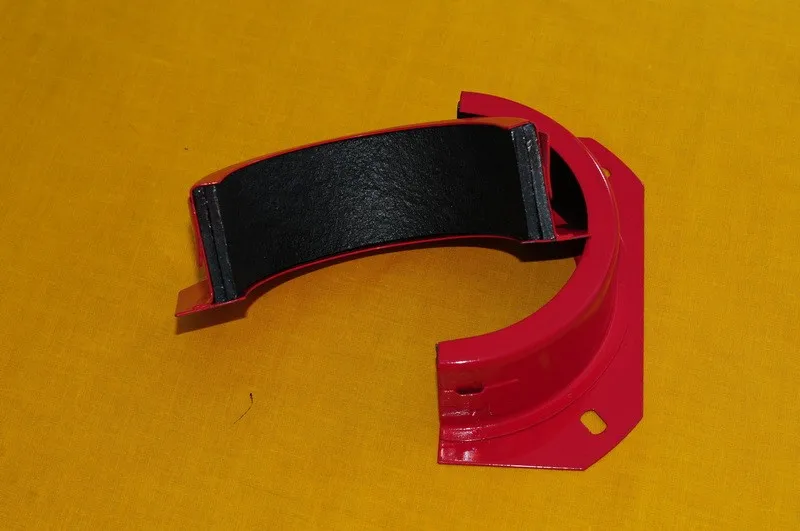

The graphite sealing fire collar is an installation component of building fire protection, which is composed of a graphite fire sealing strip and a metal casing, and a fire prevention member is arranged. It can be installed in each floor of the building or between the walls, wires, pipes, water pipes and ventilation pipes, when the fire occurs, the fire resistance of the collar can be quickly sealed off the pipe, to prevent the fire heat source of gas, smoke and flame to the other floor or room penetration and spread. It is simple in construction, and has a remarkable effect on the ideal fire seal.
Our company has complete production process and production assembly line. We can produce a variety of types of graphite sealing fire collar, and we can provide a variety of types of graphite seal fire protection component according to customer drawings and technical parameters.
Fire collars are developed according to British Standard, European Norm, Australian Standard and Chinese Standard, to meet the different demands from the markets. It is used around a synthetic pipe like HDPE, PVC, UPVC, PE, PP… pipes for fire retardant, with a fire resistance of up to 2 hours and 4 hours. We can also produce at customers’ designs and sizes.
Specification
Code | size | Di | Do | Height |
HG-FCC80 | 80 | 85 | 120 | 43 |
HG-FCC110 | 110 | 112 | 145 | 53 |
HG-FCC125 | 125 | 127 | 165 | 63 |
HG-FCC160 | 160 | 162 | 200 | 73 |
HG-FCC200 | 200 | 204 | 260 | 103 |
HG-FCC250 | 250 | 254 | 315 | 123 |
Code | Size | Di | Do | Height |
HG-FCP55 | 55 | 85 | 120 | 43 |
HG-FCP80 | 80 | 112 | 145 | 53 |
HG-FCP110 | 110 | 127 | 165 | 63 |
HG-FCP125 | 125 | 162 | 200 | 73 |
HG-FCP160 | 160 | 204 | 260 | 103 |
HG-FCP200 | 200 | 254 | 315 | 123 |
Workshop
Company Information
Huaian Sheng Chang Chemical Material Co., Ltd was founded in 1993. And it is a branch of Beijing Invention Biology Engineering & New Material Co., Ltd. Huai'an Shengchang is mainly specialized in developing and producing expandable graphite, including middle-carbon graphite, high-carbon graphite, sulfur-less expandable graphite, flame-retardant graphite material and intumescent strip.
How To Order
Packaging & Shipping
1. Our packaging is as per customer's request.
2. Normal goods delivered by sea transport.
3. Sample shipping by express.
Our Services
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
