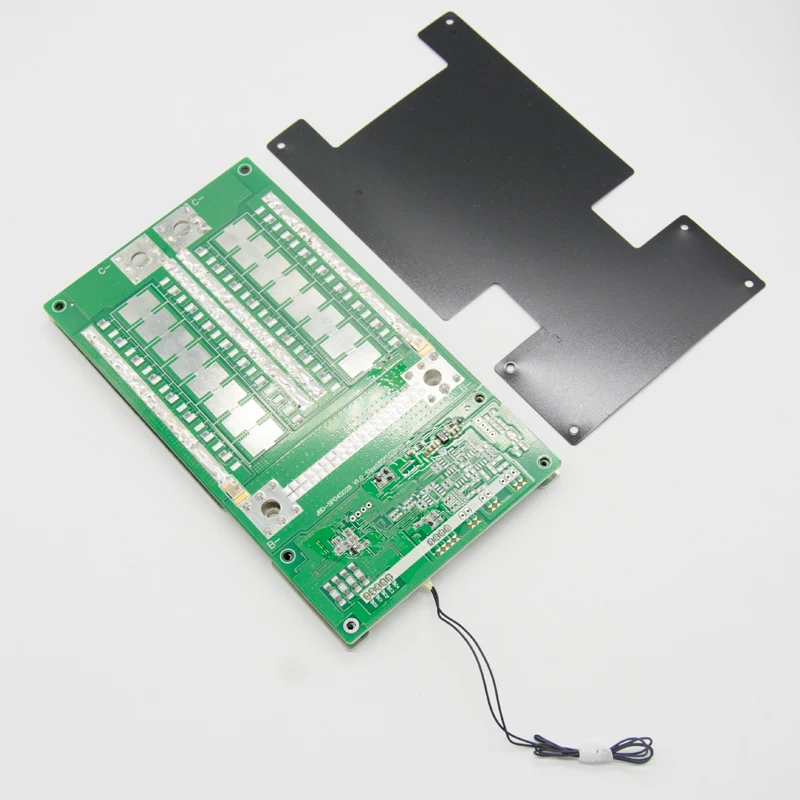

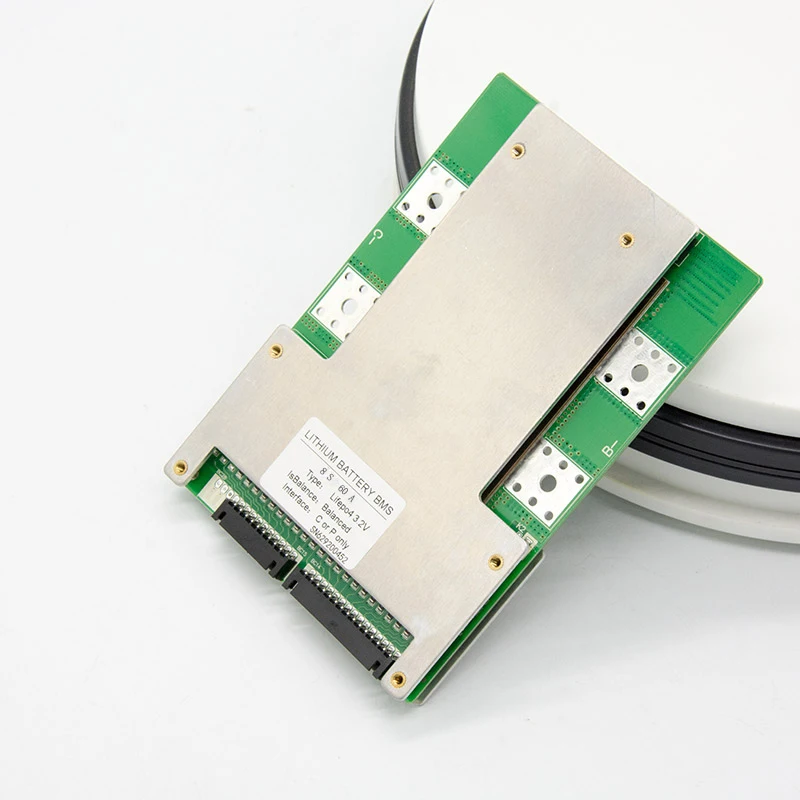

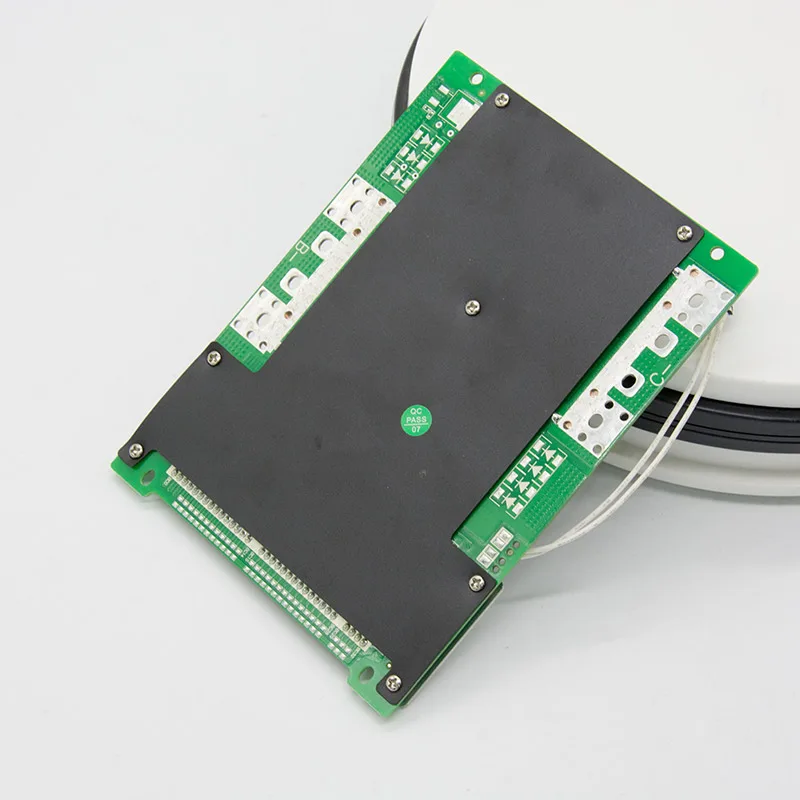

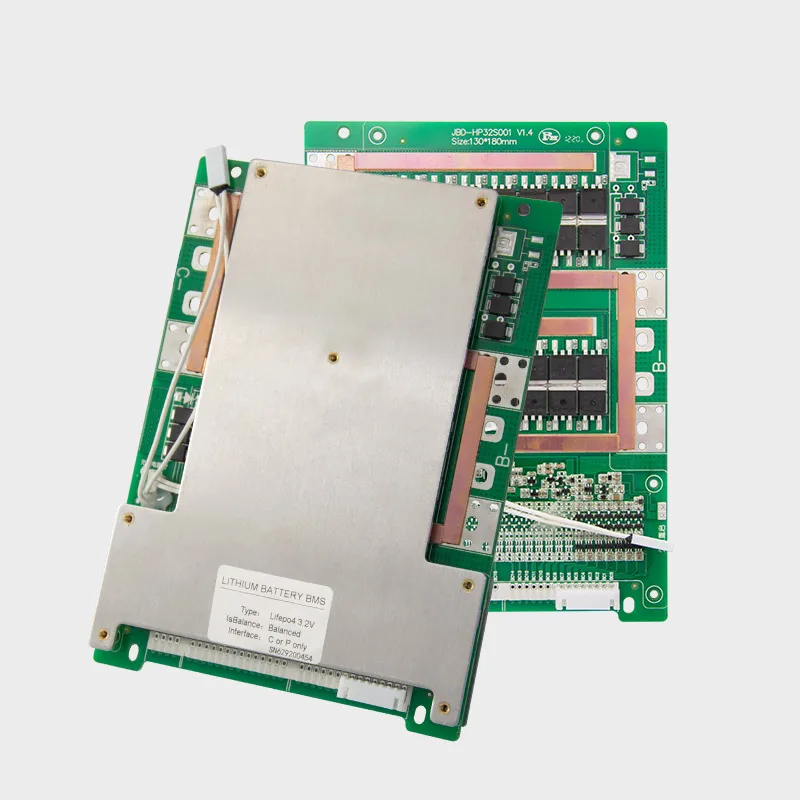

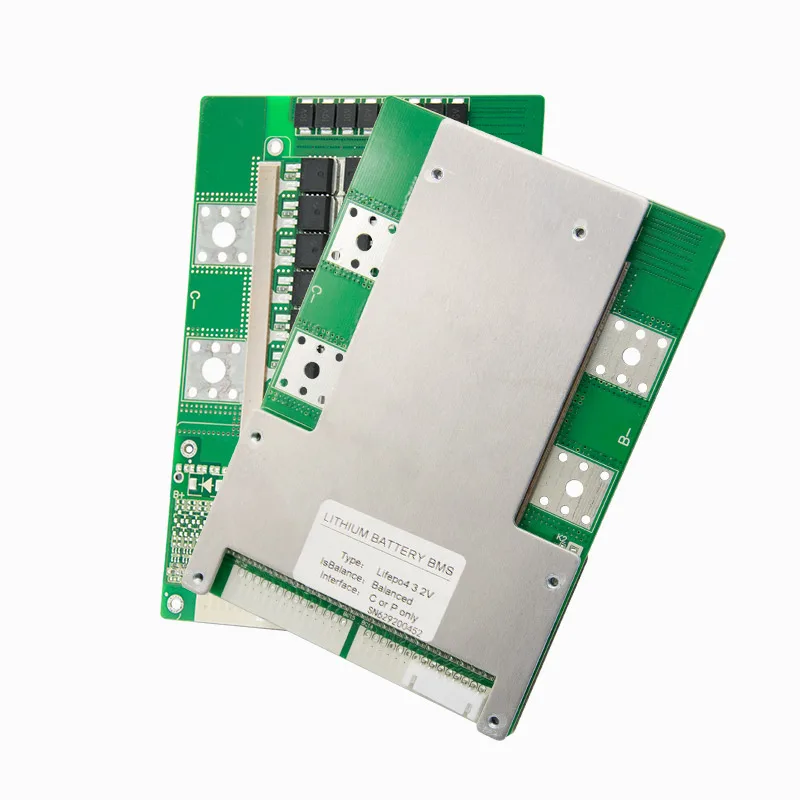

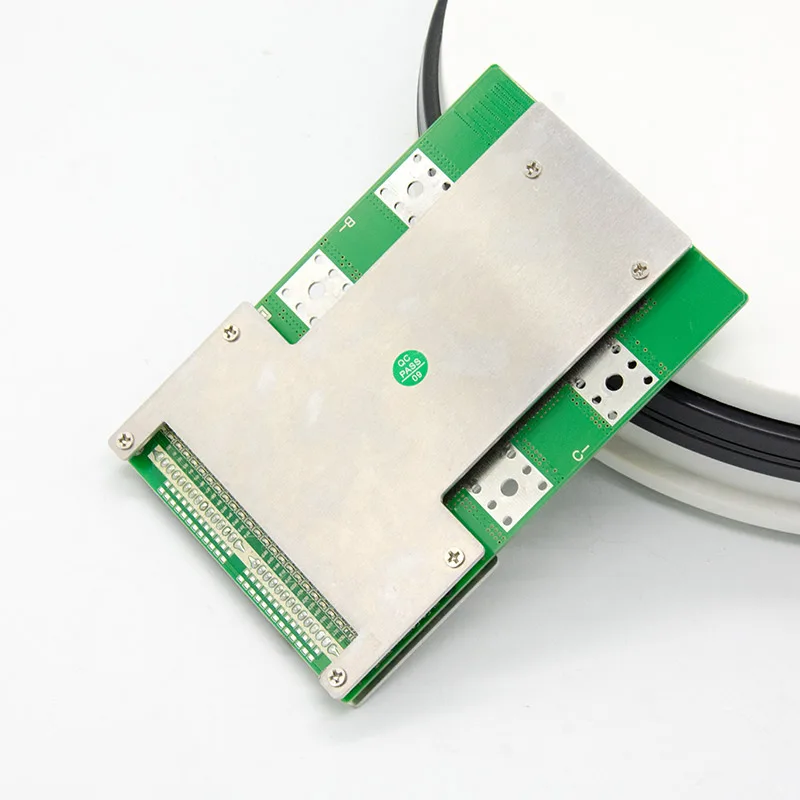

3.7V Li ion 3S BMS 12V 150A battery management system with balance and doubleTemperature control pcb
- Category: >>>
- Supplier: Shenzhen Zhongtong Battery Co. Ltd.
Share on (1600433993876):
Product Overview
Description
Product Paramenters
3S 12V BMS LI-ION | ||
Type | BMS LI-ION | |
Operating current (MAX) | 150A | |
Operating voltage range | 8.4-12.75V | |
Over-charge protection voltage | 4.25±0.05V | |
Over-discharge protection voltage | 2.8±0.1V | |
Balanced turn-on voltage | 4.2±0.05V | |
High temperature protection value of charging | 65±5℃ | |
High temperature protection value of discharge | 75±5℃ | |
Internal resistance | <20mΩ | |
Size | 130*180*18mm | |
Products Description
It is suitable for lithium batteries with different chemical properties, such as lithium ion, lithium polymer, lithium iron
phosphate, etc.The protection board has strong load carrying capacity and the maximum continuous discharge current can reach 150A.
● 3-28 cell series protection
phosphate, etc.The protection board has strong load carrying capacity and the maximum continuous discharge current can reach 150A.
● 3-28 cell series protection
● Various protection functions for charging and discharging
● Hardware discharge over - current,short - circuit protection function processing
● Reserve discharge control switch and discharge temperature protection position
● Very low static consumption current
