Direct Printing on cloth Belt Digital Textile Printer Machine Cotton printer for woven and knitting Fabric
- Category: >>>
- Supplier: Hangzhou Aeon Machinery Co. Ltd.
Share on (1600434124651):
Product Overview
Description
Product Description

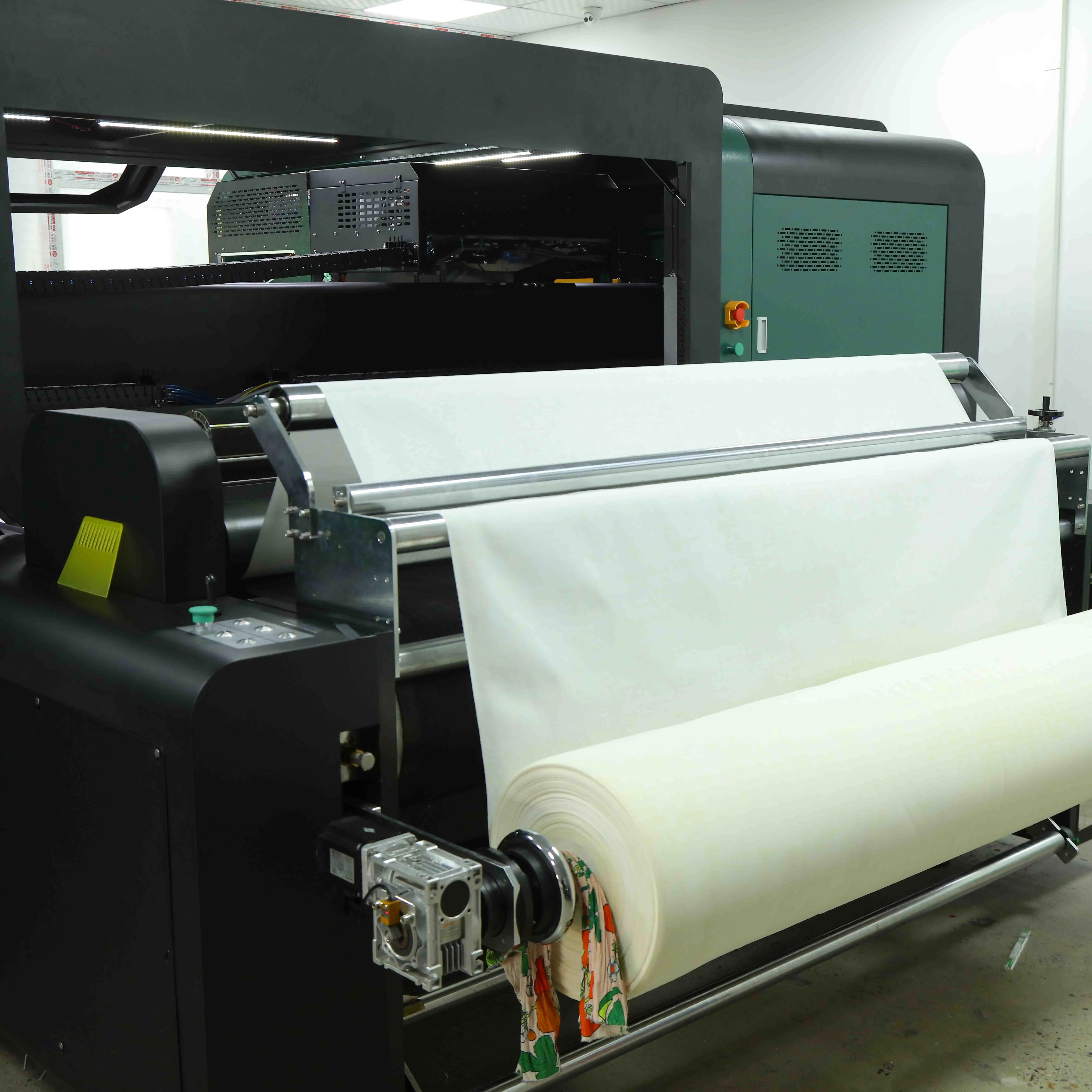

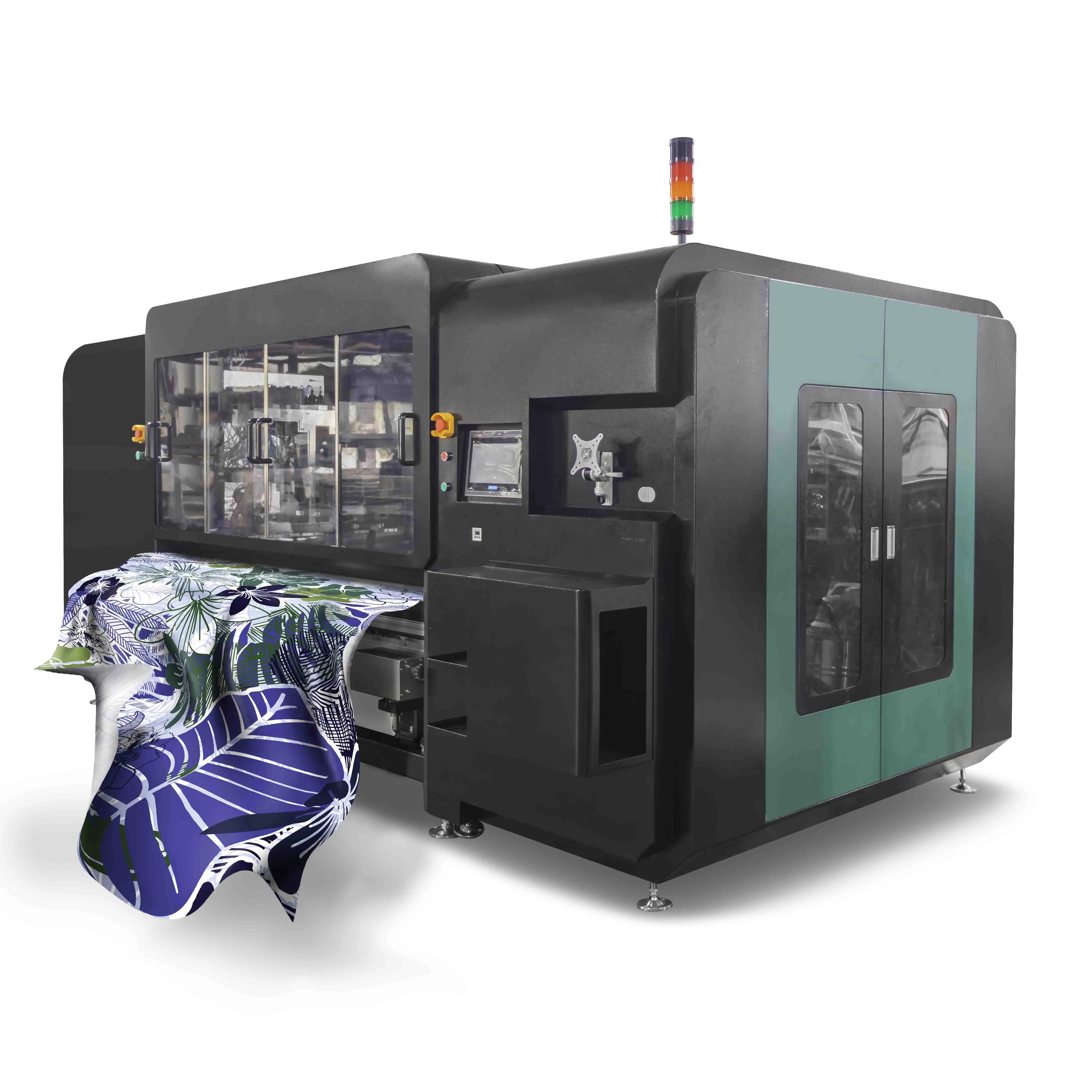

Direct Printing on cloth Belt Digital Textile Printer Machine Cotton printer for woven and knitting Fabric
Machine parameters:
| Machine model | xc11-32 |
| Print head | Ricoh G6 |
| Fabric thickness | 2-30mm adjustable |
| Max. printing width | 1800mm/2600mm/3200mm optional |
| Max. fabric width | 1850mm/2650mm/3250mm |
| Suitable fabric type | knitted or woven cotton, linen, silk, wool, nylon & chemical fiber fabric |
| Ink color | Ten colors optional: cmyk/c,m,y,k,Lc,Lm,Grey, Red, Orange, blue |
| Types of inks | Reactive/disperse/acid/pigment inks |
| Printing speed | production 2 pass printing mode:634 m2/hour |
| Image type | JPEG,TIFF, BMP file format and RGB/CMYK color mode |
| RIP software | Wasatch/Neostampa/Texprint |
| Medium transport | Belt continuous transport, automatic fabric feeding and take up |
| Power | The whole machine 16KW (Dryer 8KW) |
| Power supply | 380AC ± 10%, 3 phase 5 wires |
| Compressed air | Air volume ≥ 0.6m3/min, air pressure ≥ 6KG |
| Working environment | Room temperature 18-28℃,humidity:50-70% |
Machine size and weight:
| Machine width | 1800mm | 2600mm | 3200mm |
| Overall dimensions | (L)3800X(W)4140X(H)2000mm | (L)3800X(W)4940X(H)2000mm | (L)3800X(W)5740X(H)2000mm |
| Weight | 4200KGS + Dryer 600KGS | 6000KGS + Dryer 1000KGS | 8000KGS + Dryer 1500KGS |
This Direct Printing on cloth Belt Digital Textile Printer Machine Cotton printer for woven and knitting Fabric is designed for meeting the quickly changed fashion garment market. It can not only to response the market requirement quickly, but also help to reduce printing pollution so that it is environment friendly solution. Thanks to the on demand piezo ink jetting technology. You do not need to make plate through complicated process. What you need to do is to print the images your want from computer to the fabric directly and fixing ink color on fabric. If you are going to print on silk or cotton, you may need loop steamer machine to cure reactive ink color on textile. If you are going to print on polyester fabric, you may need a color fixation machine to cure sublimation inks onto fabric.

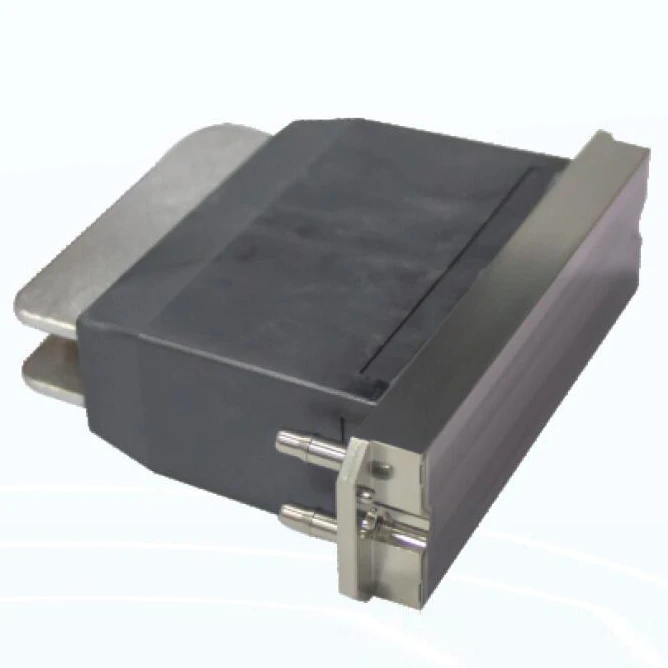

This Direct Printing on cloth Belt Digital Textile Printer Machine Cotton printer for woven and knitting Fabric is styllish desined appearance. Equipped with durable industrial Ricoh print heads. As to reduce head-ache nozzle blogging problem, degassing system is designed in this fabric printer as to remove air bubbles in the inks before they get into print heads. Belt skewing correction system and belt washing system are also well equipped.
Packaging & Shipping
Direct Printing on cloth Belt Digital Textile Printer Machine Cotton printer for woven and knitting Fabric need one 40HQ for the printer itself and another one 20 feet container for the dryer.
Our Services
We can send fabric samples to customer for reference if they can cover the courier charge. Customers can get direct images on the printing quality by their own eye.

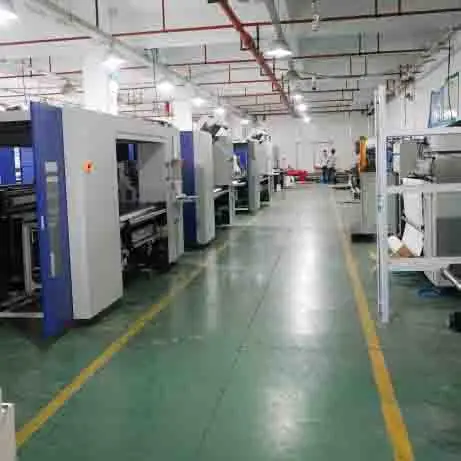

If customer is able to visit us, we can accompany them to visit printing factory to check the machine running in real production.
Whenever customer got question in production, our technical team can always support online.
