Product Overview
Description
Customization is available, please let us your requirements, we will design a professional plan for you!
Thank you!
Applications
DX gaussmeters can be used to measure the magnetic induction of various magnetic fields such as AC/DC magnetic field, radiated magnetic field, residual magnetism, and earth magnetic field, permanent magnet material surface magnetic field, DC motors, speakers, magnetic separator, and permanent magnetic separator magnetic field of work, magnetic circuit gap and slit field within the magnetic field.
Also it can be applied to the detection machining residual magnetic field of the goods, distribution of magnetic field, the remaining magnetic after demagnetization, the magnetic of motor and magnetic flux leakage of electromagnetic fields and other kinds of magnetic field intensity of magnetic induction.
Parameters:
1. Power supply: 220V ± 20V/0.5A, 50Hz
2. Range: 200.0mT, 2000mT two gears
3. Accuracy: better than 1.0% (0 ~ ±1000mT); better than 2.0% (1000mT ~ ±2000mT);
4. DC/AC field measurement and peak vlaue locking
5. Minimum resolution: 0.01mT (0.1Gs)
6. Dimension: 248mm × 180mm × 90mm
7. Weight: 2kg
2. Range: 200.0mT, 2000mT two gears
3. Accuracy: better than 1.0% (0 ~ ±1000mT); better than 2.0% (1000mT ~ ±2000mT);
4. DC/AC field measurement and peak vlaue locking
5. Minimum resolution: 0.01mT (0.1Gs)
6. Dimension: 248mm × 180mm × 90mm
7. Weight: 2kg

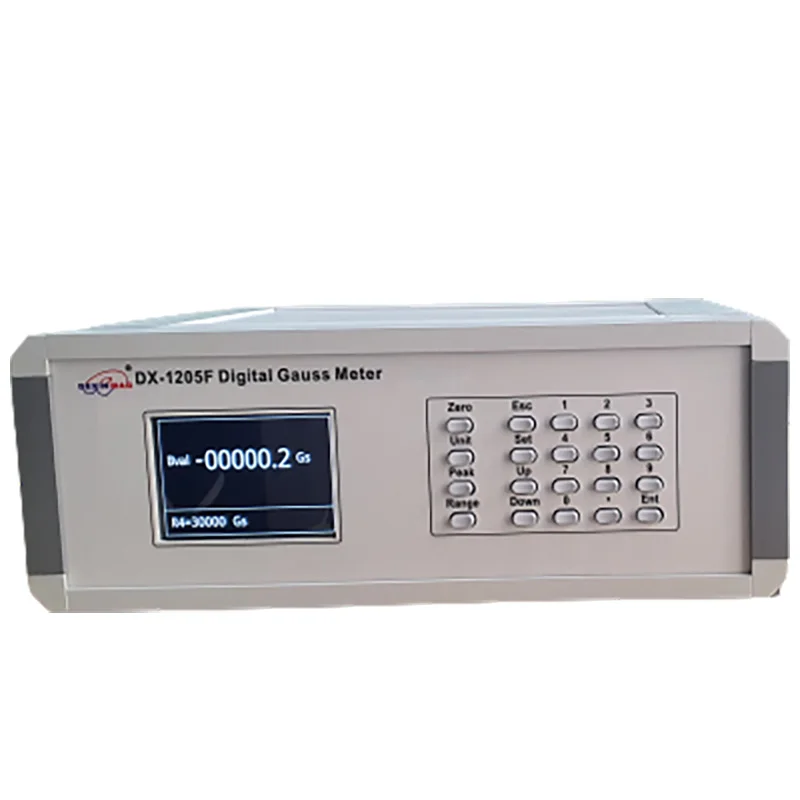

DX-1205F Digital Gauss Meter
Parameters:
1. Power supply: 220V ± 10V/0.5A, 50Hz
2. Range: 1000Gs/3000Gs/10000GS/30000GS
3. Accuracy: better than 0.5% ;
4. Minimum resolution: 0.01Gs
5.Operating environment: Temperature: 0℃～50℃, Humidity: 35～80%
6. Dimension: 304mm × 260mm × 120mm
7. Weight: 3kg
2. Range: 1000Gs/3000Gs/10000GS/30000GS
3. Accuracy: better than 0.5% ;
4. Minimum resolution: 0.01Gs
5.Operating environment: Temperature: 0℃～50℃, Humidity: 35～80%
6. Dimension: 304mm × 260mm × 120mm
7. Weight: 3kg

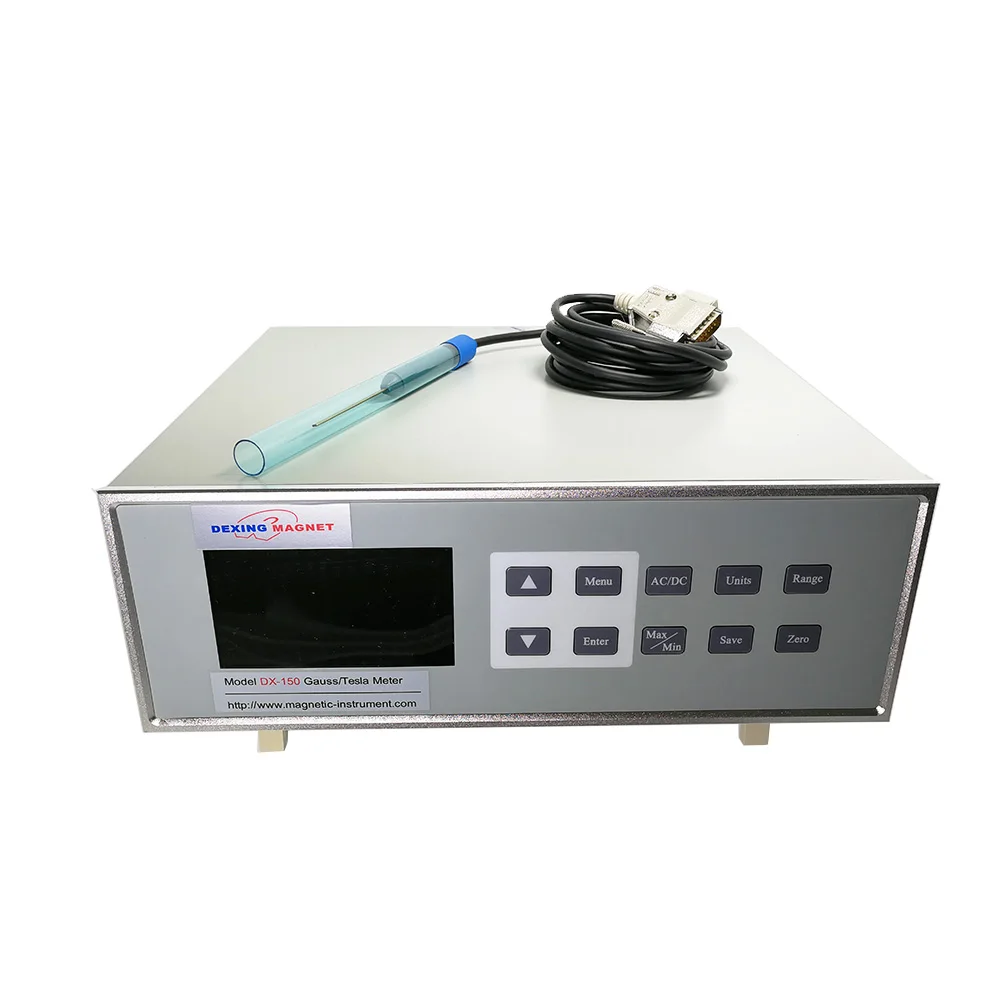

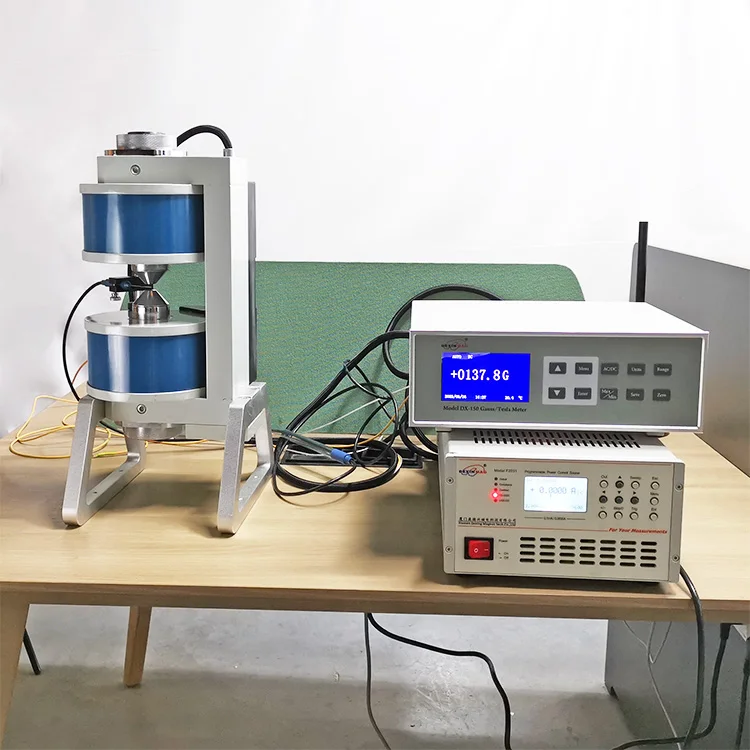

DX-150 High Precision Gauss Tesla Meter
Parameters:
DX-150 Gauss Tesla Meter | ||||
0.1mT=1Gs | ||||
Range | (0.1Gs-3000Gs)/( 1Gs-30KG) | |||
Resolution | 0.1Gs(0.01mT) | |||
Accuracy (display value) | DC | ±0.3% of reading ±0.05% of range | ||
AC | ±2.0% of reading ±0.5% of range | |||
Frequency Range | DC mode | DC | ||
AC mode | AC20Hz to 20kHz | |||
Additional effects | Temperature coefficient | ±(0.03% ±1 count)/ ºC | ||
Temperature range | Working temperature | 0ºC to 50ºC | ||
Storage temperature | -10ºC to 60ºC | |||
Panel display | 128 * 64 pixel, widescreen LCD | |||
Communication Interface | RS-232 Standard 9-pin D-type connectors | |||
Supply power | Voltage: 200/240v Frequency: 50-60 Hz | |||
Parameters:

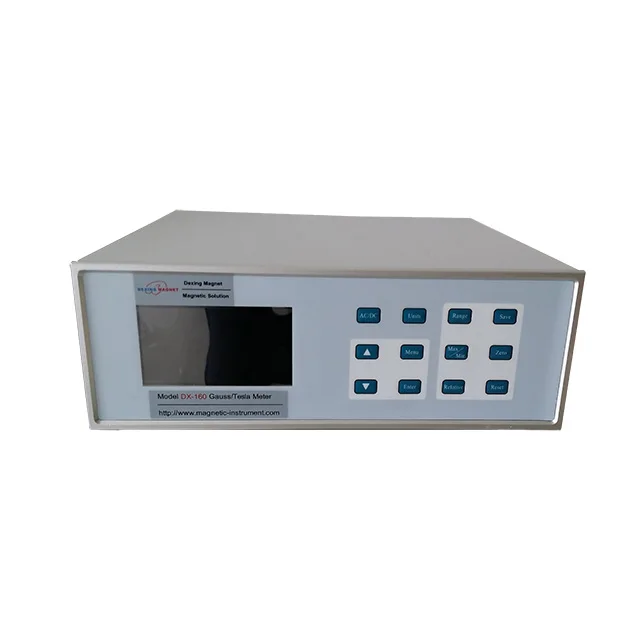

DX-160 Gaussmeter | ||||
0.1mT=1Gs | ||||
Range | *(0.1mG-30G)/ (1mGs-300Gs)/(0.01Gs-3000Gs)/(0.1Gs-30KG) | |||
Resolution | 0.1mGs(0.01uT) | |||
Accuracy (display value) | DC | ±0.20% of reading ± 0.05% of range | ||
AC | ±1% of reading | |||
Frequency Range | DC mode | DC | ||
AC mode | AC 2Hz to 50kHz | |||
Analog Output | Output voltage | ±3V F.S. | ||
Connectors | Standard BNC | |||
Additional effects | Temperature coefficient | ±(0.02% ±1 count)/ ºC | ||
Temperature range | Working temperature | 0ºC to 50ºC | ||
Storage temperature | -20ºC to 60ºC | |||
Panel display | 320 x 240 pixel , 3.5 inch full view color screen | |||
Communication interface | RS-232 Standard 9-pin D-type connectors | |||
Supply power | Voltage: 200/240v Frequency: 50-60 Hz | |||
Parameters:

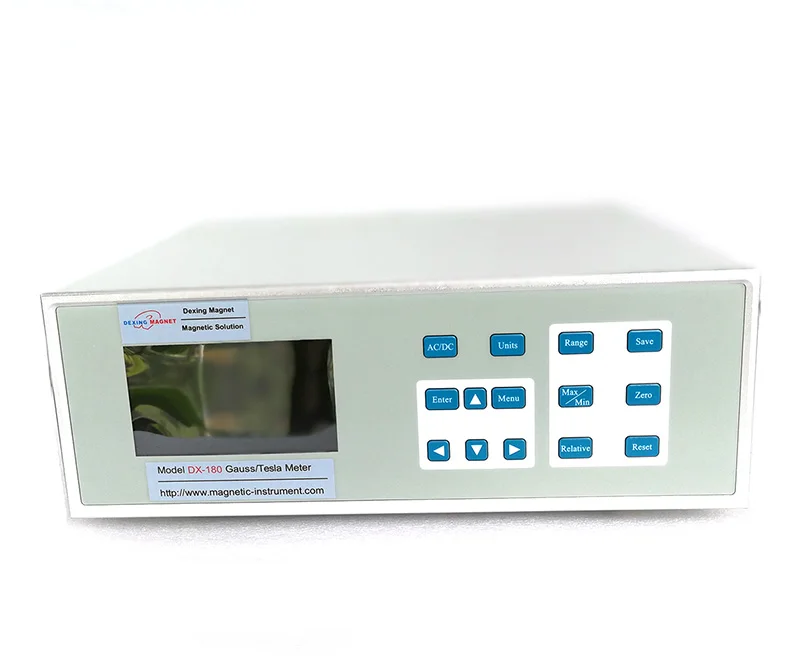

DX-180 Gauss Meter | ||||
0.1mT=1Gs | ||||
Range | *(0.1mG-30Gs)/(1mGs-300Gs)/(0.01Gs-3000Gs)/(0.1Gs-30KG)/*(1Gs-100kGs) | |||
Resolution | 0.1mGs(0.01uT) | |||
Accuracy (display value) | DC | ±0.05% of reading ± 0.005% range | ||
AC | ±1% of reading ±0.5% range | |||
Frequency Range | DC mode | DC | ||
AC mode | AC2Hz to 100kHz | |||
Analog Output | Output Voltage | ±3V F.S. | ||
Connectors | Standard BNC | |||
Additional effects | Temperature Coefficient | ±(0.015% ±1 count)/ ºC | ||
Temperature range | Working temperature | 0ºC to 50ºC | ||
Storage temperature | -20ºC to 60ºC | |||
Panel Display | 320 x 240 Pixel, 3.5 inch full view color screen | |||
Communication Interface | RS-232 Standard 9-pin D-type connectors | |||
Supply power | Voltage: 200/240v Frequency: 50-60 Hz | |||
Notes: Ranges need to change the probe.

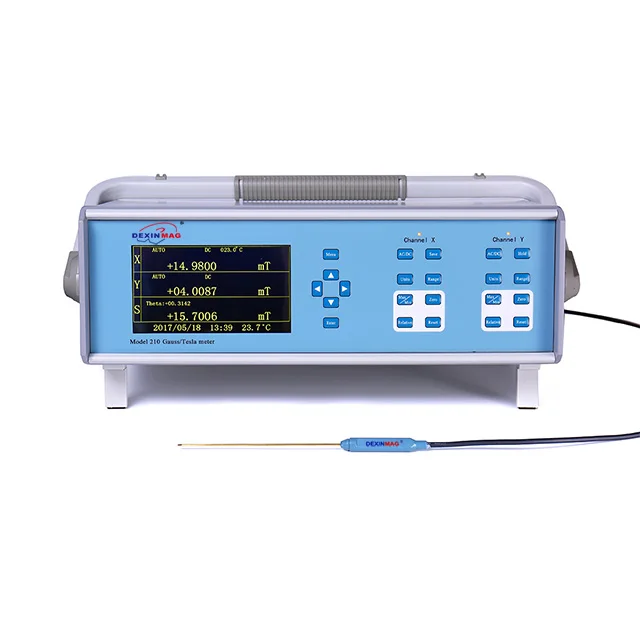

DX-210 Digital Two Dimensional Gauss Tesla Meter
Parameters:
DX-210 Gaussmeter | ||||
Note | 0.1mT=1Gs, marked* has to change probe | |||
Range | *（0.1mG-30G）(1mGs-300Gs)/(0.01Gs-3000Gs)/(0.1Gs-30KG) | |||
Resolution | 0.1mGs(0.01uT) | |||
Accuracy (display value) | DC | ±0.15% of reading , ±0.05% of range | ||
AC | ±1% of reading | |||
Frequency Range | DC mode | DC | ||
AC mode | 20Hz to 50kHz | |||
Analog Output | Output Voltage | ±3V F.S. | ||
Connectors | Standard BNC | |||
Additional effects | Temperature Coefficient | ±(0.03% ±1 count)/ ºC | ||
Temperature range | Working temperature | 0ºC to 50ºC | ||
Storage temperature | -20ºC to 60ºC | |||
Panel Display | VGA,800 x 480 Pixel, 7” color screen | |||
Communication Interface | RS-232 Standard 9-pin D-type connectors | |||
Supply power | Voltage： 200/240v Frequency： 50-60 Hz | |||

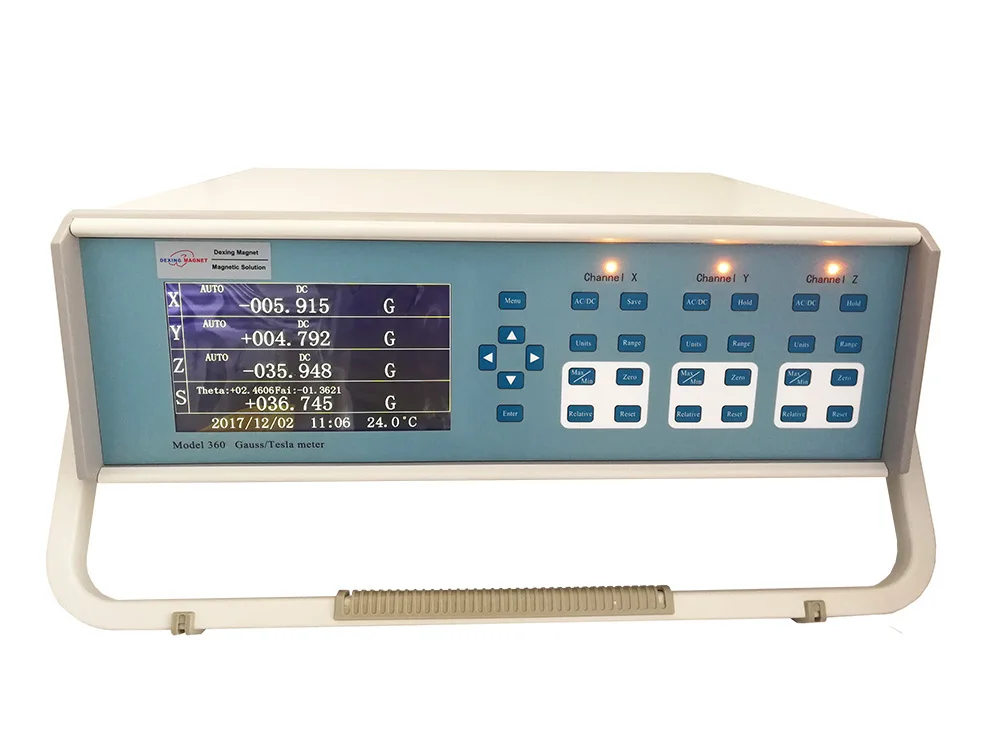

Parameters:
DX-360 Gauss Meter | ||||
0.1mT=1Gs | ||||
Range | 3G (300µT)/ 300G (30mT)/ 3kG/(300mT) /30kG (3T) /100kG/(10T) | |||
Resolution | 0.1mG(10nT) | |||
Accuracy (display value) | One dimensional DC | ±0.05% of reading , ±0.005% of range | ||
Three dimensional DC | ±0.15% of reading , ±0.005% of range | |||
AC | ±1% of reading , ±0. 5% of range | |||
Frequency Range | DC mode | DC | ||
AC mode | 20Hz to 30kHz | |||
Frequency display range | DC to 25kHz | |||
Analog Output (x,y,x) | Output Voltage | ±3V F.S. | ||
Connectors | Standard BNC | |||
Additional effects | Temperature Coefficient | ±(0.015% ±1 count)/ ºC | ||
Temperature range | Working temperature | 0ºC to 50ºC | ||
Storage temperature | -20ºC to 60ºC | |||
Panel Display | VGA,800 x 480 Pixel, 7” color screen | |||
Communication Interface | RS-232 Standard 9-pin D-type connectors | |||
IEEE-485 Standard 9-pin GPIB-type connectors | ||||
Supply power | Voltage： 100/120v 200/240v Frequency： 50-60 Hz | |||
Customization is available, please let us your requirements, we will design a professional plan for you!
Thank you!
