TELIKOU 2022 new wireless intercom system SKYLINE 100 Package for 12 users full duplex for live event stream

Product Overview

Description

TELIKOU 2021 Brand New Wireless Skyline-100
Skyline-190 belt pack running on 1.8/1.9GHz. It can be selected in menu.
LCD screen window for menu setting.
ISO function
Antenna Romaning function
Transmit and receive level control.
(range canbe 800meters, if connect to fiber can be 1-20KM)
3.5mm jack (Tally light Jack on SKYLINE-190/T, Only listen earphone jack on SKYLINE-190/E)
support tally

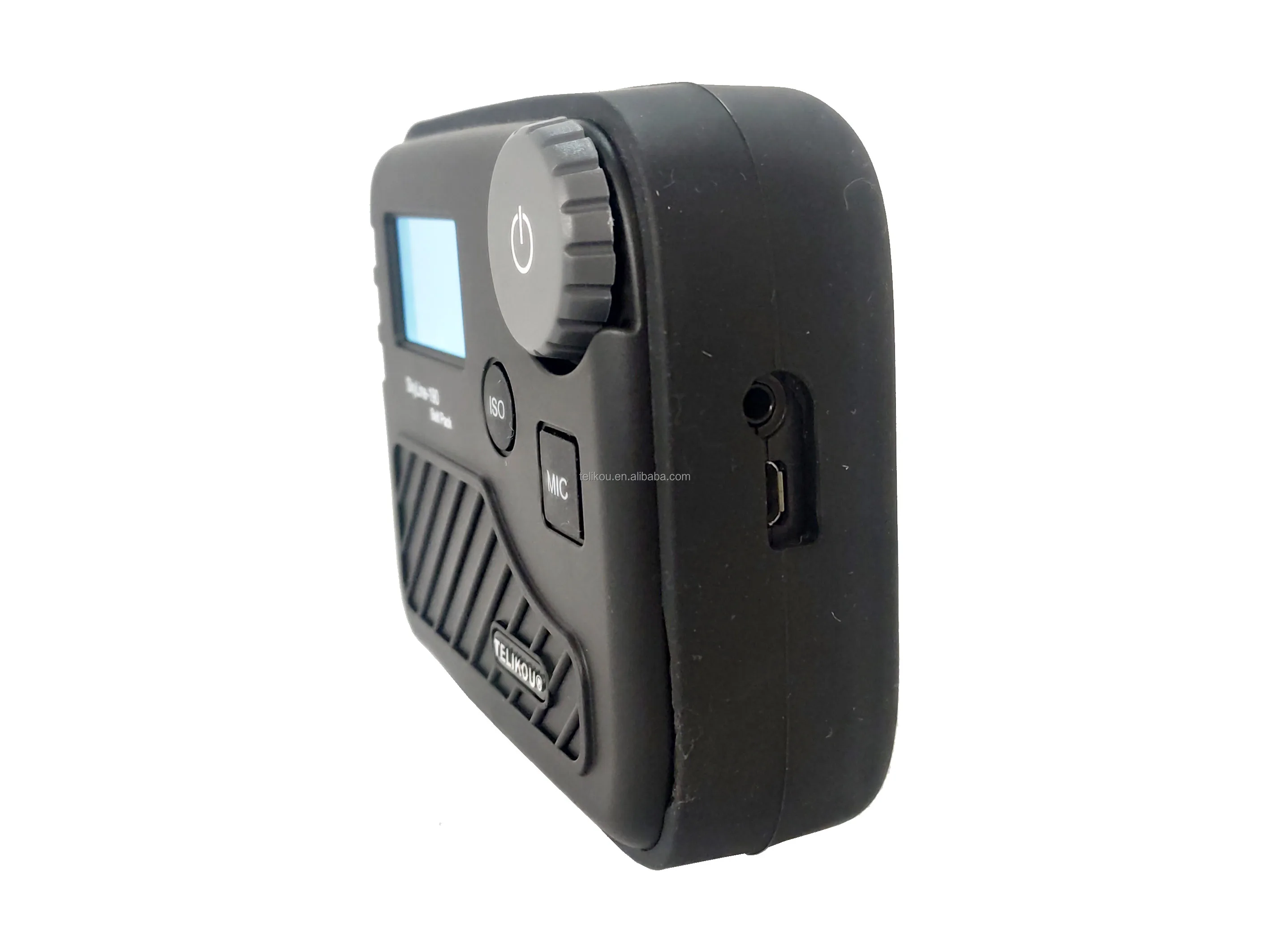

Micro USB battery charger port
Uses 4 x AA rechargable battery
Battery indicator function
Silicon protection cover

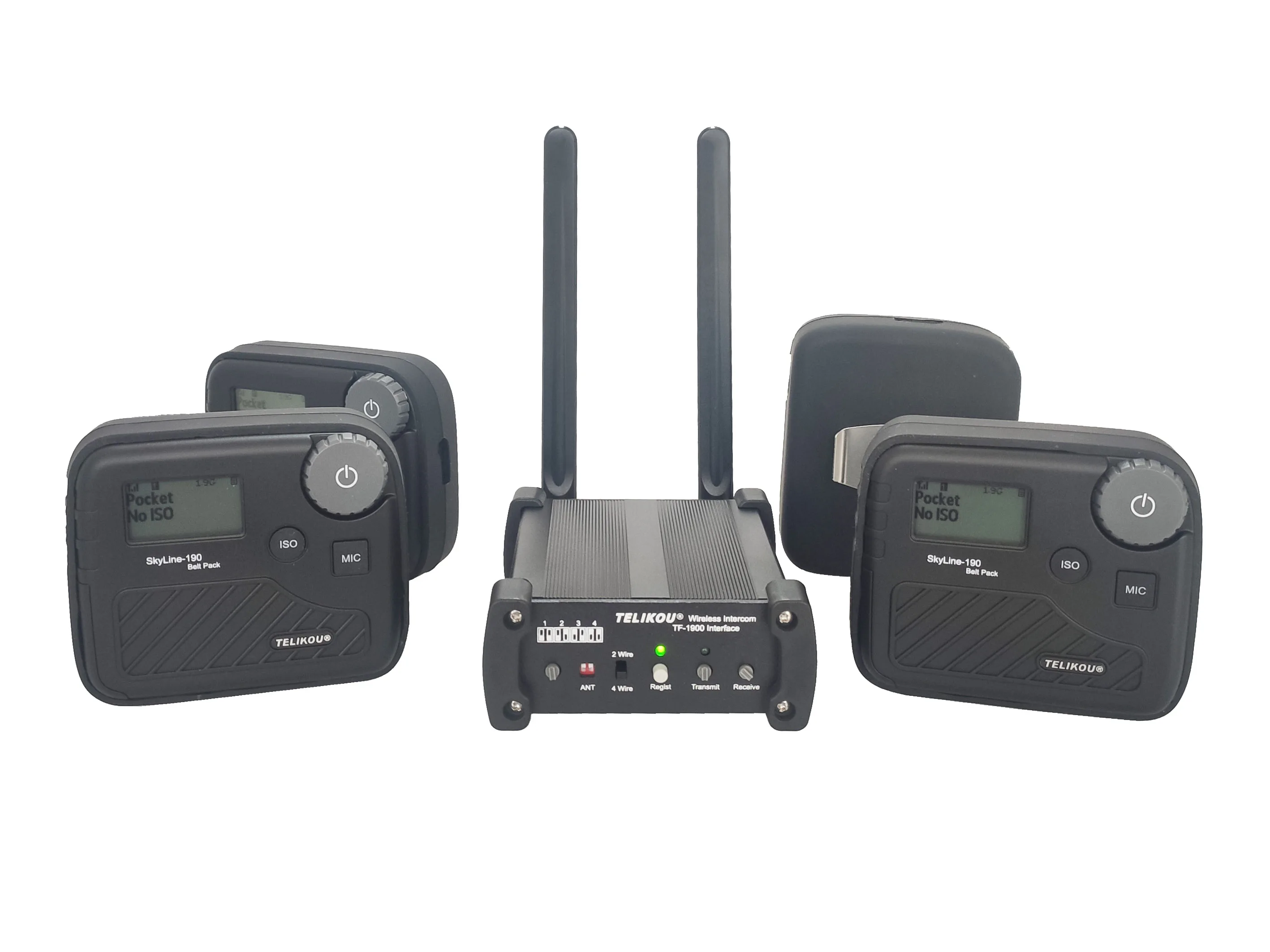

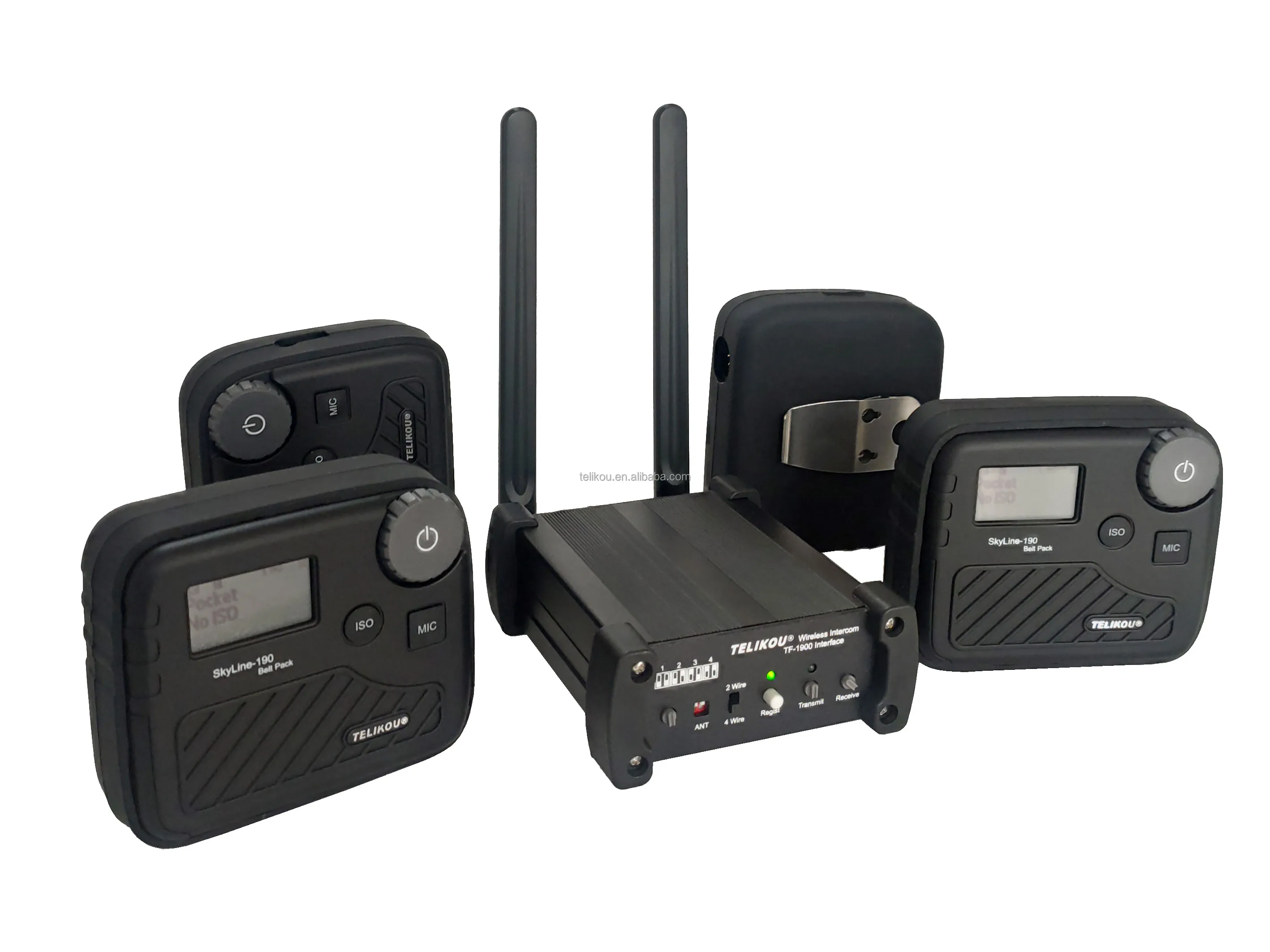

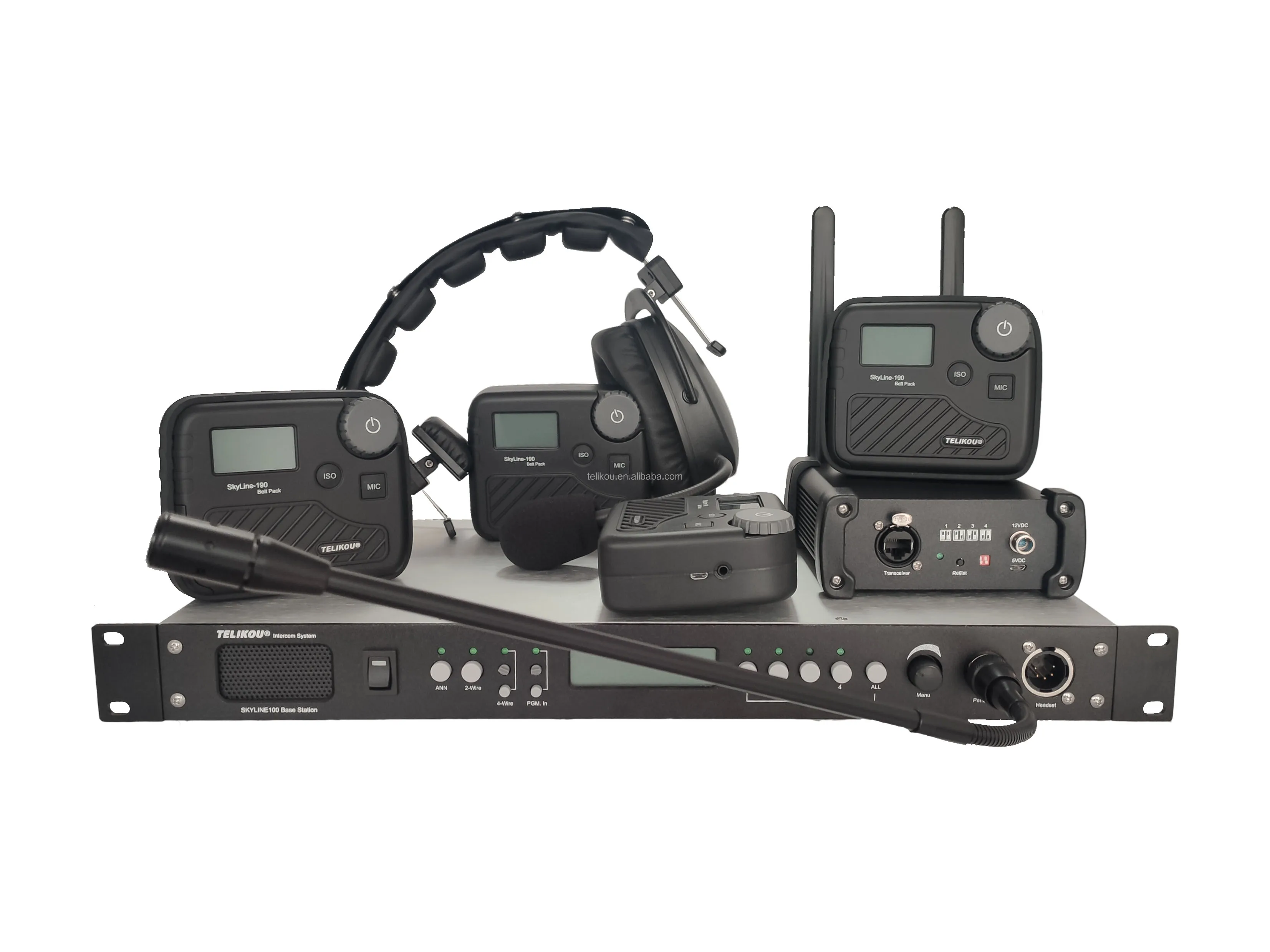

Package contain :

SKYLINE 100 main station x 1, gooseneck microphone x 1 or headset x 1

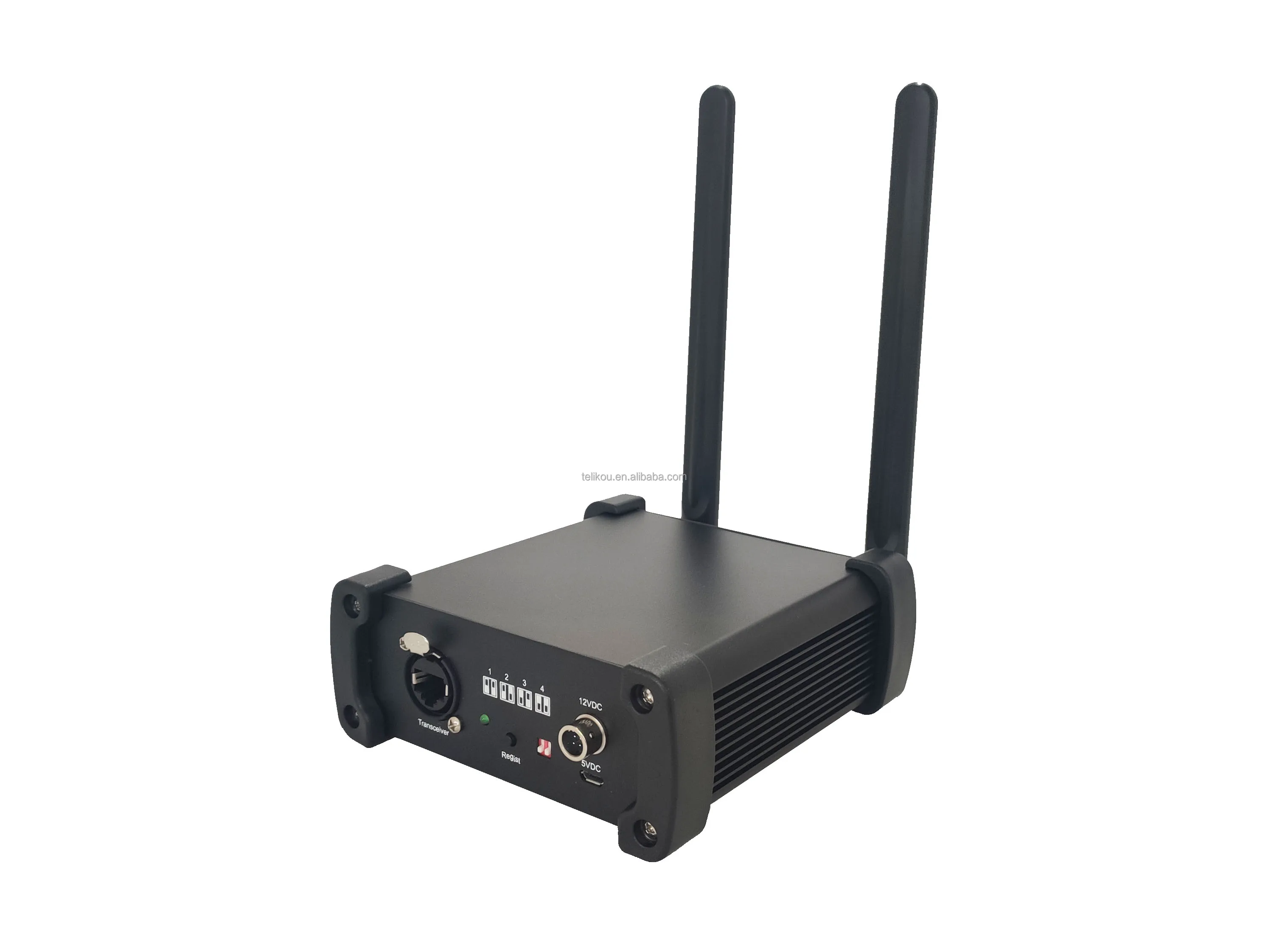

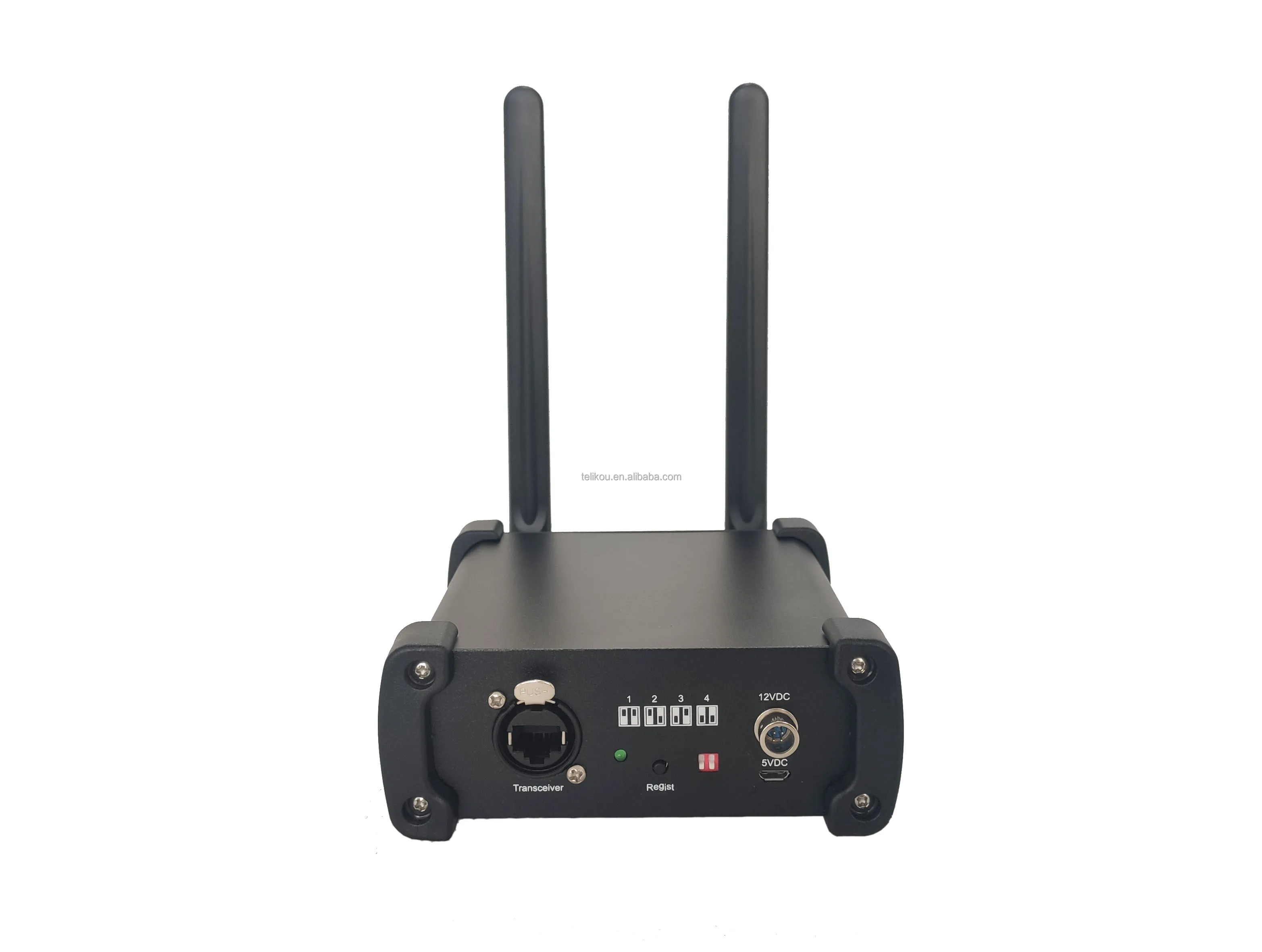

SKYLINE 100ANT antenna x 3  SKYLINE-190 belt pack x 12

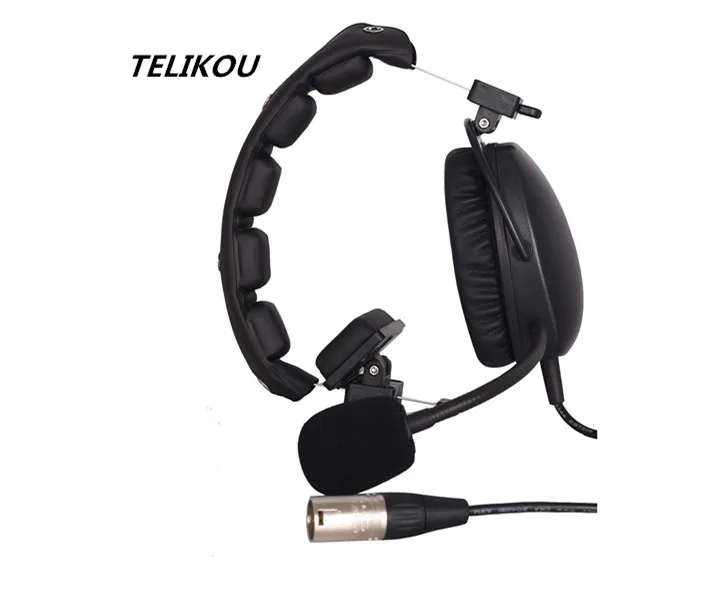

HE-121 single ear headset or HE-122 dual ear headset x 12

Supports 1.8/1.9G frequency, supports 4 channel dual color Tally

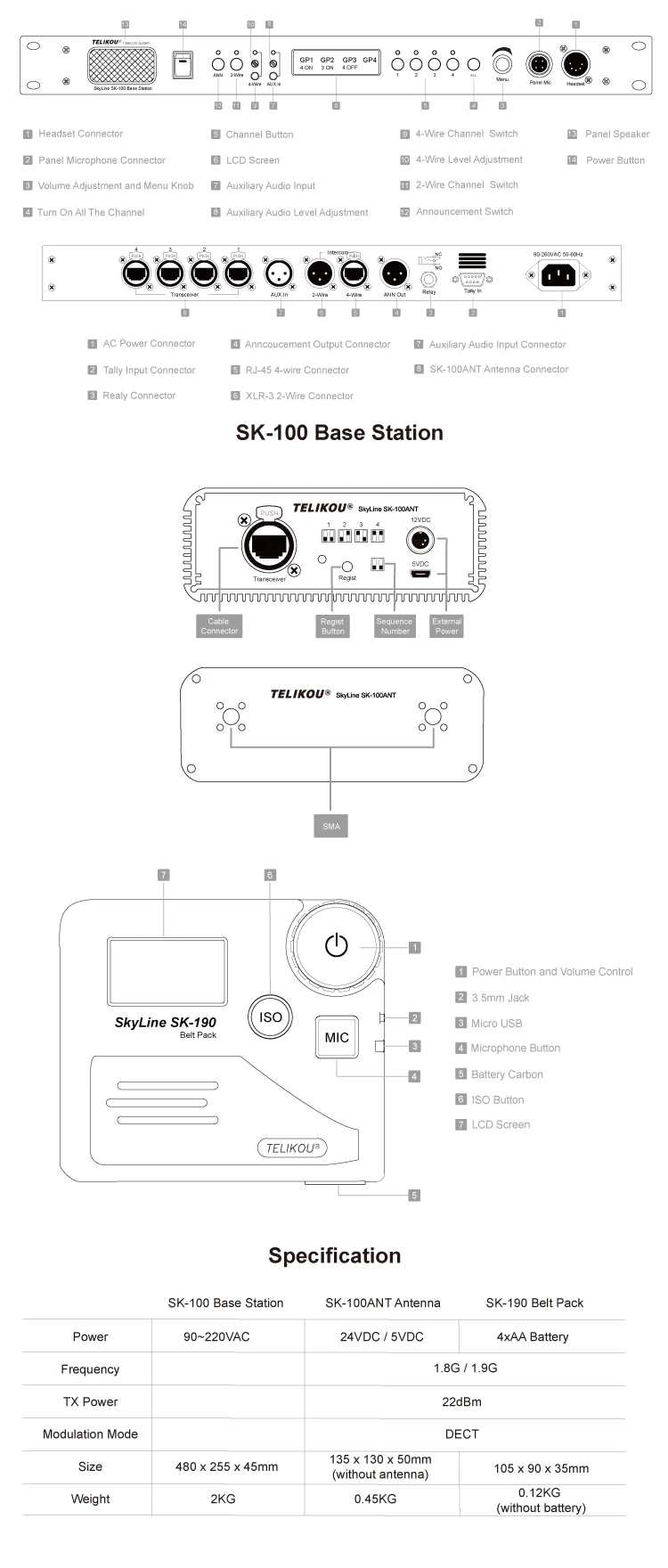

1. This system consists of 1x SK-100 main station, max 4x SK-100ANT antenna(RJ45 connector),

 Max 16x SK-190 wireless belt packs.

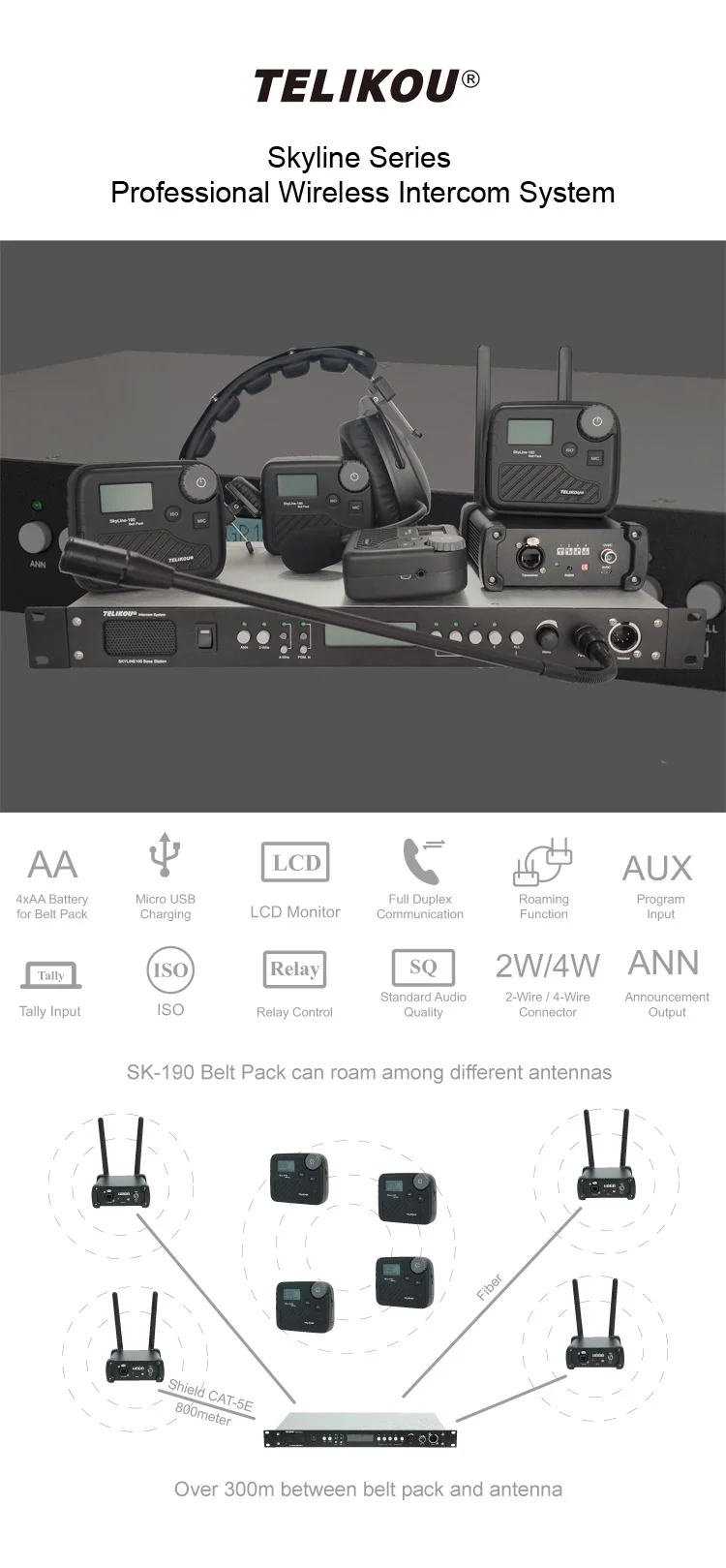

2. SK-190 belt pack can roam among different antennas. If the belt pack walks out of the antenna

signal range, it will sound a cue.

3. SK-190 belt pack can roam to another antenna manually .

4. All the SK-190 belt packs under one antenna form a party line group. In this group, everyone can

talk to each other.

5. When SK-100 main station turns on a certain TALK button, all belt pack screens corresponding

 are awakened to listen to the base station.

6. When TALK button on main station is OFF, if a belt pack turns on the MIC button. The LED

 above TALK button flashes. After pressing the TALK button, it enters a full duplex conversation.

If the main station turns on other channels at this time, they will all join the call.

7. After conversation, when the TALK button on main station is turned off , the corresponding belt

pack MIC will also be turned off at same time.

frequency	power	battery	size	modulation mode
1.8/1.9	90-220V	4XAA battery	480X255X45MM	DECT

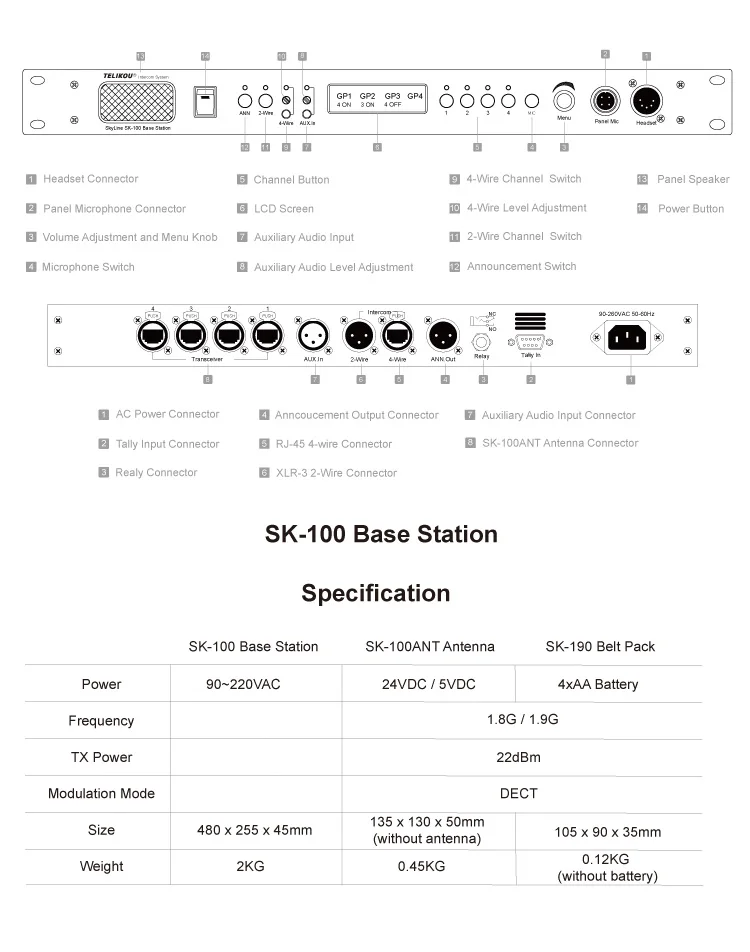

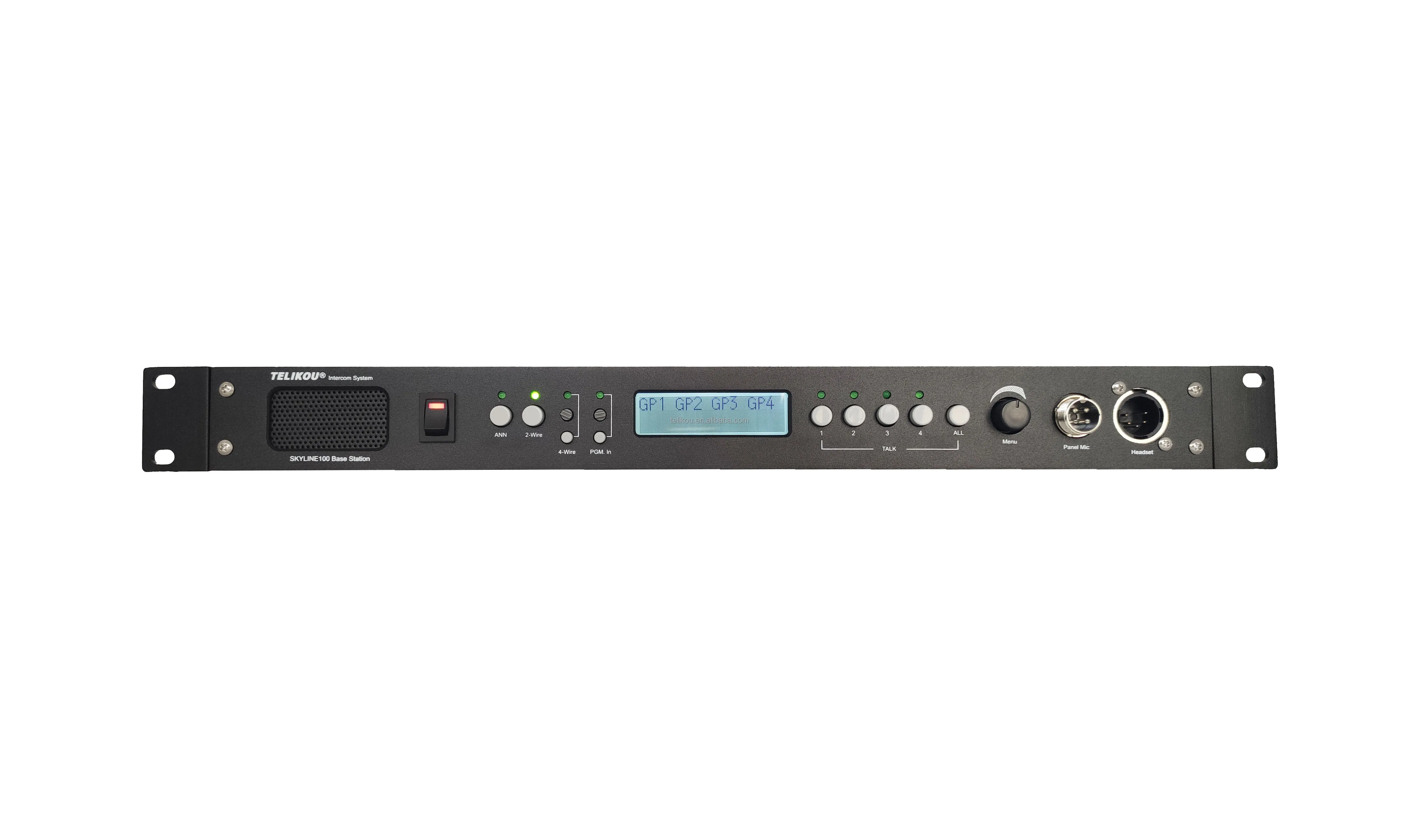

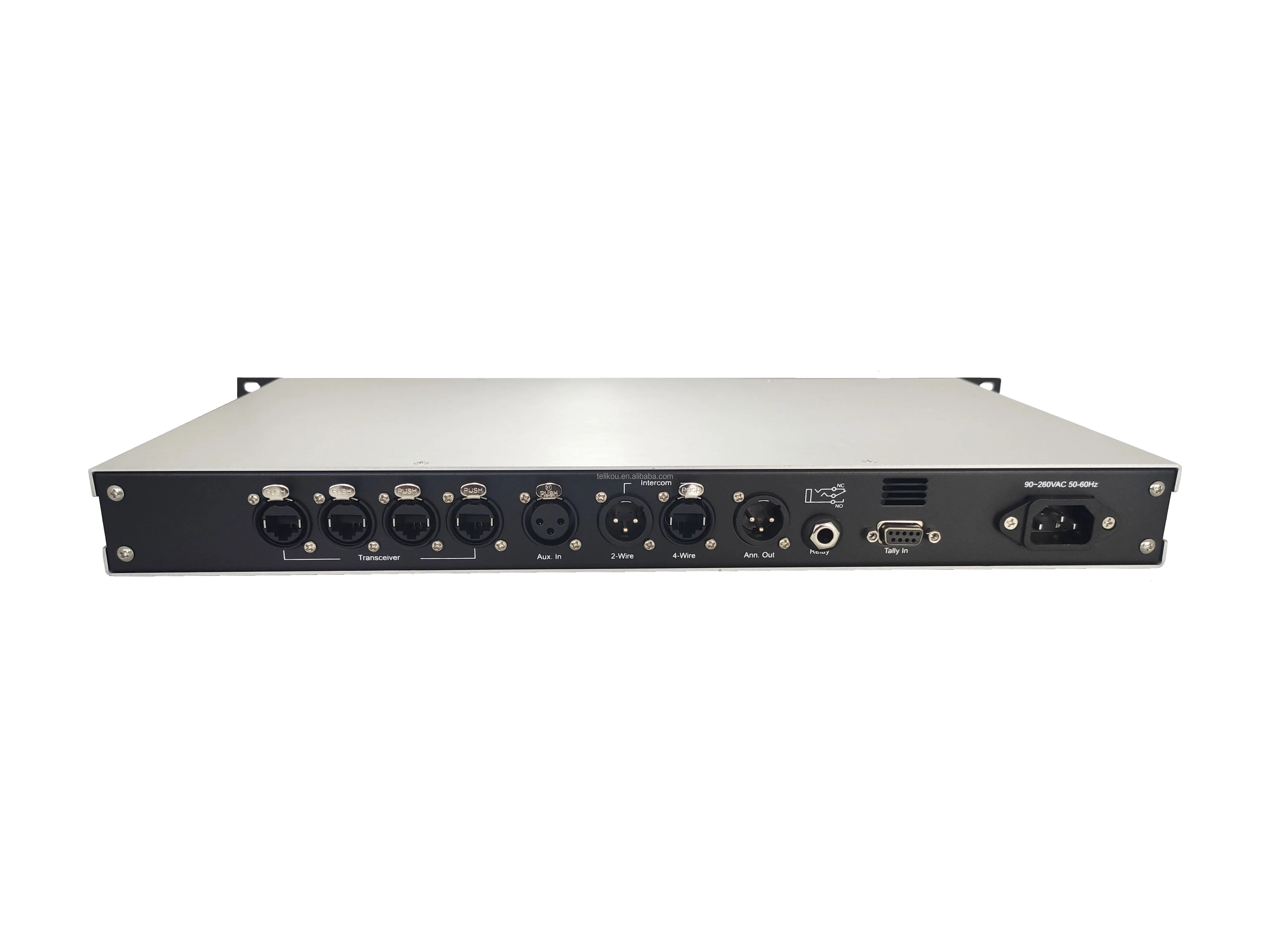

Main station is the control unit for the whole wireless system. It talks with the corresponding group of any antenna through the button switch on front panel.  It also can sent program audio, 2-Wire and 4-Wire audio to the system. When the active antenna is less than 200 meters away from the base station, the power is supplied by the base station; otherwise, the power is supplied by the local 24V or the USB port 5V.



Belt Pack

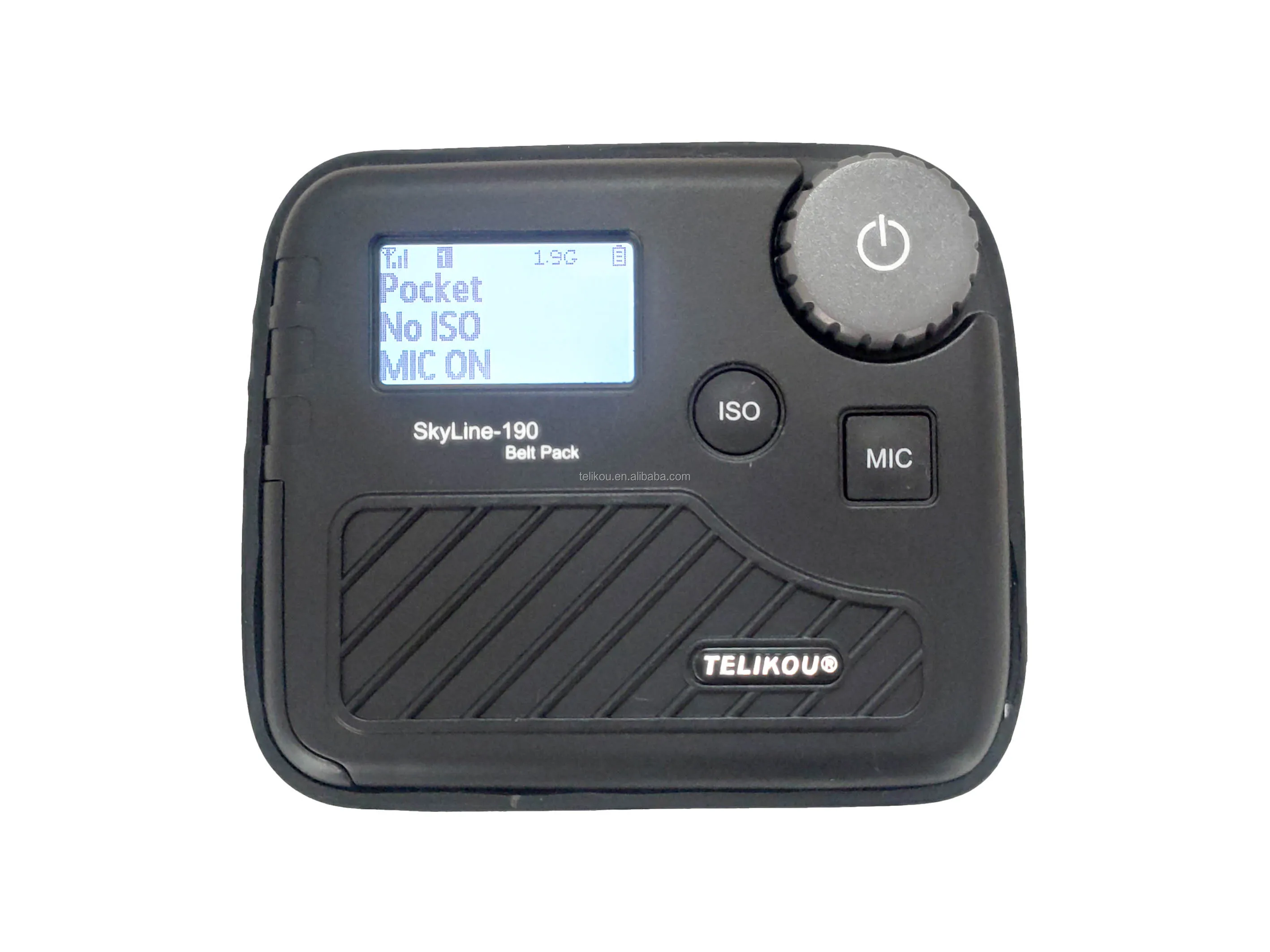

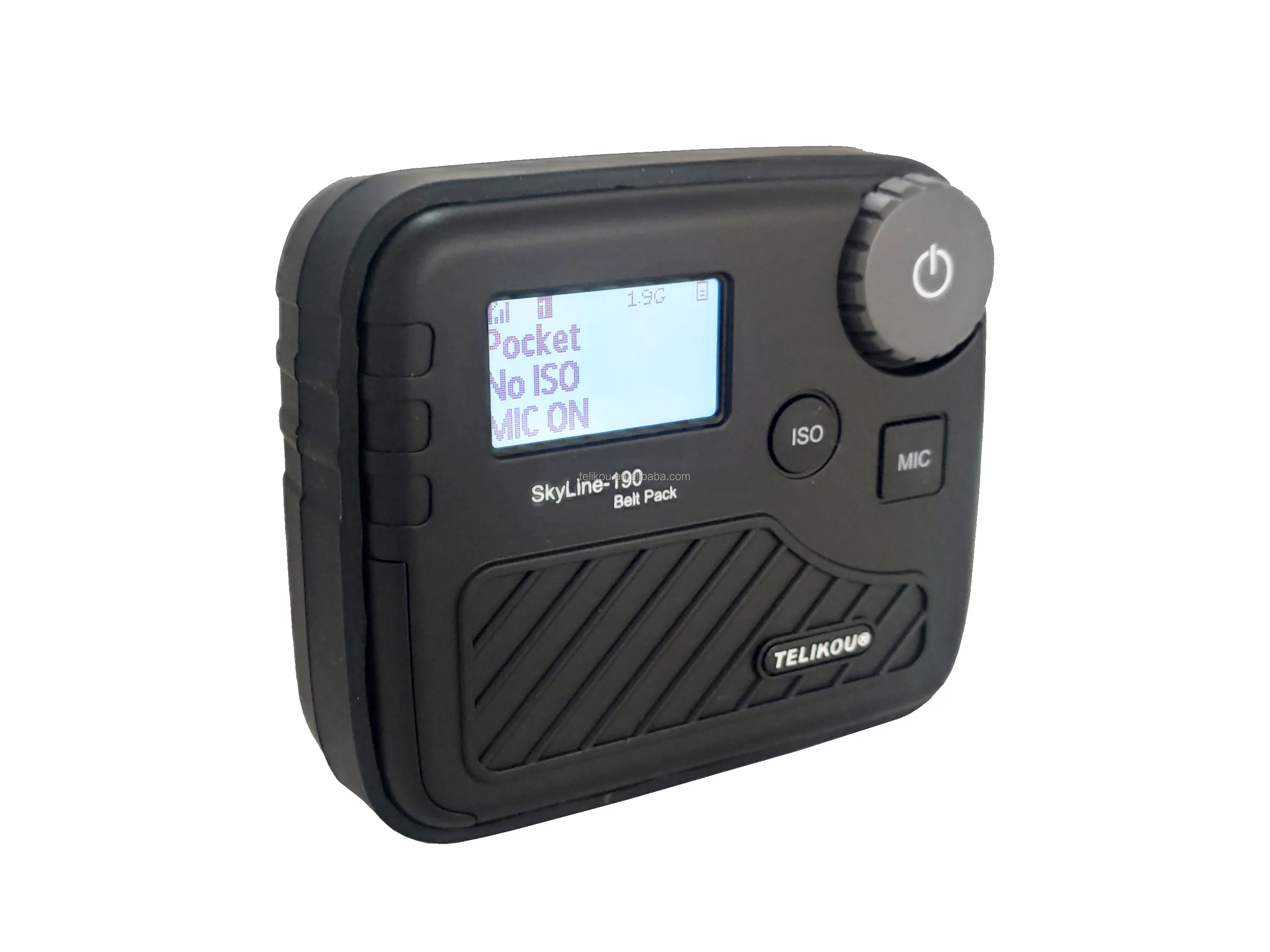

SKYLINE-190 belt pack uses 4x AA battery. Rechargeable battery can be charged through micro-USB connector. In the multi-antenna signal coverage area, belt pack can manually switch to different registered antenna. When walk over the antenna coverage, belt pack headset gives warning sound.

Belt pack is in standby mode after power on. When there is an external call, it will be answered automatically. When press Mic button, it will make a full duplex communication.
