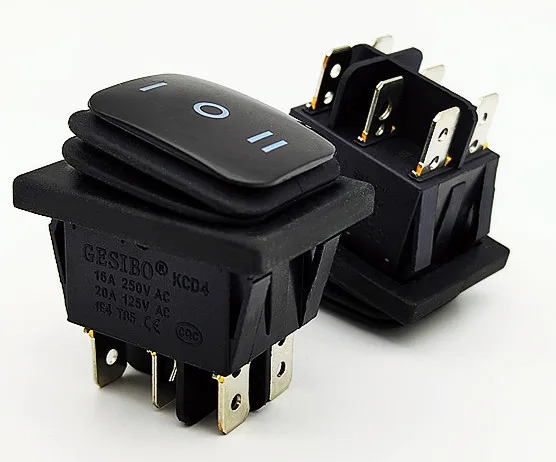

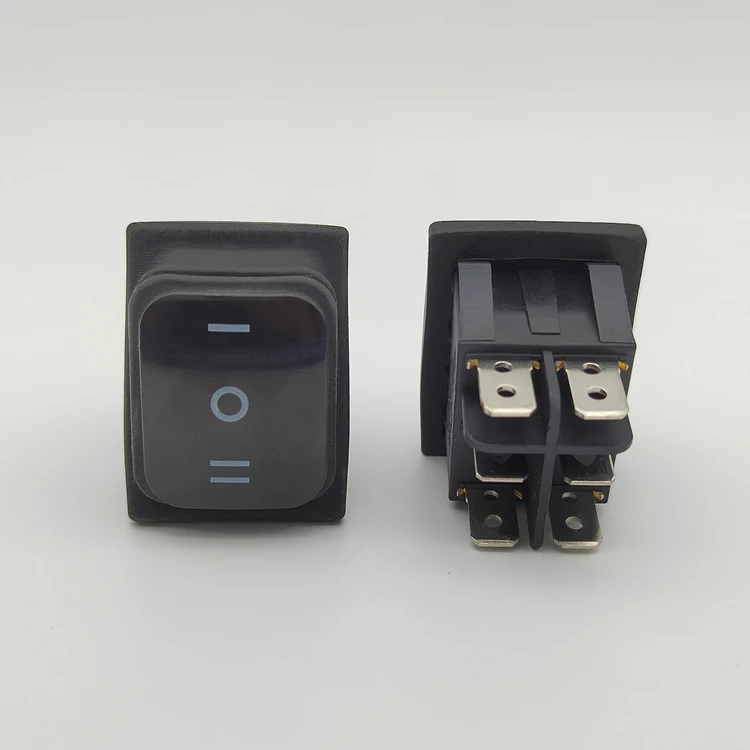

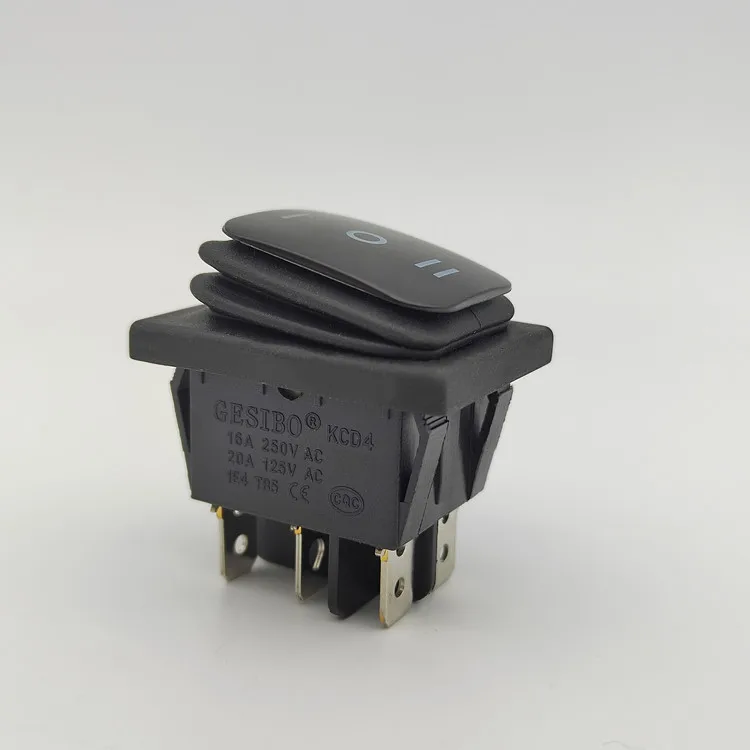

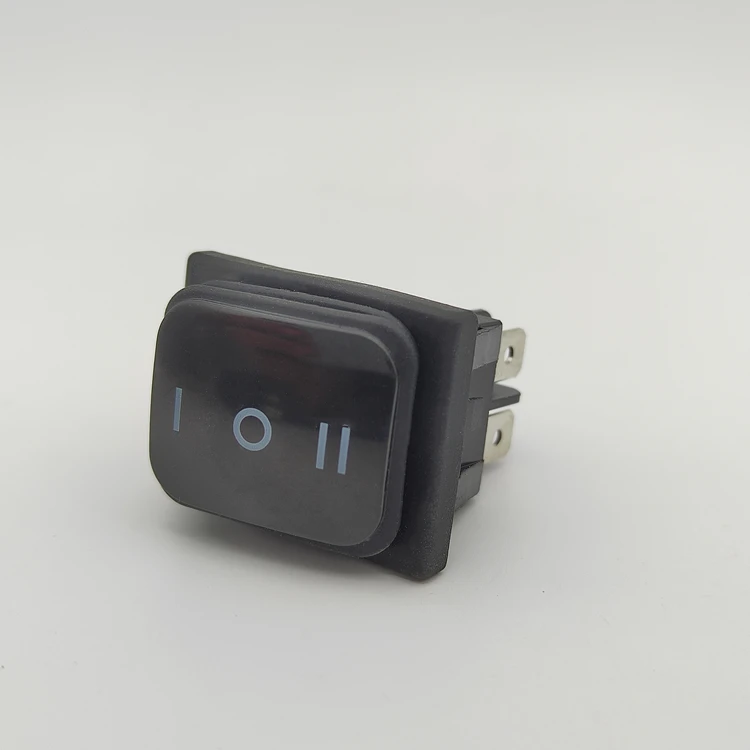

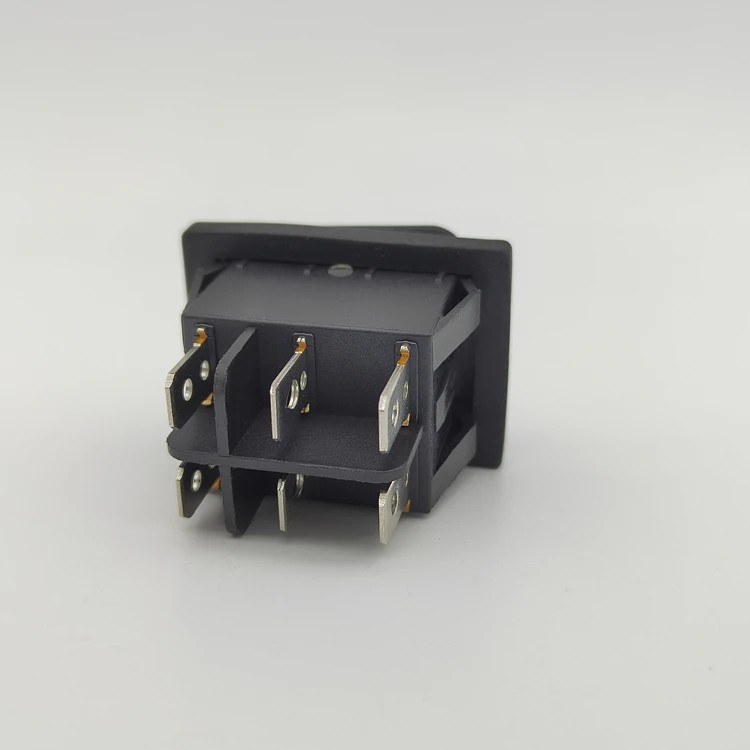

KCD4 16A 250VAC 20A 125VAC Waterproof ON OFF ON SPST 6 Pin Rocker Switch
- Category: >>>

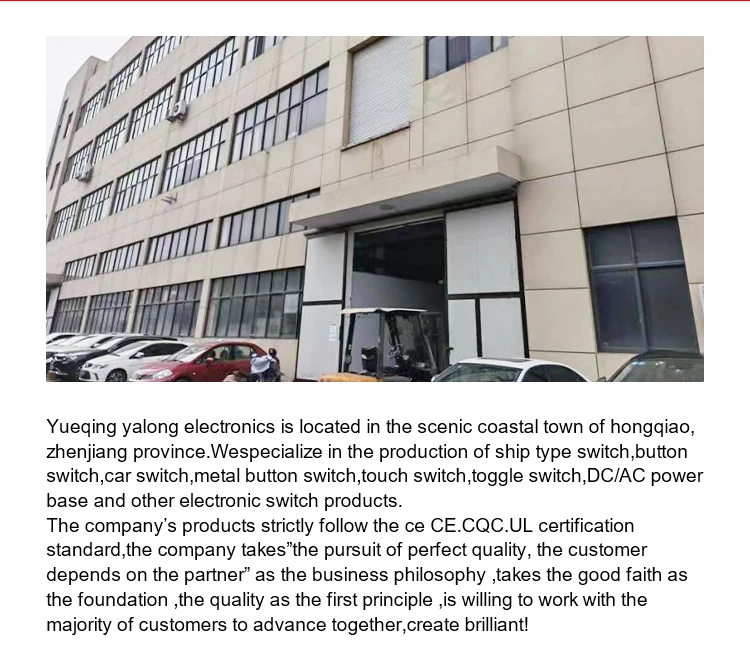

- Supplier: Yueqing Yarong Electronics Co. Ltd.
Share on (1600434212475):
Product Overview
Description

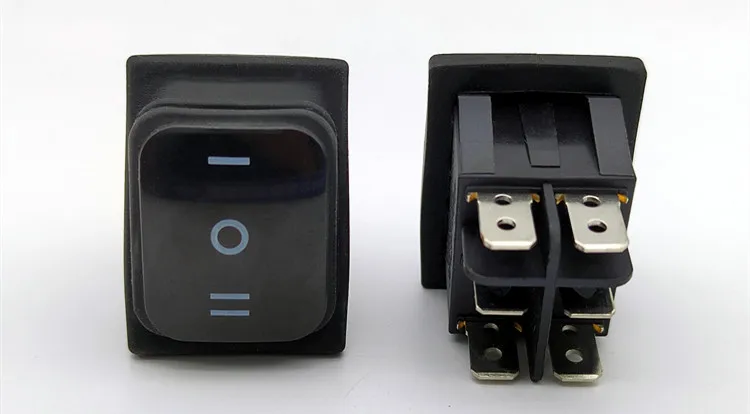

KCD2-2-202W 6-pin ON-OFF-ON 3 file waterproof rocker switch
Rocker switch is also called rocker switch. Its structure is the same as that of a toggle switch, except that the handle of the
button is replaced with a boat shape. Rocker switches are often used as power switches for electronic equipment. Their contacts
are divided into single-pole single-throw and double-pole double-throw. Some switches also have indicator lights. Rocker switches
are used in water dispensers, treadmills, computer speakers, battery cars, motorcycles, ion televisions, coffee pots, power
strips, massage machines, etc., and are mainly used for household appliances.
button is replaced with a boat shape. Rocker switches are often used as power switches for electronic equipment. Their contacts
are divided into single-pole single-throw and double-pole double-throw. Some switches also have indicator lights. Rocker switches
are used in water dispensers, treadmills, computer speakers, battery cars, motorcycles, ion televisions, coffee pots, power
strips, massage machines, etc., and are mainly used for household appliances.

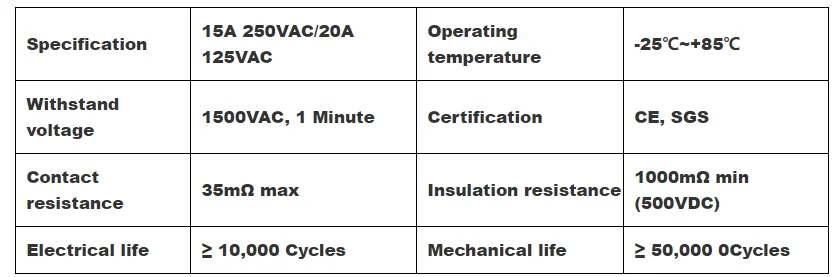

Specification
item | value |
Certification | CE,CQC |
Whether the smart | No |
Place of Origin | ZHE |
Brand Name | yarong |
Model Number | kcd4 |
Max. Current | 20A |
Max. Voltage | 250V |
Mechanical Life | 10000 Cycles |
Type | Rocker Switch |
Product name | KCD4 |
Fuction | ON-OFF |
Rating | 20A 125VAC/15A 250VAC |
Button Color | Transparent Red/Green/Yellow/Blue |
Certificate | CE, CQC |
Contact Resistance | <35mΩ max |
Contact Configuration | DPST |
Operating Temperature | -25℃~+85℃ |
Mechanical Life | 10000 Cycles |
