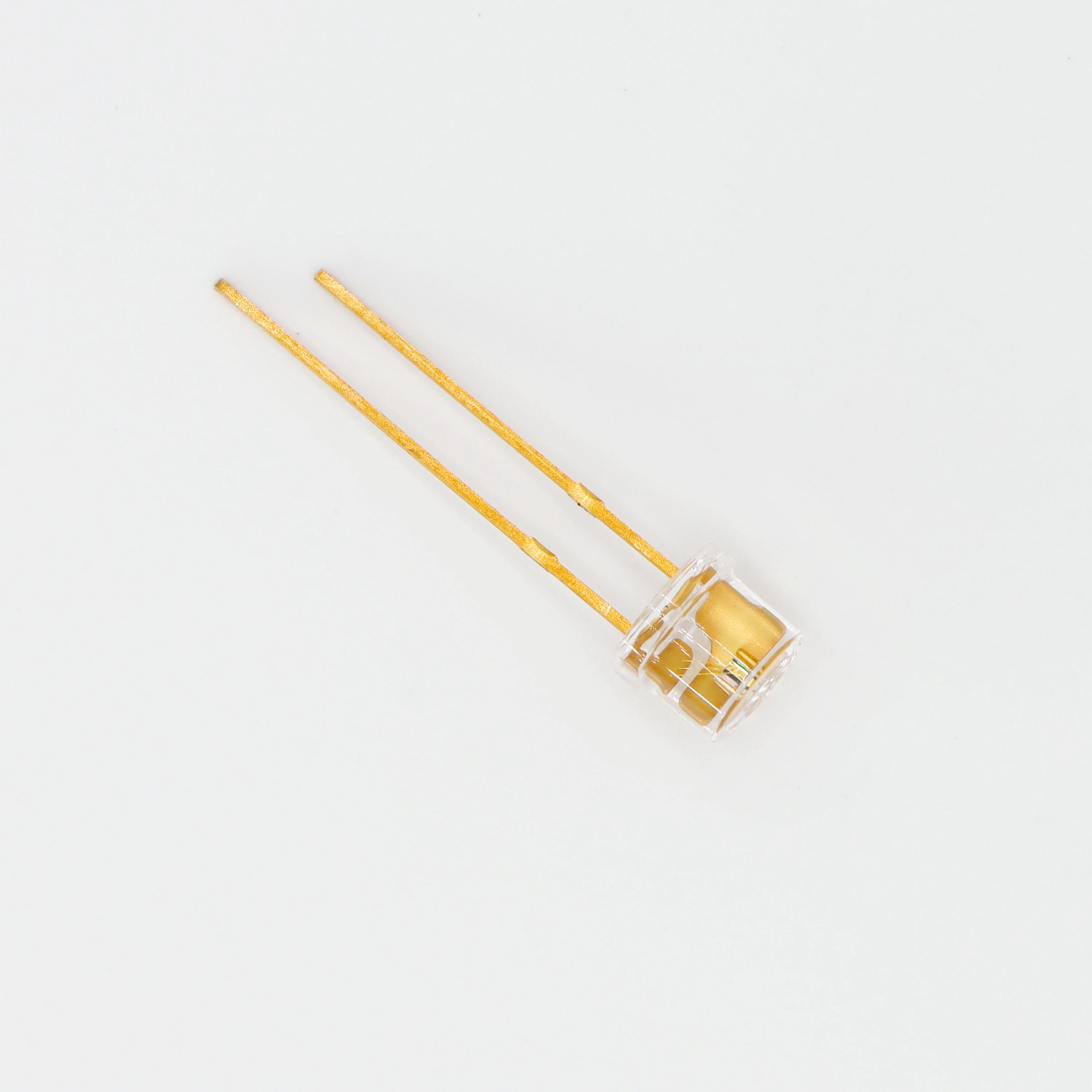

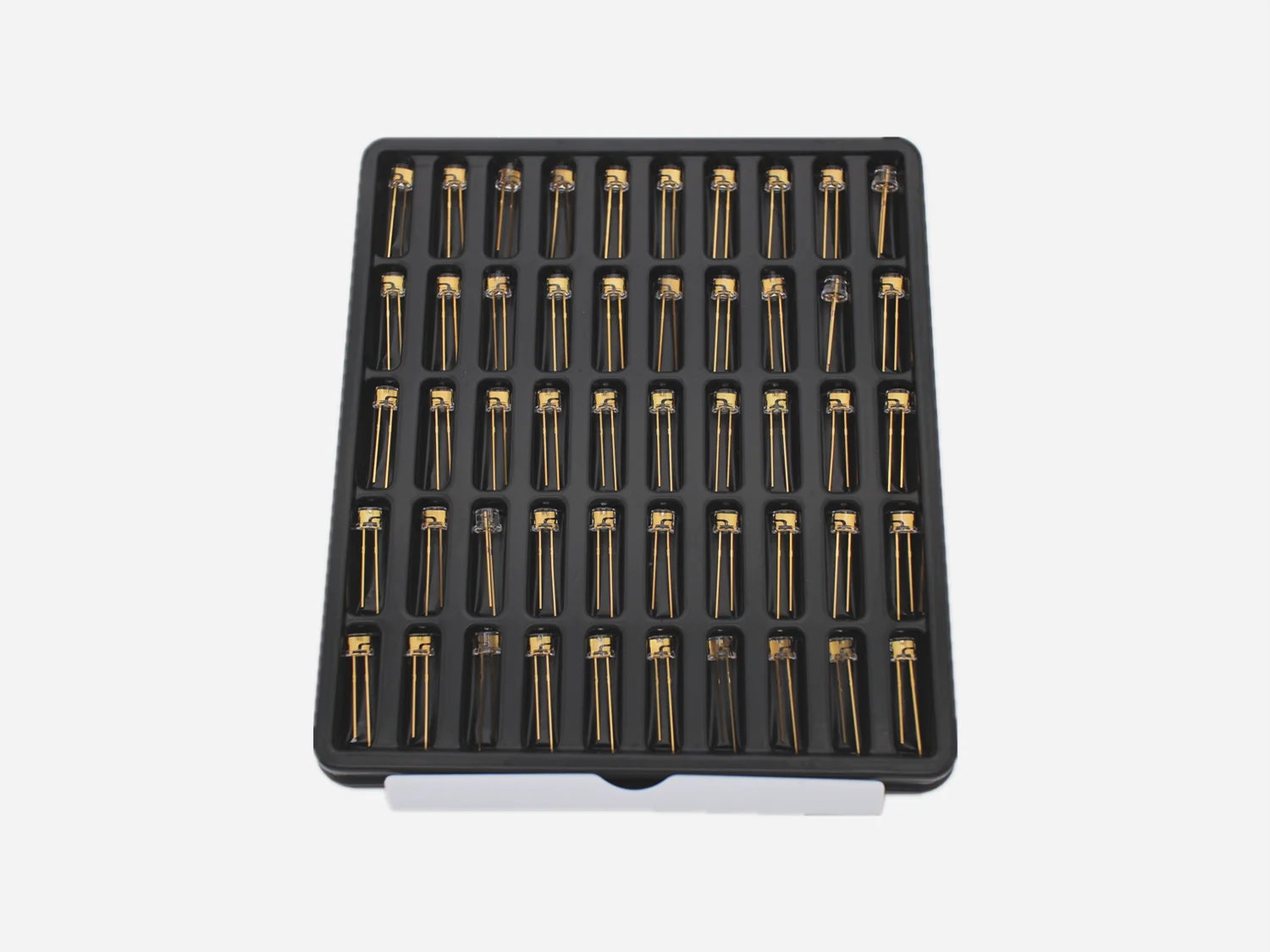

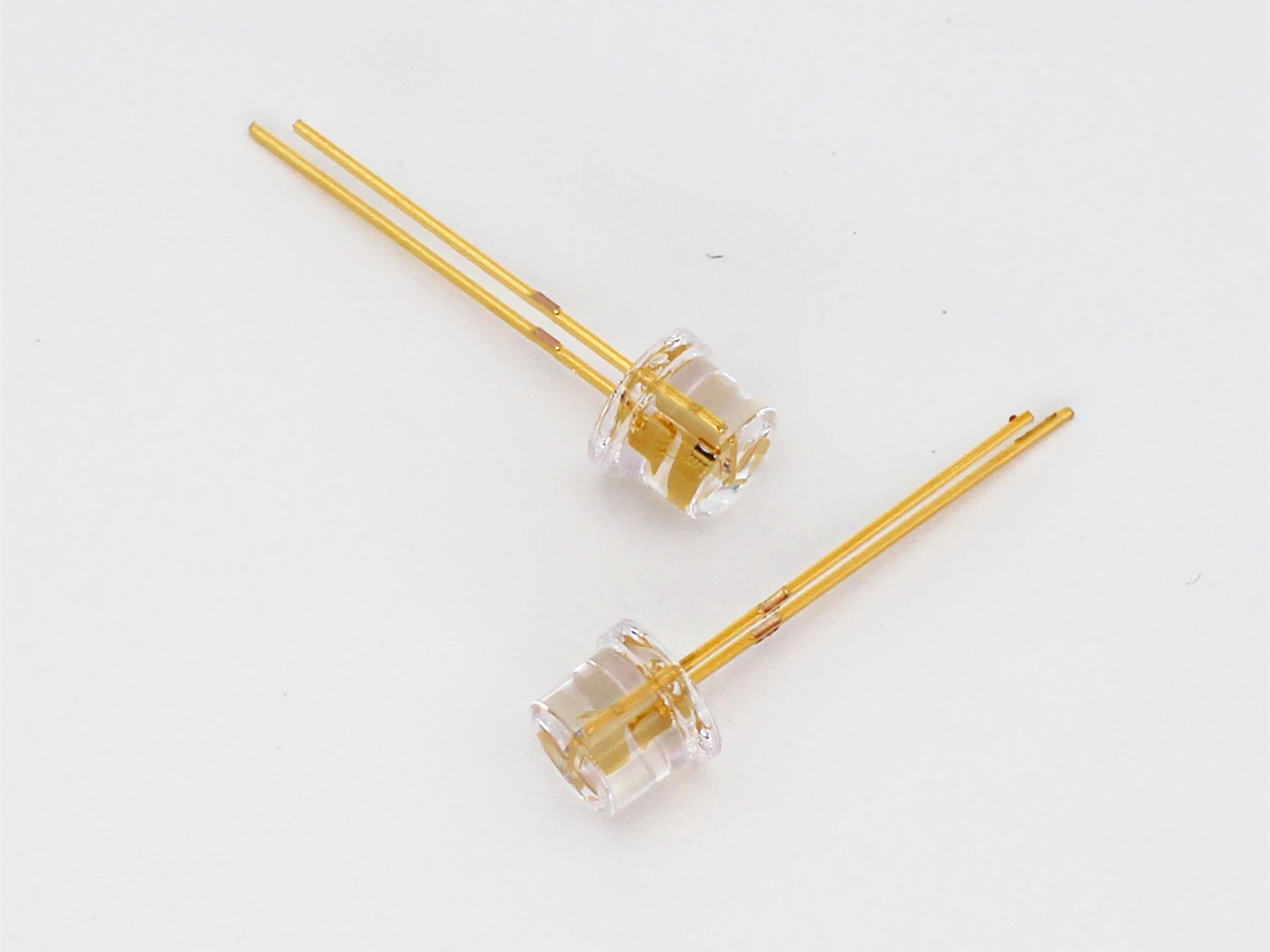

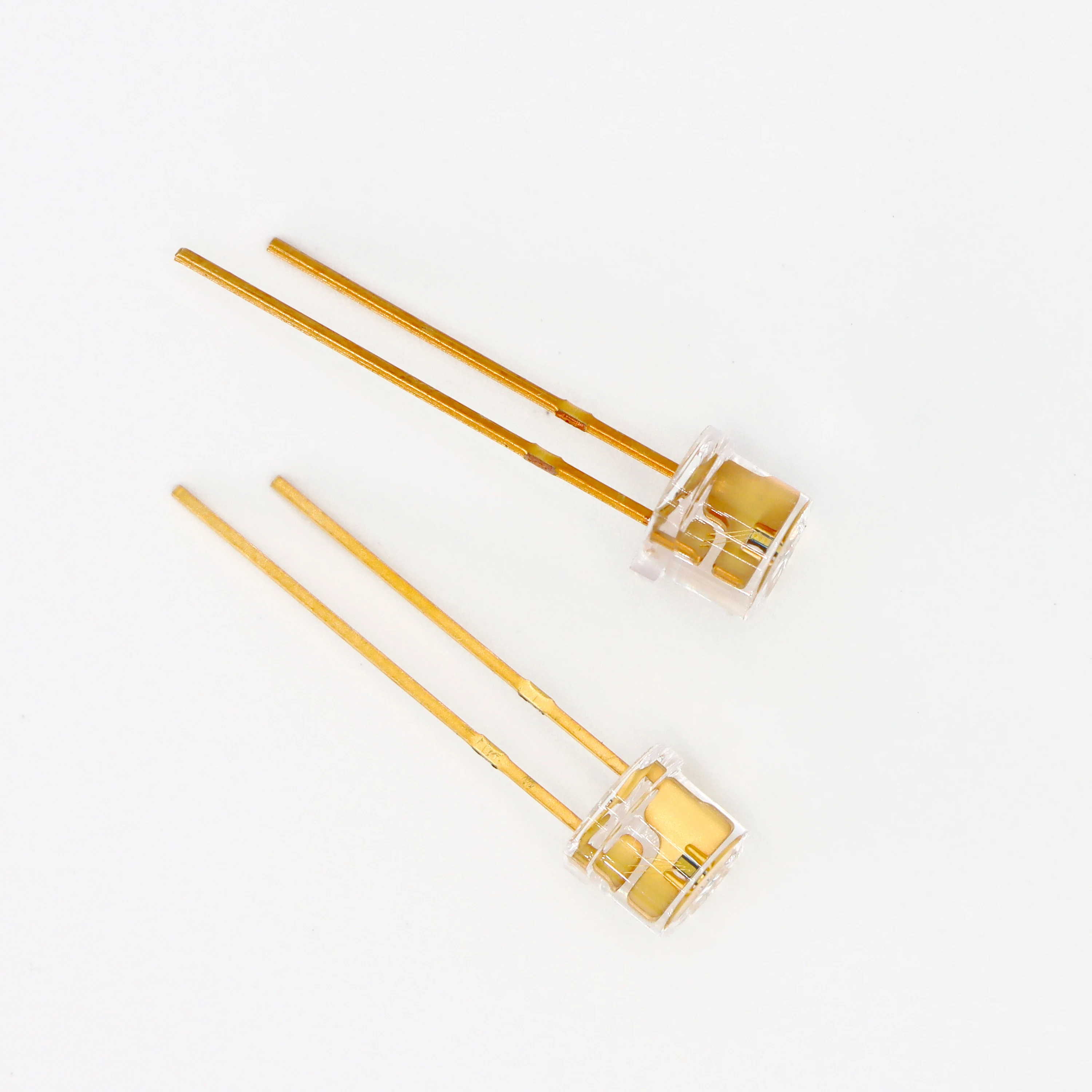

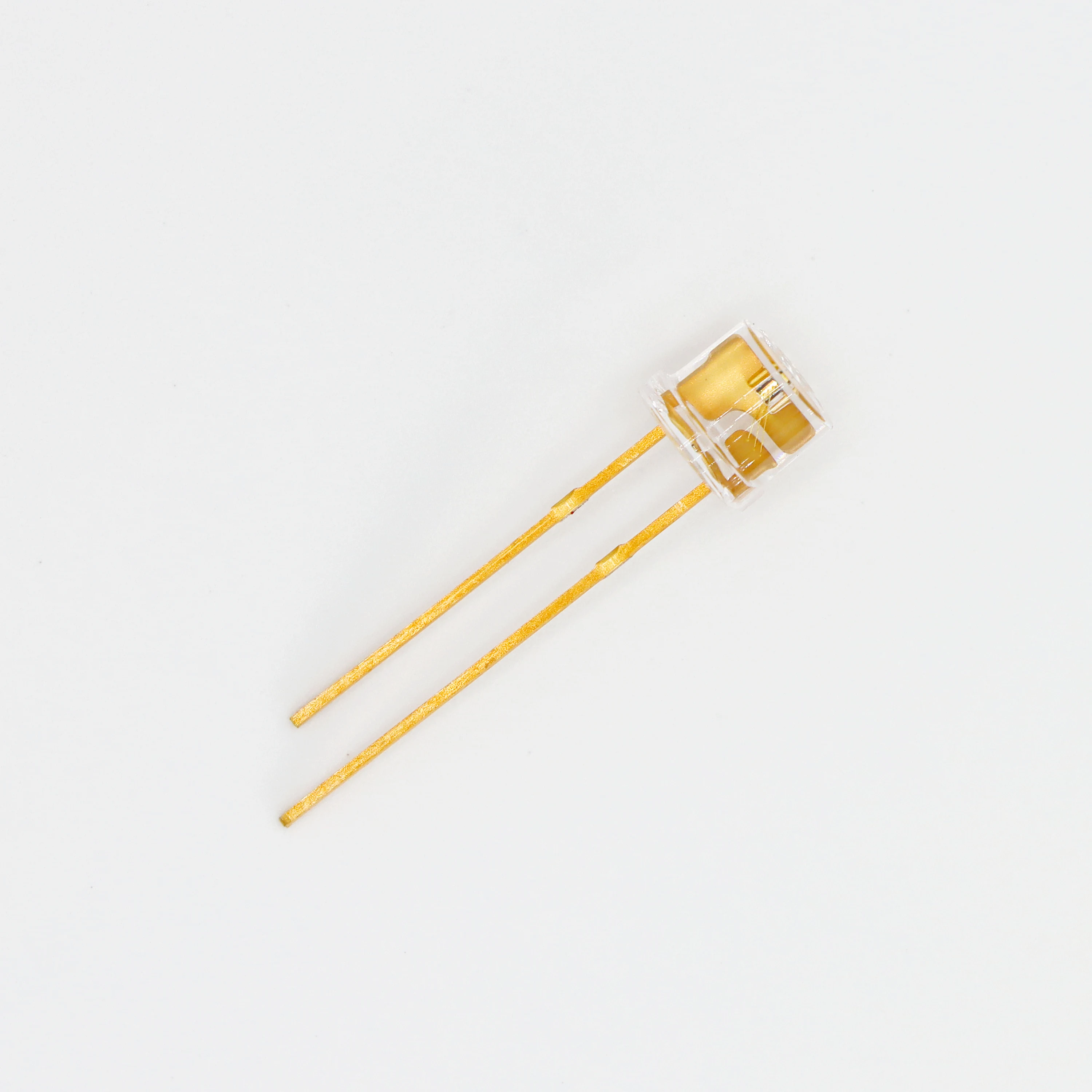

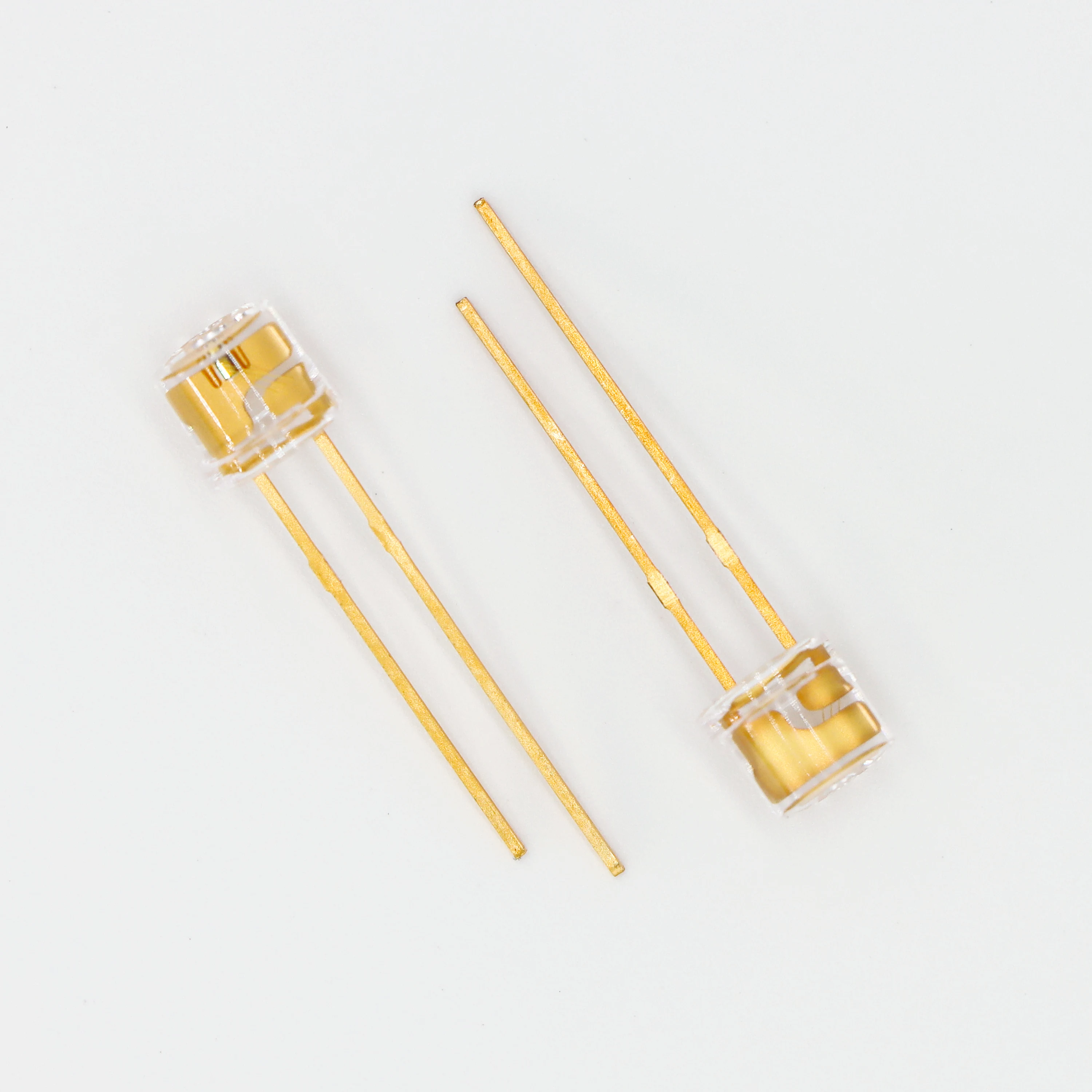

EEL LD chip 20W 905nm laser diode plastic package
- Category: >>>
- Supplier: Shenzhen Raybow Optoelectronics Co. Ltd.
Share on (1600434222257):
Product Overview
Description
Products Description
RB-905C-50-20-0.75-SE | ||||||
■ Absolute Maximum Ratings(Trt=25℃) | ||||||
Parameter | Symbol | Values | Unit | |||
Pulsed forward current | If | 7.2 | A | |||
Reverse voltage | Vr | 2.5 | V | |||
Pulsed duration | tw | 100 | ns | |||
Duty ratio | DR | 0.1 | % | |||
Operating temperature | Top | -40~85 | ℃ | |||
Storage temperature | Tstg | -40~105 | ℃ | |||
■ Characteristics (Trt=25 ℃) | ||||||
Iop=7 A, Pw=200 ns, f=5 kHz, DR=0.1 %, Ta=25 ℃ | ||||||
Parameter | Symbol | Typical values | Unit | |||
Wavelength | ||||||
Peak emission wavelength | λop | 905 | nm | |||
Wavelength tolerance | Δλ | 10 | nm | |||
Spectral bandwidth① | Δλop | 7 | nm | |||
Wavelenth temperature coefficient | Δλ/ΔT | 0.28 | nm/℃ | |||
Electro Optical Data | ||||||
Minimum peak power at If | Pop | 20 | W | |||
Forward current | If | 6 | A | |||
Threhold current | Ith | 0.4 | A | |||
Forward voltage at If | Vf | 7.6 | V | |||
Beam spread angle(Horizontal) ② | θ∥ | 14 | degree | |||
Beam spread angle(Vertical) ① | θ⊥ | 30 | degree | |||
Geometrical | ||||||
Current injection crosssection | w x h | 50 x 10 | μm2 | |||
Cavity length | L | 750 | μm | |||
Chip width | W | 300 | μm | |||
Chip height | H | 150 | μm | |||
Applications
· LiDAR
· Laser ranging
· Safety monitoring
· Scientific research test
Features
· 3 stack PLD
· Laser wavelength: 905 nm
· Peak output power: ≥20W
· Optical aperture size: 50 μm x 10 μm
· LiDAR
· Laser ranging
· Safety monitoring
· Scientific research test
Features
· 3 stack PLD
· Laser wavelength: 905 nm
· Peak output power: ≥20W
· Optical aperture size: 50 μm x 10 μm

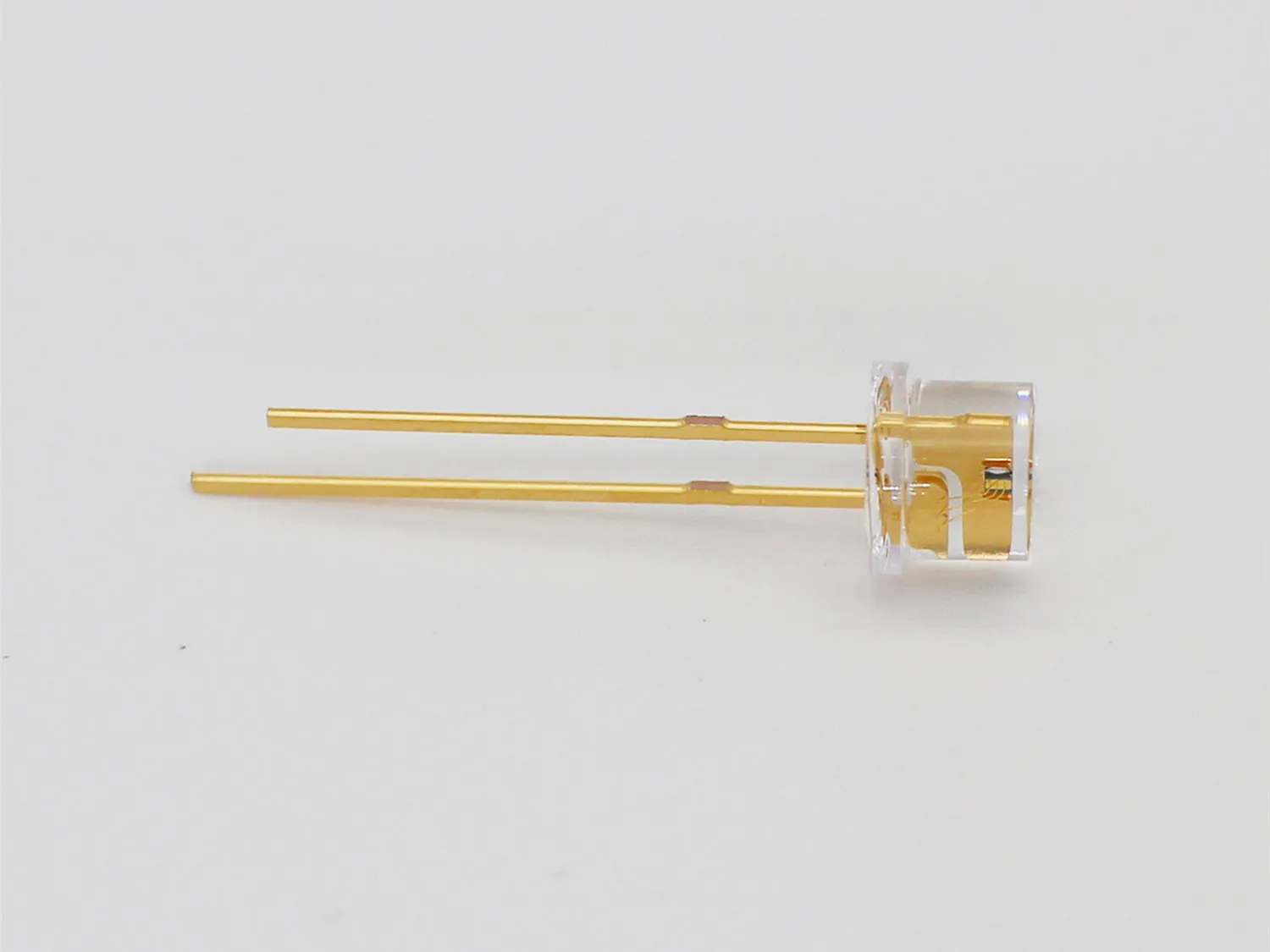

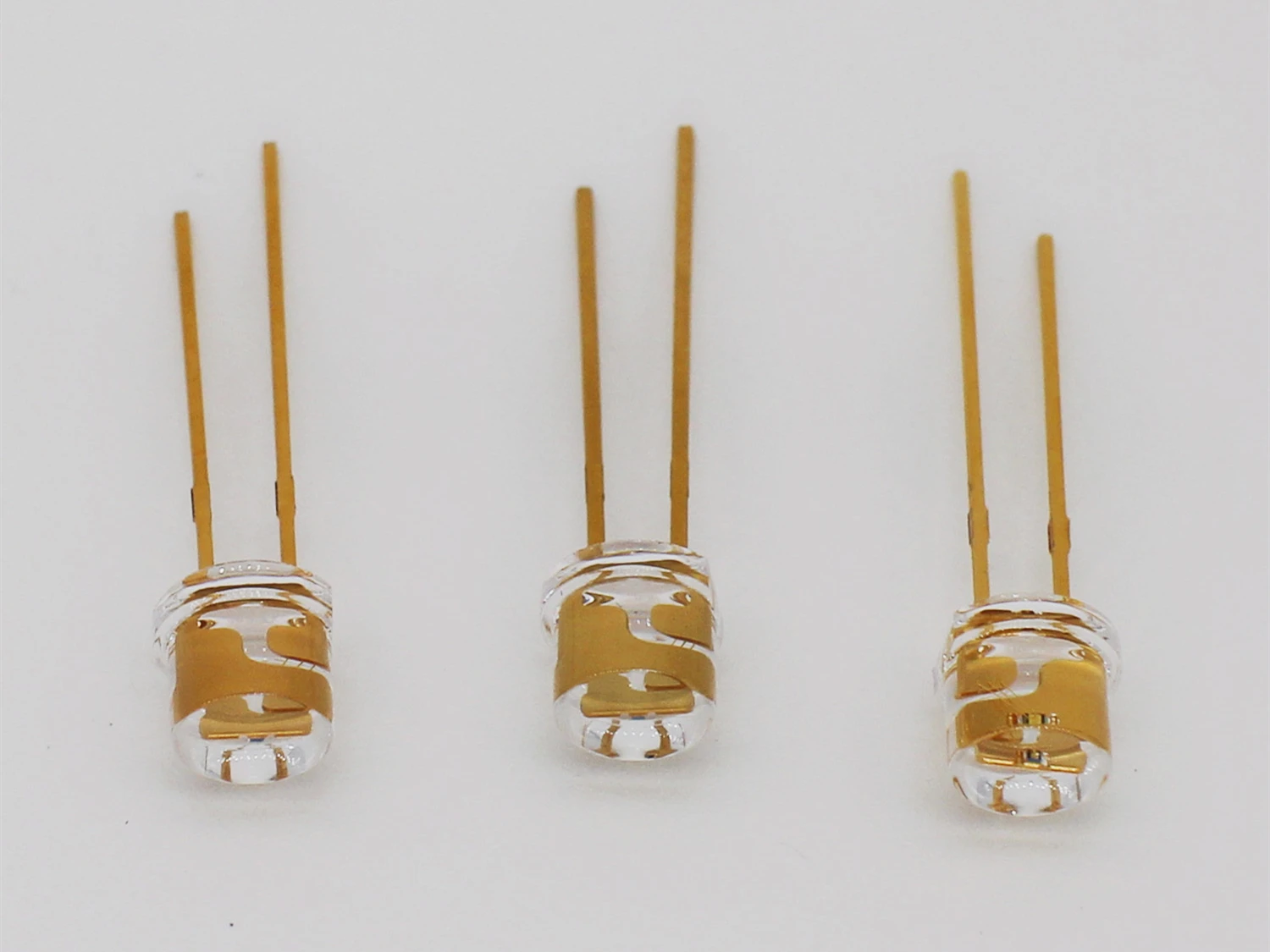

Product Dimension

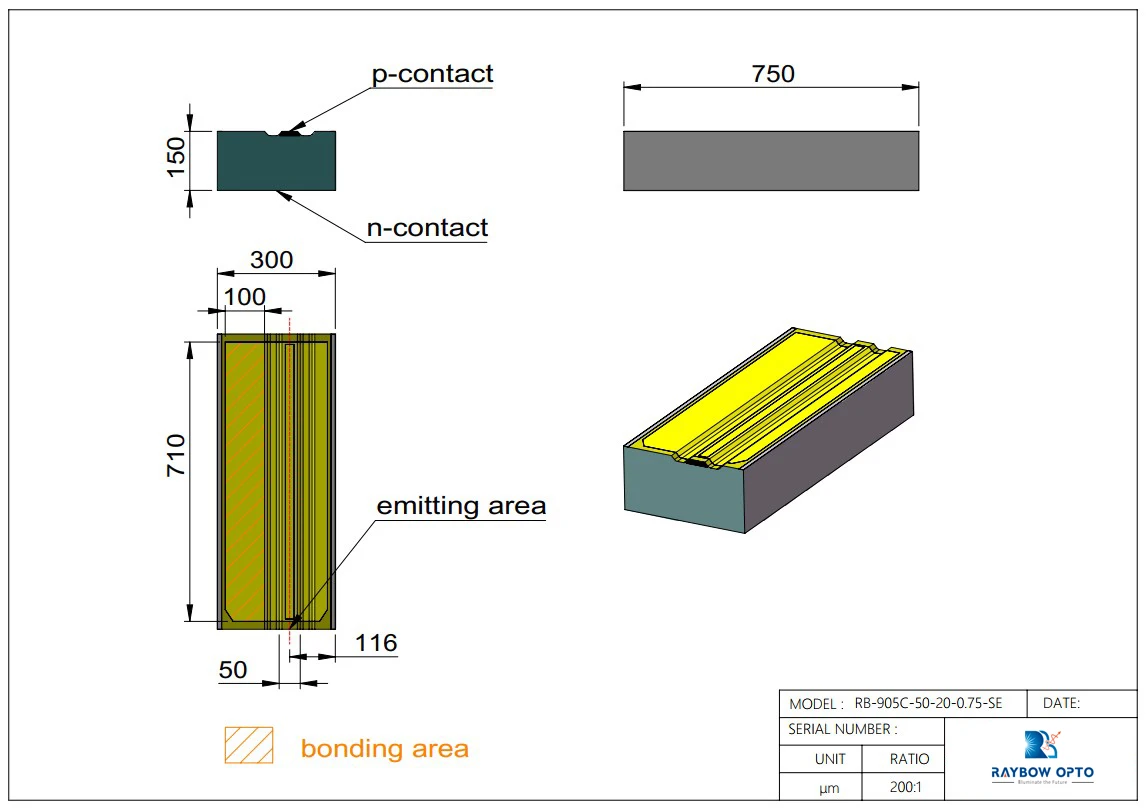

<< Bare Laser Diode Chip Dimensional Drawing

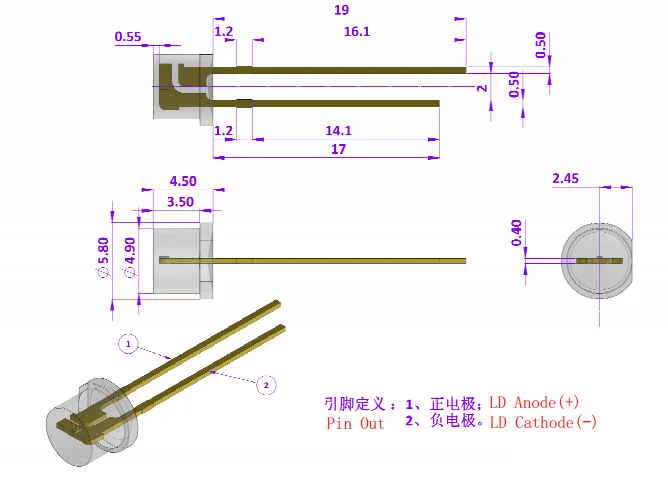

Laser Diode Chip Plastic Packaging Dimensional Drawing >>
Typical Characteristics
Figure 1：Power-Voltage-Current Characteristics
@ Pw=200 ns, f=5 kHz, Ta=25 ℃
@ Pw=200 ns, f=5 kHz, Ta=25 ℃
Figure 3：Far Field Pattern Characteristics
@ If（Pw=200 ns, f=5 kHz）, Ta=25 ℃
@ If（Pw=200 ns, f=5 kHz）, Ta=25 ℃
Figure 2：Spectral Characteristics
@If (Pw=200 ns, f=5 kHz) Ta=25 ℃
@If (Pw=200 ns, f=5 kHz) Ta=25 ℃
Figure 4：Near Field Pattern (NFP)
@ If（Pw=200 ns, f=5 kHz）, Ta=25 ℃
@ If（Pw=200 ns, f=5 kHz）, Ta=25 ℃
