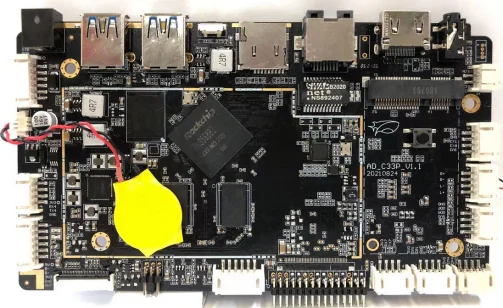

OEM Rockchip PCBA Android Industrial Digital Signage Advertising Player Embedded Board
- Category: >>>
- Supplier: Shenzhen Sunchip Technology Co. Ltd.
Share on (1600434232667):
Product Overview
Description
Product Paramenters
Overview：
The large board of the intelligent industrial all-in-one machine adopts the Rockchip RK3568 quad-core chip solution.
The large board of the intelligent industrial all-in-one machine adopts the Rockchip RK3568 quad-core chip solution.
Support Android 11 system. Enhanced power management circuit. Support commonly used external devices. Rich interfaces and stable performance. Suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machines, educational video terminals and other equipment.
Characteristic：
- Support 7-inch to 84-inch various LVDS interface displays (point-to-point
full HD display 1920*1080).
- Support EDP interface display screen.
- Support MIPI interface display screen.
- Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth, 4G. Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
full HD display 1920*1080).
- Support EDP interface display screen.
- Support MIPI interface display screen.
- Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth, 4G. Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
- Multi-channel USB interface, serial port.
- Strong anti-electromagnetic interference and electromagnetic compatibility
- Strong anti-electromagnetic interference and electromagnetic compatibility

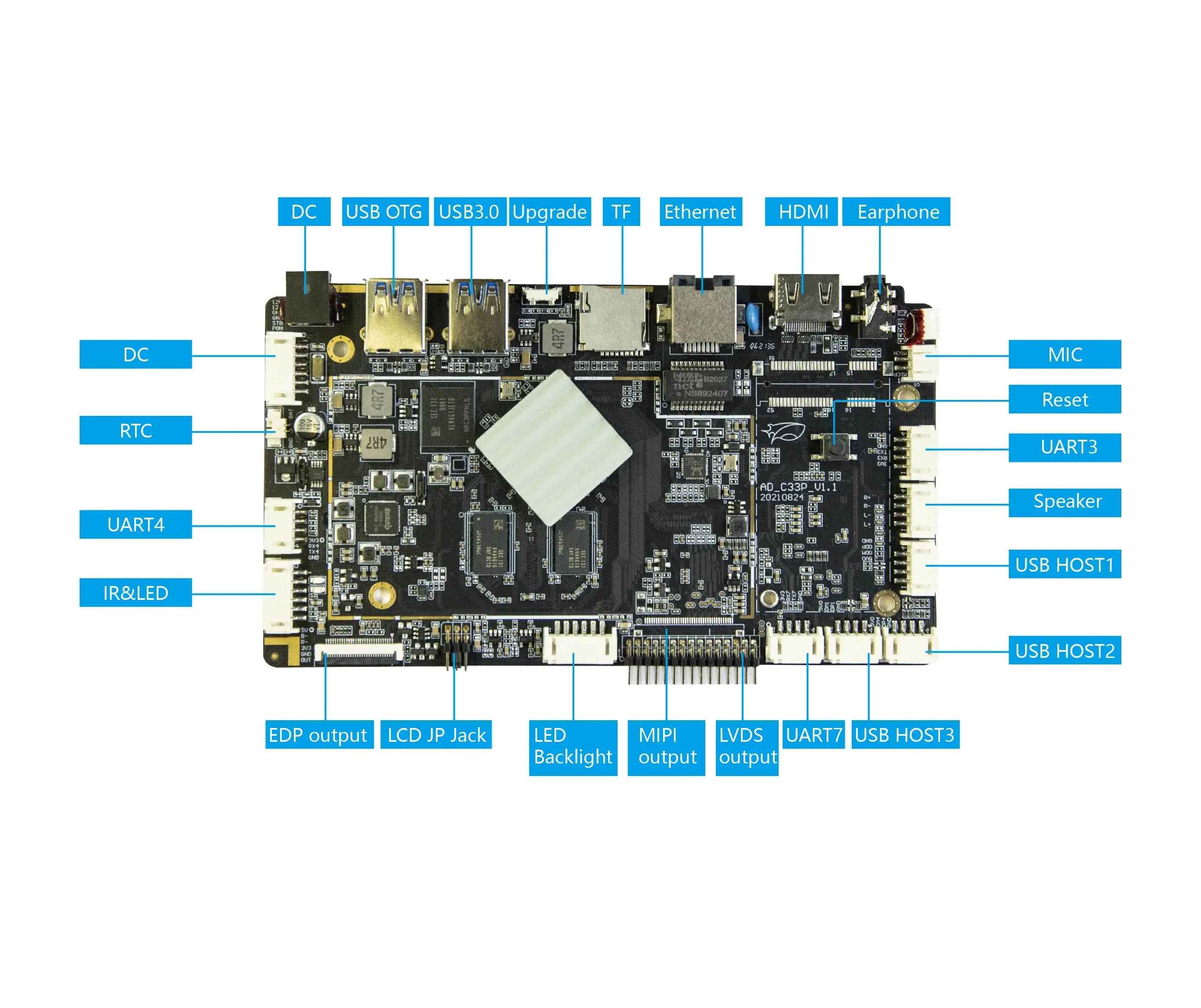

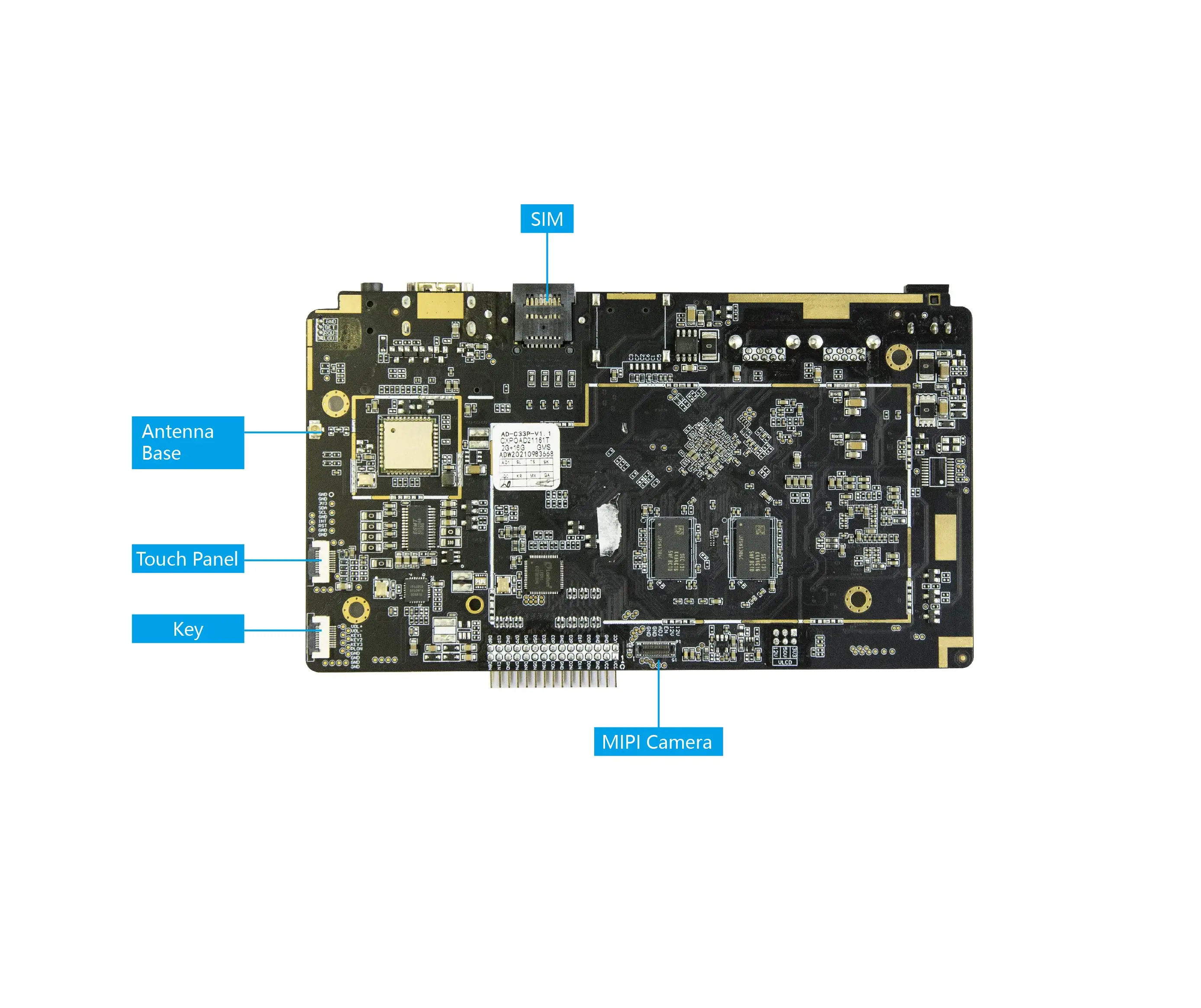

CPU | Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52 |
Main frequency | Up to 2.0 GHz |
RAM | DDR4 2G/4G optional |
Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (label 16GB) |
Display interface | LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display |
MIPI interface | |
EDP interface | |
Screen voltage | Support 3.3V/5V/12V optional |
Touch screen | Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
The internet | With RJ45 interface, support 10/100/1000M Ethernet. |
Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function |
Real Time Clock | External real-time clock power supply battery |
Interface device | Support MIPI interface camera, up to 500W pixels |
4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) | |
3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.) | |
TF card, maximum support 32GB | |
Class D power amplifier: 3W*2 8 ohms, support microphone | |
HDMI 2.0 output | |
Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
Video | Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR. |
Picture | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
Product Description
Why Choose Us
Company Profile
SHENZHEN SUNCHIP TECHNOLOGY CO.,LTD
Established in 2011, SUNCHIP is a high-tech engineering company specialized in designing and manufacturing Digital signage,
Embedded digital signage, ARM board and Andriod-based customized products, which are compliant with CE, FCC and RoHS standards.
Sunchip has a long histroy of OEM and ODM service to many branded customers. With the strong R&D team, intelligent robot
production line and strict QC and QA members, SUNCHIP is a technology-leading ODM factory.With more than 100 experienced R&D
engineers' hard working, SUNCHIP have mastered a whole set solution of high-definition video encoding&decoding developing and mass
production technology.
SUNCHIP is the strategic partner of Rochchip, Intel, Amlogic, Samsung and Allwinner, so we always have a steady supply of reliable
chipsets and unlimited technical support from the partners.
Embedded digital signage, ARM board and Andriod-based customized products, which are compliant with CE, FCC and RoHS standards.
Sunchip has a long histroy of OEM and ODM service to many branded customers. With the strong R&D team, intelligent robot
production line and strict QC and QA members, SUNCHIP is a technology-leading ODM factory.With more than 100 experienced R&D
engineers' hard working, SUNCHIP have mastered a whole set solution of high-definition video encoding&decoding developing and mass
production technology.
SUNCHIP is the strategic partner of Rochchip, Intel, Amlogic, Samsung and Allwinner, so we always have a steady supply of reliable
chipsets and unlimited technical support from the partners.
Certifications
Packing & Delivery
1.Packing: carton box or wood case
2.Payment methods: accept T/T,Western Union,Paypal and Cash.
3.RMA Policy: customer bear all the freight and duty charge to factory,and the factory afford return freight charge.
4.Warranty: 12 months warranty. Paid maintenance over 12 months.
5.Remark: ROHS, CE & FCC certificates in e-file format are available. 6.MOQ: 1pc, sample order are welcome for your evaluation.
