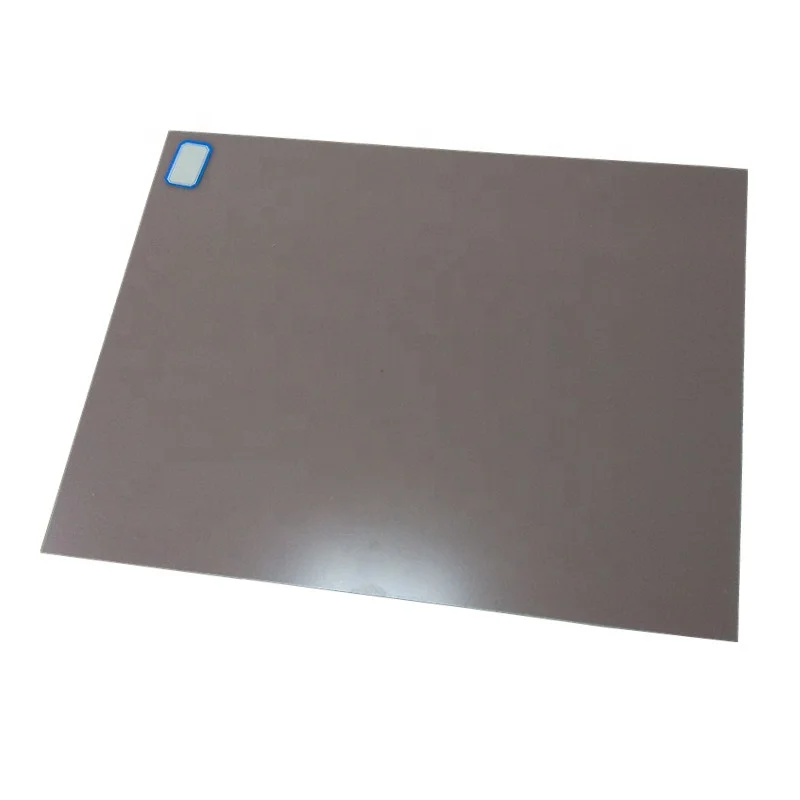

18 um double layer fr4 copper clad laminate sheet for pcb use
- Category: >>>
- Supplier: Wuxi Different Plastic Co. Ltd.
Share on (1600434255442):
Product Overview
Description
Products Description
XPC Copper clad laminated sheet/CCL consist of bleached wood pulp paper, impregnated with modified phenolic resin and clad with electrolytic copper foil. It has high dimension stability, good punching behavior at low temperature, high thermal resistance and are widely used for computers, telephones, Hi-Fi acoustic devices, electronic toys and etc.Note:Different thickness copper foil in one side or double sides can be supplied. 18um,25um,35um,70um.
Item Name | XPC Copper clad laminate | Material | paper based |
Size | 40*48 inch; 41*49 inch | Rated voltage | 33KV |
Thickness | 0.8 mm, 1 mm, 1.2 mm, 1.5 mm, 1.6 mm | Flammability | UL94 |
Copper Thickness | 18um,25um,35um,70um | Color | brown |
Relevant product parameters
Test Item | Unit | Value | Typical Value | ||
Copper foil peel strength | 125℃ | N/mm | ≥0.7 | 1.5 | |
Float288℃/10sec | ≥1.05 | 1.65 | |||
Thermal Stress (float288℃/unetched) | sec | ≥10 | 120 | ||
Warpage (without treatment) | % | ≤1.0 | 0.2 | ||
Flammability ( UL94) | / | V-0 | V-0 | ||
Vitrification transition temperature | ℃ | ≥130 | 138 | ||
Dielectric constant(1MHz) | / | ≤5.5 | 5 | ||
Dielectric loss factor (1MHz) | / | ≤0.035 | 0.024 | ||
Arc resistance | sec | ≥60 | 120 | ||
Moisture absorption | % | ≤0.8 | 0.3 | ||
Comparative tracking index | V | ≥150 | 170 | ||
Dimensional stability | Warp | ppm | ±300 | -200 | |
Fill | -180 | ||||
Cooper clad laminate | ||||||||||
AL CCL | FR-4 | FR-1 | CEM-1 | XPC | ||||||
Base material | aluminum | fiberglass | fiberglass | paper+fiber glass | paper | |||||
Color | blue film green film | light green，yellow | brown | yellow+white | brown | |||||
Copper foil | single or double side：18,25,35,70 micron | single side:18,25,35,70 micron | ||||||||
Sheet thickness | 0.4-2mm | |||||||||
Size | 1000*1200mm 500*600mm 1000*600mm 500*1200mm | 40''*48'' , 41''*49'' , 43''*49'' | 41''*49'' | |||||||

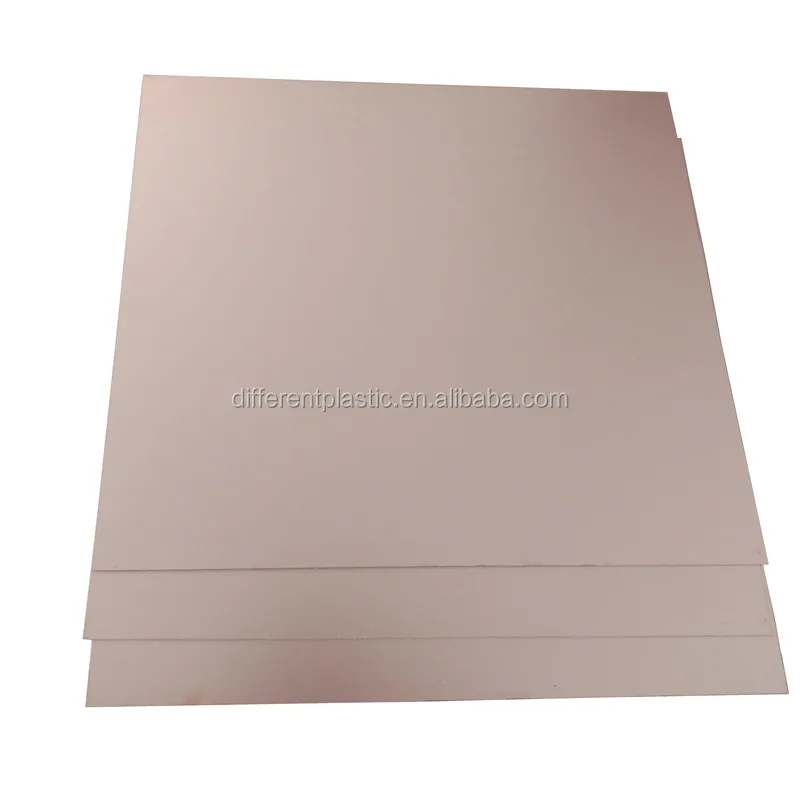

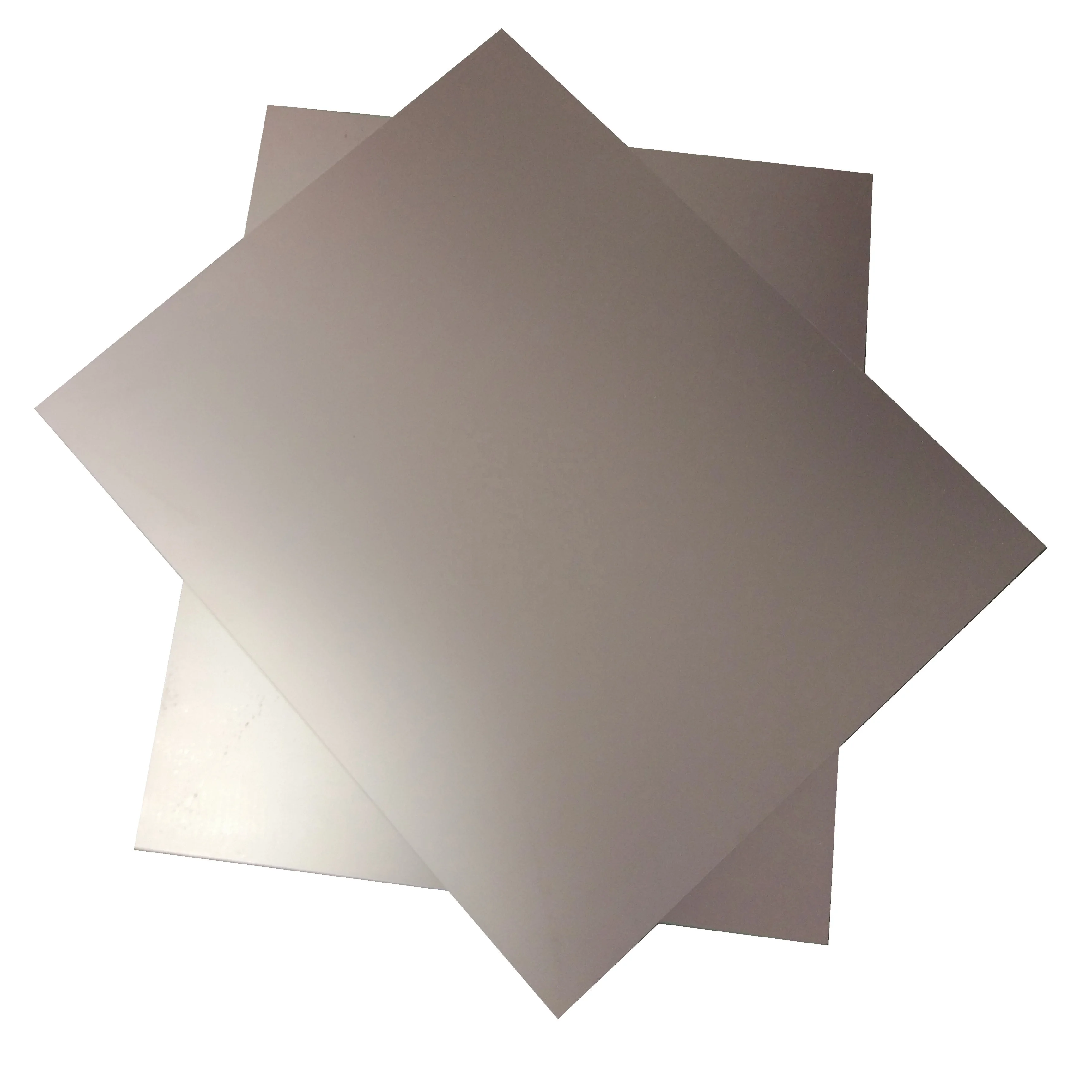

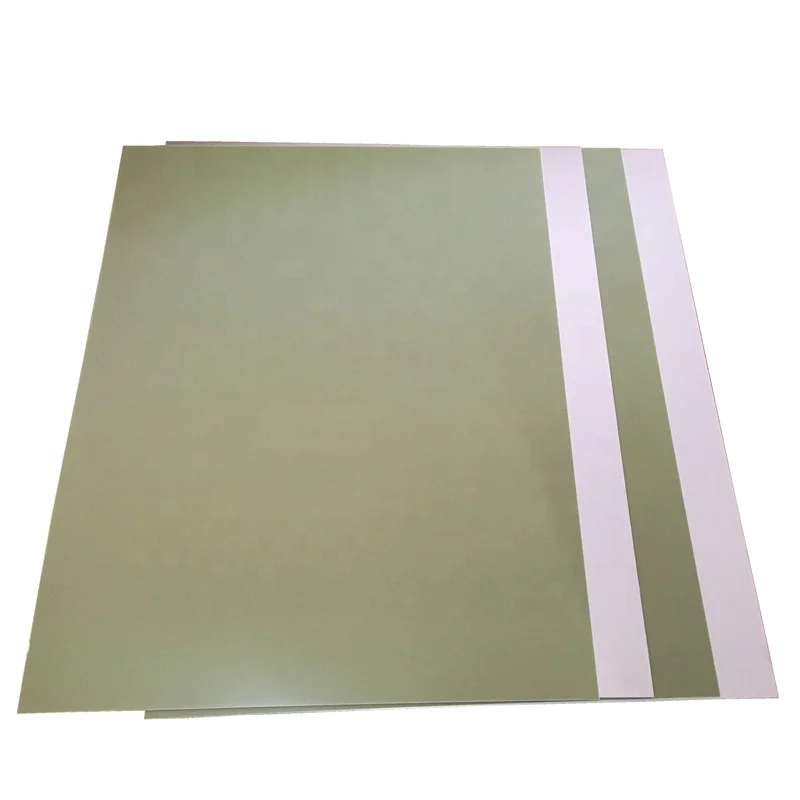

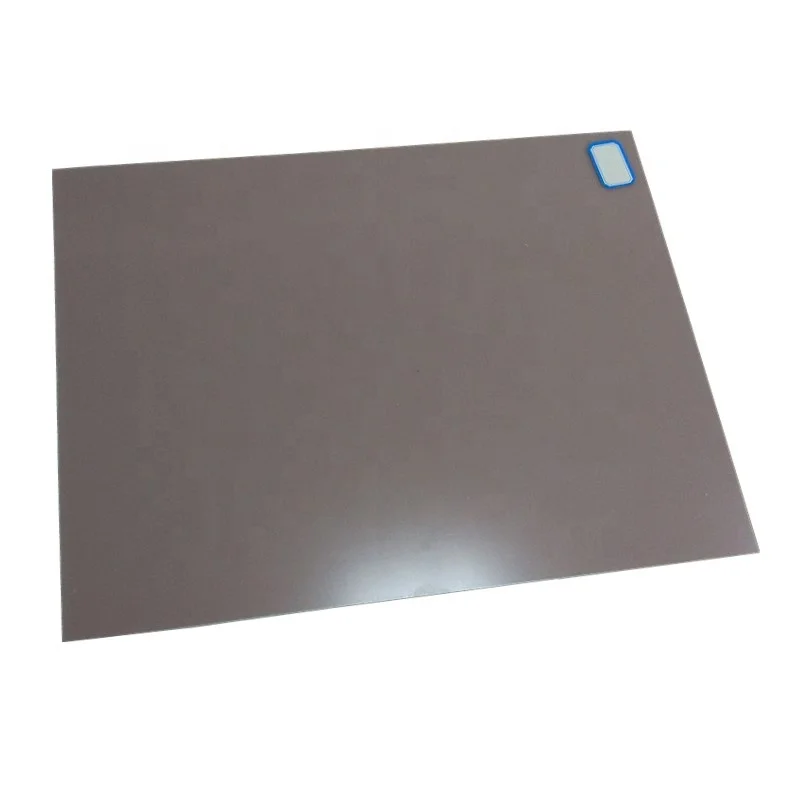

Product Photograph
Recommend Products
Product Display
Why Choose Us
Contact way
FAQ
Q:What about the package of product?
A:1. Wooden pallet with carton. 2. Plastic pallet with carton. 3. Wooden wooden pallet with wooden case. 4. According to
customer requirements.
Q:What's the payment?
A:30%TT advance , 70% after send the copy of the BL.We accept T/T,L/C, Western Union ,USD.
Q:If I need sample,what should I do?
A:It's our pleasure to send sample for you.You can send me your delivery address by email or message.We will send you free sample at first time.
Q:Can you give me a discount price?
A:It is depending on the volume. The larger the volume is, the more discount you can enjoy.
Q:Why is your price a bit higher than other Chinese suppliers?
A:To meet the requirement of different customers and areas, our factory manufactures various kinds of quality for each item at a wide range of price. We can offer the products of different quality levels depending on customer’s target price and quality requirement.
Q:How can you guarantee the quality of mass production is same with the sample sent to me before?
A:Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.
Q:How can you deal with quality issues that customer feedback after receiving the goods?
A:1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.
3) Finally, we will negotiate with our customers to make some compensation.
A:1. Wooden pallet with carton. 2. Plastic pallet with carton. 3. Wooden wooden pallet with wooden case. 4. According to
customer requirements.
Q:What's the payment?
A:30%TT advance , 70% after send the copy of the BL.We accept T/T,L/C, Western Union ,USD.
Q:If I need sample,what should I do?
A:It's our pleasure to send sample for you.You can send me your delivery address by email or message.We will send you free sample at first time.
Q:Can you give me a discount price?
A:It is depending on the volume. The larger the volume is, the more discount you can enjoy.
Q:Why is your price a bit higher than other Chinese suppliers?
A:To meet the requirement of different customers and areas, our factory manufactures various kinds of quality for each item at a wide range of price. We can offer the products of different quality levels depending on customer’s target price and quality requirement.
Q:How can you guarantee the quality of mass production is same with the sample sent to me before?
A:Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.
Q:How can you deal with quality issues that customer feedback after receiving the goods?
A:1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.
3) Finally, we will negotiate with our customers to make some compensation.
