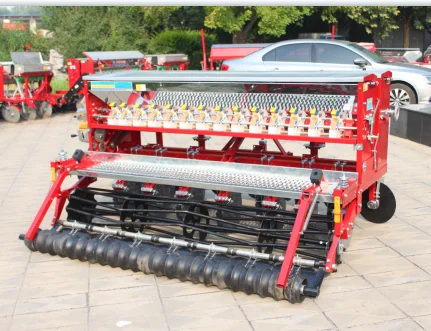

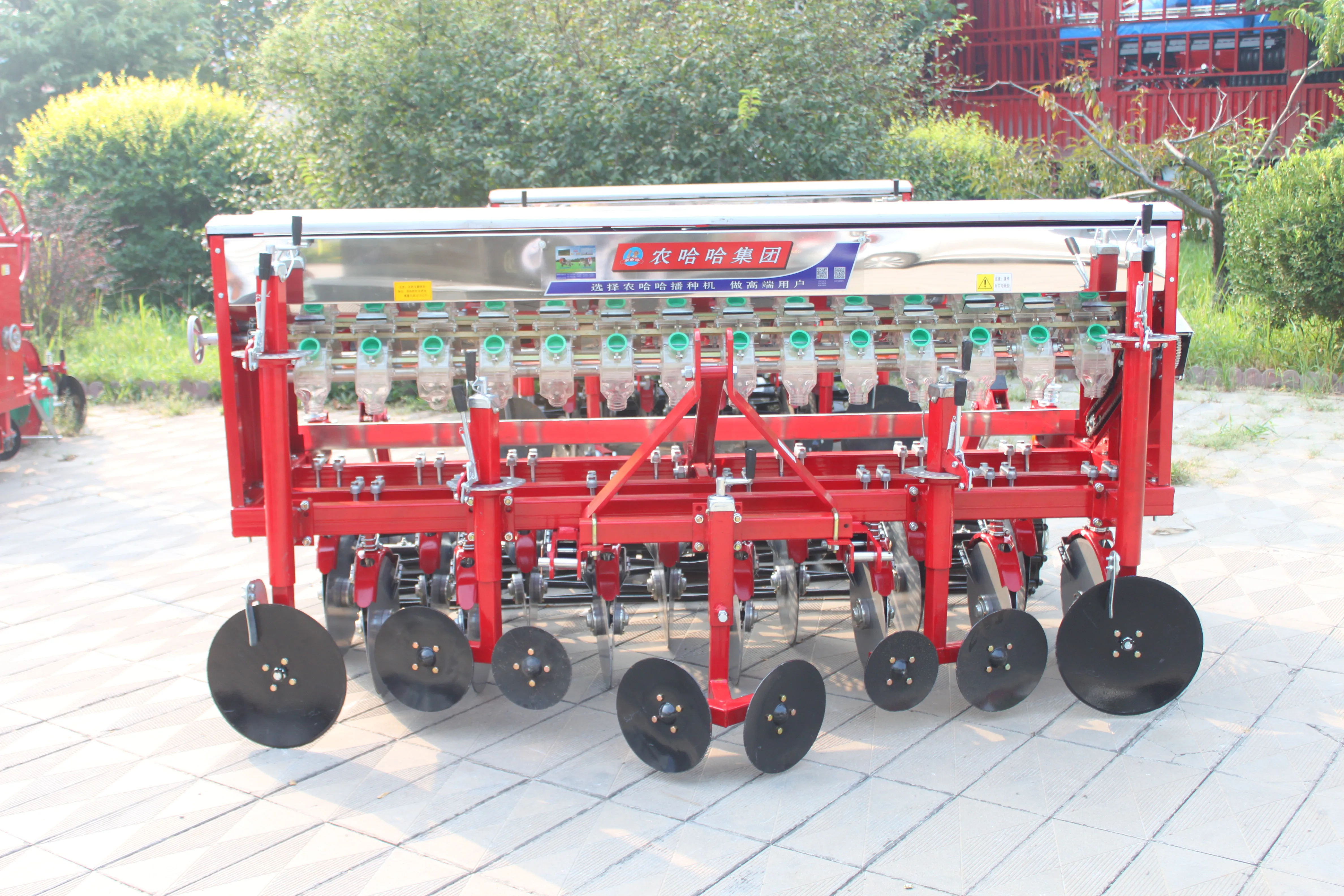

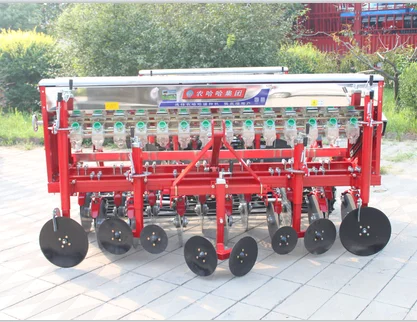

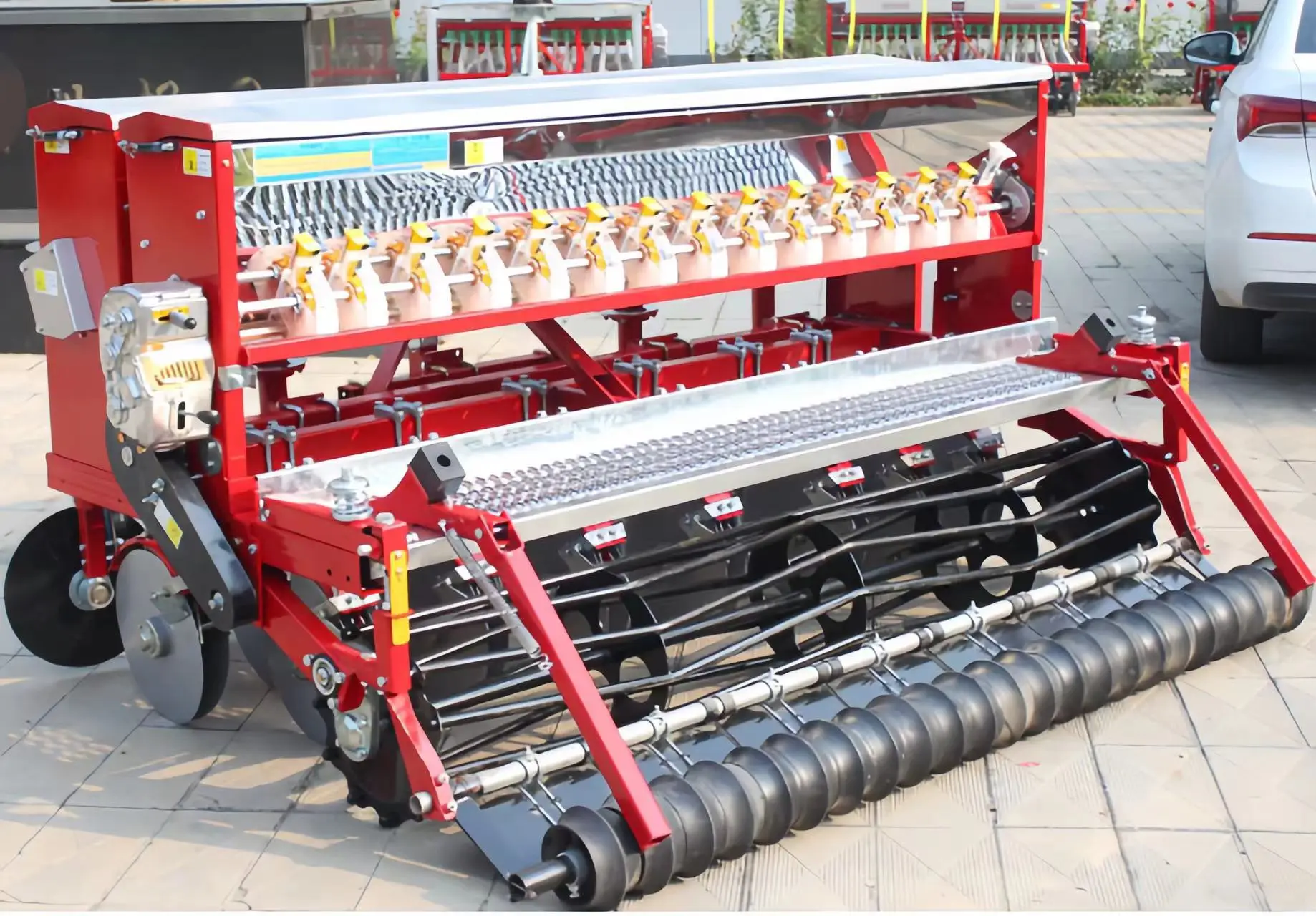

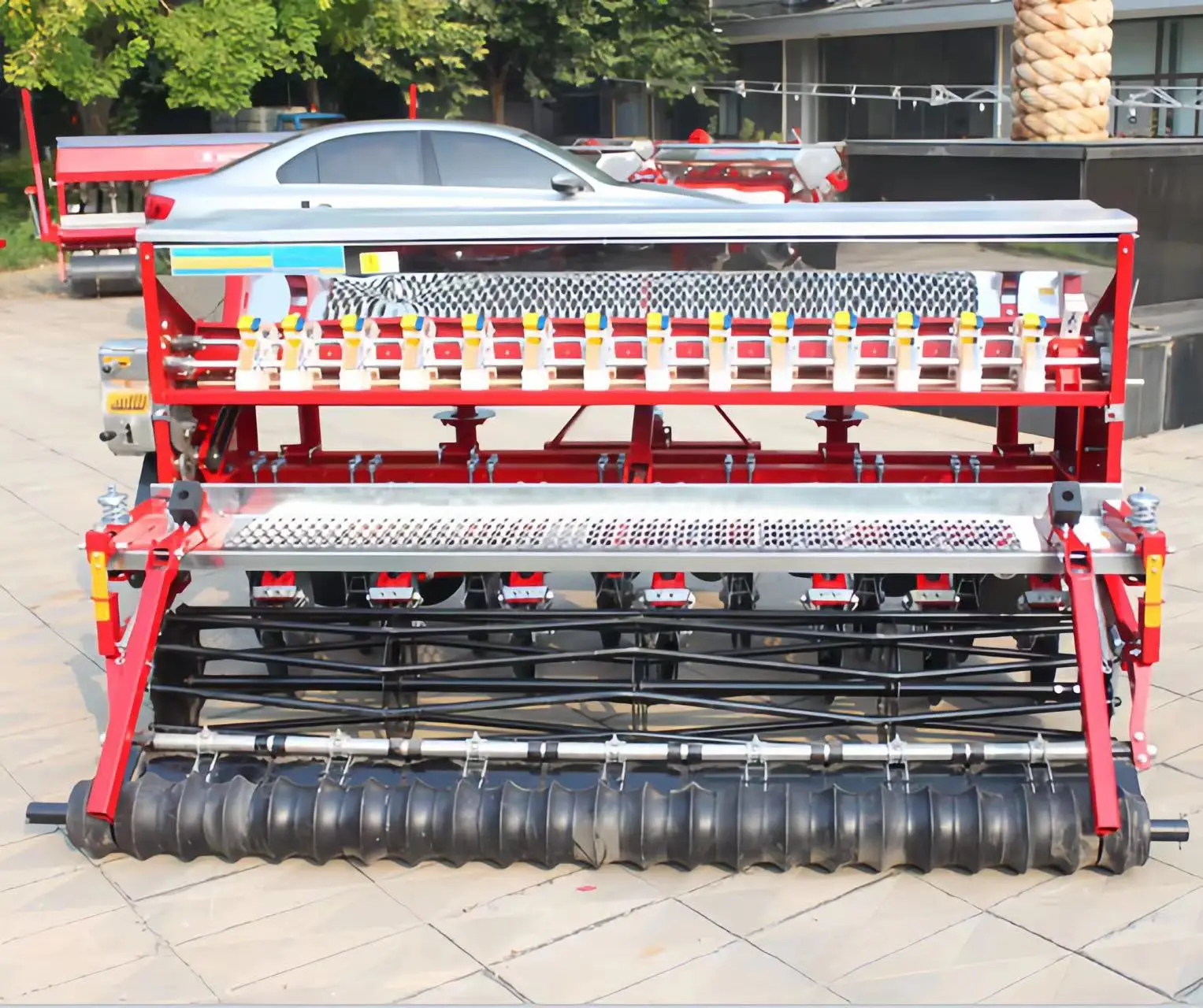

rice and wheat seed planter and high quality High quality and high precision wheat seeder
- Category: >>>
- Supplier: Jining Tiande Engineering Machinery Co. Ltd.
Share on (1600434265587):
Product Overview
Description
Products Description
Used in conjunction with small and medium-sized tractors, it uses a three-point suspension for stripping wheat in plains and hills. One operation can complete the operations of leveling, merging, sowing, covering soil, suppressing, and mulling.The hobbing seed wheel is staggered and seeded, and the whole box is replenished. It is simple and reliable and does not need to be adjusted. The 16-speed gearbox has a large adjustment range.
product Details
Product parameters
item | unit | value of calculation | ||||||||
Model number | / | 2BXF-6B | 2BXF-9B | 2BXF-12B | 2BXF-14B | 2BXF-16B | ||||
name | / | wheat seeding machine | ||||||||
Structural pattern | / | Mechanical hanging | ||||||||
Supporting power range | kW | 15～20 | 20～35 | 22～36.8 | ||||||
Overall dimensions (length × width × height) | mm | 1700×1530×1170 | 1700×1930×1170 | 1700×2230×1170 | 1700×2430×1170 | 1700×2730×1170 | ||||
Tool weight | kg | 210 | 290 | 340 | 380 | 420 | ||||
Operating speed range | m/s | 1.11～1.94 | ||||||||
Operating hours | hm2/h | 0.42～0.74 | 0.46～0.81 | 0.61～1.08 | 0.67～1.18 | 0.77～1.34 | ||||
productivity | ||||||||||
Working width | cm | 132 | 144 | 192 | 210 | 240 | ||||
Line spacing | cm | 22 | 16 | 15 | ||||||
Working lines | row | 6 | 9 | 12 | 14 | 16 | ||||
Seed feeder type | / | Gear roller, non-metallic material | ||||||||
Number of seeders | Entries | 6 | 9 | 12 | 14 | 16 | ||||
Fertilizer drainer type | / | Outer grooved wheel type, non-metallic material | ||||||||
Number of fertilizer dispensers | Entries | 6 | 9 | 12 | 14 | 16 | ||||
Seed ditcher | / | Double disc type | ||||||||
type | ||||||||||
Seed ditcher | Entries | 6 | 9 | 12 | 14 | 16 | ||||
quantity | ||||||||||
Manure drainer | / | Double disc type | ||||||||
type | ||||||||||
Manure drainer | Entries | 6 | 9 | 12 | 14 | 16 | ||||
quantity | (Shared with the platoon) | |||||||||
Seed/fertilizer box volume | L | 65 / 35 | 99 / 45 | 117 / 35×2 | 129 / 35×2 | 146 / 45×2 | ||||
Discharge regulation mode | / | Type: Gearbox | ||||||||
Seeding part | / | Sprocket /CHAIN SPOCKET | ||||||||
kind of drive | ||||||||||
Type of earth wheel | / | Roller clutch | ||||||||
Wheel diameter | mm | 340 | ||||||||
Ground wheel height adjustment range | mm | 0～40 | ||||||||
Cover type | / | scraper transporter | ||||||||
Suppressor type | / | Roller clutch | ||||||||
