LPG Centrifugal Rotary Atomizer Type Spray Dryer Price With Ce Certification

Product Overview

Description

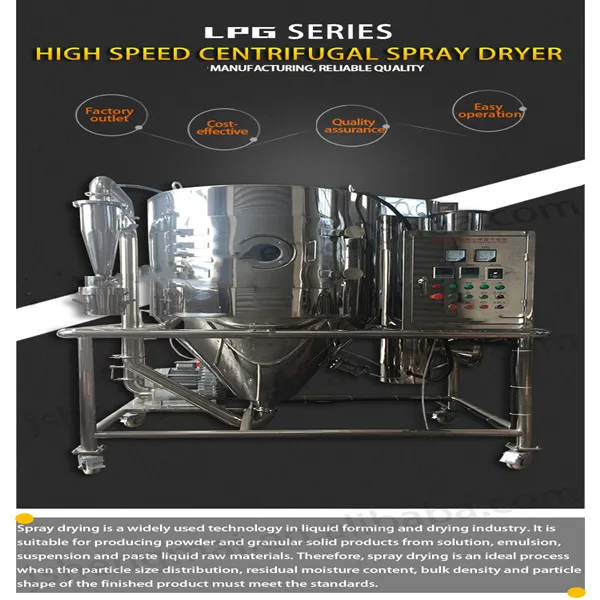

LPG Rotary atomizer spray dryer is a wide applied process in liquid process shaping and drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard, the spray drying is an ideal process.

 Working Principle

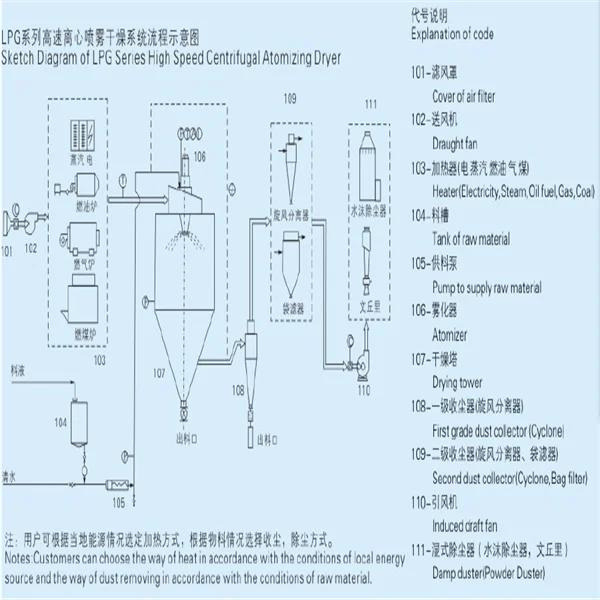

After filtering and heating, the hot fresh air enter into the air distributor at the top of drying chamber, distributed in spiral way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning.





Features

(1) Fast drying speed, material liquid after atomization, significantly increased surface area, in the hot air flow, instantaneous evaporation can be 95% 98% moisture, to complete the drying time only a few seconds, and especially suitable for drying of thermal sensitive material.

(2) Products with good uniformity, fluidity and solubility, the product high purity, good quality.

(3) Production process is simple, convenient operation and control. Special material for 40-60% moisture content (90%) of the liquid to a dry powder products, dried without crushing and screening, reduce the production process, improve product purity. To the product particle size, bulk density, moisture, within a certain range can be adjusted by changing the operating conditions, control and management is very convenient.
