4S 10A PCM BMS with Seiko chip S 8254 and 5V 3A DC Output for 14.8V 16.8V lithium ion/li ion 12.8V 14.4V LiFepo4 battery
- Category: >>>
- Supplier: Shenzhen Smartec Technology Co. Ltd.
Share on (1600434297895):
Product Overview
Description

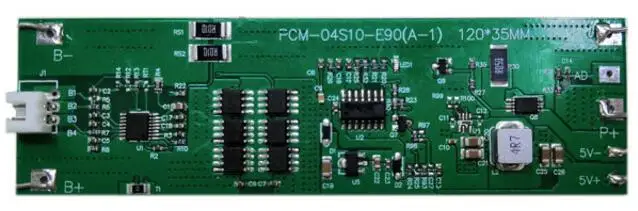

4S 10A PCM BMS with Seiko chip S-8254 and 5V 3A DC Output for 14.8V 16.8V lithium ion/li-ion 12.8V 14.4V LiFepo4 battery
Product Description
PCM or PCB ( protection circuit module or board ) is the "heart" of Lithium battery pack. It will protect Lithium battery pack from overcharging, over-discharging and over-drain, therefore it is the must to have to avoid Lithium battery pack from explosion, fire and damage.
For low voltage lithium battery packs (<20 cells), you shall choose PCM with equilibrium function to keep each cell in balance and good service life. For high voltage Lithium battery pack (>20 cells), you shall consider advanced BMS ( battery manage system) to monitor each cell's performance to ensure battery's safer operation.
Lithium PCM BMS Spec
Test Item | Criterion |
| Model Number | PCM-L04S10-E90 |
| Dimension | L120*W35*T8mm |
| Maximal continuous Charging current | 10A |
| Maximal continuous Discharging current | 10A |
| Charging&discharging port | Common |
| Balancing Function | No (4.2V for li-ion (NMC) and 3.6V for LiFepo4) |
| Battery type | LiFePO4 & Li-ION(NMC) |
| Nominal Voltage | LiFepo4 3.2V/Cell; Li-ion 3.6/3.7V/Cell; |
| Charging Voltage | LiFepo4 DC:3.6V/Cell; Li-ion DC:4.2V/Cell; |
| High/Low cutoff voltage | 3.9V/2.0V for LiFePO4; 4.25V/2.5V for li-ion /li-po battery ( Adjustable ) |
| Protective function | Over charge/discharge/current/temperature/short circuit Protection |
| Temperature | Operating -40~+85℃; Storage'-40~+125℃ |
| 100% E-testing | 100% E-testing |
| Package | Anti-static Bubble Bag |
Need detailed Datasheet or Specification, please feel free to contact us.
| 1S Balance board | PCM/BMS | Blue-tooth LiFepo4 battery | Starting LiFepo4 battery | Slimline Battery |
 |  |  |  |  |
Packaging & Shipping
| BMS | With Anti-static Bag | Carton |
 |  |  |
Main IC and Mosfet
Battery Management System ( BMS /PCM )
- Shenzhen SmarTEC Technology Co.,Ltd research,design, produce all in one is the only professional manufacturer of Battery Management System ( BMS/PCM ) in China since 2007.
- The Main IC are grade A from TI, Seiko, Ricoh, O2Micro OZ and Maxim. Mosfets from IR,ST, AO .etc .
- Smart BMS can be with SMBUS,I2C HDQ and Blue-tooth commnication.
- All the BMS and PCM has the over charge, over discharge, over current, short circuit, Over Temperature , low voltage and high voltage protection. ( Smart bms also has the secondary protection )
FAQ
How long is the Lead Time?
We can delivery within 7~12 working days for the sample order once get payment.
For mass production, items will be finished production within 18~22 working days.
Do you have an order minimum?
We don't have strong requirement on quantity for sample order. for mass production, MOQ depends on the model you need.
What kind of payment terms?
We can accept paypal, western union, TT or by trade assurance on alibaba.
What kind of transportation we adopt?
For regular products, we usually delivery by Express(DHL, Fedex,UPS, TNT) using the fatest and best shipper agent , or depends on your request.
why us
So why SmarTEC ?
- Based R&D,manufacturer and Sales of Recharegable Lithium batteries with PCM/BMS as “One-stop” Power Solutions Providers in China;
- Joint venture with several reliable manufacturers, so we can provide quality & fast & best services;
- Large selections of PCM/BMS(over 2000 models), Batteries, and accessories (such as nickel strip,battery holder);
- Private labeling and packaging for either big or small customers. Starting from 2000 per order, customer can own their own brand name;

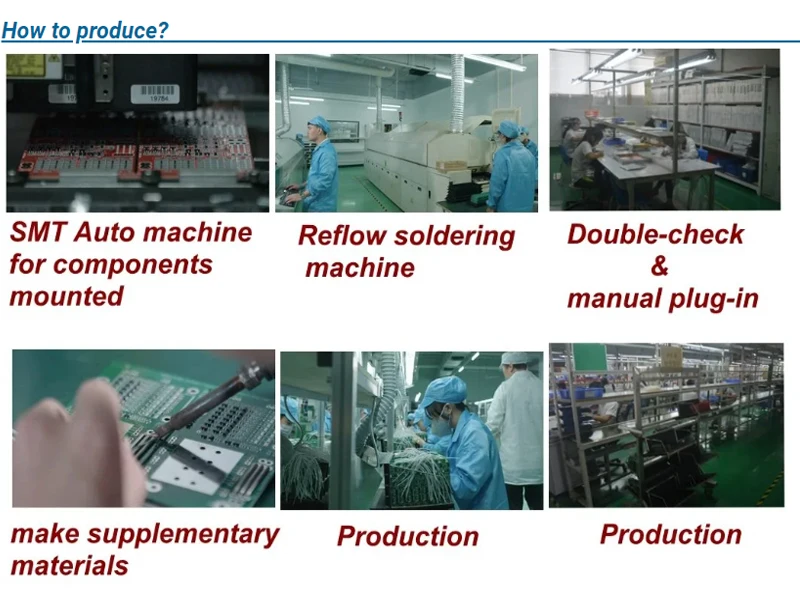

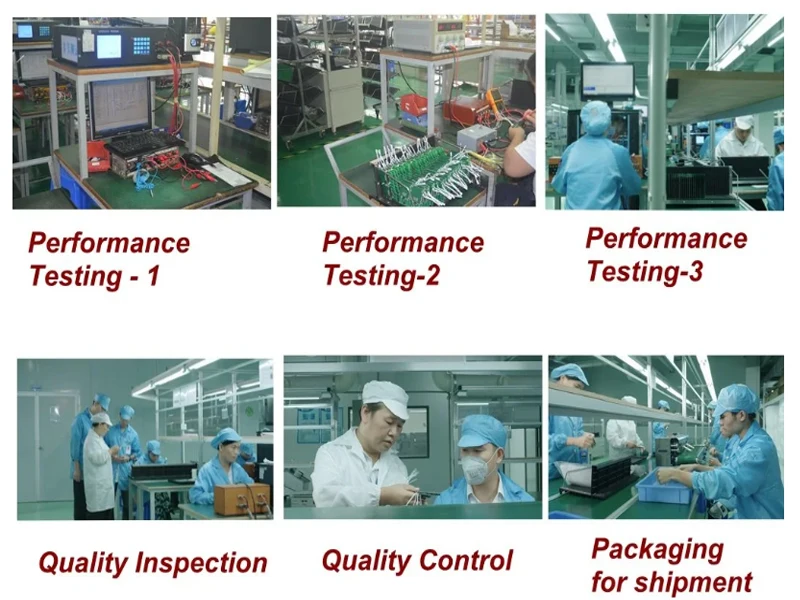

- Own large manufacturing areas and professional testing equipment;
- Can provide UN38.3/MSDS/CE/SGS/ISO report;
- Have office in USA and Japan for local customers knowing more about us.

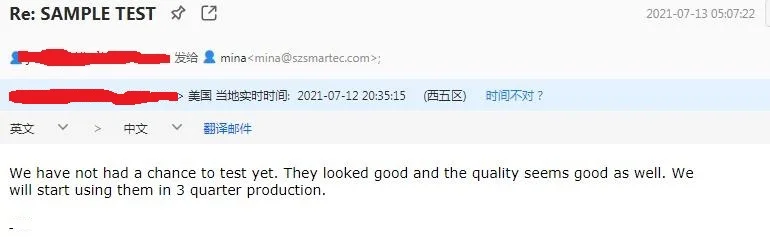

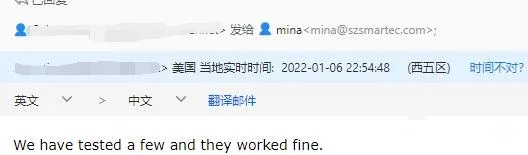

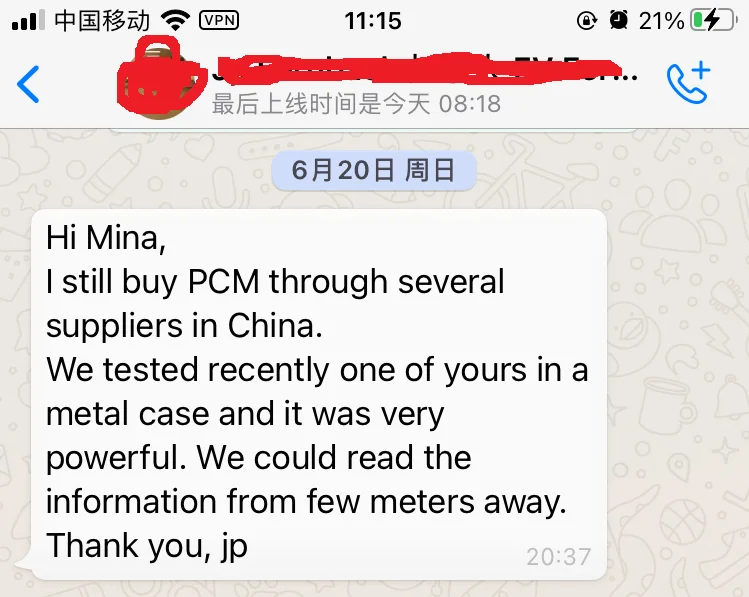

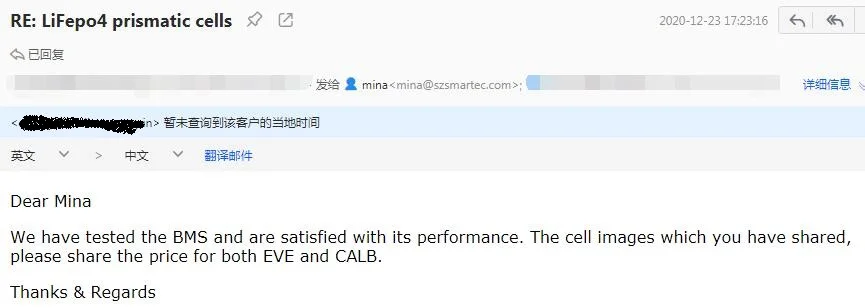

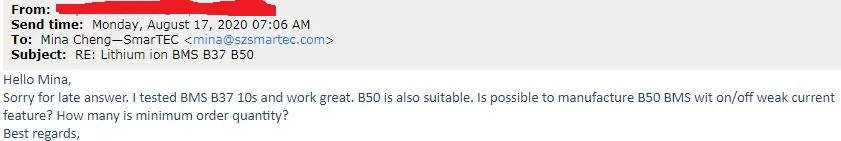

Feedback
