Cerelac Milk Kava Washing Powder Three Four Side Sealing Weighing Packing Machine For Pillow Bag
- Category: >>>
- Supplier: Shanghai Yulan Packing Equipment Co. Ltd.
Share on (1600434310982):
Product Overview
Description
Product Description
Robust, flexible and powerful.
For powder,liquid,paste,granule,dried fruits, cereals or short cut pasta – the machine ensures a product specific handling and economical packaging of lumpy,granulated or powdery products.
Modular and flexible.
The VFFS modular construction ensures that you are well prepared for future packaging requirements, trends in pack designs or new packaging materials. The wide variety of formats, along with the ability to process all kinds of mono or laminated film materials, and the flexible equipment allow the production of a wide range of bag shapes and sizes.
For powder,liquid,paste,granule,dried fruits, cereals or short cut pasta – the machine ensures a product specific handling and economical packaging of lumpy,granulated or powdery products.
Modular and flexible.
The VFFS modular construction ensures that you are well prepared for future packaging requirements, trends in pack designs or new packaging materials. The wide variety of formats, along with the ability to process all kinds of mono or laminated film materials, and the flexible equipment allow the production of a wide range of bag shapes and sizes.
Technical Data
Machine model | YCL-YL-420 |
Machine voltage | 110V/220V/380V 50-60HZ |
Suitable film | OPP/CPP OPP/PE NILO PE |
Filling range | 50-500g(offer different filling range) |
Package speed | 5-60bags/min |
Size of package bags | (W)80-200mm * (L)80-300mm |
Sealing method | Back side/Three sides/Four sides(Customize) |
Filling accuracy | ≤0.3-1% |
Film thickness | 0.06-0.12mm |
Air Pressure | 0.65Mpa 0.7m³/min |
Lifting height | About 1200mm |
Conveying speed | 50-300mm/s(adjustable) |
Machine size | (L)1650mm*(W)1300mm*(H)2600mm |
Machine weight | 550kg |
Note | * Gusset fold. Subject to technical changes. Performance data in dependence of product and packaging material. |
Bag Style

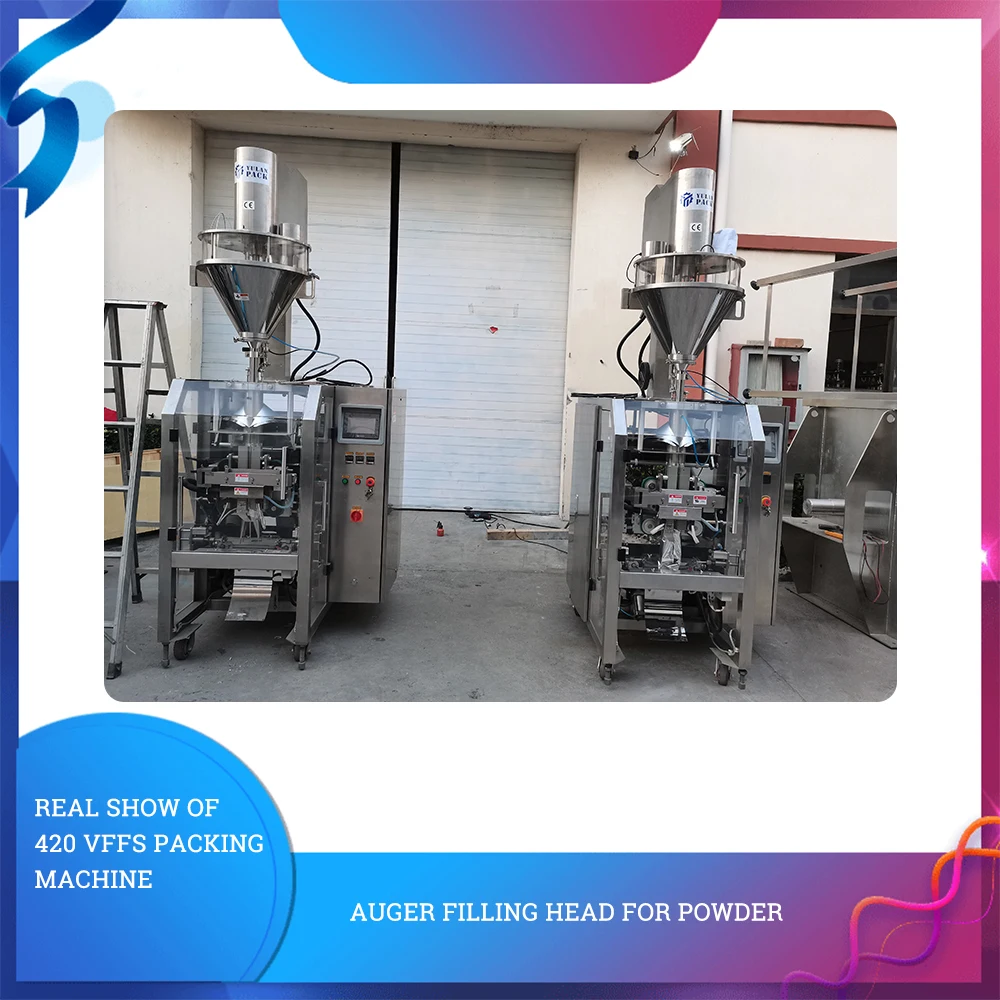

Product Show
Intuitive HMI display
Simple control panel,it can adjust the working parameter like the temperature and sealing time easily.It can be customized in
different kinds of language according to operation needs.
different kinds of language according to operation needs.
Bag former
Packing film enters to bag former, realizing nice and neat packaging performance. With user friendly design, it is easy to change the bag former ffor different film width.
Vertical sealing
Cylinder control Vertical sealing assembly, with independent temperature control， realizing precise and nice sealing appearance.

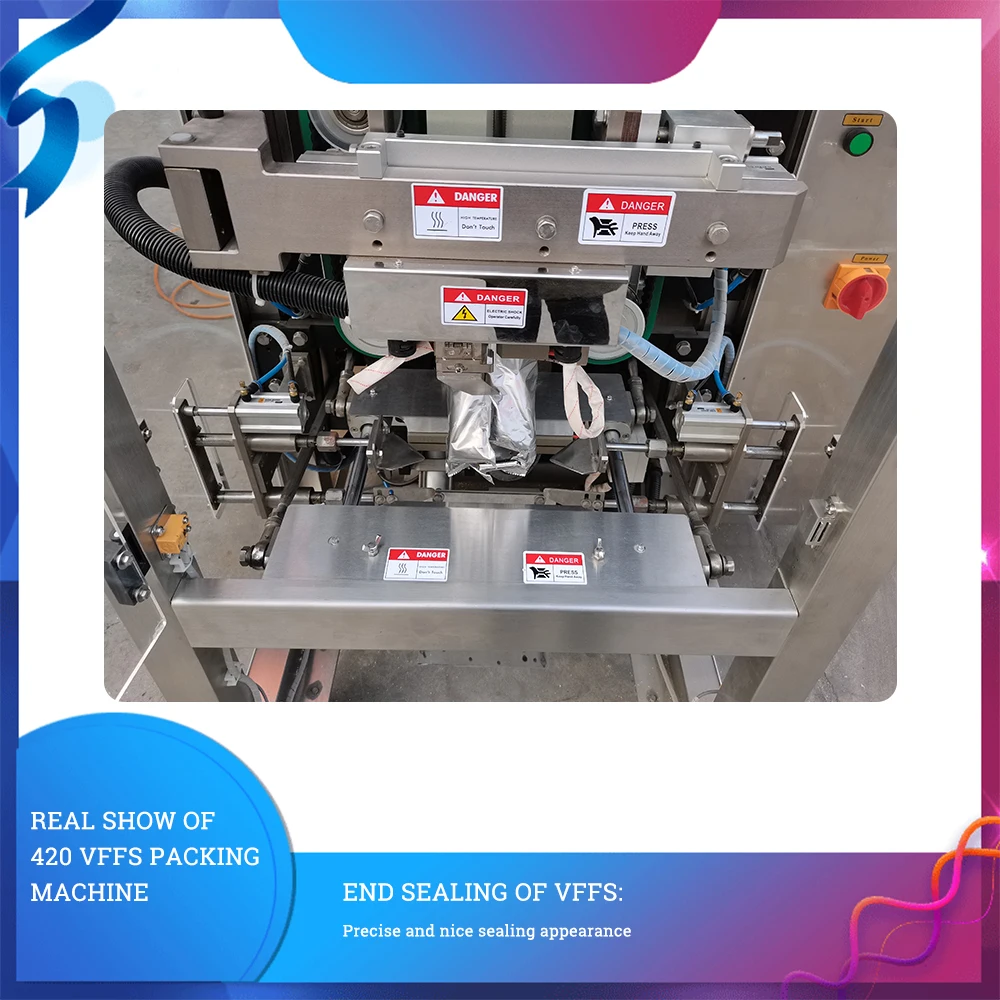

Horizontal sealing
Servo control end sealing jaws move in open-close motion, with independent temperature control. Heated sealing jaws will make top seal of one bag and bottom seal of next bag at the same time. Then Finished pillow bag will be discharged
Date coder
Equipped with date coder,it can print production date or batch number as operation need.We also offer multiple colors of
ribbon,please contact us if you need this.
ribbon,please contact us if you need this.

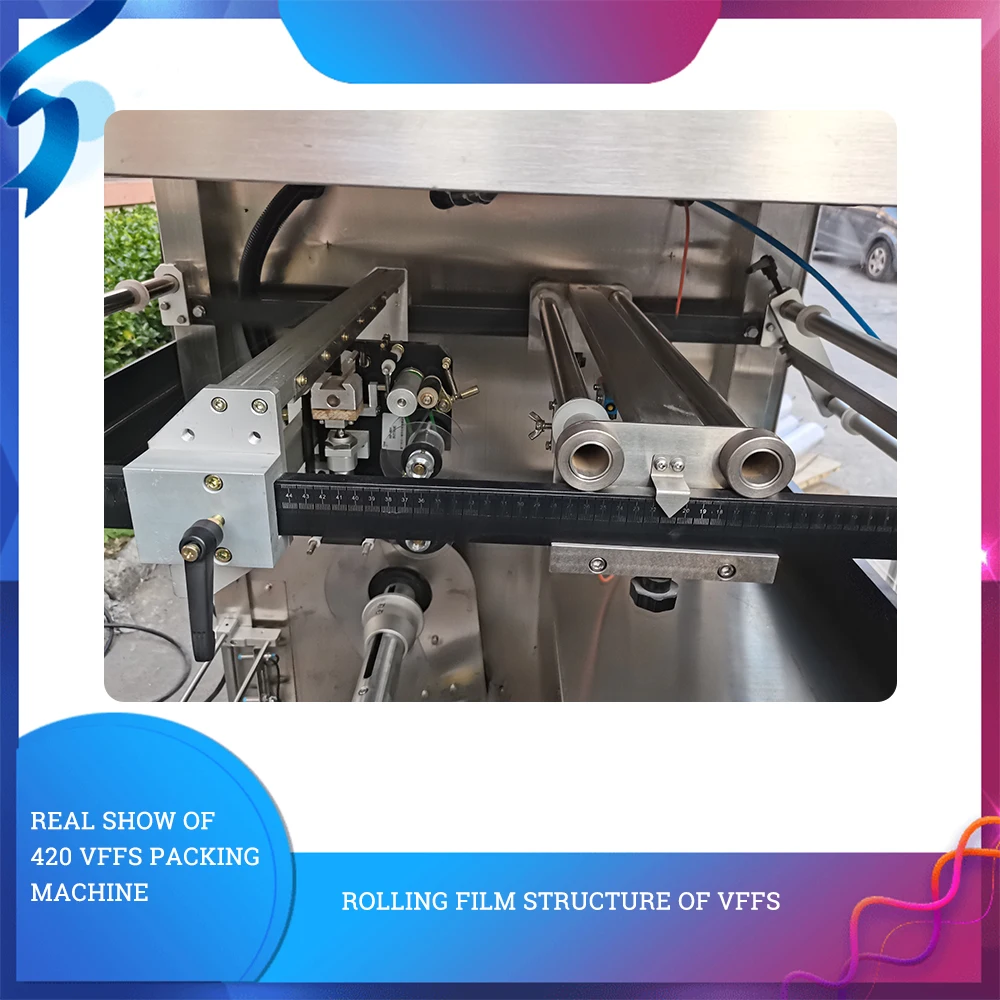

Film loader
Servo film-pulling and film-loading assembly, with dancing arm moves up and down, realizing dynamic control of the film tension.
Film travels above eye mark sensor, realizing precise film tracking and positioning.
Film travels above eye mark sensor, realizing precise film tracking and positioning.

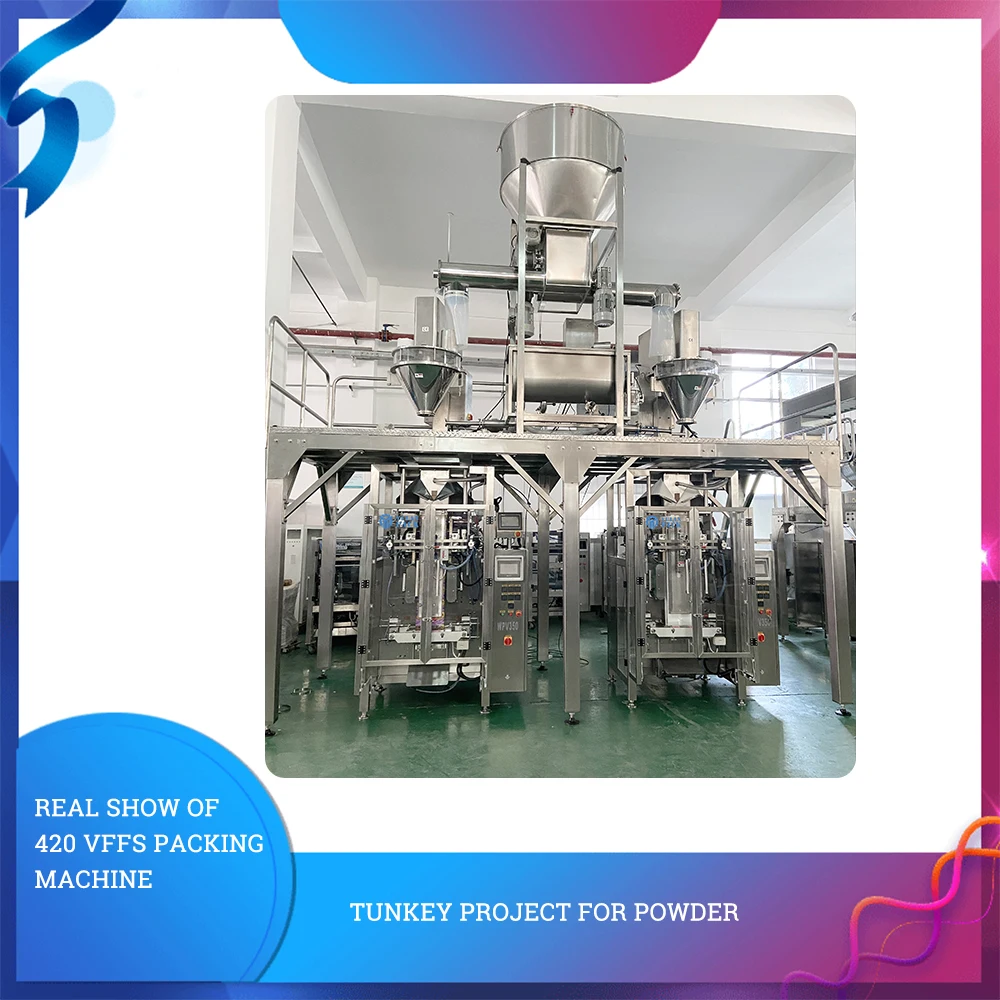

Turnkey System
Company Profile
1.Factory Show
2.Certificate
3.Customer Voice
4.Our Service
After- Sales Service
Training services: | We will train your engineer to install our machine. You can send your engineer to our factory . We will introduce your engineer how to install the machine and how to fix problem. |
Trouble shooting service: | Usually we will help you solve the problem quickly. Some times if you can not fix the problem in your country, we will send our engineer there if you need us to support. Of course,you need to afford the round trip flight ticket and accommodation fee. |
Spare Parts replacement: | For machine in guarantee period, if spare part broken, we will send you the parts free and we will pay the express fee. And please send us the spare partsback. when machine is out of guarantee period, we will provide you the spare parts in cost price. |
FAQ
Q | Are you factory or trading company? |
A | We have two Yulan brand companies. Shanghai Yulan is a trading company for export trade Nantong Yulan is a factory for processing and production equipment. You can check these details in our CE certificate. |
Q | Can i visit your factory? |
A | Yes,you are always welcomed. |
Q | What's your warrantly and after-sale service? |
A | One year warrantly and lifelong after-sale service via skype/email/mobile/whatsapp. |
Q | What's the payment term? |
A | 30% T/T despoit and 70% T/T balance payment before shipping. |
Q | How long it takes for delivery? |
A | It takes about 20-40 working days. |
